Unlocking Precision: Dive into Adapter Sleeves Mastery
Table of Contents
Introduction
In the realm of machinery, where precision is the heartbeat of optimal performance, there exists an unsung hero: the adapter sleeve. This diminutive yet crucial component plays a pivotal role in ensuring a seamless fit within machinery, a function often overlooked in the broader discourse of industrial components. In this exploration, we embark on a journey into the intricate world of Adapter Sleeves Mastery. By unraveling the key components, applications, and future trends that shape the machinery landscape, we aim to shine a spotlight on the profound impact of adapter sleeves in the grand orchestration of mechanical precision.

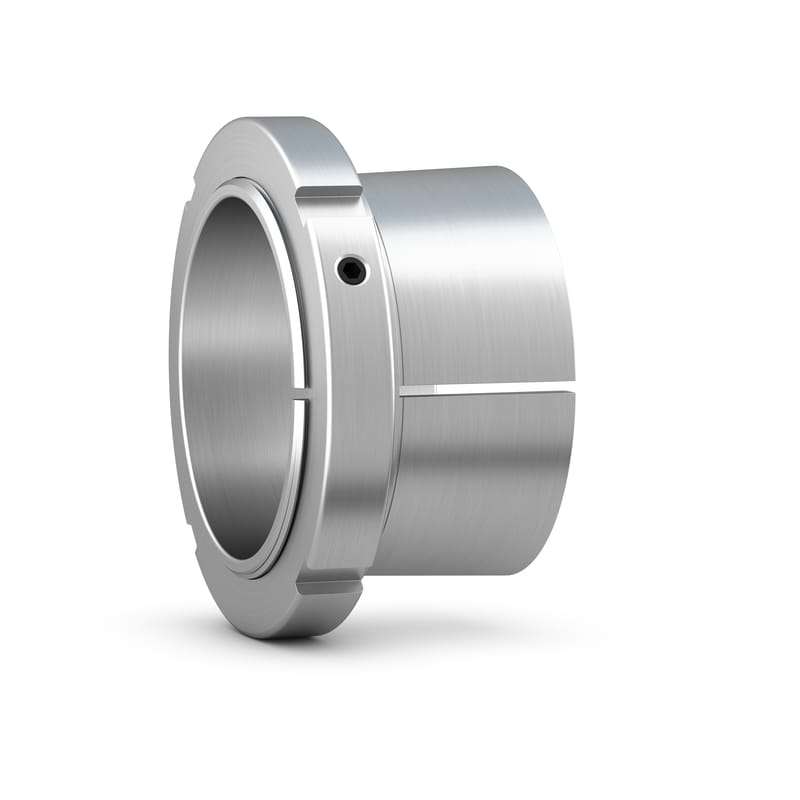

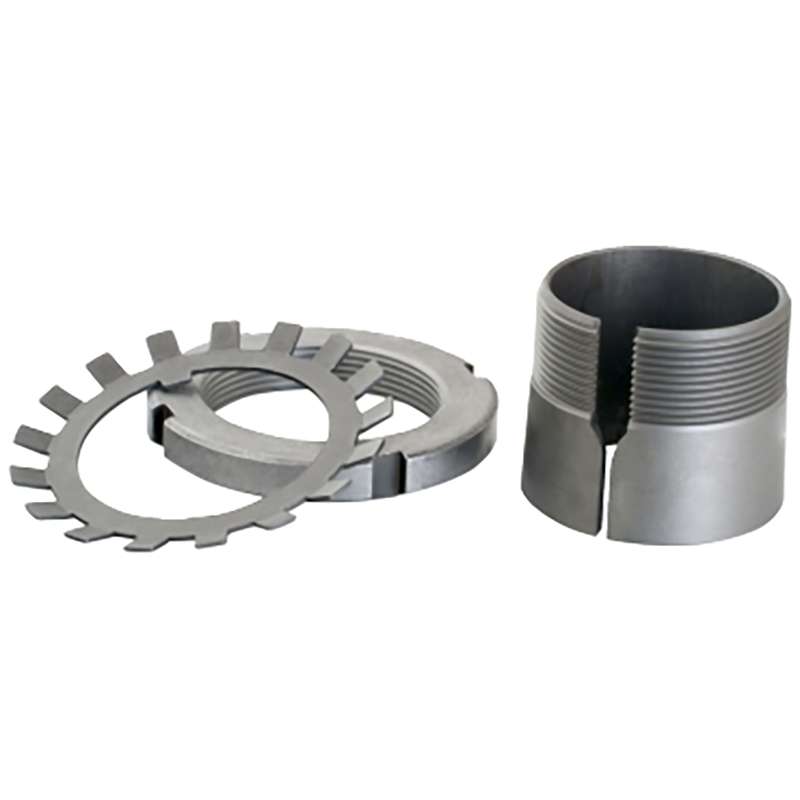

The Basics of Adapter Sleeves
At its fundamental core, an adapter sleeve is a nuanced and meticulously designed component aimed at facilitating a seamless and robust fit within machinery. This unassuming yet indispensable piece is crafted with precision, and its role goes beyond mere functionality; it contributes significantly to the overall efficiency and durability of machinery. Understanding the essence of adapter sleeves involves delving into their purpose and the array of materials intricately woven into their composition, forming the bedrock for a deeper exploration of their significance in the world of engineering marvels.
Sizing Matters
How to Select the Right Size for Your Application
Selecting the right adapter sleeve size for your application involves understanding the dimensions of the components involved and ensuring a proper fit. Adapter sleeves are used to mount bearings with a tapered bore onto cylindrical shafts. Here’s a step-by-step guide to help you select the right adapter sleeve size:
Understand Your Components: Identify the tapered bore diameter of the bearing you are using. This information is typically provided by the bearing manufacturer and is crucial for selecting the right adapter sleeve.
Determine Shaft Size: Measure the diameter of the shaft onto which you will be mounting the bearing. Ensure that this measurement matches the adapter sleeve’s specifications.
Check Taper and Dimensions: Verify that the taper of the adapter sleeve matches the taper of the bearing. Common tapers include 1:12 and 1:30. The dimensions of the adapter sleeve should also be considered, including the outside diameter and length.
Consider Shaft Tolerance: Check the tolerance of your shaft. The adapter sleeve and the shaft must have compatible tolerances for a proper fit. The appropriate tolerances can be found in international standards or provided by the sleeve manufacturer.
Load and Speed Ratings: Consider the load and speed ratings of the bearing and adapter sleeve. Ensure that they meet the requirements of your application. This information is typically available in the product documentation.
Choose the Material: Adapter sleeves are commonly made of steel. However, depending on your application, you might need a corrosion-resistant or high-strength material. Consider the environmental conditions and requirements.
Consult Manufacturer’s Documentation: Refer to the documentation provided by the bearing and adapter sleeve manufacturers. They often provide detailed information on compatibility and selection criteria.
Application-Specific Factors: Consider any specific factors related to your application, such as temperature, environmental conditions, and required precision. Some applications may have unique requirements that influence the choice of adapter sleeve.
Expert Advice: If you are unsure or if your application has unique requirements, consult with the bearing or adapter sleeve manufacturer. They can provide guidance based on their expertise and experience.
Double-Check: Before finalizing your selection, double-check all the dimensions, tolerances, and specifications to ensure a precise fit.
Importance of Precision in Sizing
Bearing Alignment: Precise sizing of adapter sleeves is crucial for achieving accurate bearing alignment. Proper alignment ensures that the load is evenly distributed across the bearing, reducing the risk of premature wear and extending the bearing’s lifespan.
Reduction of Vibration and Noise: When adapter sleeves are precisely sized, they help minimize vibration and noise in rotating machinery. A precise fit between the sleeve and the shaft reduces the likelihood of imbalance or misalignment, contributing to a smoother and quieter operation.
Prevention of Shaft Damage: Accurate sizing prevents damage to the shaft and other components. If the adapter sleeve is too loose or too tight, it can lead to fretting corrosion, scoring, or other forms of damage to the shaft, affecting the overall integrity of the system.
Enhanced Load Distribution: Precision in sizing ensures optimal load distribution between the adapter sleeve and the shaft. This is particularly important in heavy-duty applications where uneven loads can lead to stress concentrations, compromising the structural integrity of the components.
Facilitation of Installation: Adapter sleeves with precise sizing facilitate easier and more accurate installation. This is essential for maintenance and replacement activities, as well as during the initial assembly of machinery. Proper sizing minimizes the need for adjustments and ensures a smooth installation process.
Compatibility with Industry Standards: Precise sizing aligns adapter sleeves with industry standards and specifications. This compatibility is essential for interchangeability, allowing manufacturers and users to confidently select components from different sources, knowing that they will fit together seamlessly.
In summary, precision in sizing for adapter sleeves is critical for achieving proper bearing alignment, reducing vibration and noise, preventing damage to shafts, enhancing load distribution, facilitating installation, and ensuring compatibility with industry standards. These factors collectively contribute to the reliable and efficient operation of machinery and systems in various applications.
Maintenance and Care
Extending Lifespan: Tips for Maintenance
Regular Inspection: Perform regular visual inspections of the adapter sleeves to check for signs of wear, corrosion, or damage. Inspect the fit between the sleeve, bearing, and shaft to ensure there are no issues affecting the alignment.
Proper Lubrication: Ensure that the adapter sleeves are adequately lubricated. Lubrication helps reduce friction, prevents corrosion, and promotes smooth operation. Follow the manufacturer’s recommendations for the type and amount of lubricant to use.
Tightening Torque: During installation and maintenance, adhere to the recommended tightening torque specified by the manufacturer. Over-tightening or under-tightening can lead to issues such as misalignment, premature wear, and reduced performance.
Temperature Monitoring: Monitor the operating temperature of the adapter sleeves. Elevated temperatures may indicate excessive friction or insufficient lubrication. Address any issues promptly to prevent damage to the sleeves and associated components.
Alignment Checks: Periodically check and, if necessary, readjust the alignment of the adapter sleeves. Misalignment can lead to uneven loads, increased wear, and reduced bearing life. Proper alignment contributes to the overall reliability and efficiency of the system.
Signs of Wear and When to Replace
Adapter sleeves play a crucial role in mounting bearings onto shafts, and signs of wear can impact the performance and reliability of the entire system. Here’s a brief introduction to the signs of wear on adapter sleeves and when it’s time to consider replacement:
Visual Inspection: Perform regular visual inspections for any visible signs of wear, such as scoring, pitting, or corrosion on the surface of the adapter sleeve. Pay attention to changes in color or texture that may indicate degradation.
Fit and Alignment Issues: If there are difficulties in achieving or maintaining proper alignment between the bearing, adapter sleeve, and shaft, it could be a sign of wear. Misalignment can lead to increased friction, vibration, and premature wear on the components.
Looseness or Play: Excessive looseness or play in the fit between the adapter sleeve and the shaft may suggest wear. This can result in reduced stability and can adversely affect the performance of the mounted bearing.
Increased Operating Temperature: Monitor the operating temperature of the adapter sleeve during regular operation. A noticeable increase in temperature may indicate excessive friction, possibly due to wear. Elevated temperatures can accelerate wear and reduce the overall lifespan of the sleeve.
Reduced Performance: If there’s a decline in the performance of the bearing or the entire system, it may be an indication that the adapter sleeve is experiencing wear. Reduced performance can manifest as increased noise, vibration, or diminished load-carrying capacity.
When to Replace:
Visible Damage: If there are visible signs of damage, such as deep grooves, cracks, or severe corrosion, it’s advisable to replace the adapter sleeve to ensure the continued reliability of the assembly.
Failure to Achieve Proper Alignment: If repeated attempts to achieve and maintain proper alignment are unsuccessful, it may indicate that the adapter sleeve has worn beyond acceptable tolerances, necessitating replacement.
Excessive Looseness: If there is noticeable play or looseness in the fit between the adapter sleeve and the shaft, replacement is recommended to prevent further deterioration and potential failure.
Significant Temperature Increase: A consistent and significant increase in operating temperature, even after proper lubrication and alignment adjustments, may signal wear that requires addressing through replacement.
Manufacturer’s Recommendations: Follow the manufacturer’s guidelines for the expected lifespan of the adapter sleeve. If the sleeve has surpassed its recommended service life or if wear is accelerated due to harsh operating conditions, replacement is advisable.
Sealing Solutions
Sealing options for adapter sleeves play a crucial role in protecting bearing assemblies from contaminants, preventing lubricant leakage, and ensuring optimal performance and reliability. Here are common sealing solutions for adapter sleeves, along with their characteristics:
Standard End Caps: Simple, often metal or plastic caps that cover the end of the adapter sleeve. They provide basic protection against dust, dirt, and debris.
Labyrinth Seals: Consist of a series of closely spaced fins or ridges on the adapter sleeve, creating a tortuous path for contaminants. Effective in moderate contamination environments.
Felt Seals: Made of absorbent material, such as wool felt, designed to retain lubricants and block contaminants. Effective in moderate to low contamination environments.
Rubber or Nitrile Seals: Provide a more effective barrier against contaminants and are resistant to various chemicals and oils. Suitable for applications where a higher level of protection is required.
V-Ring Seals: Flexible rubber or elastomeric seals that fit onto the adapter sleeve, providing effective sealing against dust and liquids. Versatile and suitable for a range of applications.
Molded Seals: Precision-molded to fit the specific geometry of the adapter sleeve, offering a high level of protection against contaminants. Designed to withstand harsh environmental conditions.
When selecting a sealing option for adapter sleeves, factors such as the operating environment, contamination levels, and required sealing performance should be considered. Regular inspection and maintenance of the seals are also essential to ensure continued effectiveness and the long-term reliability of the bearing assembly.
Future Trends
Innovations in Adapter Sleeves Technology
Material Advancements: Ongoing research into new materials with improved strength, corrosion resistance, and durability could lead to innovative adapter sleeve designs. Materials engineered for specific applications or extreme conditions may become more prevalent.
Integrated Sealing Systems: Innovations in sealing technologies may lead to adapter sleeves with integrated and highly effective sealing systems. Enhanced seals could provide better protection against contaminants and improve overall reliability.
Smart and Condition Monitoring Features: Integration of sensors and smart technologies into adapter sleeves could allow for real-time monitoring of conditions such as temperature, vibration, and wear. This data can be used for predictive maintenance, reducing downtime and optimizing performance.
Customization and 3D Printing: Advances in manufacturing technologies, including 3D printing, may enable more customized adapter sleeves tailored to specific applications. This could result in more efficient and precise designs that meet the unique requirements of different industries.
Advanced Coating Technologies: Coating technologies that enhance the surface properties of adapter sleeves, such as increased hardness, reduced friction, or improved corrosion resistance, could contribute to longer service life and improved performance.
Environmental Sustainability: Innovations in materials and manufacturing processes may focus on sustainability, resulting in adapter sleeves with reduced environmental impact. This could include the use of recycled materials, environmentally friendly coatings, or manufacturing processes with lower energy consumption.
It’s recommended to consult industry publications, attend conferences, or reach out to manufacturers for the most up-to-date information on innovations in adapter sleeve technology.
Conclusion
In summary, the article delves into the often overlooked yet critical world of adapter sleeves, highlighting their nuanced design, sizing considerations, and maintenance practices. Precise sizing is emphasized for optimal bearing alignment, reduced vibration, and prevention of damage. Maintenance tips, recognizing signs of wear, and knowing when to replace sleeves contribute to prolonged lifespan and reliable performance. Sealing solutions add another layer of protection, and future trends, including material advancements and smart monitoring features, promise continued innovation. The adapter sleeve, a silent hero in machinery, underscores the synergy of engineering excellence and functionality, playing a pivotal role in ensuring precision and efficiency in mechanical systems.
