Understanding Backing Bearings: Essential Components For Heavy-Duty Machinery
Introduction
In various heavy machinery in modern industry, backing bearings are specially designed to withstand high loads and complex movements. They are key components to ensure stable mechanical structures, high efficiency and long life. From steel manufacturing to paper production to wind power generation, backing bearings are widely used and their performance directly affects the efficiency and reliability of the entire mechanical system. This article provides an in-depth understanding of the various aspects of backing bearings, hoping to help you make more informed decisions, optimize mechanical design and improve overall work efficiency when facing complex industrial challenges.

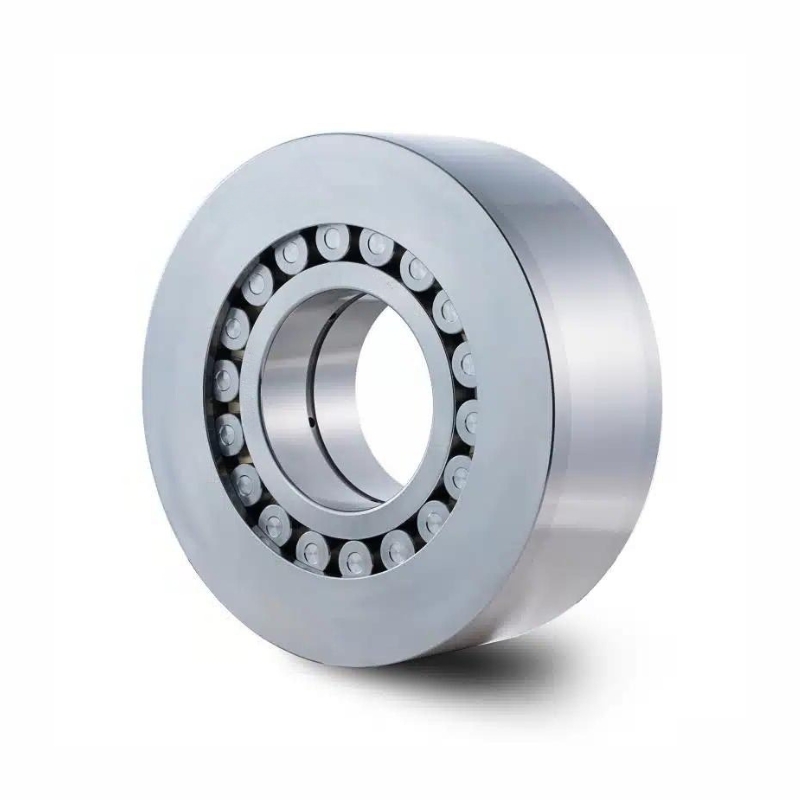

What Are Backing Bearings?
Backing bearings are a specialized type of bearing designed to support and position rolling elements under heavy load and high-speed conditions, commonly found in rolling mills and other heavy-duty machinery. These bearings are engineered to withstand axial loads, ensuring smooth and precise movement of rolling bodies such as drums or plates. The primary function of backing bearings is to provide stable support surfaces, reduce friction and wear, thereby enhancing mechanical efficiency and extending the lifespan of the equipment.
Common Structural Types Of Backing Bearings
Backing bearings are essential in various industrial applications, particularly in supporting cylindrical rollers in multi-roll mills. Here are three common structural types of backing bearings:
Single Row Backing Bearings
These are the simplest form of backing bearings, consisting of a single row of rolling elements.
offers ease of installation and maintenance. Generally more cost-effective.

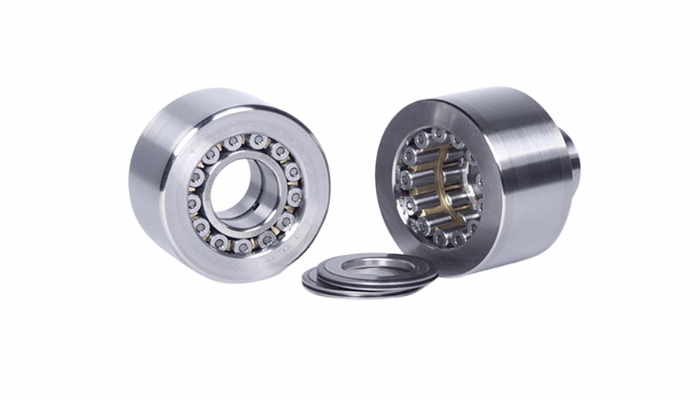

Double Row Backing Bearings
This type features two rows of rolling elements, which can handle greater radial and axial loads.
They provide better stability and durability.

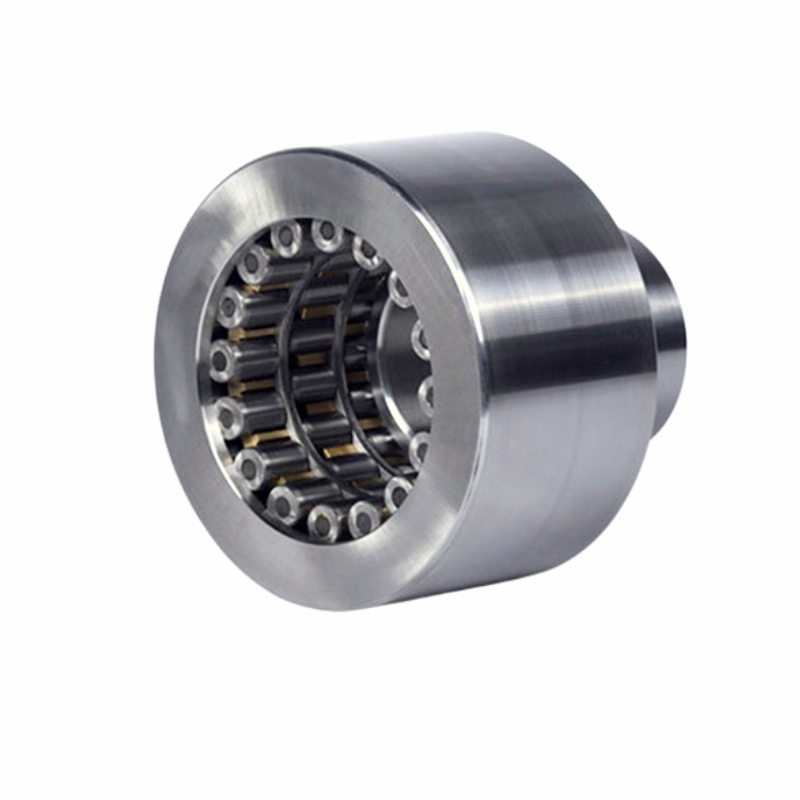

Multi-Row Backing Bearings
These bearings include three or more rows of rolling elements, significantly increasing the load-bearing capacity.
commonly used in heavy-duty applications with extremely high load requirements, such as in large rolling mills.
Can providing superior support and stiffness.
Materials Used In Backing Bearings
Steel Back Bearings
- Steel is the traditional material used in back bearings, offering high strength and durability. Steel bearings can carry large loads and are resistant to wear, making them suitable for heavy-duty machinery.
Ceramic Back Bearings
- Ceramic back bearings are typically made of materials such as silicon nitride, which are lightweight and harder, making them less susceptible to thermal expansion, which improves their accuracy at varying operating temperatures. In addition, ceramic bearings are highly resistant to corrosion and wear, making them ideal for applications that require high cleanliness and low maintenance.
Hybrid Back Bearings
- Hybrid back bearings combine the best attributes of steel and ceramic bearings. They are typically composed of steel rings and ceramic rolling elements. The steel rings provide toughness and load-carrying capacity, while the ceramic balls or rollers provide reduced friction, reduced weight, and increased wear resistance.
Each of these materials offers distinct advantages, making them suitable for different applications within heavy-duty machinery.
Advantages Of Backing Bearings
- Designed to withstand high radial and axial loads with high load capacity.
- Made from robust materials, offering greater durability and wear resistance.
- Due to its durability and robustness, it requires less maintenance, reducing maintenance costs.
- Versatility in applications, capable of performing under varying operational conditions and loads.
- Backing bearings can be customized to meet specific application needs, providing flexibility.
- Maintains its performance characteristics even at high temperatures, exhibiting thermal stability.
What Are The Different Types Of Backing Bearings?
Backing bearings come in various shapes and designs, each tailored to meet specific operational needs in different industrial applications. such as:

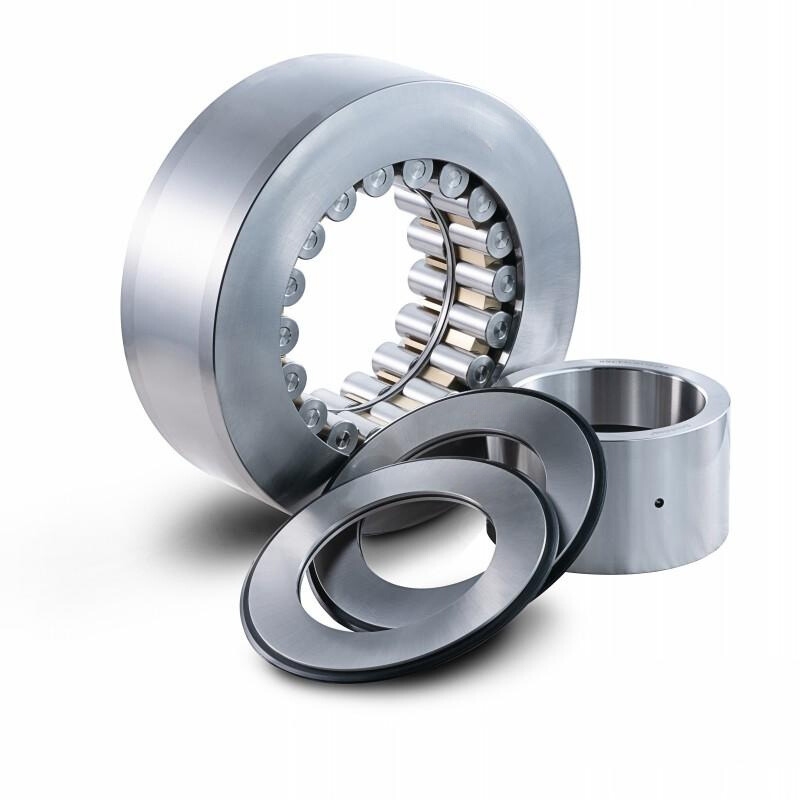

1. Cylindrical Backing Bearings
Cylindrical backing bearings feature a simple design with cylindrical rollers arranged between the inner and outer rings.
Commonly used in rolling mills and other machinery where heavy radial loads and minimal axial movements are prevalent.
2. Tapered Backing Bearings
Tapered backing bearings consist of tapered rollers arranged between tapered inner and outer ring raceways. The taper angles allow these bearings to handle combinations of radial and axial loads simultaneously.
Ideal for use in positions that require support for both radial and axial forces, such as in gearboxes and drive shafts in heavy machinery.
3. Spherical Backing Bearings
Spherical backing bearings are equipped with barrel-shaped rollers between spherical inner and outer ring raceways.
Particularly useful in applications where shaft alignment is a challenge or where the shaft may experience significant deflections under load, such as in conveyors and heavy-duty processing equipment.
4. Special Purpose Backing Bearings
Special-purpose backing bearings are custom-designed to meet unique operational demands that standard bearings cannot fulfill.
These bearings are typically used in highly specialized machinery where standard bearing solutions do not provide the necessary performance, such as in aerospace, military, or advanced research applications.
The Role Of Backing Bearings In Heavy-Duty Machinery
Backing bearings play an indispensable role in heavy-duty machinery, primarily by providing robust support and stability required for smooth and efficient operations. These bearings are crucial for distributing loads evenly across their surface, significantly reducing the incidence of stress concentrations that can lead to premature wear or failure. This functionality is particularly important in machinery that handles high radial loads, such as rolling mills and paper processing equipment, where consistent performance and durability are paramount. Additionally, backing bearings are adept at accommodating misalignments that might occur due to irregular loading or installation inaccuracies, thus ensuring that machinery continues to operate efficiently without undue strain on other components. Their ability to withstand high temperatures and adverse conditions also contributes to their effectiveness in maintaining machinery performance in challenging environments. By enhancing the reliability, precision, and longevity of heavy-duty machinery, backing bearings not only improve operational efficiency but also contribute to reducing maintenance costs and downtime, thereby supporting continuous production processes and overall business profitability.
Factors To Consider When Selecting A Backing Bearing
When selecting a backing bearing, several key factors must be considered to ensure optimal performance and longevity of the bearing in its specific application:
Load Requirements: Understand the magnitude and type of loads (radial, axial, or combined) the bearing will need to support.
Speed Requirements: Consider the operational speed of the machinery. Higher speeds may require bearings with better lubrication features and heat dissipation capabilities.
Misalignment Tolerance: Evaluate the potential for misalignment in the machinery. Bearings like spherical backing bearings are suitable for applications where misalignment might occur.
Environmental Conditions: Assess the working environment, including temperature extremes, presence of corrosive substances, or contamination risks.
Space and Size Constraints: Factor in the physical space available for the bearing. This will affect the size and type of bearing that can be accommodated.
Maintenance and Accessibility: Consider how easily the bearings can be accessed for maintenance and replacement.
Cost-Effectiveness: Analyze the cost implications of different bearing options.
Main Applications Of Backing Bearings
- Rolling Mills: extensively used in the steel and aluminum industry, particularly in cold and hot rolling mills.
- Paper Manufacturing: used in paper-making machines, which press, form, and dry the paper.
- Printing Machinery: used in printing presses.
- Textile Machinery: Backing bearings support the rollers in textile machines that are involved in processes such as weaving and finishing.
- Plastic and Rubber Manufacturing: used in machines that roll out and shape plastic and rubber materials.
- Conveyor Systems: used to support the rollers that help move large volumes of goods or materials.
Comparative Analysis: Backing Bearings Vs. Traditional Roller Bearings
Backing bearings and traditional roller bearings（Such as cylindrical roller bearings） both serve the fundamental purpose of reducing friction and supporting loads, but they cater to different operational needs. Backing bearings are specifically designed for applications that involve high radial loads and require precision and stability, such as in rolling mills or heavy-duty conveyors. These bearings are typically larger, capable of distributing loads more evenly, and offer higher rigidity, which is crucial for maintaining the alignment and performance of large-scale industrial machinery.
On the other hand, traditional roller bearings are more versatile and can be used in a wider range of general applications, including automotive and industrial machinery. They come in various forms like cylindrical, tapered, and spherical, each designed to handle specific types of loads and misalignments. While traditional roller bearings are suitable for a broad range of applications, backing bearings are indispensable in scenarios demanding high durability and precise load management under extreme conditions. Thus, the choice between the two depends significantly on the specific requirements of the machinery and the operational environment.
Conclusion
As the core component of heavy machinery, the importance of backing bearings lies in ensuring the stability and efficiency of mechanical equipment when facing extreme loads and high-speed operations. Optimized for dispersing heavy loads, reducing wear and increasing overall machinery life, these bearings are integral to keeping heavy industrial production lines running smoothly. Through the discussion in this article, we understand that whether in steel manufacturing, paper processing or other industries that require precision and endurance, the application of backing bearings not only improves the efficiency of the production line, but also brings significant economic benefits to the enterprise. benefit. With the advancement of technology and the increase in industrial demand, the importance of backing bearings has become even more indispensable.
References
- 1. A brief overview of “backing bearings ”from AMERICAN ROLLER BEARINGS
- 2. A detailed explanation of the maintenance methods of” backing bearings” from BMC Bearing
