Ball Screws And Lead Screws: A Mechanical Controversy
Table of Contents
In this age of CNC, the heart of mechanical motion lies in the ball screw and leadscrew. As a key component in driving industrial progress, choosing the right screw is critical to the performance of a mechanical system. This article will take an in-depth look at ballscrews and leadscrews, leading readers into this battle of mechanical motion.

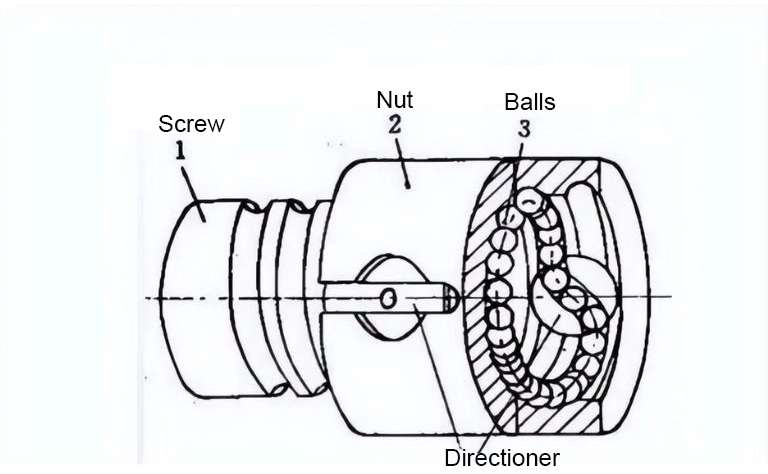

- Composition and components
1. Screw
The main structure, usually made of steel, is responsible for transmitting the movement force.
2. Balls
Spherical ball carries the load, reducing friction and increasing efficiency.
3. Guide rail
Surrounds the screw and supports the balls to ensure smooth movement.
4. Nut
The threaded structure, matching the screw, is responsible for converting rotary motion into linear motion.
5. End caps
Encloses the screw system, preventing the entry of dust and impurities and protecting the balls.
- Principle of operation
1. Rolling mechanism
When the screw rotates, the ball rotates with it and rolls along the guideway.
By rolling, the ball reduces friction and achieves efficient linear motion.
2. Threaded power transmission
The threads of the screw and the threads of the nut fit into each other.
When the screw rotates, the nut follows the rotation and moves along the screw.
3. High load carrying capacity
The spherical structure of the ball allows it to withstand high loads.
The materials used to manufacture the guide and screw are usually high-strength alloy steel.
4. High precision movement
The structure and mechanism of Ball Screws enable them to provide precise position control.
They are suitable for applications with high positional requirements, such as machine tools and automation systems.
5. Low friction and high efficiency
Rolling motion reduces sliding friction and increases system efficiency.
Ideal for applications requiring frequent motion and fast response.
Performance Comparisons
- Precision Motion
Examination of the accuracy of Ball Screws
High Precision Positioning: Ball Screws utilize a rolling mechanism that reduces friction and provides higher precision positioning.
Minimized return clearance: The rolling mechanism helps to minimize the return clearance, ensuring accurate movement.
In-depth guide screw accuracy analysis
Limited by Friction: Leadscrews rely on a sliding mechanism, which can be affected by friction and result in relatively low accuracy.
Return Gap Challenges: The sliding mechanism can lead to large return gaps that can affect positioning accuracy.
- Speed and efficiency
Ball Screws: responsive and smooth
Fast Response: The rolling mechanism reduces friction, making Ball Screws more suitable for high speed movements and frequent positioning.
High performance: The rolling mechanism improves the efficiency of energy conversion, allowing it to perform well under high load conditions.
Lead Screws: Balancing Speed and Accuracy
Moderate Speed: Higher friction may limit the speed of the leadscrew for low or medium speed applications.
Balanced Performance: In scenarios where a balance of speed and accuracy is required, the leadscrew still offers some performance advantages.
- Load Capacity Comparison
Ball Screws: for heavy-duty applications
High thrust loads: Ball Screws can effectively withstand high thrusts due to their rolling mechanism.
Advantage of load distribution: The construction of Ball Screws makes them more reliable when handling large and heavy loads.
Leadscrews: optimal load handling
Moderate loads: Leadscrews are suitable for normal loads and for applications where the load requirements are not particularly high.
Influence of pitch: The design of the pitch influences the load capacity of the leadscrew and needs to be selected according to the specific application.
Precision Is Essential
- Return Clearance Measurement
Tiny Return: The rolling mechanism of the Ball Screw reduces the return clearance, ensuring that there is virtually no perceived clearance in the direction of motion.
Improved Repeatability: The small return clearance contributes to improved repeatability, resulting in more accurate positioning in the same position. - Repeatability and Positioning Accuracy
High Repeatability: The rolling mechanism of the ballscrew ensures high repeatability of the system, resulting in consistent results for the same task.
Accurate Positioning: Ball Screws are a reliable choice for applications that require high positioning accuracy, ensuring the accuracy of the desired position.
Precision Considerations For Lead Screws
- Return clearance of the leadscrews
Relatively large: The lead screw utilizes a sliding mechanism with a relatively large return clearance, which can result in small gaps during positioning.
Positioning Challenges: For applications requiring very high positioning accuracy, additional engineering measures may be required to compensate for the return clearance. - Positioning Accuracy Challenges
Affected by Friction: The sliding mechanism can be affected by friction, which in turn affects positioning accuracy.
Suitable for general applications: For general applications where positioning accuracy is not critical, lead screws remain a cost-effective option.
Application Insights
Aerospace Industry
- Preferred Screw Type
Recommended Ball Screws: Ball Screws are often preferred in the aerospace industry where accuracy and high load capacity are often required.
High Reliability: The rolling mechanism ensures a high degree of reliability and accuracy to meet the complex requirements of aircraft components. - Key considerations for aircraft components
Lightweight design: Ball Screws have an advantage in lightweight design, contributing to the fuel efficiency of aircraft.
High Load Carrying Capacity: The high load carrying capacity of Ball Screws is especially important for components that are subjected to complex loads.
Manufacturing
- Impact on the production line
High Speed and Efficiency: Manufacturing lines often require high speed and efficient motion, and Ball Screws are better able to meet these requirements.
Accurate Positioning: For automated systems that require precise positioning, the high accuracy of Ball Screws will be even more prominent on the production line. - Selecting the Right Screw for the Assembly System
Tailored Requirements: Different assembly systems have different requirements for screw performance, and the right type needs to be selected for each situation.
Balance of cost and performance: Leadscrews may be more cost-effective in some general assembly systems, especially where performance needs are relatively low.
Conclusion
The future development of screw technology will benefit from the advancement of intelligent manufacturing and new materials, and ball screws may make greater breakthroughs in intelligence and material innovation. For lead screws, the introduction of new lubrication technologies and lightweight designs may make them more adaptable to future industrial needs. Emerging trends in mechanical design suggest that future screw systems may become part of a more modular, customized approach to better suit a variety of application scenarios. Ultimately, ball screws and leadscrews are likely to diversify and integrate innovations in future competition and development, and manufacturers and engineers will need to pay close attention to industry dynamics to make more informed choices.
