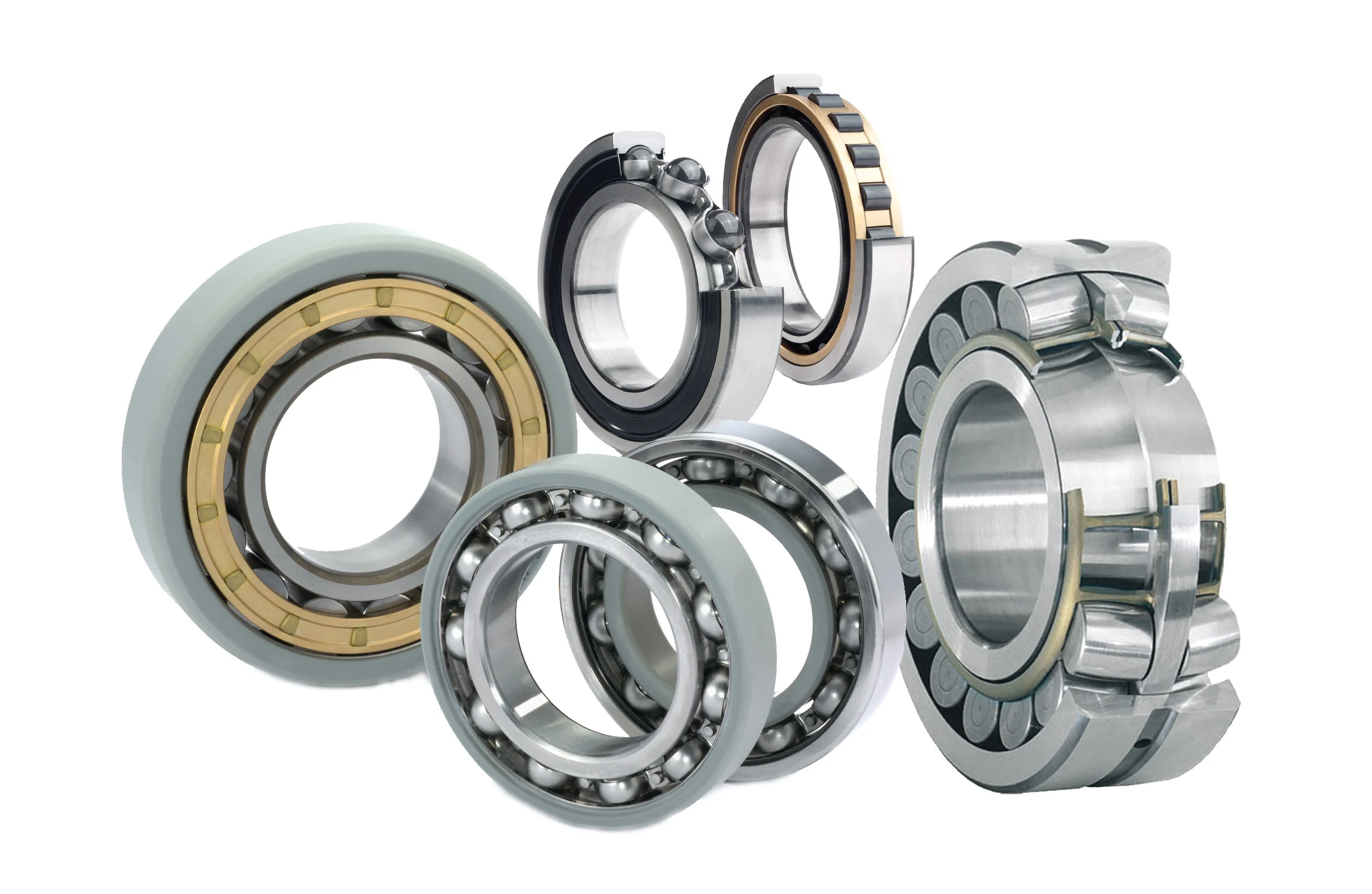

Bearing materials can be classified into several types based on their composition and application. The main categories include:
Metallic Bearing Materials
Chrome Steel (52100, GCr15) – Most common for rolling bearings, high hardness, wear-resistant.
Stainless Steel (440C, 304, 316, etc.) – Corrosion-resistant, used in marine and food industries.
Carbon Steel – Low-cost, used for low-load applications.
Tool Steel – High-strength, used in extreme load conditions.
Bronze Bearings – Good wear resistance and self-lubrication, often used in bushings.
Brass Bearings – Similar to bronze but with slightly lower strength.
Babbitt Alloy (White Metal) – Soft metal, used for sliding bearings in engines and turbines.
Non-Metallic Bearing Materials
Ceramic (Zirconia, Silicon Nitride, Alumina) – High-temperature resistance, non-magnetic, used in high-speed applications.
Polymers/Plastics (PTFE, Nylon, PEEK, UHMWPE, etc.) – Lightweight, corrosion-resistant, self-lubricating, used in medical and food applications.
Carbon/Graphite Bearings – Self-lubricating, used in extreme temperatures and chemical environments.
Here is a table comparing the advantages and disadvantages of different bearing materials:
| Material | Advantages | Disadvantages |
|---|---|---|
| Chrome Steel (52100, GCr15) | High hardness, wear resistance, cost-effective, widely available | Prone to rust and corrosion, requires lubrication |
| Stainless Steel (440C, 304, 316, etc.) | Corrosion-resistant, suitable for humid or marine environments | Lower hardness and wear resistance than chrome steel, more expensive |
| Carbon Steel | Low-cost, easy to machine | Low strength, poor wear resistance, short lifespan |
| Tool Steel | High strength, good toughness, wear-resistant | Expensive, requires proper heat treatment |
| Bronze | Self-lubricating, good wear resistance, corrosion-resistant | Softer than steel, not suitable for high-load applications |
| Brass | Corrosion-resistant, good machinability, lower friction | Lower strength and wear resistance than bronze |
| Babbitt Alloy (White Metal) | Excellent conformability, good for high-speed applications, embeds debris well | Soft material, not suitable for heavy loads |
| Ceramic (Zirconia, Silicon Nitride, Alumina) | High-speed capability, corrosion-resistant, non-magnetic, high-temperature resistance | Expensive, brittle, difficult to manufacture |
| Polymers/Plastics (PTFE, Nylon, PEEK, UHMWPE, etc.) | Lightweight, corrosion-resistant, self-lubricating, quiet operation | Low load capacity, can deform under high temperature or stress |
| Carbon/Graphite Bearings | Self-lubricating, can operate in extreme temperatures, chemical-resistant | Brittle, lower strength than metal bearings |
1. Introduction to Bearing Materials
1.1 Definition and Importance of Bearing Materials
Bearings are the unsung heroes of mechanical systems, facilitating smooth motion by reducing friction between moving parts. The material used in their construction plays a critical role in determining their lifespan, load-bearing capacity, and overall performance. Selecting the right bearing material ensures efficiency, reduces maintenance costs, and enhances the reliability of industrial machinery, automobiles, and aerospace components.
1.2 Factors Affecting Bearing Material Selection
Several key factors dictate the choice of bearing materials, including load capacity, operating speed, and environmental conditions. High-load applications require materials with superior hardness and fatigue resistance, while environments with high moisture or chemical exposure necessitate corrosion-resistant options. Temperature tolerance, lubrication requirements, and cost-effectiveness also influence the selection process, making it essential to weigh all variables before committing to a specific material.
1.3 Overview of Common Bearing Materials
Bearing materials can be broadly categorized into metallic and non-metallic types, each with its own set of advantages. Chrome steel and stainless steel dominate rolling bearing applications due to their durability, while bronze and Babbitt alloys are favored in sliding bearings for their self-lubricating properties. Ceramic and polymer bearings cater to specialized needs, offering lightweight, corrosion-resistant solutions for industries such as aerospace and food processing.
2. Metallic Bearing Materials
2.1 Characteristics of Metallic Bearings
Metallic bearings are prized for their high strength, wear resistance, and ability to withstand substantial loads and speeds. These materials often undergo specialized heat treatments to enhance hardness and longevity. While metallic bearings excel in high-stress environments, they generally require lubrication to minimize friction and prevent premature failure.
2.2 Advantages of Metallic Bearing Materials
One of the biggest advantages of metallic bearings is their exceptional load-carrying capacity, making them ideal for heavy-duty industrial applications. They also exhibit superior heat dissipation, preventing overheating during prolonged operation. Additionally, metallic bearings can be precision-machined to extremely tight tolerances, ensuring optimal performance in high-speed machinery.
2.3 Disadvantages of Metallic Bearing Materials
Despite their strengths, metallic bearings are not without drawbacks, primarily in the realm of corrosion susceptibility. Without proper protection, materials like chrome steel can degrade in humid or chemically harsh environments. Furthermore, metallic bearings tend to be heavier than their non-metallic counterparts, which can be a disadvantage in weight-sensitive applications like aerospace engineering.
3. Chrome Steel Bearings (52100, GCr15)
3.1 Composition and Properties
Chrome steel bearings, primarily composed of high-carbon chromium alloy, offer a unique combination of hardness, wear resistance, and fatigue strength. The addition of chromium enhances corrosion resistance to some extent, but these bearings still require proper lubrication and sealing in harsh environments. Their high hardness makes them well-suited for precision applications where dimensional stability is paramount.
3.2 Advantages and Disadvantages
The primary advantage of chrome steel bearings lies in their outstanding durability and ability to withstand heavy radial and axial loads. Their hardness ensures minimal wear, leading to extended service life under proper operating conditions. However, their susceptibility to corrosion limits their use in moisture-laden or chemically aggressive settings, necessitating protective coatings or alternative materials in such environments.
3.3 Common Applications
Chrome steel bearings are extensively used in high-speed machine tools, automotive components, and industrial gearboxes. They are the go-to choice for applications demanding superior load-bearing performance, such as robotics and heavy-duty conveyor systems. However, due to their need for regular lubrication, they are less suitable for maintenance-free or high-corrosion applications.
4. Stainless Steel Bearings (440C, 304, 316)
4.1 Corrosion Resistance and Strength
Stainless steel bearings are designed for environments where moisture, chemicals, or extreme temperatures pose challenges for standard chrome steel. Grades like 440C offer a balance of hardness and corrosion resistance, while 316 stainless steel provides excellent resistance to saltwater and acidic conditions. While not as hard as chrome steel, stainless steel bearings still provide adequate wear resistance for many demanding applications.
4.2 Pros and Cons Compared to Chrome Steel
The biggest advantage of stainless steel bearings over chrome steel is their ability to resist oxidation and rust, making them ideal for marine, food processing, and medical industries. However, they tend to be more expensive and slightly less durable under heavy loads due to their lower hardness. This trade-off must be carefully considered when selecting a bearing material for critical applications.
4.3 Industries and Uses
Stainless steel bearings are widely used in pharmaceutical equipment, food-grade machinery, and chemical processing plants where hygiene and corrosion resistance are top priorities. They are also found in marine propulsion systems, water treatment facilities, and outdoor applications exposed to harsh weather conditions. Their ability to withstand both moisture and high temperatures makes them an invaluable choice in specialized industries.
5. Carbon Steel Bearings
5.1 Cost-Effectiveness and Machinability
Carbon steel bearings provide an economical solution for low-load and moderate-speed applications. Their primary appeal lies in their ease of manufacturing and affordability, making them suitable for cost-sensitive projects. While they lack the high hardness of chrome steel, they can be case-hardened to improve wear resistance.
5.2 Limitations in High-Load Applications
The main drawback of carbon steel bearings is their relatively low strength and susceptibility to wear under heavy loads or high-speed conditions. They also lack significant corrosion resistance, requiring regular lubrication and protection against moisture exposure. As a result, they are best suited for light-duty applications rather than extreme industrial environments.
5.3 Common Industrial and Consumer Applications
Carbon steel bearings are commonly found in household appliances, low-cost conveyor systems, and agricultural machinery. They are also used in budget-friendly automotive components where performance requirements are not as stringent as in high-speed applications. Their affordability makes them a practical choice for products with limited operational demands.
6. Tool Steel Bearings
6.1 High-Strength and Wear Resistance Properties
Tool steel bearings stand out for their exceptional hardness and resistance to deformation, making them suitable for extreme-load applications. These bearings are designed to withstand impact forces and abrasive conditions, thanks to the presence of alloying elements like tungsten, molybdenum, and vanadium. Their robust nature ensures longevity in harsh industrial settings.
6.2 Heat Treatment Requirements
To achieve their high hardness and wear resistance, tool steel bearings undergo specialized heat treatments, such as oil quenching and cryogenic tempering. This process enhances their microstructure, allowing them to maintain performance under high stress. However, improper heat treatment can lead to brittleness, which must be carefully controlled during manufacturing.
6.3 Usage in Heavy-Duty Applications
Industries such as mining, metalworking, and heavy machinery manufacturing rely on tool steel bearings for their durability and load-bearing capabilities. They are particularly useful in applications where high levels of shock and vibration are present, such as hydraulic presses and rolling mills. Their superior wear resistance makes them indispensable in equipment exposed to constant friction and impact forces.
7. Bronze Bearings
7.1 Self-Lubrication and Durability
Bronze bearings are often lauded for their excellent self-lubricating properties, which significantly reduce the need for external lubricants in certain applications. Their unique microstructure allows for a smoother operation and better wear resistance, particularly in dry or harsh environments. This capability to run with minimal lubrication makes them a reliable choice in situations where oil or grease might not be readily available.
7.2 Strength vs. Steel Bearings
While bronze bearings cannot match the load capacity or strength of steel bearings, they offer sufficient durability for many moderate-load applications. They have a lower coefficient of friction compared to steel, which translates to smoother, quieter operations and longer lifespans in certain conditions. However, in terms of sheer strength, steel outperforms bronze, especially in high-load, high-speed applications.
7.3 Common Applications in Machinery
Bronze bearings are commonly found in applications like pumps, motors, and compressors, where moderate loads and low to medium speeds are typical. They’re also used extensively in marine environments, such as ship propellers and rudder bearings, where corrosion resistance and self-lubrication are essential. Their use in industrial machinery is widespread, particularly when maintenance and lubrication schedules are difficult to maintain.
8. Brass Bearings
8.1 Machinability and Corrosion Resistance
Brass bearings are favored for their excellent machinability and moderate corrosion resistance. Unlike bronze, brass offers a lighter weight and is easier to form into complex shapes, which is an advantage in some industrial applications. Although brass is not as durable as bronze or steel, it performs well in environments where corrosion resistance is necessary, but high strength is not a primary concern.
8.2 Performance Compared to Bronze Bearings
In comparison to bronze, brass bearings offer less wear resistance and load capacity. They are generally less suited for high-stress applications and are typically used in lighter-duty situations. However, the lower cost and easier machinability of brass make it an attractive option for certain markets, such as consumer electronics or small machinery.
8.3 Applications in Low-Load Environments
Brass bearings are commonly used in low-load environments such as clock mechanisms, light-duty motors, and small appliances. Their ability to withstand moderate wear while maintaining good corrosion resistance makes them ideal for precision instruments that require smooth, reliable operation without the need for high strength.
9. Babbitt Alloy (White Metal) Bearings
9.1 Unique Properties for High-Speed Applications
Babbitt alloy, often referred to as white metal, is an excellent material for high-speed bearing applications. Its soft, malleable nature allows it to conform to the shaft’s surface, minimizing wear and preventing metal-to-metal contact, which helps to reduce heat generation. This property is especially important in high-speed machinery such as turbines and engines, where smooth operation is crucial.
9.2 Softness and Load Capacity Limitations
While Babbitt alloy excels in terms of conformability and high-speed operation, it comes with the drawback of limited load-bearing capacity. The softness of the material means it can deform under heavy loads, making it unsuitable for heavy-duty applications. However, in many industries, its ability to accommodate debris and maintain a low coefficient of friction outweighs this limitation.
9.3 Usage in Automotive and Industrial Equipment
Babbitt bearings are primarily used in automotive engines, turbines, and large machinery where high-speed operation is a must. They are found in applications such as marine engines, electric motors, and compressors, where performance is critical, and the softer material allows for greater cushioning between moving parts. Their use is indispensable in systems where oil or grease lubrication is difficult to maintain consistently.
10. Non-Metallic Bearing Materials
10.1 Overview and Benefits of Non-Metallic Bearings
Non-metallic bearings, such as ceramic and polymer-based materials, offer unique advantages over traditional metallic bearings. They are typically lighter, more corrosion-resistant, and operate with less friction, making them suitable for specialized applications in high-speed or corrosive environments. These materials often eliminate the need for additional lubrication, reducing maintenance costs and improving efficiency.
10.2 Comparison with Metallic Bearings
When compared to metallic bearings, non-metallic bearings are often favored for their lower weight, corrosion resistance, and the ability to run in harsh or extreme environments. However, non-metallic bearings generally have lower load-bearing capacity and wear resistance than their metal counterparts. Therefore, the choice between metallic and non-metallic bearings depends heavily on the specific needs of the application, including load, speed, and environmental conditions.
10.3 Industries Benefiting from Non-Metallic Bearings
Non-metallic bearings are widely used in industries where weight reduction and corrosion resistance are paramount. They are common in the aerospace, medical, and food processing industries, where metal contamination must be avoided, or lubrication is difficult to maintain. These bearings are also frequently used in semiconductor manufacturing and optical equipment, where precision and cleanliness are critical.
11. Ceramic Bearings (Zirconia, Silicon Nitride, Alumina)
11.1 Properties and High-Speed Performance
Ceramic bearings, made from materials such as silicon nitride or zirconia, are renowned for their exceptional high-speed performance. They can withstand higher temperatures than traditional metal bearings, operate with lower friction, and are highly resistant to corrosion. These properties make them ideal for applications requiring precision and speed, such as in jet engines or high-performance racing vehicles.
11.2 Cost vs. Durability Considerations
While ceramic bearings offer incredible performance, they come with a higher initial cost than metal bearings. The materials used in their production are more expensive, and the manufacturing process is more complex. However, the longevity and low maintenance requirements of ceramic bearings often offset the initial investment, especially in high-performance environments where failure is not an option.
11.3 Common Applications in Aerospace and Medical Fields
Ceramic bearings are commonly used in the aerospace industry, where high speeds and extreme temperatures are prevalent. Their use in medical equipment, such as MRI machines and dental drills, is also growing due to their non-reactivity and ability to operate without lubrication. In these applications, the combination of speed, precision, and durability is critical, making ceramic bearings a top choice.
12. Polymer Bearings (PTFE, Nylon, PEEK, UHMWPE)
12.1 Lightweight and Self-Lubrication Properties
Polymer bearings, made from materials like PTFE (Teflon), Nylon, and PEEK, offer exceptional lightweight properties and self-lubricating capabilities. This makes them ideal for applications in environments where lubrication is difficult to maintain or where the bearing weight is a concern, such as in robotics or small machinery. Their low coefficient of friction ensures smooth motion without the need for additional lubrication.
12.2 Load and Temperature Limitations
Although polymer bearings excel in certain applications, they do have limitations in terms of load-bearing capacity and temperature tolerance. High-stress applications or extreme temperatures can cause polymer bearings to deform or degrade, limiting their effectiveness. As a result, they are often used in low-load, moderate-speed environments.
12.3 Uses in Food Processing and Chemical Industries
Polymer bearings are extensively used in food processing and chemical industries due to their resistance to corrosive substances and easy cleaning properties. They can be safely used in environments where metal bearings might cause contamination or rust. Their ability to withstand the harsh chemicals found in these industries without degrading makes them indispensable for manufacturing and food handling systems.
13. Carbon/Graphite Bearings
13.1 Extreme Temperature and Chemical Resistance
Carbon and graphite bearings are often employed in extreme environments, thanks to their remarkable resistance to high temperatures and chemical exposure. These materials can perform in applications with temperatures reaching up to 1,000°C, where many metals would fail. Their inert nature makes them suitable for environments where chemical resistance is critical, such as in the aerospace or chemical processing industries.
13.2 Fragility and Strength Considerations
Although carbon and graphite bearings excel in high-temperature and corrosive environments, they are relatively brittle compared to metals. This fragility means they can be prone to cracking under high loads or impact forces, limiting their use in heavy-duty applications. However, they are often reinforced with additional materials or used in combination with other bearings to mitigate these weaknesses.
13.3 Applications in High-Temperature and Dry-Running Conditions
Carbon and graphite bearings are widely used in high-temperature, dry-running conditions where lubrication is either impractical or unnecessary. Applications such as furnace rollers, gas turbines, and high-speed spindles in aerospace benefit from the low friction and self-lubricating properties of carbon/graphite bearings. These bearings also serve in industries like semiconductor manufacturing, where contamination-free environments are crucial.
14.Conclusion
14.1 Summary of Key Points
Selecting the right bearing material is crucial for ensuring the reliability, longevity, and efficiency of mechanical systems. Whether opting for metallic materials like chrome steel and stainless steel or non-metallic options like ceramics and polymers, understanding the unique properties, advantages, and limitations of each material is key to making an informed decision.
14.2 Recommendations for Material Selection
When choosing bearing materials, it’s essential to consider factors such as load, speed, temperature, corrosion resistance, and lubrication needs. Industrial applications may require tougher materials like tool steel or bronze, while high-speed or precision environments may benefit from ceramics or hybrid bearings. Evaluating the specific requirements of the application will guide the selection process.
14.3 Future Developments in Bearing Technology
The future of bearing technology is exciting, with advancements in material science promising stronger, lighter, and more durable solutions. From hybrid bearings to innovative coatings and self-lubricating materials, the evolution of bearing materials will continue to improve performance in diverse industries. As technology progresses, new bearing solutions will emerge to meet the ever-growing demands of high-performance systems.
