Smooth Moves: The Secret Sauce of Bearing Spacer Rings Revealed
Introduction
Delving into the heart of mechanical precision, the often-overlooked bearing spacer within double row roller bearings takes center stage. In this exploration, we unravel the secrets behind the significance of these internal spacers, understanding their vital role in ensuring optimal functionality.
Understanding the Bearing Spacer in Double Row Roller Bearings

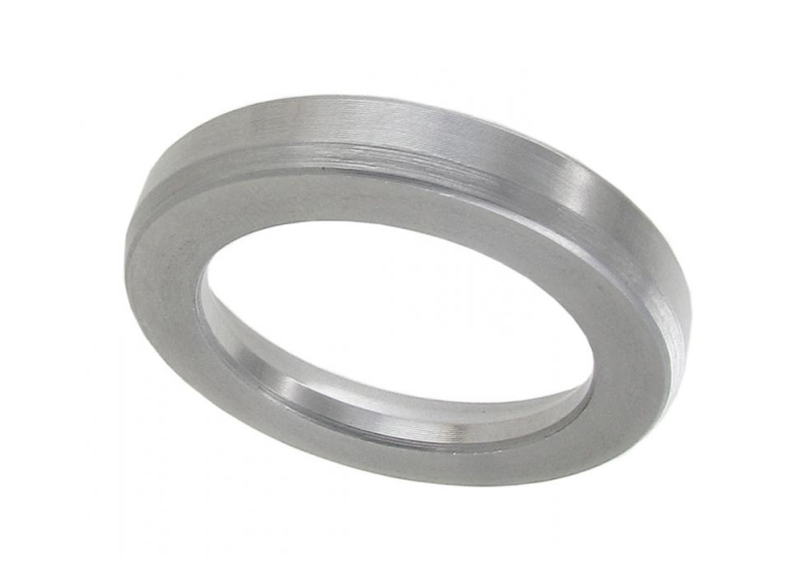

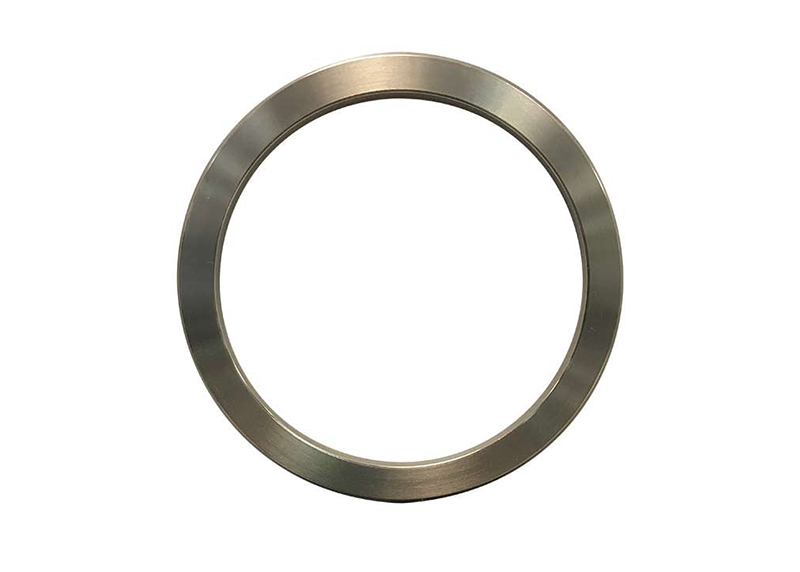

A bearing spacer within a double row roller bearing serves as a critical component, positioned between the two rows of rolling elements. Its primary function is to maintain a precise separation between these rows, facilitating optimal load distribution and minimizing friction. By preventing direct contact between adjacent rollers, the spacer contributes significantly to enhancing the bearing’s load-carrying capacity and overall durability. This configuration not only reduces the risk of wear and heat generation due to friction but also ensures smoother operation, thereby extending the service life of the bearing. In addition to these mechanical benefits, bearing spacers play a crucial role in maintaining axial alignment, preventing misalignment issues and preserving the bearing’s efficiency in diverse industrial applications.
Significance of Internal Spacing in Double Row Roller Bearings
The significance of internal spacing in double row roller bearings lies in its pivotal role in optimizing performance and ensuring longevity. Internal spacing, typically facilitated by bearing spacers, is crucial for maintaining precise separation between the two rows of rolling elements. This precision is paramount for efficient load distribution, reducing friction, and preventing direct contact between adjacent rollers. By achieving an optimal balance, internal spacing enhances the bearing’s load-carrying capacity and minimizes wear and heat generation, contributing to extended operational life. Furthermore, it plays a key role in maintaining axial alignment, mitigating the risk of misalignment issues that could compromise the bearing’s efficiency. In essence, the significance of internal spacing in double row roller bearings is fundamental to their reliability, smooth operation, and durability across diverse industrial applications.
The Anatomy of Bearing Spacer in Double Row Roller Bearings
Composition and Material
Double row roller bearing spacers are typically constructed from materials chosen for their durability, strength, and resistance to wear. Commonly employed materials include various alloys, such as stainless steel or carbon steel, which provide robustness and corrosion resistance. Stainless steel spacers, in particular, offer excellent resistance to rust and corrosion, making them suitable for applications in challenging environments. The choice of material is crucial in ensuring the spacer’s ability to withstand the demanding conditions often encountered in industrial settings. Additionally, some specialized applications may call for materials with specific properties, such as high-temperature resistance or enhanced load-bearing capabilities. In essence, the materials used in double row roller bearing spacers are selected with a keen focus on enhancing the overall performance, longevity, and reliability of the bearing in diverse operational environments.
Design Variations
Various designs and variations of double row roller bearing spacers exist to cater to specific application needs and enhance bearing performance. Some common types include:
Cylindrical Spacers: Traditional spacers with a cylindrical shape, providing basic separation between rolling elements.

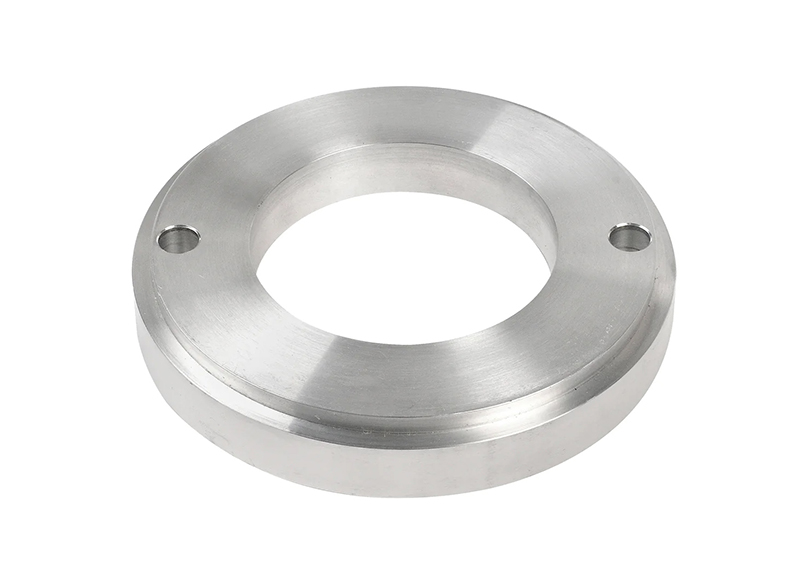

Flanged Spacers: Featuring flanges on one or both sides to improve axial stability and prevent axial displacement of the rolling elements.
Tabbed Spacers: Designed with tabs or projections to assist in maintaining proper spacing and alignment between the bearing rows.
Modular Spacers: Configurable spacers that allow for adjustment or customization based on specific operational requirements.
Precision Machined Spacers: Crafted with precision machining techniques to achieve tight tolerances, ensuring accurate spacing and load distribution.
Split Spacers: Designed to be easily assembled or disassembled, facilitating maintenance and replacement without complete bearing disassembly.
Customized Designs: Tailored spacers for specific applications, considering factors like temperature resistance, high-speed operation, or extreme conditions.
These variations highlight the adaptability of double row roller bearing spacers to diverse industrial requirements and the continuous innovation in their design.
Functionality Explored
Double row roller bearing spacers serve several essential functions to ensure optimal performance and longevity of the bearing system. Here are the key functions:
Load Distribution: Spacers maintain a precise separation between the two rows of rolling elements, facilitating even load distribution across the bearing.
Friction Reduction: By preventing direct contact between adjacent rollers, spacers minimize friction, reducing wear and heat generation within the bearing.
Axial Alignment: Spacers contribute to maintaining axial alignment, preventing misalignment issues that could compromise the bearing’s efficiency and lifespan.
Enhanced Load-Carrying Capacity: Proper spacing, facilitated by spacers, enhances the bearing’s load-carrying capacity, allowing it to handle heavier loads and increased stresses.
Durability: Spacers, often made from durable materials, contribute to the overall durability of the bearing, especially in challenging industrial environments.
Heat Dissipation: Efficient spacing helps in dissipating heat generated during operation, preventing overheating and ensuring consistent performance.
These functions collectively underscore the crucial role of double row roller bearing spacers in optimizing the bearing’s functionality and reliability across diverse applications.
Optimizing Performance
Enhanced Load Distribution
Double-row roller bearing spacers play a pivotal role in enhancing load distribution within the bearing system. Positioned between the two rows of rolling elements, these spacers ensure a precise separation, facilitating even distribution of external forces and loads across the bearing. By maintaining optimal spacing, the spacers prevent concentrated pressure points and minimize uneven wear on the rolling elements. This uniform load distribution not only maximizes the bearing’s load-carrying capacity but also mitigates the risk of premature fatigue or failure. The result is a more efficient and durable bearing system that can effectively handle varying loads and operational stresses in diverse industrial applications.
Impact on Rotational Stability
Double row roller bearing spacers significantly impact rotational stability by contributing to the axial alignment of the bearing. These spacers, positioned between the two rows of rolling elements, play a crucial role in maintaining the proper separation and alignment of these elements during rotation. By preventing misalignment and minimizing axial displacement, spacers ensure that the bearing operates smoothly and efficiently. Features such as flanges, tabs, or precision machining in spacers contribute to the stability of the bearing, preventing skewing or deviation from the intended rotational axis. The result is a bearing system that exhibits enhanced rotational stability, reducing the risk of vibrations, noise, and wear during operation, thus promoting reliable performance in diverse industrial applications.
Real-world Applications
Gearboxes: Used in automotive and industrial gearboxes, double row roller bearings with spacers provide reliable support for shafts and gears, ensuring smooth and efficient power transmission.
Conveyors: In material handling systems, these bearings are employed to support conveyor rollers, enabling the efficient movement of goods in manufacturing, logistics, and distribution centers.
Mining Equipment: Double row roller bearings with spacers are utilized in mining machinery such as crushers and screens, where they handle substantial radial and axial loads in harsh operating conditions.
Wind Turbines: Bearings with spacers are employed in the main shaft of wind turbines, managing the combined radial and axial forces generated by the rotating blades.
Steel Mills: In heavy-duty applications like steel manufacturing, these bearings support various rolling equipment, such as rolling mills and continuous casting machines.
Railway Industry: Double row roller bearings with spacers are used in railway applications, including wheelsets and traction motors, where they provide robust support and withstand dynamic loads associated with train movements.
Frequently Asked Questions
Why use a spacer in a double row roller bearing?
- Answer: A spacer in a double row roller bearing ensures even load distribution, reduces friction, and enhances stability by maintaining a precise separation between the two rows of rollers.
How does a bearing spacer improve load distribution?
- Answer: Bearing spacers prevent direct roller contact, promoting uniform load distribution, minimizing wear, and maximizing the bearing’s ability to handle loads.
What materials are commonly used for these spacers?
- Answer: Stainless steel, carbon steel, and alloys are common materials for double row roller bearing spacers, chosen based on factors like strength and corrosion resistance.
Can spacers be customized for specific applications?
- Answer: Yes, spacers can be customized in design, material, or features to meet specific application needs and conditions.
Do double row roller bearing spacers need maintenance?
- Answer: While designed for minimal maintenance, regular checks for proper spacing and alignment are advisable, especially in demanding applications or harsh environments, to extend the bearing’s lifespan.
Conclusion
In conclusion, the bearing spacer in double row roller bearings emerges as a crucial component, often overlooked but integral to mechanical precision. Serving to maintain precise separation between rolling elements, these spacers optimize load distribution, reduce friction, and enhance stability, contributing to the bearing’s durability and efficiency. Constructed from durable materials like stainless steel, spacers adapt to diverse industrial demands with various designs. Their impact on load distribution and rotational stability ensures reliable performance in applications ranging from gearboxes and conveyors to mining equipment, wind turbines, steel mills, and the railway industry. Customizable for specific needs, these spacers require minimal maintenance, making them essential for prolonged bearing lifespan in challenging environments.
References
1.”Bearing Spacers” from McMaster-Carr;
2. “Investigation on characteristics and performance of bearing spacer ring” from Frontiers;
3. “Bearing Spacers” from Quality Bearings and Components.
