Understanding Bronze Bushings: From Mechanical Properties To Practical Applications And Material Comparison Analysis
Introduction
Bronze is an alloy composed of copper and tin. It has excellent corrosion resistance and mechanical properties. It not only has a long history but is also widely used in modern industry. Copper provides bronze with good electrical and thermal conductivity, while tin increases hardness, making bronze durable under heavy load conditions.
Additionally, brass is also a copper alloy, mainly composed of copper and zinc. Still, it is not as corrosion-resistant as bronze in extreme environments, so bronze is better for high-performance applications. This article will deeply examine bronze bushings, explore the different types, materials, and applications of bronze bushings in various fields, and analyze and compare them. Through this article, I hope to help you understand why bronze bushings are the preferred material for many engineers and help you learn more about bronze bushings.
Mechanical Properties Of Bronze Bushings
Bronze bushings provide robust performance under demanding conditions. Key mechanical properties in many applications include:
——Bronze bushings have a high hardness and can withstand physical wear and deformation under heavy loads.
——Bronze bushings have high compressive strength and can maintain their shape and function under high compressive stresses.
——The bronze in the bronze bushing can form an oxide layer in the air, which is wear-resistant and corrosion-resistant.
——Bronze bushings can maintain stable performance at different temperatures and are heat-resistant.
——The low coefficient of friction of bronze bushings reduces energy losses, reduces lubrication requirements, and reduces wear rates.
——Bronze bushings have high load-bearing capacity.
Types Of Bronze Bushings
Bronze bushings are versatile components used in a variety of mechanical systems and can be classified according to different shapes and compositions.
According to different uses and shapes, it can be divided into:
– Cylindrical bearings (also called sleeve bearings): simple shape and structure, easy to install, very suitable for reducing friction between rotating parts.

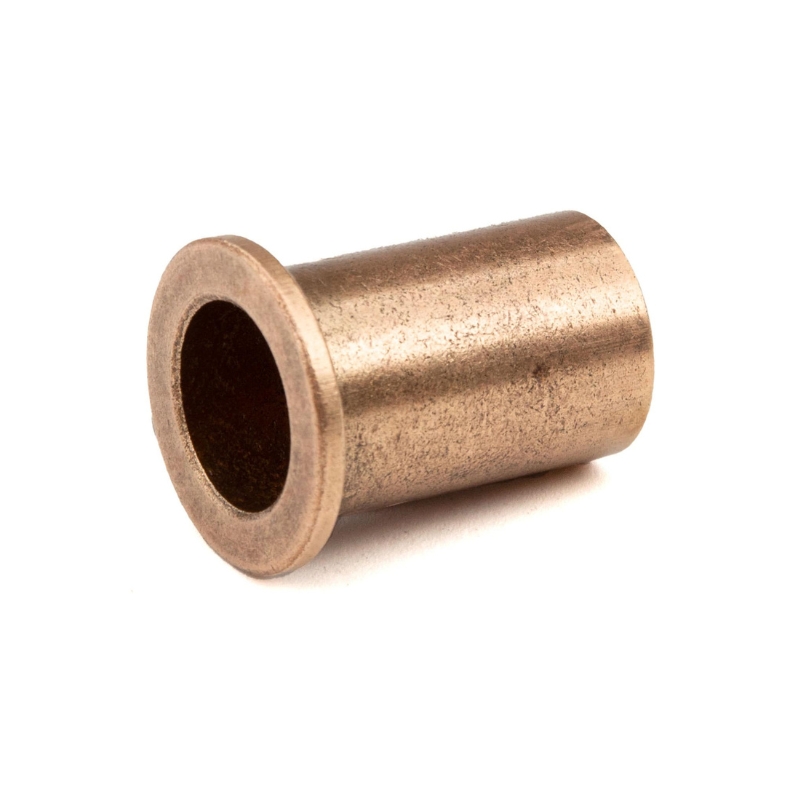

– Flange bearings (also called flange bronze bushings): This type of bearing has a flange on one end to help locate and prevent axial movement.
– Thrust Bearings (Thrust Washers): Suitable for handling axial loads, and bearing thrust while keeping the components compact.
– Pintle Bearings: This type of bearing is often used in hinged connections and is very suitable for withstanding large loads and vibrations.
– Bronze Bushings with Holes: These bearings with holes can be lubricated through the holes, increasing the service life and efficiency of the bearing.
According to the composition, it can be divided into:

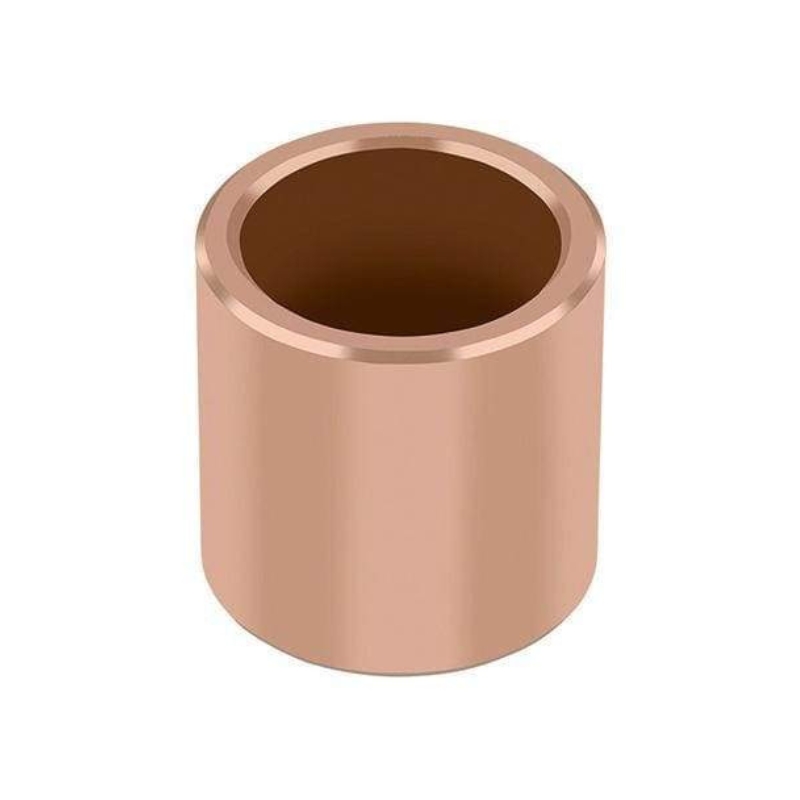

—Sintered Bronze Bushing: Made of bronze powder, the strength is enhanced by the sintering process. It has good self-lubricating properties.

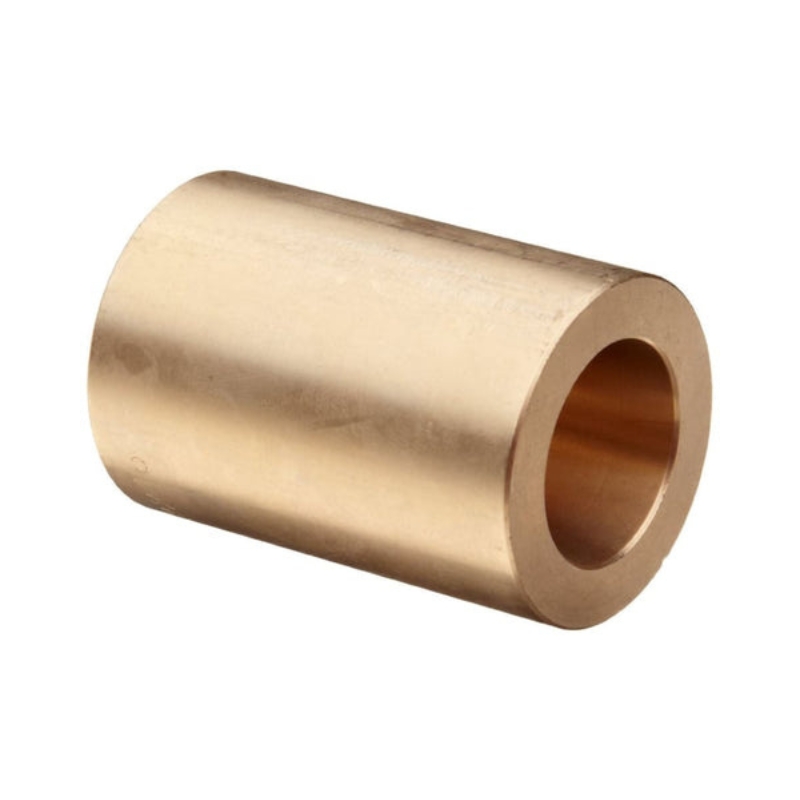

–Cast Bronze Bushing: Made by the casting process, this type of bearing has a stable structure and is suitable for applications with high loads.
–Oil-impregnated Bronze Bushings: These bearings contain oil, which can provide continuous lubrication and reduce maintenance frequency, and are very suitable for high-speed applications.
–Graphite Plug Bronze Bushing: Contains graphite plugs, which can maintain performance even when lubrication is improper, especially suitable for high-temperature environments.
–Tin Bronze Bushing: Tin-containing bronze material, providing excellent corrosion resistance and machinability, suitable for marine applications.
–Aluminum Bronze Bushing: Aluminum bronze bearings have strong corrosion resistance and high hardness and are very suitable for heavy loads and impact loads.
–Phosphor Bronze Bushing: This contains phosphor bronze, has excellent wear resistance and fatigue resistance, suitable for electronics and precision machinery.
–Lead Bronze Bushing: Leaded bronze bearings provide excellent lubrication and vibration resistance for complex industrial applications.
Bronze Bushing Material
Tin Bronze Alloys——Moderate hardness, good processability, corrosion resistance, and mechanical properties, ideal for marine applications such as pumps and valves.
Leaded Tin Bronze Alloys——Leaded tin bronze alloys have an increased lead content, which improves their machinability and wear resistance. Commonly used for plain bearings that bear moderate loads.
High Leaded Tin Bronze Alloys——High lead-tin bronze alloys have a higher lead content and better self-lubricating properties.
Aluminum Bronze Alloys——Aluminum bronze alloys have ultra-high strength and corrosion resistance, making them ideal for use in high-load and highly corrosive environments.
Manganese Bronze Alloys—— combines strength and impact resistance to withstand sudden impact loads.
Graphite Bronze——Self-lubricating properties reduce maintenance requirements and are suitable for high-temperature or difficult-to-lubricate applications.
Benefits Of Using Bronze Bushings Material
- Durable and corrosion-resistant
- Low maintenance and cost-effective
- Long service life
- Versatile and self-lubricating
- Good load-bearing capacity
- Performance stability at high temperatures
Application Of Bronze Bushings
➊. Automotive Industry
In the automotive industry, bronze bushings are often used in parts such as shifters, steering columns and suspension systems to reduce friction and wear between components, suppress vibration and ensure smooth operation of the vehicle.
➋. Manufacturing Machinery
In machines that run all day, like conveyor belts and spindles, bronze bushings keep things moving smoothly without the need for frequent maintenance.
➌. Marine Industry
In ships, bronze bushings are used in key parts of propeller shafts and rudder assemblies, helping ships to sail smoothly while withstanding the corrosive seawater environment.
➍. Aerospace Industry
Bronze bushings are used in aircraft landing gear and control mechanism components to ensure that aircraft components operate effectively under extreme flight conditions.
➎. Energy Industry
From hydroelectric turbines to wind turbines, bronze bushings resist wear and still work properly in energy production, heavy loads or harsh environments.
➏. Construction and Mining Equipment
In heavy equipment such as excavators and cranes, bronze bushings provide durability and functionality to withstand enormous loads and harsh conditions.
➐. Agricultural Machinery
Farmers use bronze bushings to resist the dust, dirt, and vibrations caused by tractors and harvesters in production, thereby reducing failures and maintenance costs.
➑. Rail Industry
Keeping trains on track and operating smoothly, bronze bushings are used in various components such as suspension systems and brake linkages, handling heavy loads and high speeds.
Why Choose Bronze Bushings
In bronze bushings, Bronze is a hard material that can withstand heavy loads and high stresses and will not fail prematurely due to material factors. It has natural corrosion and wear resistance and can cope with harsh or complex environments. It is also self-lubricating, which can reduce maintenance time to a certain extent and ensure longer operation.
What Is The Difference Between Bronze Bushing And Bearing?
Bronze bushings and bearings both help machines run smoothly and reduce friction between moving parts, but they work differently.
Bronze bushings: Simple rings or sleeves made of strong, solid bronze that slide into place to provide a smooth moving surface for other parts. They rely on material properties, such as strength and corrosion resistance, to reduce wear.
Bearings: Made up of two rings, called raceways, with a rolling element, such as a ball or roller, in between. Rolling elements are used to reduce friction between parts, allowing for smoother movement. When precise movement is required, bearings are a better choice.
Which Is Better：Bronze Bushings Vs. Plastic Bushings
When choosing between bronze bushings and plastic bushings, bronze bushings are durable, corrosion-resistant, able to withstand high loads, and perform better than plastic at all temperatures, and can be recycled. Although plastic bushings are lighter and have lower maintenance costs, they are not durable under extreme conditions. From the perspective of long-term use, bronze bushings have more advantages.
Conclusion
Bronze bushings are a very durable and versatile choice for a wide range of industrial applications. Bronze bushings provide excellent performance in harsh conditions and, despite the higher initial cost, are more cost-effective in the long run due to their self-lubricating properties and reduced maintenance. Regardless of the industrial application, the robustness of bronze bushings ensures optimal performance and minimal downtime. It is clear that bronze bushings are a must-have component for anyone looking to build durable and efficient machinery.
