Advanced Material Selection for Combined Bearings: Enhancing Performance and Durability
Introduction
The importance of material selection in combined bearings cannot be overstated. It directly impacts the performance, reliability, and longevity of bearings operating in demanding environments. From withstanding heavy loads to enduring extreme temperatures and corrosive atmospheres, the right material choice is paramount. Combined bearings find applications across various industries, including automotive, aerospace, and heavy machinery, where they operate in challenging conditions such as high speeds, heavy loads, and harsh environments. Understanding these environments is crucial for selecting materials that can meet the demanding requirements and ensure optimal performance and durability.

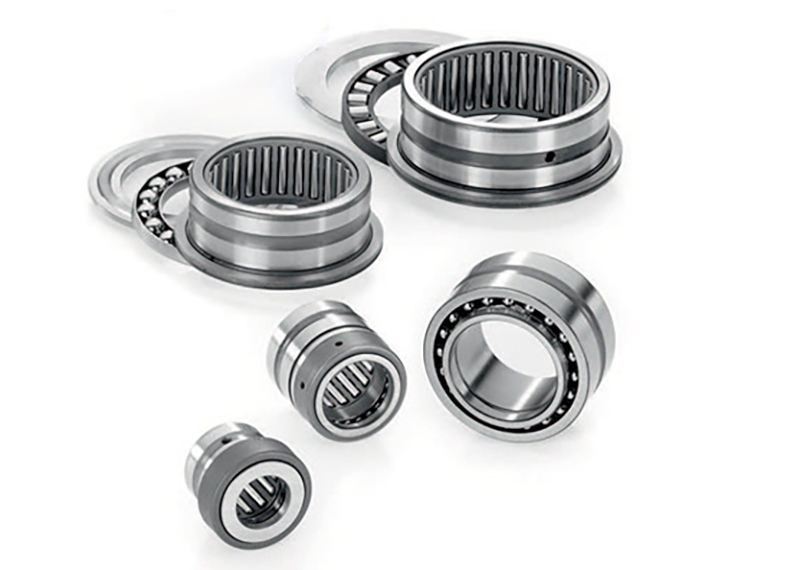

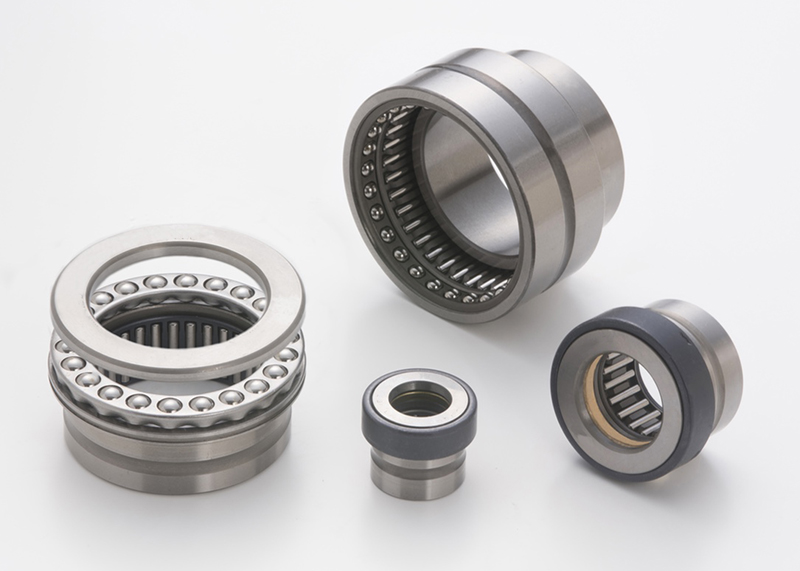

Understanding Combined Bearings
Combined bearings are specialized components designed to manage both radial and axial loads simultaneously. Their unique functionality lies in their ability to handle multi-directional forces, making them essential in applications where space and efficiency are critical.By supporting complex load scenarios, combined bearings enhance the performance and longevity of machinery in various industries, from automotive to industrial equipment.

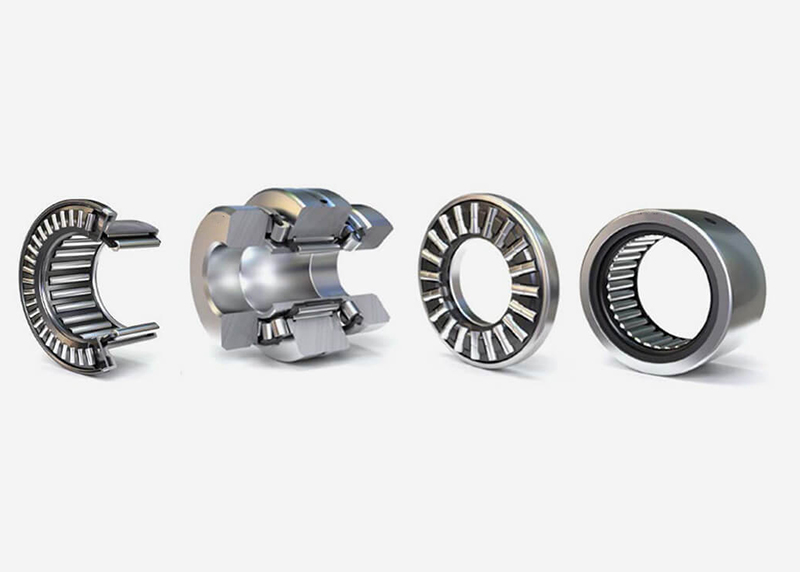

Key components of combined bearings include the inner and outer races, rolling elements, and the cage. The inner and outer races form the tracks where the rolling elements move, facilitating smooth motion and load distribution. Rolling elements, such as balls or rollers, are crucial for reducing friction and supporting both radial and axial loads. The cage, or retainer, ensures even spacing and alignment of the rolling elements, preventing contact and minimizing wear.
Combined bearings are typically used in applications requiring the management of radial and axial loads, such as in automotive transmissions, industrial gearboxes, and robotic arms. Operating conditions for these bearings can be extremely demanding, involving high speeds, heavy loads, and exposure to harsh environments such as extreme temperatures, moisture, and corrosive substances. Their ability to withstand these conditions while maintaining performance and reliability makes them indispensable in various high-stress industrial and mechanical applications.
Material Selection Criteria
Selecting the appropriate material for combined bearings involves several critical criteria. First, load-bearing capacity requirements are paramount, as the chosen material must support both radial and axial loads without deformation or failure. High-strength materials, such as alloy steels or ceramics, are often preferred for their superior load-handling capabilities.
Second, wear resistance considerations are essential to ensure the longevity and efficiency of the bearing, especially in applications with continuous or heavy use. Materials with high hardness and low friction coefficients, such as silicon nitride or PEEK, are ideal for minimizing wear.
Third, corrosion resistance in harsh environments is crucial to prevent material degradation and ensure reliable performance. Bearings exposed to moisture, chemicals, or corrosive agents benefit from materials like stainless steel or coatings like zinc-nickel alloy. Lastly, temperature and thermal stability needs must be addressed, as bearings often operate in extreme temperatures.
Materials that maintain their mechanical properties at high or low temperatures, such as high-temperature steel alloys or ceramics, are necessary to prevent thermal expansion or contraction that could affect bearing performance.
Materials for Combined Bearings
The choice of materials for combined bearings significantly impacts their performance and durability, with options including steel alloys, ceramic materials, polymer composites, and hybrid materials. Steel alloys, such as carbon steel and alloy steel, are widely used due to their excellent strength, hardness, and ability to withstand high loads. They offer good wear resistance and can be heat-treated to enhance their properties, making them suitable for a variety of industrial applications.
Ceramic materials, including silicon nitride and zirconia, provide exceptional hardness and wear resistance, coupled with low friction coefficients. These materials are ideal for high-speed applications and environments requiring electrical insulation or resistance to corrosive substances. Their lightweight nature further reduces the overall bearing weight, contributing to improved efficiency.
Polymer composites, such as PEEK and polyamide (Nylon), are chosen for their corrosion resistance, low friction, and self-lubricating properties. These materials are especially beneficial in applications where metal bearings might fail due to corrosion or require frequent lubrication. Polymer bearings also reduce noise and vibration, enhancing the operational environment.
Hybrid materials combine the strengths of different materials to optimize bearing performance. For example, ceramic balls paired with steel races leverage the hardness and low friction of ceramics with the toughness and load-bearing capacity of steel. Another example is polymer-coated steel bearings, which offer the strength of steel with the corrosion resistance and reduced friction of polymers. By selecting hybrid materials, engineers can tailor bearing properties to meet specific application demands, achieving an optimal balance of performance, durability, and cost-effectiveness. Each of these material types brings unique advantages, enabling the design of bearings that meet the diverse requirements of modern engineering applications.
Coatings for Enhanced Performance
Anti-Friction Coatings
Coatings play a crucial role in enhancing the performance and durability of combined bearings, with anti-friction coatings being particularly significant. These coatings, such as Teflon (PTFE) or Diamond-Like Carbon (DLC), are applied to bearing surfaces to reduce friction and wear. Teflon coatings offer excellent lubricity and low friction coefficients, improving efficiency and extending bearing life. Similarly, DLC coatings provide exceptional hardness and resistance to wear, making them ideal for high-load and high-speed applications. By reducing friction, anti-friction coatings minimize energy consumption and heat generation, enhancing the overall efficiency of the bearing system. Additionally, they contribute to smoother operation and reduced noise levels, further improving the performance and user experience in various industrial and mechanical applications.
Corrosion-Resistant Coatings
Corrosion-resistant coatings are indispensable for enhancing the longevity and reliability of combined bearings, especially when operating in harsh or corrosive environments. These coatings, such as zinc-nickel alloy or ceramic coatings, provide a protective barrier against moisture, chemicals, and other corrosive agents that can degrade bearing materials over time. Zinc-nickel alloy coatings offer superior corrosion resistance and sacrificial protection, ensuring the underlying material remains unaffected even in aggressive conditions. Similarly, ceramic coatings provide a hard and durable surface that is impervious to corrosion, making them ideal for bearings exposed to extreme environments. By preventing corrosion, these coatings maintain the integrity of the bearing components, prolonging their service life and reducing maintenance costs. Additionally, corrosion-resistant coatings contribute to improved performance and reliability, making them essential for critical applications across various industries.
Hard Coatings for Wear Resistance
Hard coatings for wear resistance are pivotal in bolstering the durability and performance of combined bearings, particularly in applications subject to high loads and abrasive conditions. These coatings, such as chromium plating or titanium nitride (TiN) coatings, provide a protective layer that enhances the hardness and surface toughness of bearing components. Chromium plating offers excellent wear resistance and hardness, reducing friction and minimizing wear on bearing surfaces. Similarly, TiN coatings exhibit exceptional hardness and adhesion properties, making them highly effective in reducing wear and extending bearing life. By providing a robust barrier against abrasive wear, hard coatings help maintain dimensional stability and surface integrity, ensuring smooth and reliable operation of bearings in demanding environments. Additionally, these coatings contribute to reduced maintenance requirements and enhanced overall efficiency, making them indispensable for critical applications across various industries.
Surface Treatments
Heat Treatment Processes
Surface treatments, particularly heat treatment processes, play a crucial role in optimizing the mechanical properties and performance of combined bearings. Heat treatment techniques such as case hardening and induction hardening are employed to enhance the hardness, wear resistance, and fatigue strength of bearing components. Case hardening involves heating the surface of the material and then rapidly cooling it to create a hardened outer layer, while induction hardening uses localized heating to achieve similar results. These processes improve the load-bearing capacity and durability of bearings, allowing them to withstand heavy loads and repetitive stress cycles without premature failure. By imparting superior surface properties, heat treatment processes contribute to the reliability and longevity of combined bearings in demanding operating environments.
Shot Peening for Fatigue Resistance
Shot peening is a critical surface treatment method employed to enhance the fatigue resistance and durability of combined bearings. This process involves bombarding the surface of the bearing components with small spherical particles, known as shot, at high velocities. The impact of the shot induces compressive stresses on the surface, which helps to counteract the tensile stresses that develop during operation, thereby increasing the fatigue strength of the material. By inducing compressive residual stresses, shot peening mitigates the risk of fatigue failure and extends the fatigue life of bearings, particularly in applications subject to cyclic loading. This treatment not only improves the reliability and longevity of bearings but also contributes to enhanced performance and reduced maintenance requirements in demanding operating conditions.
Surface Polishing for Reduced Friction
Surface polishing is a key surface treatment technique employed to reduce friction and enhance the performance of combined bearings. This process involves smoothing the surface of bearing components through mechanical or chemical means to achieve a high level of surface finish. By reducing surface roughness and irregularities, surface polishing minimizes frictional forces and improves the efficiency of the bearing system. Bearings subjected to surface polishing exhibit lower friction coefficients, resulting in reduced energy consumption and heat generation during operation. Additionally, smoother surfaces reduce the risk of wear and prolong the service life of bearings, making them ideal for applications where frictional losses must be minimized, such as high-speed machinery or precision instruments.
Impact of Material Selection on Performance
The material selection for combined bearings significantly impacts their performance across multiple aspects, including load capacity and endurance, wear rate and frictional behavior, and corrosion resistance and environmental adaptability.
The load capacity and endurance of bearings are directly influenced by the strength and hardness of the chosen material. High-strength materials like steel alloys or ceramics can withstand heavy loads and prolonged operation without experiencing deformation or failure, ensuring the bearing’s longevity.
Additionally, materials with low wear rates and favorable frictional behavior, such as ceramic or polymer composites, contribute to reduced energy consumption and extended service life by minimizing frictional losses and wear. Moreover, bearings operating in corrosive or harsh environments require materials with excellent corrosion resistance and environmental adaptability. Stainless steel, ceramic coatings, or polymer composites are often preferred for their ability to withstand moisture, chemicals, and other corrosive agents, ensuring reliable performance even in challenging conditions.
Real-world Applications
Combined bearings find extensive real-world applications across various industries, demonstrating their versatility and reliability in demanding environments. In the automotive sector, combined bearings are essential components in transmissions, steering systems, and suspension assemblies, where they endure high loads and repetitive motion. In the aerospace industry, these bearings play a critical role in aircraft landing gear systems, engine components, and control surfaces, ensuring smooth operation and reliability under extreme conditions. Moreover, in industrial machinery and equipment, combined bearings are utilized in heavy-duty applications such as mining machinery, construction equipment, and agricultural machinery, where they withstand harsh operating conditions and heavy loads. The widespread adoption of combined bearings underscores their importance in facilitating efficient and reliable mechanical systems across diverse sectors, contributing to enhanced performance, productivity, and safety in real-world applications.
Conclusion
In conclusion, material selection in combined bearings is paramount for ensuring optimal performance, reliability, and longevity in demanding environments. Steel alloys, ceramics, polymer composites, and hybrid materials each offer unique advantages to meet specific application needs. Surface coatings and treatments further enhance performance by reducing friction, preventing corrosion, and increasing fatigue resistance. The careful consideration of material properties and surface treatments enables engineers to tailor bearings for diverse applications, from automotive and aerospace to heavy machinery. Combined bearings play a vital role across industries, offering efficient solutions to manage complex loads and harsh conditions, ultimately contributing to improved performance, productivity, and safety in real-world applications.
References
- 1.”Combined bearings for material handling applications” from Multidimensions;
- 2. “Combined Bearings” from WD Bearings;
- 3. “Combined needle roller bearings” from SKF Bearings.
