Composite Bearings: Advance Manufacturing Innovation
Introduction
As manufacturing technology continues to evolve, the unique design and material combinations of composite bearings have made them one of the top choices in many industries. These bearings are gradually replacing traditional metal bearings globally due to their superior performance, improved durability and environmentally friendly properties. In this paper, we take an in-depth look at the latest developments in advanced manufacturing innovations for composite bearings, exploring how these innovations are addressing the limitations that exist in traditional bearing technologies.

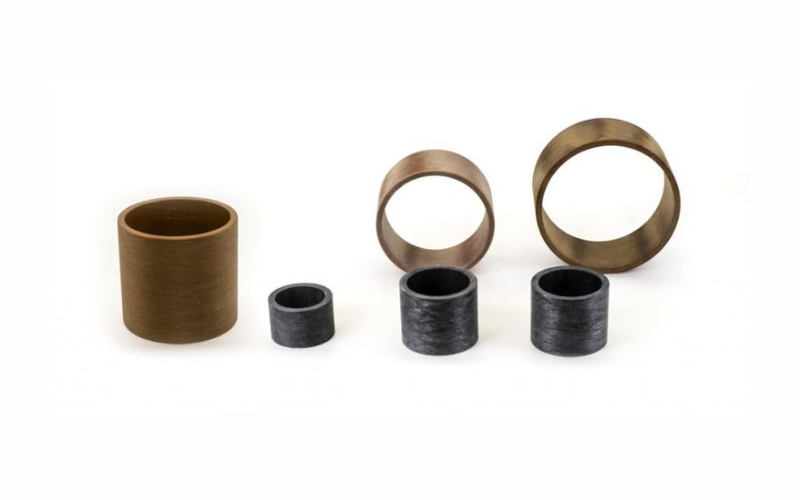

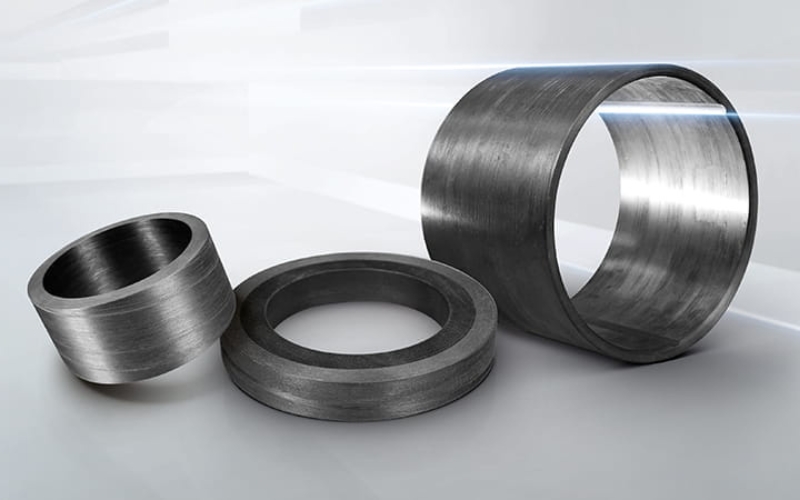

Composite Bearings
A composite bearing is a bearing made from a variety of non-metallic composite materials, which typically include fibre-reinforced plastics, ceramic matrix composites or metal matrix composites, to meet the demands of specific operating conditions.
In composite bearings, one or more fibres (e.g. carbon fibres, glass fibres) are typically utilised to reinforce a matrix material (e.g. polymers, metals or ceramics) to improve its mechanical and thermal properties. This structural design allows composite bearings to significantly reduce thermal expansion and coefficient of friction when subjected to heavy loads and high speeds.
Key Composite Materials Used In Bearings
The performance of composite bearings depends largely on the type of composite material they are made from. These materials not only need to have high strength and wear resistance, but should also have good corrosion resistance and adaptability to meet the needs of various industrial applications. The following are some of the key composite materials commonly used in composite bearings:
Fiber-Reinforced Polymers (FRP)：
- Carbon Fiber Reinforced Polymers (CFRP): Known for their high strength and low mass, carbon fiber reinforced polymers are particularly popular in the aerospace and automotive industries. The addition of carbon fibers significantly improves the stiffness and fatigue resistance of the material, enabling bearings to operate under high loads and at high speeds.
- Glass Fiber Reinforced Polymers (GFRP): Glass fibers are another commonly used reinforcing material, often used to reinforce polyester or epoxy resins. The lower cost of glass fibers compared to carbon fibers, their good tensile strength, and impact resistance makes them suitable for cost-sensitive applications where moderate performance is required.
Ceramic Matrix Composites (CMCs)：
- These materials combine the high hardness and high-temperature properties of ceramic materials with the toughness of metals or other types of composites. Ceramic matrix composites are particularly suitable for high-temperature environments, such as bearings in aircraft engines or industrial heat-treatment equipment, because they can withstand extremely high temperatures without losing mechanical strength.
- Commonly used ceramic materials include aluminum oxide (Al2O3) and silicon carbide (SiC), which reinforce composites and improve wear and corrosion resistance.
Metal Matrix Composites (MMCs)：
- These composites provide excellent mechanical strength and high-temperature resistance by combining a metal such as aluminum or nickel with a reinforcing agent such as carbon fibers or ceramic particles. Metal matrix composites are commonly used in applications requiring high load-carrying capacity and good thermal stability, such as automotive braking systems and aerospace components.
- They offer the toughness of metals and the low density and high strength of composites and are particularly suited to power transmission and high-temperature operating environments.
Properties That Make Composites Ideal For Bearings
Because of their unique material properties, composite bearings are used in a wide range of industrial applications, especially where extraordinary bearing performance is required. Here are some of the key properties that make composites ideal for bearings:
Lightweight:
- Composites typically have a lower density and are much lighter than traditional metal bearings. Lightweighting reduces the overall system mass, which reduces energy consumption and improves the dynamic response of the system.
Corrosion resistance:
- In chemical, marine, or other corrosive environments, composite bearings can withstand these harsh environments due to the naturally corrosion-resistant properties of their base materials, such as polymers and ceramics.
Self-lubricating:
- Many composites are designed to have self-lubricating properties, which means they can operate without additional oil or grease. For example, some composites can be embedded with solid lubricants such as graphite or PTFE (polytetrafluoroethylene) to provide continuous lubrication while the bearing is running.
High wear resistance and low coefficient of friction:
- Composite bearings have an extremely low coefficient of friction and high wear resistance, which contributes to improved bearing efficiency and reduced energy consumption.
Excellent fatigue resistance and high load-carrying capacity:
- Fiber-reinforced composites can withstand cyclic loads and stresses, showing excellent fatigue resistance. This makes them suitable for applications that need to withstand repetitive loads.
Thermal stability and extended temperature range:
- Most composites are able to maintain their properties over a wide temperature range, including very high or very low temperatures.
Range Of Composite Applications
Composite materials find a wide range of applications in several industries due to their unique physical and chemical properties, including:
- Aerospace
- Automotive industry
- Construction and civil engineering
- Energy industry
- Sporting Goods
- Medical Technology
- Military & Defence
The Advantages Of Composite Bearings In Manufacturing
The use of composite bearings in manufacturing offers a variety of advantages that not only improve equipment performance, but also reduce maintenance costs and increase overall productivity.
- Composite bearings are often self-lubricating, reducing the need for routine lubrication maintenance and downtime.
- In many manufacturing environments, composite bearings are chemically stable and resistant to corrosive substances, extending bearing life and reducing replacement frequency.
- They are lightweight, reducing overall equipment loads and helping to reduce energy consumption.
- The low coefficient of friction helps reduce energy loss during operation, improves mechanical efficiency, and helps maintain stable equipment operation.
- The wear resistance of the composite material ensures bearing durability under high load and wear conditions.
- Composite bearings are highly adaptable and can be customised to meet specific application requirements.
- The efficient performance and low maintenance requirements of composite bearings result in increased productivity.
- Reduced or eliminated use of lubricants not only reduces maintenance costs, but also avoids environmental pollution that may result from lubricant leakage.
Performance Analysis
Composite Bearings Versus Traditional Metal Bearings
Wear resistance
Composite bearings are known for their excellent wear resistance, which often exceeds the performance of conventional metal bearings. This primarily includes the use of polytetrafluoroethylene (PTFE), carbon fibre and other reinforcing materials that significantly reduce the coefficient of friction. These materials ensure smooth operation without the need for frequent lubrication, a requirement commonly found in metal bearings. The self-lubricating properties of composites reduce direct contact between moving parts, which reduces wear and extends bearing life.
Load Capacity
When it comes to load capacity, traditional metal bearings typically offer higher load carrying capacity due to the inherent strength of the metals used, such as steel and bronze. However, through advanced materials science and engineering improvements, composite bearings have been able to withstand considerable loads while weighing less. This weight reduction is particularly beneficial in applications such as the aerospace and automotive industries, where lower overall weight can lead to better fuel efficiency and performance.
Service life
The service life of a bearing is a key factor in determining its efficiency and cost-effectiveness. When used in corrosive or high-wear environments, composite bearings typically have a longer life than metal bearings. This is because composites can be engineered to resist environmental elements such as chemicals, moisture, and abrasive particles, which typically accelerate the degradation of metal bearings. The ability to customize composites for specific environmental conditions makes them a stronger and more durable bearing solution.
In the renewable energy sector, particularly in wind turbines, composite bearings have replaced conventional bearings in the pitch and yaw mechanisms of turbines. Composite bearings are better able to cope with variable and high load conditions and have shown lower wear and maintenance requirements. This adoption has improved turbine reliability and efficiency, reduced turbine downtime, and enhanced energy production.

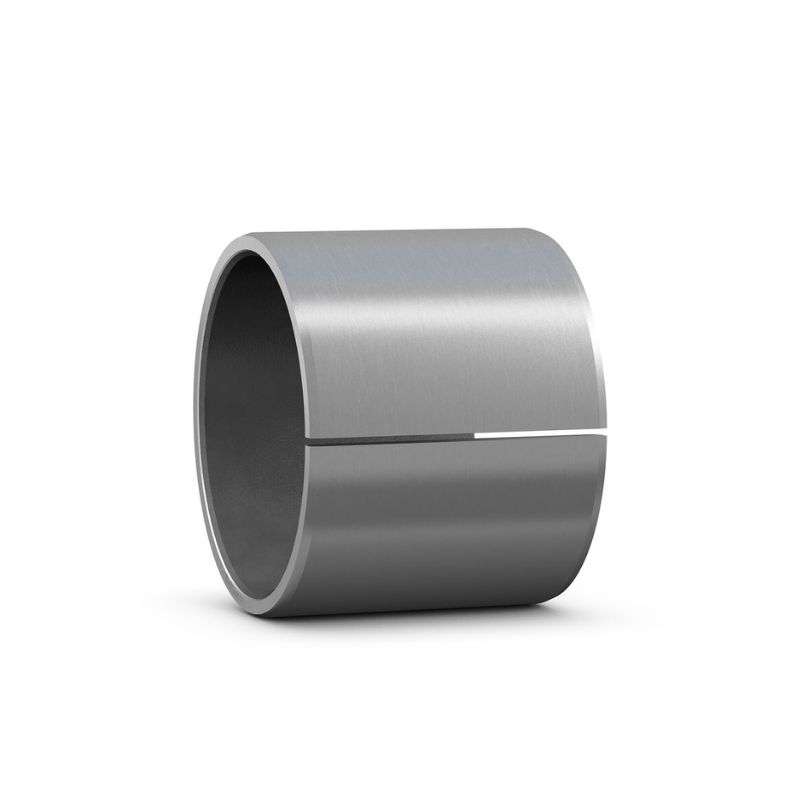

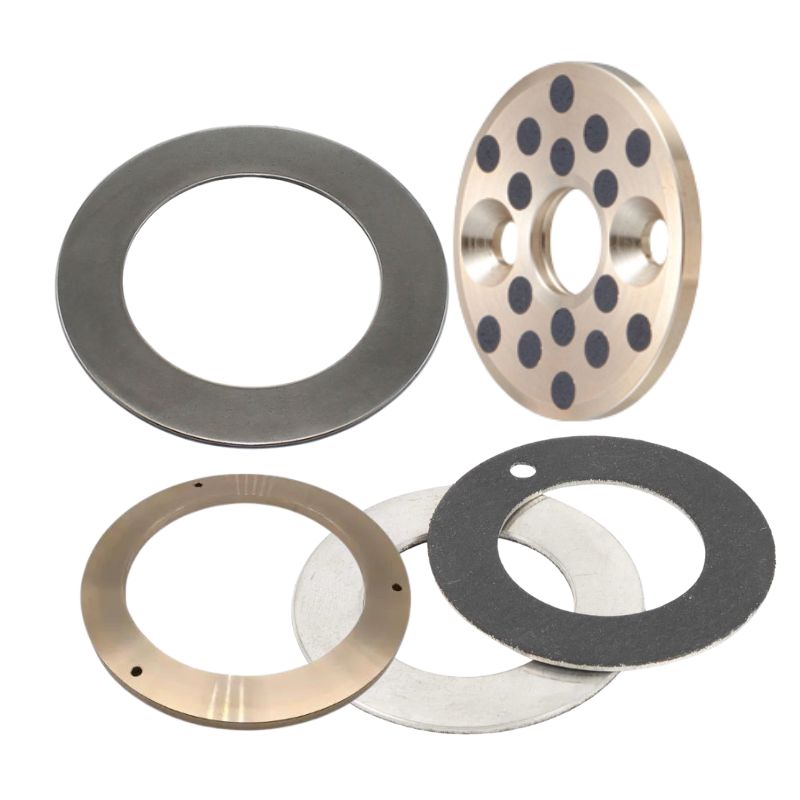

About Our Composite Bearings
Feature of our composite bearings：
- Lightweight design
- High abrasion and corrosion resistance
- Self-lubricating
- High load-carrying capacity
- Reduced vibration and noise
- Highly customizable
Conclusion
Composite bearings represent cutting-edge innovation in manufacturing, and their importance in driving manufacturing forward cannot be overstated. Through advanced manufacturing techniques and material selection, composite bearings not only provide superior performance and reliability, but also give manufacturers greater design flexibility and productivity. With the increasing demand for high performance and sustainability in various industries, the application of composite bearings has a bright future. Therefore, composite bearing technology should be actively innovated to achieve improved product performance.
