Cylindrical Roller Thrust Bearings 101: Mastering the Basics
Introduction
In the intricate world of machinery where precision and reliability are paramount, the pivotal role of bearings becomes evident. Bearings, the unsung heroes of mechanical systems, are essential components that facilitate the smooth operation of machinery by supporting axial loads and minimizing friction. Their significance lies in enhancing overall efficiency and ensuring the longevity of various applications. This blog post aims to shed light on one specific type of bearing—the Cylindrical Roller Thrust Bearing—and delve into the fundamental principles that make them indispensable in the realm of mechanical engineering.
Understanding Bearings
The Fundamental Role of Bearings
Bearings are the linchpin that enables the seamless rotation of components in machinery. Their fundamental role is to support axial loads, which are the forces parallel to the axis of rotation. By doing so, bearings facilitate the movement of rotating elements, ensuring they operate with minimal friction. This integral function contributes significantly to the overall performance and longevity of machinery, making bearings a crucial element in diverse industrial applications.
Types of Bearings
While the spectrum of bearings is broad and diverse, our focus in this exploration is on thrust bearings, with particular attention given to cylindrical roller thrust bearings. Thrust bearings, in general, are designed to handle axial loads, and within this category, cylindrical roller thrust bearings stand out. Their unique cylindrical shape distinguishes them from other thrust bearings, and this design specificity contributes to their efficiency in managing axial loads in a variety of applications.
Delving into Cylindrical Roller Thrust Bearings
What Sets Them Apart
Cylindrical roller thrust bearings stand out among various types of bearings due to their specific design and functionality, tailored to accommodate axial loads in a highly efficient manner. One distinctive feature is the cylindrical shape of the rollers, which enables these bearings to handle substantial thrust loads while maintaining a relatively small footprint. Unlike radial bearings that primarily support radial loads, cylindrical roller thrust bearings are engineered to transmit forces parallel to the axis of rotation. This design allows for high load-carrying capacity and excellent rigidity in applications where axial forces are predominant. Additionally, these bearings exhibit low friction and provide precise axial positioning, making them ideal for applications where accurate alignment and control of axial movement are crucial. Their robust construction and ability to handle heavy axial loads make cylindrical roller thrust bearings indispensable in industries such as automotive, aerospace, and heavy machinery.
Anatomy of Cylindrical Roller Thrust Bearings
Cylindrical roller thrust bearings are precision-engineered components designed to manage axial loads, and they consist of several key components, each playing a crucial role in their overall functionality. Here’s a breakdown of the anatomy of cylindrical roller thrust bearings and their respective functions:
Rollers: The cylindrical rollers, arranged parallel to the bearing axis, serve as the primary load-carrying components. Their cylindrical shape facilitates efficient distribution of axial loads along their length.
Cage: Also known as a separator, the cage guides and spaces the rollers, preventing direct contact. It maintains proper roller alignment, spacing, and ensures even load distribution, thereby reducing friction and wear.
Raceway Washers: Cylindrical roller thrust bearings typically consist of two raceway washers—one for the shaft (shaft washer) and one for the housing (housing washer). These washers provide smooth, hardened surfaces for the rollers to run on, facilitating axial movement.
Shaft Washer: Mounted on the rotating shaft, the shaft washer acts as the inner raceway for the rollers. It transmits axial loads from the shaft to the rollers, facilitating the efficient transfer of forces.
Housing Washer: Mounted in the housing, the housing washer serves as the outer raceway for the cylindrical rollers. It provides a mating surface for the rollers and transmits axial loads from the rollers to the housing.
Bearing Housing: The bearing housing supports and contains the entire assembly, providing a secure mounting point within the machine or system. It ensures stability and proper alignment of the cylindrical roller thrust bearing.
Applications in Industry
Machinery Utilizing Cylindrical Thrust Bearings
Cylindrical thrust bearings find application in various machines where axial loads need to be supported efficiently. Here are six types of machines that commonly utilize cylindrical roller thrust bearings:
Automobile Transmissions: Cylindrical thrust bearings are often employed in automotive transmissions to support axial loads generated during gear shifting and other transmission functions.
Machine Tools: Precision machine tools, such as lathes and milling machines, utilize cylindrical thrust bearings to handle axial loads and provide accurate axial positioning for the moving parts.
Heavy-Duty Gearboxes: Industrial machinery, including heavy-duty gearboxes in manufacturing plants and power generation facilities, often incorporates cylindrical roller thrust bearings to manage substantial axial loads generated by gears and other transmission components.
Construction Equipment: Machines used in construction, such as bulldozers, excavators, and cranes, employ cylindrical thrust bearings to support axial loads resulting from the lifting and movement of heavy loads.
Aerospace Applications: Aircraft components, such as landing gear assemblies and control systems, may incorporate cylindrical thrust bearings to handle axial loads in aeronautical and aerospace engineering.
Pumps and Compressors: Industrial pumps and compressors that deal with axial forces during operation utilize cylindrical thrust bearings to ensure efficient axial load support and reliable performance.
These examples highlight the versatility of cylindrical roller thrust bearings across various industries and applications where axial load management is crucial for the proper functioning of machinery.
How Cylindrical Roller Thrust Bearings Work
The Mechanism Unveiled - Exploring the physics behind their operation
Cylindrical roller thrust bearings operate based on a sophisticated mechanism designed to efficiently handle axial loads. The physics behind their operation involves the interaction of various components to facilitate smooth axial movement and load distribution. Here’s an exploration of the key aspects of the mechanism:

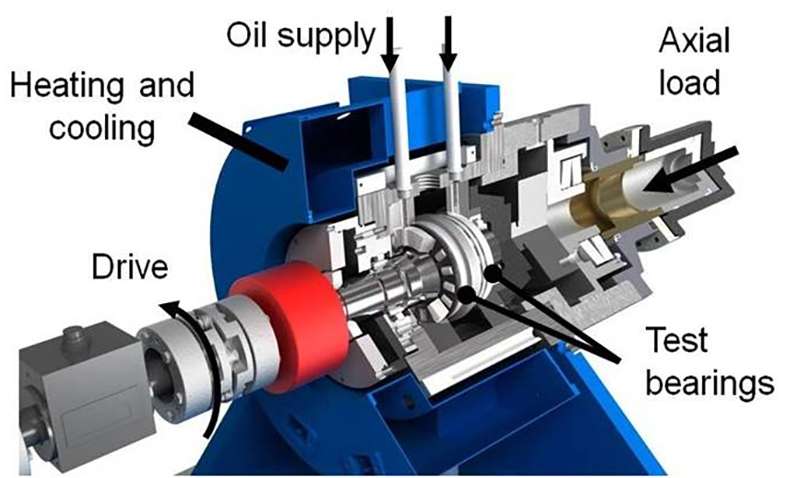

Axial Load Transmission: Cylindrical roller thrust bearings are specifically engineered to manage axial loads, which are forces acting parallel to the axis of the bearing. The cylindrical rollers, arranged in parallel, play a pivotal role in transmitting and distributing these axial loads.

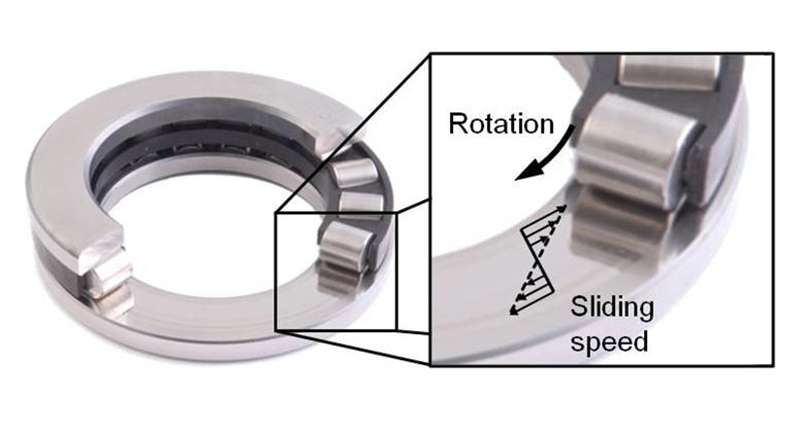

Rolling Motion: The cylindrical rollers facilitate rolling motion as opposed to sliding, reducing friction and wear. This rolling motion is essential for efficient load distribution and contributes to the overall longevity of the bearing.
Raceway Interaction: The shaft and housing washers provide the raceways for the cylindrical rollers. The interaction between the rollers and these raceways involves minimizing contact stresses and ensuring a smooth pathway for axial movement.
Cage Functionality: The cage or separator, typically made of metal or synthetic materials, maintains the proper spacing and alignment of the cylindrical rollers. This mechanism prevents direct contact between rollers, reducing friction, and allowing for optimal load distribution.
Contact Angle and Rigidity: The contact angle between the rollers and the raceways contributes to the bearing’s rigidity and load-carrying capacity. The careful selection of materials and design parameters influences this contact angle, ensuring the bearing’s ability to withstand axial loads.
Dynamic and Static Loads: Cylindrical roller thrust bearings are designed to handle both dynamic and static axial loads. Dynamic loads result from varying operating conditions, while static loads are present when the bearing is stationary. The physics behind the bearing’s construction ensures effective support under both scenarios.
Understanding these physics principles provides insight into the reliable and efficient operation of cylindrical roller thrust bearings. Their ability to handle axial loads, minimize friction, and maintain precise alignment makes them essential components in various machinery and industrial applications where axial forces are prevalent.
Lubrication and Maintenance
Installation Steps:
Alignment: Ensure accurate alignment of bearing components using alignment tools and manufacturer specifications.
Lubrication: Use recommended lubricant during installation and establish a regular lubrication schedule based on operating conditions.
Preload Adjustment: Adjust preload, if applicable, to maintain optimal axial clearance following manufacturer guidelines.
Secure Mounting: Securely mount the bearing to the shaft and housing using proper tools and torque specifications.
Tolerance Verification: Confirm shaft and housing tolerances meet manufacturer specifications for a proper fit.
Maintenance Methods:
Lubrication Checks: Regularly check and replenish lubricant levels to ensure proper lubrication and prevent wear.
Vibration and Temperature Monitoring: Monitor vibration and temperature for early detection of issues such as misalignment or insufficient lubrication.
Inspection for Wear and Damage: Periodically inspect for wear, damage, and abnormal conditions. Replace worn or damaged bearings promptly.
Re-greasing: Re-grease the bearing as recommended to maintain proper lubrication and extend its lifespan.
Alignment Checks: Periodically check and re-align the bearing to ensure even load distribution and prevent premature wear.
Choosing the Right Bearings
Choosing the correct cylindrical thrust bearing is crucial for ensuring optimal performance and longevity in a specific application. Several factors influence the selection process, and considering these variables will help in making an informed decision.
Load Requirements: Determine the magnitude and direction of the axial loads the bearing will experience. Select a cylindrical thrust bearing with a load capacity that comfortably exceeds the application’s maximum axial load.
Speed and Operating Conditions: Consider the rotational speed of the application. Choose a bearing with a speed rating suitable for the operational requirements to prevent issues such as overheating or premature wear.
Size and Dimensions: Ensure the bearing’s dimensions and tolerances match those of the shaft and housing. Consider the fit (clearance or interference) to guarantee proper installation and alignment.
Lubrication Requirements: Different applications may require specific types of lubrication (oil or grease). Choose a bearing that aligns with the lubrication type best suited for the operating environment.
Precision and Rigidity: Depending on the application’s requirements, select a bearing with the appropriate precision class. High-precision bearings may be necessary for applications demanding tight tolerances.
Temperature and Environmental Conditions: Consider the ambient temperature and potential temperature fluctuations in the application. Choose a bearing that can operate within the specified temperature range without compromising performance.
By carefully evaluating these factors, engineers and users can make an informed choice when selecting cylindrical thrust bearings, ensuring that the chosen bearing meets the specific needs of the application and operates efficiently over its intended lifespan.
Conclusion
In wrapping up this comprehensive exploration of Cylindrical Roller Thrust Bearings, it is essential to revisit key takeaways. The knowledge gained from this in-depth guide empowers readers to make informed decisions when it comes to the application and maintenance of these crucial components. Cylindrical roller thrust bearings, with their unique design and versatile capabilities, play a pivotal role in diverse industries. Whether you’re an industry professional seeking to enhance machinery performance or an enthusiast eager to delve into the intricacies of mechanical engineering, the journey into mastering the basics of cylindrical roller thrust bearings is both enlightening and rewarding. As technology continues to evolve, the significance of these bearings is likely to grow, making them an integral part of the machinery landscape.
References
1.”Cylindrical Roller Thrust Bearings” from Wikipedia;
2. “Cylindrical Roller Thrust Bearings” from SKF;
3. “Cylindrical Roller Thrust Bearings” from NSK.
