1. Introduction to Delrin Bearings
What is Delrin and Why It's Used in Bearings
Delrin, known in the materials world as polyoxymethylene (POM), is an acetal resin that brings together a rare mix of mechanical muscle and friction-fighting finesse. Unlike conventional plastics, Delrin boasts impressive strength and stiffness, making it a top contender for applications that see a lot of wear and tear. In bearing applications, Delrin is a quiet performer—literally and figuratively—offering a long service life even in the absence of any lubrication.
Key Performance Attributes of Delrin Bearings
Delrin bearings don’t just roll—they glide with grace under pressure. Their self-lubricating nature, high tensile strength, and excellent dimensional stability allow them to handle moderate to heavy loads without the fuss of maintenance. Throw in low moisture absorption, consistent performance in variable temperatures, and high resistance to fatigue, and you’ve got yourself a bearing material that checks all the right boxes.
Overview of Industries Relying on Delrin Bearings
From the sterile corridors of medical device manufacturing to the high-speed automation lines in packaging plants, Delrin bearings are turning heads across the board. You’ll find them in food processing machinery, chemical handling equipment, agricultural machinery, and even some aerospace components. When uptime matters and grease just won’t cut it, Delrin steps in and delivers the goods.
2. The Unique Chemistry of Delrin (POM)
Structure of Polyoxymethylene (POM)
At a molecular level, Delrin is a homopolymer composed of repeating -CH2O- units, lending it exceptional crystallinity and chain alignment. This tightly packed structure gives the material its signature mechanical strength and superior wear resistance. It’s like the material equivalent of a brick wall—sturdy, dense, and hard to wear down.
Comparison with Other Engineering Plastics
Compared to common engineering plastics like nylon, PTFE, or UHMW-PE, Delrin offers a more balanced blend of stiffness, machinability, and dimensional control. While nylon may beat it in flexibility and PTFE in friction reduction, Delrin shines in scenarios that require a Goldilocks balance—not too soft, not too brittle. Its edge lies in maintaining its properties over a wider temperature and humidity spectrum.
Benefits of Delrin’s Low-Friction Molecular Makeup
The low-friction nature of Delrin isn’t just surface-deep—it’s baked into its very molecular makeup. This allows for smooth sliding interfaces without the constant worry of galling or surface scoring. For engineers, that means fewer headaches and more runtime with minimal fuss.
3. Advantages of Lubrication-Free Operation
Eliminating Grease and Oil Maintenance
One of the crown jewels in Delrin’s feature set is its ability to operate dry, cutting the cord on traditional lubrication. No more scheduled greasing, no oil drips on the factory floor, and definitely no contamination cleanup. This translates directly to leaner maintenance schedules and more predictable system uptime.
Clean Performance in Sensitive Environments
In places where cleanliness isn’t just a preference but a hard-line requirement—think labs, food lines, and semiconductor fabs—Delrin bearings are a dream come true. Their dry operation prevents the spread of particulates or fluid-borne contaminants. Clean rooms love ’em, and so do the folks who manage them.
Reduced Risk of Contamination in Machinery
Delrin’s lubrication-free performance greatly reduces the chances of oil migration into adjacent mechanical systems. This not only protects sensors, wiring, and precision components but also simplifies compliance with hygiene and safety standards. It’s one less variable to worry about in an already complex system.
4. Delrin vs. Traditional Bearing Materials
How Delrin Compares to Steel and Bronze
Steel and bronze bearings certainly pack a punch when it comes to load handling, but they demand lubrication like a fish needs water. Delrin, while not as rugged in raw strength, makes up for it in its self-lubricating nature and corrosion resistance. In low- to mid-load applications, it can actually outperform metals by avoiding seizing, rusting, or wear due to misalignment.
Delrin vs. Nylon and Other Plastics
Nylon absorbs more moisture and tends to swell, making it less predictable in high-humidity or wet environments. UHMW might offer great abrasion resistance, but it’s tough to machine with tight tolerances. Delrin strikes a balance—less warping, better strength, and finer surface finishes.
Trade-Offs in Load Capacity and Temperature Range
Of course, there are trade-offs. Delrin won’t match steel’s load-carrying prowess or temperature ceiling. Push it past 180°F regularly, and it starts to show signs of fatigue. But within its comfort zone, it holds its own with remarkable poise.
5. Mechanical Properties of Delrin Bearings
High Tensile Strength and Stiffness
Delrin flexes its mechanical muscle with a tensile strength of around 10,000 psi, which is no small feat for a thermoplastic. It maintains its rigidity even under steady loads, ensuring tight clearances and minimal deformation. This stiffness makes it ideal for precision components where wiggle room just isn’t an option.
Dimensional Stability Under Load
Thanks to its high crystallinity, Delrin exhibits minimal creep over time, even when loaded continuously. That means your tolerances today will still hold true months or years down the line. It’s like having a bearing that refuses to drift out of spec, no matter how long it runs.
Resistance to Creep and Fatigue
Delrin isn’t just strong—it’s consistent. Its resistance to material fatigue under cyclic loading makes it a great pick for high-cycle applications like conveyors and actuators. When other materials start to droop or deform, Delrin soldiers on without batting an eye.
6. Wear Resistance and Longevity
How Delrin Minimizes Surface Abrasion
Delrin’s smooth, low-friction surface plays nice with shafts, housings, and other moving parts. It reduces abrasive contact and keeps surfaces polished instead of scarred. This helps extend not only its own life but the life of the mating components as well.
Case Studies on Wear Life Performance
Real-world tests have shown Delrin bearings operating over 10 million cycles in lightly loaded automation systems without significant degradation. In agricultural equipment exposed to dust and dirt, it has outlasted traditional plastic bushings by 2-3x. Its ability to keep on chugging when others throw in the towel is well-documented.
Real-World Lifespan in High-Cycle Applications
In conveyor rollers, textile machinery, and packaging lines, Delrin bearings often last several years under 24/7 operations. When properly specified and installed, they offer a “set-it-and-forget-it” solution. It’s not unusual to see them pulled from service not due to failure, but simply as part of a preventive overhaul.
7. Operating Temperature Range
Performance in Low and High Temp Conditions
Delrin performs admirably in a temperature range from -40°F up to about 180°F, retaining its properties without warping or softening. Cold environments don’t cause it to embrittle, making it suitable for freezers and outdoor gear. It’s a solid middle-ground material in a wide thermal span.
Effects of Prolonged Thermal Exposure
Sustained high temperatures, especially above 200°F, can cause oxidation and gradual loss of mechanical integrity. However, in normal operating conditions, Delrin keeps its cool. For environments with brief thermal spikes, it can handle the heat without waving a white flag.
Thermal Expansion Characteristics of Delrin
Delrin does expand with heat, but its coefficient of thermal expansion is lower than many other plastics. This gives it an edge in precision assemblies where temperature swings are expected. Just remember to account for this in your clearance design—tight fits can become too tight in a hurry.
8. Chemical and Moisture Resistance
Compatibility with Solvents and Fuels
Delrin exhibits remarkable resistance to a broad spectrum of solvents, fuels, and chemicals, making it a versatile player in harsh environments where metal bearings might corrode or degrade. It handles aliphatic hydrocarbons, mild acids, and bases with aplomb, ensuring that chemical exposure doesn’t lead to premature failure. This compatibility allows Delrin bearings to be deployed in automotive fuel systems, industrial pumps, and chemical processing equipment without flinching.
Resistance to Water Absorption and Swelling
Unlike nylon and some other engineering plastics notorious for soaking up moisture and swelling like a sponge, Delrin keeps water absorption to a bare minimum—often less than 0.2%. This low moisture uptake prevents dimensional changes and preserves tight tolerances over time, which is a critical advantage in applications exposed to humid or wet conditions. You won’t have to worry about bearings binding or getting sloppy from water-induced distortion.
Delrin’s Stability in Corrosive Environments
Delrin holds its ground admirably in corrosive settings, resisting attack from salts, mild acids, and alkalis that would swiftly degrade metal counterparts. This chemical inertness translates into bearings that maintain their integrity and mechanical properties without the need for protective coatings or complex maintenance routines. In industries like marine, chemical processing, and wastewater treatment, Delrin bearings prove they can go the distance.
9. Applications in Clean and Sterile Environments
Use in Medical Devices and Lab Equipment
The medical field demands components that are not only durable but also compatible with sterilization protocols and contamination-free operation. Delrin bearings fit the bill perfectly—offering smooth, reliable motion without lubrication that could compromise sterility. You’ll find them in surgical instruments, diagnostic machines, and various lab devices where cleanliness is non-negotiable.
Food-Grade Compliance and Approvals
Delrin’s suitability extends into the food and beverage industry, where compliance with FDA and NSF standards is paramount. Its ability to operate cleanly without grease or oil minimizes contamination risks, making it a go-to material for conveyors, packaging machinery, and processing equipment. Plus, its chemical resistance means it can withstand common cleaning agents without degradation.
Delrin in Pharmaceutical Manufacturing Settings
In pharmaceutical production, where contamination controls are stringent and downtime is costly, Delrin bearings provide a maintenance-free, reliable option. They stand up well to the frequent washdowns, chemical exposure, and sterile environments typical of these settings. Using Delrin bearings helps manufacturers keep lines running smoothly without sacrificing the integrity of their product.
10. Load Handling Capabilities
Radial and Axial Load Capacities
Delrin bearings can handle respectable radial loads and moderate axial forces, making them well-suited for a wide range of mechanical demands. Though they don’t rival hardened steel in sheer load-bearing capacity, their ability to absorb shock and distribute load evenly prevents localized stress and premature wear. This makes them ideal for moderately loaded rotating shafts and pivot points.
Effect of Loading on Dimensional Stability
Under load, Delrin exhibits minimal dimensional change compared to many other plastics. Its crystallinity and stiffness allow it to resist deformation, helping maintain tight bearing clearances essential for smooth operation. However, extreme or prolonged loading beyond design parameters can lead to creep, so careful engineering assessment is always a must.
Best Practices for Load Distribution
To maximize Delrin bearing life, evenly distributing loads across the bearing surface is crucial. Avoiding point loads or uneven shaft alignment reduces stress concentrations that could accelerate wear or deformation. Proper housing design, shaft finish, and alignment practices work hand-in-hand to optimize performance and durability.
11. Speed and Motion Efficiency
Coefficient of Friction Comparisons
Delrin’s coefficient of friction is impressively low—often in the range of 0.15 to 0.25—which places it ahead of many engineering plastics and on par with some lubricated metal bearings. This low friction translates directly to less heat generation and energy consumption in moving parts, boosting system efficiency and extending component lifespan.
Suitability for High-Speed Applications
While Delrin can perform admirably at moderate to high speeds, its performance is optimized in applications where lubrication is impractical. For extremely high-speed conditions, careful consideration of heat buildup and shaft surface finish is necessary, but within its range, Delrin delivers quiet, smooth, and efficient motion that rivals traditional bearings.
Quiet, Smooth Operation Benefits
One of the understated perks of Delrin bearings is their whisper-quiet operation, thanks to their inherent damping and self-lubricating qualities. This makes them a favorite in office equipment, medical devices, and consumer appliances where noise reduction is a must-have. They glide along so smoothly, you might forget they’re even there.
12. Bearing Design Variants in Delrin
Sleeve, Flanged, and Thrust Bearing Types

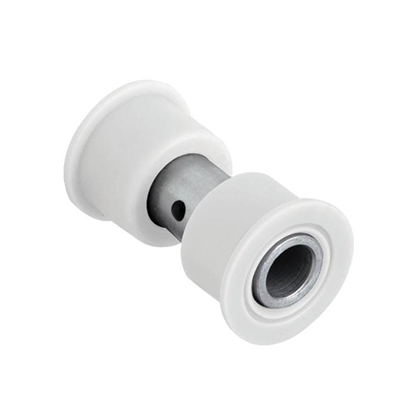

Delrin is highly versatile and comes in various bearing configurations, including sleeve (plain), flanged, and thrust designs. Sleeve bearings handle radial loads with finesse, flanged bearings offer axial location and alignment, and thrust bearings excel at managing axial forces. Selecting the right design depends on your application’s load direction and mounting constraints.
Custom-Molded and CNC-Machined Options
Beyond standard shapes, Delrin lends itself well to custom molding and precision CNC machining. Custom parts can feature complex geometries, integrated flanges, or special mounting features that metal bearings often struggle to provide without expensive secondary operations. This flexibility opens up new design possibilities for engineers pushing the envelope.
Factors in Selecting the Right Configuration
When choosing a Delrin bearing type, consider load magnitude and direction, space limitations, rotational speed, and installation method. The bearing’s geometry must align with the application’s mechanical demands to avoid premature wear or failure. A thoughtfully selected design not only boosts performance but also simplifies assembly and maintenance.
13. Installation and Mounting Best Practices
Press-Fit vs. Slip-Fit Installation
Press-fit installations offer a secure, interference-based hold that minimizes bearing movement during operation, but require careful control of shaft and housing tolerances to avoid deformation. Slip-fit installations, on the other hand, simplify assembly and reduce installation stress but might need additional retaining mechanisms to prevent slippage. Selecting the proper fit is crucial for longevity.
Shaft and Housing Tolerance Considerations
Delrin’s dimensional stability doesn’t give engineers a free pass on precision tolerances. Ensuring shafts and housings fall within specified diameters and surface finishes reduces the risk of bearing damage or premature wear. Typically, a smooth shaft surface with a finish of 16–32 microinches Ra and tight dimensional control will yield the best results.
Avoiding Stress Concentration and Distortion
Excessive mounting force or uneven press fits can induce stress concentrations that distort the bearing or shaft. This compromises the integrity of the interface and can lead to early failure. Using proper installation tools, controlled press speeds, and appropriate lubricant (for installation, not operation) helps avoid these pitfalls.
14. Maintenance-Free Lifecycle
How Delrin Bearings Reduce Downtime
By eliminating the need for lubrication and minimizing wear, Delrin bearings significantly cut down maintenance interventions and machine downtime. This reliability translates into smoother production cycles, less unscheduled maintenance, and a happier maintenance crew. For mission-critical applications, this is a game-changer.
Monitoring Wear Without Disassembly
One of the perks of using Delrin bearings is the ability to track wear and performance indicators without tearing down the machine. Visual inspection and monitoring of operating noise or vibration often suffice to signal when replacement is due. This non-intrusive approach saves time and avoids unnecessary disruptions.
When Replacement Is Necessary
Even the best materials eventually reach their wear limits. Replacement is typically necessary when dimensional clearances increase beyond acceptable thresholds or if surface degradation impacts motion quality. Following manufacturer guidelines and condition-based maintenance practices will ensure replacements occur before failures happen.
15. Cost Efficiency and ROI
Upfront Cost vs. Long-Term Savings
While Delrin bearings might come with a higher upfront cost compared to generic plastic bushings or uncoated metal bearings, their long-term savings are undeniable. Reduced lubrication expenses, extended maintenance intervals, and lower downtime add up quickly, delivering a compelling return on investment.
Reduction in Lubrication and Labor Costs
Cutting out grease and oil doesn’t just save material costs—it reduces labor hours spent on routine lubrication and cleanups. For plants aiming to lean out maintenance operations and boost productivity, Delrin bearings help trim those hidden costs that often go unnoticed until they pile up.
Lifecycle Cost Comparisons to Metal Bearings
Over their service life, Delrin bearings typically outpace metal bearings in cost efficiency due to lower maintenance demands, reduced replacement frequency, and elimination of lubrication-related issues. When factoring in environmental compliance costs tied to lubricant disposal, the economic advantages become even more compelling.
16. Sustainability and Environmental Impact
Reduced Lubricant Pollution
By operating without grease or oil, Delrin bearings significantly reduce the risk of lubricant leakage and environmental contamination. This is especially critical in food processing, pharmaceuticals, and outdoor applications where pollution control is non-negotiable. Cleaner operations mean fewer regulatory headaches and a smaller carbon footprint.
Recyclability and Material Reusability
Delrin is recyclable, allowing manufacturers to reclaim material scrap and reduce waste. Its durability also means fewer replacements, contributing to less landfill accumulation. Incorporating recyclable materials and designing for longevity align well with today’s push for sustainable manufacturing practices.
Energy Savings from Friction Reduction
Lower friction coefficients not only prolong bearing life but also translate into energy savings during operation. Reduced mechanical resistance means motors draw less power, cutting operational costs and emissions. In a world where every watt counts, Delrin bearings offer an eco-friendly edge.
