Tribological Performance of Foil Bearings: Understanding Friction and Wear Mechanisms
Introduction
Definition of foil bearings
Foil bearings, also known as air foil bearings or compliant foil bearings, are innovative types of bearings that utilize a series of thin, flexible metal foils to support rotating shafts without physical contact. Unlike traditional rolling-element or fluid film bearings, foil bearings operate on the principle of air or gas lubrication, where a thin film of compressed gas is generated between the rotating shaft and the foil surfaces. This air film separates the shaft from the bearing surfaces, enabling smooth rotation with minimal friction and wear.
Importance of tribological performance in foil bearings
The tribological performance of foil bearings holds paramount importance due to its direct influence on the efficiency, reliability, and service life of rotating machinery employing these bearings. Tribology, the science of friction, wear, and lubrication, plays a critical role in determining the operational characteristics and longevity of foil bearings. Efficient tribological performance ensures minimal friction losses, which directly translates to higher energy efficiency and reduced operating costs. Moreover, effective wear mitigation mechanisms are essential to prevent premature failure and extend the service life of foil bearings, particularly in demanding applications where continuous operation under harsh conditions is required.
Overview of the significance of friction and wear mechanisms
Understanding the significance of friction and wear mechanisms is crucial in the realm of foil bearings due to their direct impact on performance and reliability. Friction, the resistance encountered when two surfaces slide against each other, influences the energy consumption and efficiency of foil bearings. Excessive friction can lead to increased power losses, heat generation, and ultimately, reduced efficiency. Wear mechanisms, on the other hand, encompass the processes that result in material removal from the bearing surfaces over time, potentially leading to dimensional changes and loss of functionality.
Basics of Foil Bearings

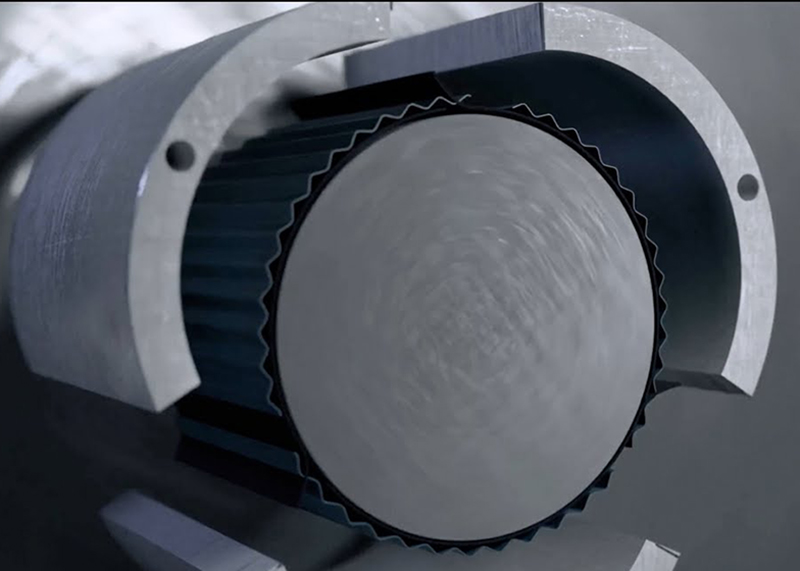

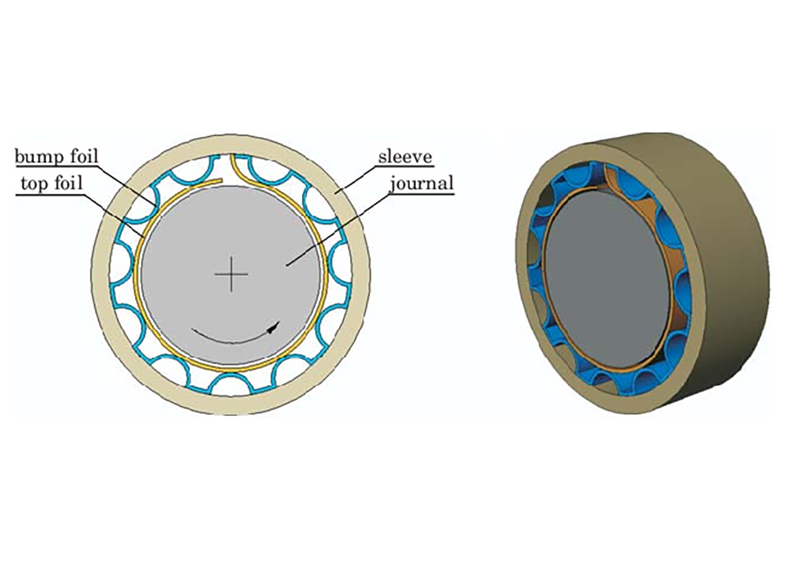

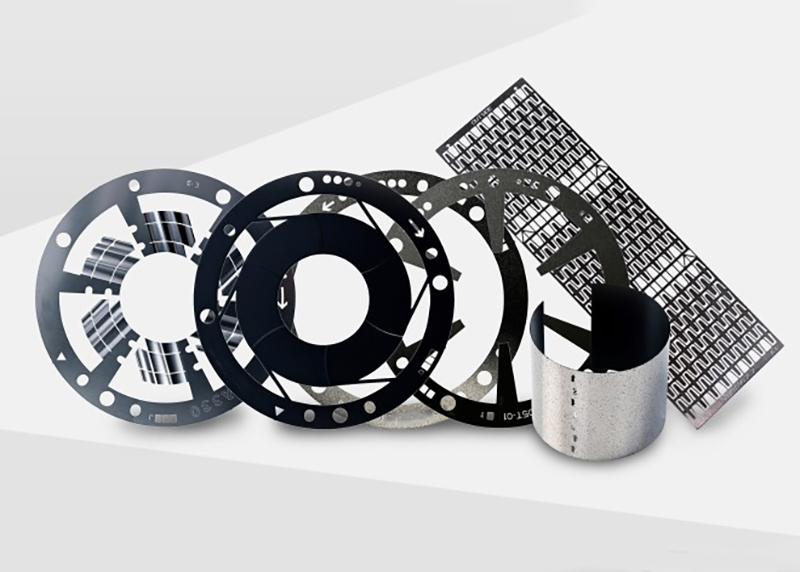

Foil bearings represent a unique class of bearings that rely on a series of thin, flexible metal foils to support rotating shafts without the need for physical contact. Their construction typically involves multiple layers of metal foils, usually made of materials like stainless steel or nickel alloys, arranged in a compliant structure. The foils are designed to deform under load, creating a self-adjusting bearing geometry that accommodates shaft misalignment and thermal expansion.
The operating principle of foil bearings revolves around the generation of a thin film of compressed gas, typically air, between the rotating shaft and the foil surfaces. This air film provides lubrication, allowing the shaft to rotate with minimal friction and wear. Foil bearings offer several advantages over traditional bearing systems, including higher speed capabilities, lower frictional losses, reduced maintenance requirements, and enhanced reliability.
These characteristics make them particularly well-suited for high-speed and high-temperature applications in industries such as aerospace, turbomachinery, power generation, and oil and gas exploration. Their versatility and adaptability to challenging operating conditions have contributed to their widespread adoption across various industrial sectors, where reliability and efficiency are paramount.
Friction Mechanisms in Foil Bearings
Adhesive wear mechanisms in foil bearings
Friction mechanisms in foil bearings encompass various processes that influence the resistance encountered during shaft rotation, directly impacting their operational efficiency and longevity. One significant aspect of friction mechanisms in foil bearings is adhesive wear, which occurs when microscopic surface asperities adhere and subsequently tear off during relative motion between contacting surfaces. This phenomenon is particularly relevant in foil bearings due to their reliance on a thin film of compressed gas for lubrication, which may not always completely eliminate solid-solid contact. Adhesive wear can result in surface damage, material loss, and increased frictional losses, ultimately affecting the performance and reliability of the bearing system. Understanding and mitigating adhesive wear mechanisms in foil bearings are crucial for enhancing their tribological performance and extending their service life. Engineers employ various strategies, such as surface treatments, lubricant formulations, and operating parameter optimization, to minimize adhesive wear and improve the overall efficiency and reliability of foil bearings in diverse applications across industries.
Abrasive wear and surface fatigue in foil bearings
Another important aspect of friction mechanisms in foil bearings is abrasive wear and surface fatigue. Abrasive wear occurs when hard particles or contaminants become trapped between the rotating shaft and the bearing surfaces, leading to the removal of material through mechanical abrasion. This phenomenon is particularly prevalent in environments where the bearing is exposed to debris or contaminants, such as in industrial settings or aerospace applications. Surface fatigue, on the other hand, refers to the progressive degradation of the bearing surfaces due to cyclic loading and repeated stress cycles. In foil bearings, surface fatigue can result from the flexing and deformation of the metal foils under load, leading to the formation of cracks, pits, or surface irregularities over time. Both abrasive wear and surface fatigue can contribute to increased friction, decreased efficiency, and eventual failure of the bearing system.
Impact of friction on bearing performance and efficiency
Friction directly affects the energy consumption and overall efficiency of the bearing system, as it represents the resistance encountered during shaft rotation. In foil bearings, where the operating principle relies on a thin film of compressed gas for lubrication, minimizing frictional losses is essential for achieving optimal performance. Excessive friction can lead to increased power consumption, heat generation, and wear, ultimately compromising the efficiency and reliability of the bearing system. Additionally, high friction levels can contribute to reduced operational speeds and increased vibration levels, which may affect the stability and accuracy of the machinery relying on foil bearings. Therefore, understanding and managing friction mechanisms are essential for optimizing the tribological performance and extending the service life of foil bearings in various applications and operating conditions.
Wear Mechanisms in Foil Bearings
Erosion and particle-induced wear
Another significant wear mechanism in foil bearings is erosion and particle-induced wear, which occurs when abrasive particles or contaminants become trapped between the rotating shaft and the bearing surfaces, leading to material removal through mechanical abrasion. In environments where the bearing is exposed to debris or contaminants, such as industrial settings or aerospace applications, erosion and particle-induced wear can be particularly problematic. These abrasive particles can cause surface damage, increase friction, and accelerate wear rates, ultimately compromising the performance and longevity of the bearing system. Mitigating erosion and particle-induced wear in foil bearings is essential for maintaining optimal tribological performance and extending service life. Engineers employ various strategies, including filtration systems, surface coatings, and operating parameter optimization, to minimize the ingress of contaminants and reduce the impact of erosion and particle-induced wear on foil bearing performance.
Impact of operating conditions on wear mechanisms
Factors such as speed, temperature, load, and environmental conditions can all influence the rate and severity of wear experienced by the bearing surfaces. For instance, higher operating speeds can increase the likelihood of surface fatigue and abrasion, while elevated temperatures may accelerate material degradation and reduce the effectiveness of lubrication. Additionally, variations in load and environmental factors such as contamination or corrosion can exacerbate wear mechanisms and contribute to premature bearing failure. Understanding the interplay between operating conditions and wear mechanisms is crucial for designing and maintaining foil bearings that can withstand the rigors of their intended application environments.
Surface Treatments for Enhancing Tribological Performance
Overview of surface treatment techniques
Surface treatments play a crucial role in enhancing the tribological performance of foil bearings by modifying the surface characteristics to reduce friction and wear. A variety of surface treatment techniques are employed to achieve this goal, including coatings, surface texturing, and surface modification processes. Coatings such as DLC (diamond-like carbon), PVD (physical vapor deposition), and PTFE (polytetrafluoroethylene) can provide a protective barrier against wear and reduce friction by improving surface smoothness and hardness. Surface texturing involves creating micro or nano-scale patterns on the bearing surfaces to promote lubricant retention and reduce contact area, thereby minimizing friction and wear. Surface modification processes, such as shot peening or laser surface engineering, can improve surface hardness, fatigue resistance, and wear resistance, further enhancing the durability and performance of foil bearings.
Application of coatings to mitigate wear and friction
Coatings can provide a protective barrier between the bearing surfaces and the contacting components, reducing direct metal-to-metal contact and minimizing wear. Various types of coatings are utilized for this purpose, including DLC (diamond-like carbon), PVD (physical vapor deposition), and PTFE (polytetrafluoroethylene). DLC coatings offer exceptional hardness, low friction, and excellent wear resistance, making them well-suited for high-speed and high-load applications. PVD coatings, such as titanium nitride (TiN) or chromium nitride (CrN), provide enhanced surface hardness and wear resistance, while also reducing friction and improving the overall tribological properties of the bearing surfaces. PTFE coatings offer low friction and excellent lubricity, effectively reducing wear and minimizing the need for external lubrication. By applying these coatings to foil bearings, engineers can significantly improve their durability, reliability, and performance in diverse operating conditions.
Surface roughness optimization for reduced friction and wear
Surface roughness optimization is another important aspect of enhancing the tribological performance of foil bearings, aiming to reduce friction and wear by modifying the topography of the bearing surfaces. By carefully controlling the surface roughness parameters such as roughness average (Ra), peak-to-valley height (Rz), and surface texture, engineers can tailor the contact characteristics between the bearing surfaces and the rotating shaft. Smooth surface finishes with low Ra values can minimize friction and wear by reducing the real contact area and promoting fluid film lubrication, particularly in hydrodynamic or mixed lubrication regimes. Additionally, surface texture techniques such as laser surface texturing or micro-machining can create micro or nano-scale patterns on the bearing surfaces to enhance lubricant retention, reduce frictional losses, and improve wear resistance.
Lubrication Strategies for Foil Bearings
In foil bearings, lubrication plays a crucial role in reducing friction, minimizing wear, and ensuring smooth operation by providing a protective film between the rotating shaft and the bearing surfaces. Proper lubrication is essential to maintain the integrity of the bearing system and prevent premature failure, particularly in high-speed and high-temperature applications where frictional forces are significant.
Various types of lubricants are suitable for foil bearings, including oils, greases, and dry lubricants. Oils are commonly used due to their excellent lubricity and ability to withstand high operating temperatures, while greases offer better adhesion and resistance to contamination. Dry lubricants, such as solid film coatings or powders, can also be employed for applications where conventional lubricants are impractical or ineffective.
Additives such as anti-wear agents, extreme pressure additives, and corrosion inhibitors are commonly incorporated into lubricants to improve their lubricating properties and protect the bearing surfaces from damage. Anti-wear agents form a protective film on the bearing surfaces, reducing friction and minimizing wear, while extreme pressure additives enhance lubricant film strength and load-carrying capacity, particularly under high-pressure conditions.
Boundary Lubrication in Foil Bearings
Environmental considerations significantly influence the tribological performance of foil bearings, with factors such as operating environment, corrosion, contamination, moisture, and chemical exposure playing crucial roles. The operating environment has a direct impact on foil bearing performance, as variations in temperature, humidity, and atmospheric conditions can affect lubricant properties, bearing materials, and overall system reliability.
Corrosion and contamination pose significant challenges to foil bearings, as exposure to corrosive substances or particulate matter can accelerate wear, degrade surface integrity, and compromise performance. Mitigation strategies such as proper sealing, filtration systems, and material selection are essential for protecting foil bearings from corrosion and contamination in harsh operating environments.
Additionally, moisture and chemical exposure can adversely affect tribological performance by altering lubricant properties, promoting corrosion, and accelerating wear processes. Understanding the influence of environmental factors on foil bearing performance is crucial for designing robust systems capable of withstanding diverse operating conditions and ensuring long-term reliability and efficiency.
Conclusion
In conclusion, foil bearings offer a promising solution for high-speed and high-temperature applications, relying on innovative air lubrication to minimize friction and wear. Understanding friction and wear mechanisms is crucial for optimizing performance and reliability. Engineers employ various strategies such as surface treatments and lubrication techniques to mitigate these challenges. Moreover, environmental factors like corrosion and contamination pose significant concerns, emphasizing the importance of proper maintenance and material selection. By addressing these factors, foil bearings can continue to serve as efficient and reliable components in a wide range of industrial applications, ensuring smooth operation and extended service life.
References
- 1.”Foil bearing” from Wikipedia;
- 2. “Performance analysis of foil bearings for low friction wear” from ResearchGate;
