Unlocking the Potential of Foil Bearings: A Comprehensive Guide
Introduction
Foil bearings are a pivotal innovation in fluid film bearing technology, offering high load capacity, low friction, and contamination resistance. Utilized in high-speed rotating machinery across various industries, these bearings are essential for efficient and reliable operation. With their ability to support shafts through hydrodynamic or hydrostatic action, foil bearings are integral in applications ranging from aerospace to renewable energy. This article delves into the intricacies of foil bearings, exploring their types, construction, operating principles, and design considerations, while also addressing common disadvantages and failure modes to ensure optimal performance and longevity.
Definition and Overview of Foil Bearings
Foil bearings are a type of fluid film bearing that utilizes a thin layer of fluid (usually air or oil) to support the rotating shaft. These bearings consist of a metal foil layer, which is usually made of copper, aluminum, or steel, that is attached to a housing and supports the shaft through hydrodynamic or hydrostatic action. In hydrodynamic foil bearings, the rotation of the shaft generates a pressure gradient in the fluid film, creating a lifting force that supports the shaft. In hydrostatic foil bearings, pressurized fluid is introduced into the bearing cavity to create the supporting fluid film. Foil bearings offer several advantages over traditional rolling element bearings, including high load capacity, low friction, high speed capability, and resistance to contamination. They are commonly used in high-speed rotating machinery, such as gas turbine engines, pumps, and compressors, as well as in renewable energy applications like wind turbines.
Importance of Foil Bearings in Various Industries
Foil bearings play a crucial role in a wide range of industries due to their unique properties and advantages. In the aerospace industry, foil bearings are used in gas turbine engines and auxiliary power units to support high-speed rotating components, providing efficient and reliable operation under extreme conditions. In industrial machinery, foil bearings are used in pumps, compressors, generators, and motors to reduce friction, increase efficiency, and extend service life. Additionally, they are used in renewable energy applications, such as wind turbines and hydroelectric power plants, where they provide quiet and reliable operation under variable speed and load conditions. Overall, foil bearings’ ability to handle high loads, operate at high speeds, and resist contamination makes them an essential component in many industries, contributing to improved performance, reliability, and energy efficiency.
Types of Foil Bearings
Hydrodynamic foil bearings
Hydrodynamic foil bearings represent a sophisticated subset of foil bearings that rely on the principles of hydrodynamic lubrication to support rotating shafts without physical contact. These bearings utilize a thin, flexible foil structure that deforms under load, creating a converging-diverging geometry that generates a pressurized fluid film between the bearing surface and the shaft. As the shaft rotates, the fluid film develops hydrodynamic pressure, lifting the foil away from the shaft and forming a stable air gap. This self-acting mechanism enables hydrodynamic foil bearings to operate at high speeds with minimal friction and wear, offering advantages such as reduced energy consumption, enhanced system efficiency, and extended operational lifespan. The intricate interplay between fluid dynamics, material properties, and geometric design in hydrodynamic foil bearings underscores their significance in demanding applications where high performance, reliability, and maintenance-free operation are paramount.
Hydrostatic foil bearings
Hydrostatic foil bearings represent a specialized category within the realm of foil bearings, distinguished by their unique operating principle that relies on pressurized fluid to support rotating shafts. Unlike hydrodynamic foil bearings that generate fluid film pressure through shaft rotation, hydrostatic foil bearings utilize an external pressurization system to introduce a continuous flow of fluid into the bearing clearance. This pressurized fluid film effectively lifts and supports the foil structure, creating a stable air gap between the bearing and the shaft. By decoupling the bearing performance from shaft speed, hydrostatic foil bearings offer precise control over load capacity and stiffness, making them ideal for applications requiring high precision, low vibration, and superior damping characteristics. The use of external pressurization systems in hydrostatic foil bearings allows for customization of operating parameters, enabling tailored solutions for specific performance requirements in critical applications such as precision machinery, semiconductor manufacturing equipment, and aerospace systems.
Hybrid foil bearings
Hybrid foil bearings represent a cutting-edge evolution within the realm of foil bearings, combining the advantages of both hydrodynamic and hydrostatic principles to achieve enhanced performance and versatility. These innovative bearings integrate features from both hydrodynamic and hydrostatic designs, utilizing a combination of self-acting fluid film generation through shaft rotation and external pressurization for precise control over bearing characteristics. By blending the benefits of fluid film lubrication with the flexibility of external pressurization, hybrid foil bearings offer a unique balance of load capacity, stiffness, and damping properties. This hybrid approach allows for optimized performance across a wide range of operating conditions, making them well-suited for applications requiring high precision, stability, and reliability. The versatility and adaptability of hybrid foil bearings make them a promising solution for demanding industries such as aerospace, power generation, and high-precision machinery where performance requirements are stringent and varied.
Construction and Components of Foil Bearings

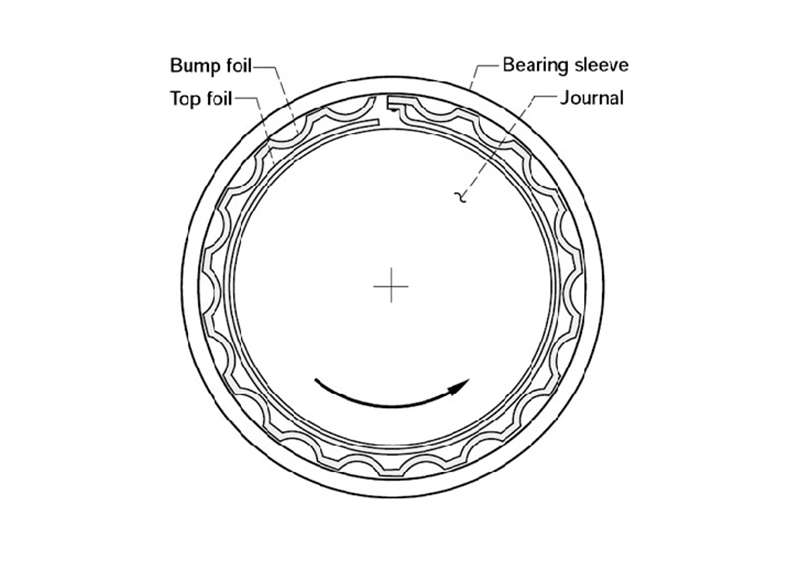

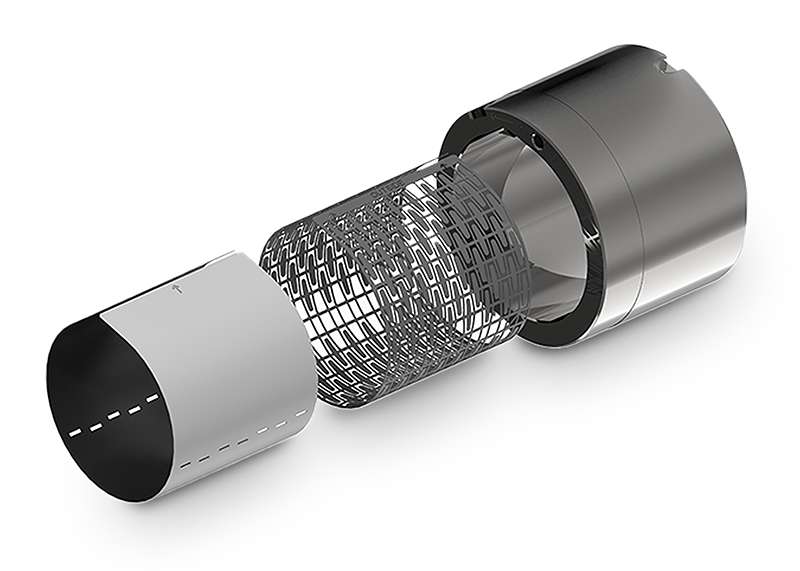

The structure and components of foil bearings vary depending on the specific type, but they typically consist of a housing, a foil element, and a lubricant. The housing is the outer component that holds the other components in place and provides structural support. It is usually made of a durable material such as steel or aluminum and is designed to withstand the loads and environmental conditions encountered during operation. The foil element is the key component that provides the bearing surface for the rotating shaft. It is made of a thin, flexible metal sheet, such as copper or aluminum, that is shaped and contoured to conform to the shaft surface. The foil element can be designed with different types of foils, such as bump foils, leaf foils, or porous foils, to achieve specific performance characteristics. Finally, a lubricant, such as air or oil, is used to create a fluid film between the foil element and the shaft, reducing friction and wear during operation. The choice of lubricant depends on the specific application and operating conditions, with factors such as temperature, load, and speed influencing the selection.
Operating Principles of Foil Bearings
Hydrodynamic operation
During hydrodynamic operation, foil bearings rely on the relative motion between the shaft and the foil element to generate a supporting fluid film. As the shaft rotates, it moves through the fluid film, creating pressure gradients that cause the fluid to flow between the shaft and the foil element. This flow generates lift, which opposes the weight of the shaft and supports its rotation. The pressure distribution within the fluid film is influenced by factors such as the viscosity of the fluid, the clearance between the shaft and the foil element, and the speed of rotation. The foil element is designed to deform elastically under load, conforming to the shape of the shaft and maintaining a thin fluid film between the two surfaces. This elastic deformation also helps to dampen vibrations and reduce wear. Overall, hydrodynamic foil bearings provide efficient and reliable support for rotating machinery by utilizing the hydrodynamic forces generated by the rotation of the shaft.
Hydrostatic operation
The working principle of hydrostatic foil bearings involves the use of externally pressurized fluid to create a supporting fluid film between the bearing and the rotating shaft. The fluid is typically pumped from a reservoir to the bearing cavity through a supply line, where it is distributed evenly across the bearing surface through a series of ports or grooves. The pressure of the fluid is controlled and regulated by a pressure regulator or a servo-valve to maintain a constant clearance between the shaft and the bearing surface. As the shaft rotates, the fluid film acts as a lubricant, reducing friction and wear between the two surfaces. The fluid film also provides a damping effect, which helps to reduce vibrations and improve the stability of the shaft. The performance of hydrostatic foil bearings is highly dependent on the viscosity of the fluid, the clearance between the shaft and the bearing surface, and the pressure of the fluid. By optimizing these parameters, hydrostatic foil bearings can achieve high load capacity, high stiffness, and excellent running accuracy, making them suitable for a wide range of high-precision applications, such as machine tool spindles, aerospace actuators, and high-speed turbomachinery.
Design Considerations
Design considerations for foil bearings involve several critical factors that impact their performance, reliability, and lifespan. Material selection is a key consideration, as the bearing material must be able to withstand the loads, temperatures, and environmental conditions encountered during operation. Common materials used for foil bearings include copper alloys, aluminum alloys, and stainless steels, which offer good wear resistance, fatigue strength, and corrosion resistance. Geometry and configuration are also important design considerations, as they influence the load capacity, stiffness, and stability of the bearing. The shape and size of the foil elements, as well as the number and arrangement of the fluid ports or grooves, can significantly impact the bearing’s performance. Other design considerations include the clearance between the shaft and the bearing surface, the type and viscosity of the lubricant, and the method of shaft retention. Careful consideration of these factors during the design phase can help optimize the performance of foil bearings and ensure reliable operation in a variety of applications.
Disadvantages of Foil Bearings
- Limited Life Expectancy: Foil bearings typically have a limited lifespan due to the wear and tear caused by the rotating shaft and the fluid film. The life expectancy of foil bearings can vary depending on factors such as the operating conditions, the quality of the materials used, and the design and manufacturing process.
- High Cost: Foil bearings are generally more expensive than traditional rolling element bearings due to the complexity of their design and manufacturing process. The cost of foil bearings can be further increased by the need for specialized equipment and skilled labor to install and maintain them.
- Sensitivity to Misalignment: Foil bearings are more sensitive to misalignment than rolling element bearings, which can lead to reduced performance, increased wear, and premature failure. Proper alignment of the shaft and bearing is critical to ensure optimal performance and longevity.
- Complex Design and Manufacturing Process: The design and manufacturing process of foil bearings is complex, requiring specialized knowledge and expertise. This complexity can lead to longer lead times, higher costs, and a greater risk of errors or defects during manufacturing.
Addressing Common Failure Modes
Resolving common failure modes in foil bearings involves implementing proactive maintenance strategies and addressing underlying issues effectively. To tackle wear and tear problems, regular inspection and monitoring techniques such as vibration analysis, temperature monitoring, and visual inspections can help detect early signs of degradation. Implementing preventive maintenance measures like proper lubrication, ensuring correct alignment, and managing operating conditions within specified limits can mitigate wear-related failures. Addressing overheating and thermal degradation issues requires optimizing thermal management strategies, such as improving cooling systems, enhancing material selection for better heat dissipation, and adjusting operating parameters to minimize temperature fluctuations. By combining preventive maintenance practices with targeted solutions for specific failure modes, it is possible to enhance the reliability, longevity, and performance of foil bearings in various applications.
Conclusion
In conclusion, foil bearings offer a sophisticated solution for high-speed rotating machinery, providing advantages such as high load capacity, low friction, and resistance to contamination. Despite their benefits, foil bearings come with limitations like limited lifespan, higher cost, sensitivity to misalignment, and a complex manufacturing process. Addressing common failure modes through proactive maintenance and targeted solutions is crucial to ensuring the reliability and longevity of foil bearings in various applications. By implementing preventive measures, optimizing thermal management, and addressing wear-related issues effectively, the performance and efficiency of foil bearings can be maximized, making them a valuable component in industries requiring precision, reliability, and maintenance-free operation.
References
- 1.”Foil bearing” from Wikipedia;
- 2. “Foil Bearings – an overview” from ScienceDirect;
- 3. “Foil Bearings – Technology Whose Time Has Come” from Mechanical Solutions.
