Advantages and Limitations of Full Complement Bearings: Engineering Considerations
Introduction

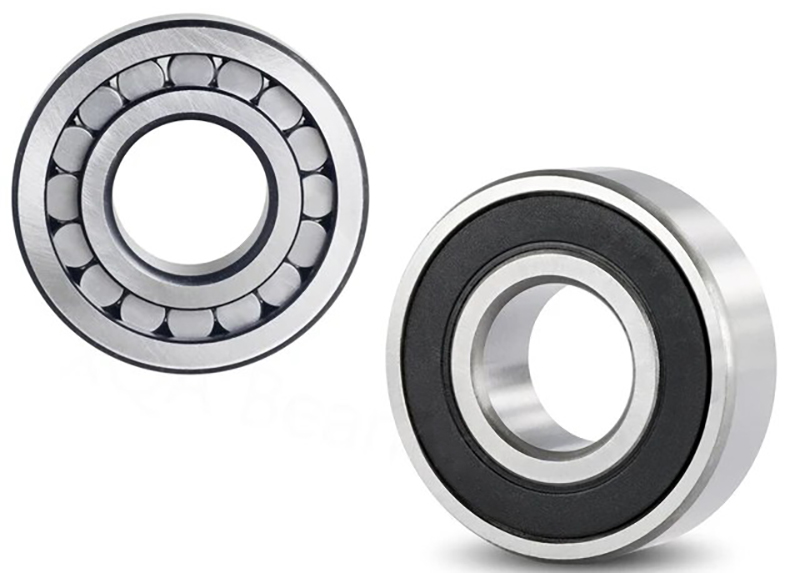

Full complement bearings are designed with a maximum number of rolling elements arranged closely together, providing high load-carrying capacity and stiffness. They excel in applications where space is limited and heavy loads need to be supported. However, they may experience increased friction and reduced speed capabilities due to the higher number of rolling elements.
On the other hand, caged bearings feature a cage or separator that maintains spacing between rolling elements, allowing for smoother operation at higher speeds and lower friction. This design reduces wear and prolongs bearing life but may sacrifice load capacity compared to full complement bearings. Understanding the advantages and limitations of each type is crucial in engineering applications to ensure optimal performance, reliability, and longevity of machinery and equipment. Engineers must carefully consider factors such as load requirements, operating speeds, space constraints, and maintenance needs when selecting between full complement bearings and caged bearings to meet specific application demands.
Understanding Full Complement Bearings

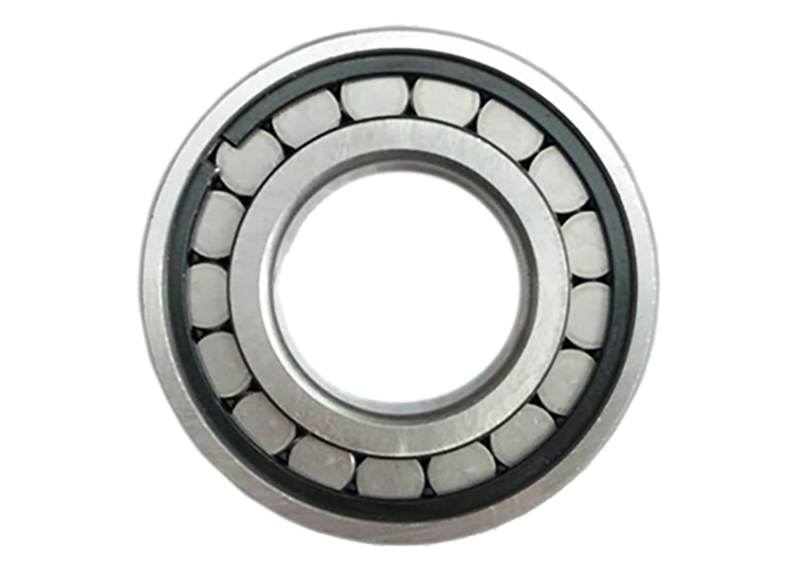

Full complement bearings are a type of rolling element bearing that is characterized by having the maximum number of rolling elements arranged closely together within the bearing raceways. Unlike caged bearings, which use a cage or separator to maintain spacing between rolling elements, full complement bearings utilize the entire available space to accommodate as many rolling elements as possible. This design results in a bearing with a higher load-carrying capacity and increased stiffness compared to caged bearings.
Functionally, full complement bearings operate by distributing the applied load evenly among the numerous rolling elements, thereby reducing stress on individual elements and prolonging the bearing’s lifespan. The working principle revolves around the smooth rotation of the bearing’s inner and outer races, facilitated by the rolling elements moving between them with minimal friction. This arrangement enables full complement bearings to support heavy radial loads efficiently while maintaining stability and reliability in various mechanical applications.
Understanding Caged Bearings
Caged bearings are a type of rolling element bearing designed with a cage or separator that maintains spacing between the rolling elements within the bearing raceways. Unlike full complement bearings, which maximize the number of rolling elements, caged bearings use a cage structure to keep the rolling elements evenly spaced apart. This design ensures smoother operation and reduced friction between the rolling elements and the bearing raceways. Functionally, caged bearings work by distributing the applied load among the rolling elements while allowing for higher speeds and lower friction compared to full complement bearings. The cage or separator prevents the rolling elements from contacting each other during operation, reducing wear and extending the bearing’s lifespan. This working principle makes caged bearings well-suited for applications requiring high-speed rotation and moderate to heavy radial loads.
Advantages of Full Complement Bearings

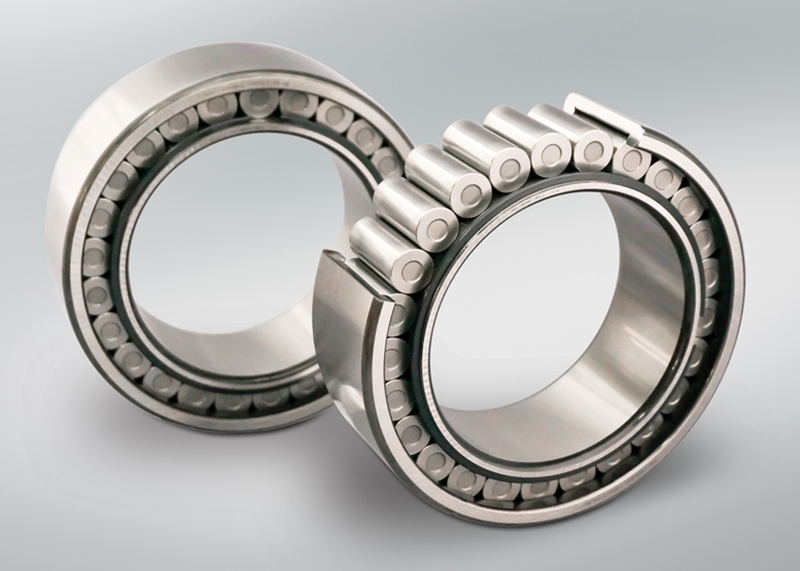

Higher load capacity
This advantage stems from the elimination of a cage, allowing for a greater number of rolling elements to be accommodated within the bearing’s raceways. With more rolling elements distributed along the raceways, full complement bearings can effectively support heavier loads compared to caged bearings. The absence of a cage means that there is no spacing limitation imposed on the rolling elements, maximizing the utilization of available space within the bearing. Consequently, the bearing can withstand greater forces without compromising its stability or performance. This enhanced load-carrying capability makes full complement bearings particularly well-suited for applications where heavy radial or axial loads are prevalent, ensuring reliable operation and extended service life in demanding industrial environments.
Increased stiffness
Another significant advantage of full complement bearings is their increased stiffness, which results from the closer spacing of the rolling elements within the bearing raceways. Unlike caged bearings, where the rolling elements are separated by a cage, full complement bearings allow the rolling elements to be arranged closely together, maximizing the support structure’s rigidity. This enhanced rigidity makes full complement bearings well-suited for applications requiring minimal deflection under load, such as precision machinery, robotic systems, and high-precision manufacturing equipment. The reduced flexibility of the bearing assembly ensures more precise positioning and motion control, contributing to improved accuracy and performance in critical applications. Additionally, the increased stiffness of full complement bearings enables them to withstand higher forces and resist deformation, enhancing their durability and reliability in demanding operating conditions.
Improved reliability
Full complement bearings offer improved reliability compared to caged bearings due to several factors. Firstly, the absence of a cage eliminates the risk of cage failure, which can occur under high-speed or high-load conditions in caged bearings. Without a cage to potentially break or deform, full complement bearings can operate more reliably over extended periods without the risk of component failure. Secondly, full complement bearings exhibit enhanced durability, particularly in high-load and high-speed applications, thanks to their ability to distribute loads more evenly among the increased number of rolling elements. This distribution of forces helps to minimize stress concentrations and reduce wear on individual components, resulting in a bearing assembly that can withstand demanding operating conditions with greater resilience and longevity, ultimately enhancing overall system reliability and performance.
Limitations of Full Complement Bearings
One of the primary drawbacks is the higher friction associated with full complement bearings compared to caged bearings. The increased number of rolling elements in full complement bearings results in more contact points between the rolling elements and the bearing raceways, leading to higher frictional forces during operation. This higher friction can result in increased energy consumption and elevated operating temperatures, impacting overall efficiency and potentially shortening the bearing’s lifespan. Additionally, full complement bearings may have reduced speed capability compared to caged bearings due to the increased friction and inertia associated with the larger number of rolling elements. The higher mass and rotational resistance of full complement bearings can limit their suitability for applications requiring high-speed operation, where minimizing friction and inertia are critical for maintaining performance and reliability.
Another limitation of full complement bearings is their limited ability to retain lubrication. With more rolling elements closely packed within the bearing raceways, there is less space available for lubricant retention compared to caged bearings. This can result in reduced lubrication effectiveness and potentially lead to premature wear and failure of the bearing components. Engineers must carefully consider the lubrication requirements and maintenance intervals when using full complement bearings to ensure adequate lubrication and prevent issues related to insufficient lubrication, such as increased friction, overheating, and accelerated wear.
Comparison of Load Capacity
Full complement bearings exhibit superior load capacity compared to caged bearings due to their unique design characteristics. In full complement bearings, the load is uniformly distributed among all rolling elements, ensuring that each element bears an equal portion of the applied load. This uniform distribution results in efficient load sharing and minimizes stress concentrations, making full complement bearings capable of effectively handling shock and cyclic loads without compromising performance or reliability.
In contrast, the load distribution in caged bearings depends on the structure and arrangement of the cage. The presence of a cage can lead to uneven loading on the rolling elements, particularly under heavy loads, increasing the risk of premature failure due to localized stress concentrations. Moreover, the cage itself may become a point of failure under extreme conditions, further compromising the bearing’s ability to withstand heavy loads. Overall, full complement bearings offer a more robust and reliable solution for applications requiring high load-carrying capacity and resistance to shock and cyclic loads, making them preferred choices in demanding industrial environments where heavy-duty performance is paramount.
Comparison of Stiffness
When comparing the stiffness between full complement bearings and caged bearings, several factors come into play. In full complement bearings, the absence of a cage allows for a closer spacing of the rolling elements within the bearing raceways, resulting in enhanced rigidity. This reduced flexibility minimizes deflection under load, making full complement bearings suitable for applications where precise positioning and minimal movement are crucial. Additionally, the increased number of rolling elements in full complement bearings contributes to their higher stiffness, enabling them to withstand higher loads and resist deformation more effectively.
Conversely, caged bearings may exhibit lower stiffness due to the presence of a cage, which introduces some flexibility into the bearing assembly. The cage structure may allow for more movement and deflection of the rolling elements, particularly under heavy loads or dynamic operating conditions. As a result, caged bearings may experience greater levels of deflection compared to full complement bearings, potentially impacting their performance and accuracy in precision applications. Engineers must consider these differences in stiffness and flexibility when selecting between full complement bearings and caged bearings for specific applications, ensuring that the chosen bearing type aligns with the requirements for load capacity, rigidity, and deflection tolerance.
Comparison of Friction Characteristics
When comparing the friction characteristics between full complement bearings and caged bearings, significant differences emerge. In full complement bearings, the higher number of rolling elements in direct contact with the bearing raceways results in increased friction. This elevated friction arises from the larger number of contact points between the rolling elements and the raceways, leading to higher levels of resistance during operation. Consequently, full complement bearings have the potential for greater energy dissipation and heat generation due to the increased friction, which can impact overall efficiency and performance in certain applications requiring minimal energy loss and heat buildup.
Conversely, caged bearings exhibit reduced friction owing to the smoother movement of the rolling elements facilitated by the cage. The cage maintains consistent spacing between the rolling elements, minimizing frictional resistance and promoting smoother rotation. As a result, caged bearings typically consume less energy and generate less heat compared to full complement bearings, making them preferable for applications where minimizing energy consumption and heat buildup are essential considerations. Engineers must carefully assess the frictional behavior and energy requirements of both types of bearings when selecting the most suitable option for their specific application needs, balancing factors such as load capacity, efficiency, and heat management to ensure optimal performance and longevity.
Maintenance and Service Life Considerations
When considering maintenance and service life, both full complement bearings and caged bearings present unique considerations. Full complement bearings, with their higher load capacity and enhanced stiffness, may require more frequent maintenance intervals due to the increased friction and wear resulting from the larger number of rolling elements. Proper lubrication and monitoring of operating conditions are crucial to ensuring optimal performance and extending the service life of full complement bearings. On the other hand, caged bearings, while typically exhibiting lower friction and wear, may still require regular maintenance to prevent issues such as cage wear or misalignment. Additionally, proper cage selection and maintenance are essential to avoid premature failure and ensure consistent performance over time. Ultimately, proactive maintenance practices tailored to the specific characteristics and operating conditions of each bearing type are essential for maximizing service life and minimizing downtime in industrial applications.
Conclusion
In conclusion, the choice between full complement bearings and caged bearings depends on various factors such as load requirements, operating speeds, space constraints, and maintenance needs. Full complement bearings offer higher load capacity and increased stiffness, making them suitable for heavy-duty applications. However, they may experience higher friction and require more frequent maintenance. Caged bearings, with their smoother operation and lower friction, are preferable for high-speed applications but may sacrifice load capacity. Engineers must carefully weigh these advantages and limitations to select the most appropriate bearing type for optimal performance, reliability, and longevity of machinery and equipment in diverse industrial settings.
References
- 1.”What is the difference between cage-guided and full complement deep groove ball bearings?” from KUGELLAGER SHOP;
- 2. “The Advantages And Disadvantages Of Full Complement Bearings” from Lily-Bearing;
- 3. “Advantages of full complement cylindrical roller bearings” from JNSN Bearing.
