Innovative Graphite Composite Bearings: Breaking New Ground in Engineering
Introduction
Brief Overview of Bearings and Their Importance in Engineering
Bearings, fundamental components in machinery, facilitate relative motion between two surfaces, reducing friction and supporting loads. In engineering, their importance is paramount, as they enable the smooth operation of various mechanical systems, from automotive engines to industrial machinery. Bearings play a crucial role in preventing wear and tear, enhancing efficiency, and ensuring the longevity of moving parts. As technological advancements continually drive innovation, recent breakthroughs in materials, particularly graphite composites, are reshaping the landscape of bearing technology.
Brief overview of traditional bearing materials
Traditional bearing materials have been fundamental in various industries for centuries, serving as the interface between moving parts to reduce friction and wear. Common materials include bronze, which offers excellent load-bearing capabilities and resistance to corrosion, making it suitable for heavy-duty applications. Babbitt metal, a soft alloy typically comprising tin, copper, and antimony, is widely used for its ability to conform to irregularities in shafts and provide a low coefficient of friction. Steel bearings are renowned for their durability and high load-carrying capacity, often employed in automotive and industrial machinery. Each material possesses unique properties tailored to specific operational requirements, contributing to the efficiency and longevity of mechanical systems.
Definition of Graphite Composite Bearings
Graphite composite bearings, a notable advancement in bearing technology, are engineered materials that integrate graphite particles into a composite matrix. These bearings harness the self-lubricating properties of graphite, reducing the need for external lubrication and enhancing performance in challenging conditions. The combination of graphite’s lubricity and the strength of the composite matrix results in bearings with low friction, excellent wear resistance, and improved thermal conductivity. This makes graphite composite bearings well-suited for applications where traditional lubrication may be impractical or difficult to maintain, providing a reliable and efficient solution for diverse industrial sectors.
Understanding Graphite Composite Materials
Overview of graphite as a material
Graphite, a crystalline allotrope of carbon, is a versatile material with diverse applications owing to its unique properties. It occurs naturally in various forms, predominantly as flakes or crystalline veins within metamorphic rocks. The extraction process involves both open-pit mining and underground methods, depending on the deposit’s depth and location. After extraction, graphite undergoes refining to achieve desired purity levels. Structurally, graphite is composed of hexagonally arranged carbon atoms, forming flat, two-dimensional layers known as graphene. The layers are held together by weak van der Waals forces, allowing them to easily slide over each other. This characteristic imparts graphite with its lubricating properties, making it an ideal choice for applications such as lubricants, pencils, and, more recently, advanced materials like graphene-based composites in emerging technologies.
Properties of Graphite Composite Materials
Graphite composite materials are unique in their properties, making them an attractive choice for various engineering applications, especially in bearings. These materials consist of graphite particles or fibers combined with a matrix of either metal, polymer, or ceramic. The resulting composite offers a combination of properties that are difficult to achieve with traditional materials. One of the standout characteristics of graphite composites is their high strength and stiffness, which allows them to withstand heavy loads and maintain their shape under extreme conditions. Additionally, they possess excellent thermal conductivity, allowing them to dissipate heat effectively, reducing the risk of overheating and failure. Furthermore, graphite composites have a low coefficient of friction, which minimizes wear and tear, leading to increased durability. They also exhibit good wear resistance, chemical inertness, and are non-corrosive, making them suitable for use in harsh environments. These properties make graphite composite bearings a game-changer in the engineering world, offering improved performance and reliability in a wide range of applications.
Manufacturing Processes for Graphite Composite Bearings
The manufacturing process of graphite composite bearings involves several key steps to ensure the desired properties and performance characteristics are achieved. Firstly, graphite particles are carefully dispersed within a resin matrix, often epoxy or phenolic resin, through mixing and blending. This mixture is then molded into the desired bearing shape using compression molding or injection molding techniques. Next, the molded bearings undergo a curing process to solidify the resin matrix and bond the graphite particles together. After curing, the bearings are precision machined to achieve the final dimensions and surface finish. This machining step is crucial for ensuring tight tolerances and smooth bearing surfaces. Finally, the bearings may undergo additional treatments such as impregnation with lubricants or coatings to enhance their self-lubricating properties further. The meticulous control of each manufacturing step is essential to produce graphite composite bearings with consistent quality and performance for various industrial applications.

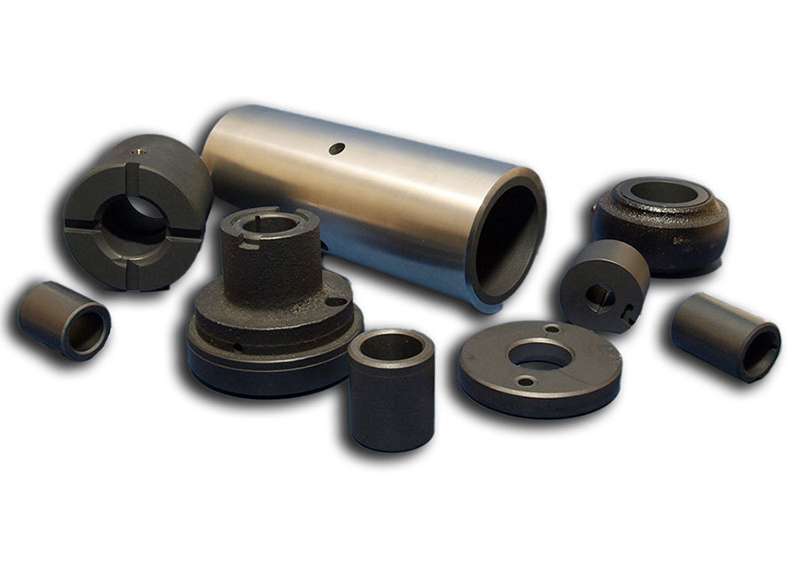

Types of Graphite Composite Bearings

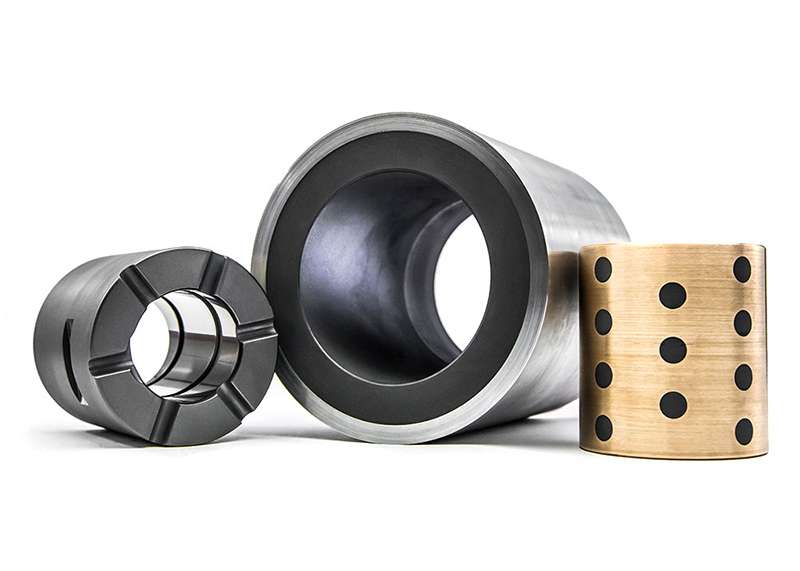

Graphite-Embedded Bronze Bearings: These bearings feature a composite structure with graphite particles embedded in a bronze matrix. The combination of bronze’s load-bearing capacity and graphite’s self-lubricating properties provides a robust solution for applications requiring both strength and reduced friction.
Graphite-Reinforced Polymer Bearings: In this type, graphite is reinforced within a polymer matrix, such as nylon or PTFE (polytetrafluoroethylene). The resulting composite bearings exhibit low friction, excellent wear resistance, and corrosion resistance, making them suitable for various industries, including automotive and machinery.
Graphite-Metal Composite Bearings: These bearings integrate graphite particles into a metal matrix, often using materials like steel or aluminum. The combination of metal strength and graphite’s lubricating nature results in durable bearings with high load-carrying capacity and reduced friction.
Graphene Composite Bearings: Utilizing the remarkable properties of graphene, these bearings feature a composite structure with graphene sheets integrated into the matrix. Graphene’s exceptional strength, thermal conductivity, and lubricity contribute to bearings with enhanced performance, particularly in demanding and high-temperature applications.
Comparison of different types of graphite composite bearings
Graphite composite bearings play a crucial role in various industries, and understanding their specific attributes helps in choosing the right type for diverse applications. Graphite-embedded bronze bearings strike a balance between load-bearing capabilities and self-lubrication. These bearings find utility in heavy-duty settings where durability and friction reduction are both essential. Graphite-reinforced polymer bearings, with materials like nylon or PTFE, excel in scenarios where resistance to corrosion and low friction are critical, making them well-suited for applications in chemical or harsh environments. Graphite-metal composite bearings leverage the strength of metals, providing a robust solution for applications that require both strength and moderate friction reduction.
In contrast, graphene composite bearings represent the cutting edge of technology, capitalizing on the remarkable properties of graphene. These bearings offer exceptional strength, thermal conductivity, and lubrication, making them ideal for advanced applications where high performance is paramount, such as in aerospace or high-tech machinery. The choice among these types ultimately hinges on the specific demands of the application, considering factors such as load capacity, environmental conditions, and the need for advanced materials in specialized industries.
Recent Innovations in Graphite Composite Materials
Recent innovations in graphite composites have revolutionized the engineering landscape by introducing advanced manufacturing techniques like robotic fiber placement and resin transfer, novel material formulations, and more. These innovations address industry-specific requirements for enhanced performance, durability, and cost-effectiveness, propelling the sustainability and rapid adoption of composites across various sectors. High-performance resins and adhesives enhance bonding properties, while carbon fiber-based materials offer superior strength-to-weight ratios. Advanced polymer composites improve mechanical properties and design flexibility, alongside nanocomposites that enhance material properties at the molecular level. Additive manufacturing enables precise production of complex composite parts, circular materials reduce waste, and biomaterials contribute to sustainable and biocompatible composites. Intelligent design and manufacturing leverage data analytics and automation for optimized product development and production, expanding applications in aerospace, automotive, construction, and renewable energy industries.
Applications of Graphite Composite Bearings
Automotive Industry: Graphite composite bearings are widely used in the automotive sector, particularly in engine components, transmissions, and suspension systems. Their self-lubricating properties contribute to reduced friction, enhancing fuel efficiency and extending the lifespan of moving parts.
Industrial Machinery: Graphite composite bearings find applications in various industrial machinery, including pumps, conveyors, and gearboxes. The combination of strength, low friction, and resistance to wear makes them suitable for heavy-duty and high-performance applications, contributing to operational efficiency.
Aerospace Applications: The aerospace industry utilizes graphite composite bearings in critical components of aircraft, spacecraft, and satellites. These bearings offer lightweight solutions with high strength, meeting the stringent requirements of aerospace applications while providing reliable and efficient performance.
Marine Systems: Graphite composite bearings are employed in marine environments for ship propulsion systems, steering mechanisms, and other critical components. Their corrosion resistance and ability to withstand harsh conditions make them valuable in maritime applications.
Renewable Energy: In the field of renewable energy, graphite composite bearings are utilized in wind turbines and solar tracking systems. Their self-lubricating nature and resistance to environmental factors contribute to the reliability and efficiency of these energy systems.
Medical Equipment: Graphite composite bearings are used in various medical devices and equipment, including surgical instruments and imaging machinery. Their biocompatibility, low friction, and durability make them suitable for applications where precision and reliability are paramount in the medical field.
Challenges in Graphite Composite Bearings
Despite the numerous advantages of graphite composite bearings, certain challenges exist that warrant consideration in their application. One primary challenge is the potential for abrasive wear in high-load scenarios, especially when operating in abrasive environments. While graphite provides excellent self-lubricating properties, the wear resistance of the composite may be a concern in extreme conditions, necessitating careful material selection and design optimization. Additionally, graphite composite bearings may face challenges related to thermal stability, particularly in applications with elevated temperatures. The degradation of the resin matrix or the loss of lubricating properties at extreme temperatures can impact performance. Furthermore, achieving consistent quality and maintaining cost-effectiveness during the manufacturing process poses challenges, especially in ensuring a uniform distribution of graphite particles within the matrix. Addressing these challenges requires ongoing research and development efforts to enhance the durability, thermal resistance, and overall reliability of graphite composite bearings across diverse operational conditions.
Future Directions in Graphite Composite Bearing Technology
The future of graphite composite bearing technology is promising and filled with potential advancements. As the global demand for high-performance, lightweight, and durable materials continues to grow, graphite composites are expected to play an increasingly important role in bearing applications. One key area of focus will be the development of new materials and manufacturing processes that further enhance the mechanical properties, tribological behavior, and thermal stability of graphite composites. Additionally, the integration of sensors, data analytics, and other smart technologies into graphite composite bearings will enable real-time monitoring and predictive maintenance, leading to improved reliability and reduced downtime. With continued research and innovation, graphite composite bearings are poised to become even more versatile and effective in meeting the needs of a diverse range of industries.
Conclusion
In conclusion, bearings are indispensable components in engineering, reducing friction and supporting loads for efficient machinery operation. Traditional materials like bronze and steel have long been crucial, but recent advancements in graphite composite bearings are reshaping the landscape. Leveraging graphite’s unique properties, these bearings offer enhanced performance, durability, and self-lubrication. From automotive to aerospace, their applications are diverse, though challenges like abrasive wear and thermal stability persist. The future holds promise for further innovations, focusing on material enhancements, smart technologies, and increased versatility. As graphite composite bearings continue to evolve, they are poised to meet the ever-growing demands of diverse industries, ensuring smoother, more reliable operations.
References
- 1.”Graphite Bearing” from High Temp Bearings;
- 2. “Graphalloy Graphite Bearings|For High TempApplications” from Graphalloy;
- 3. “Carbon Graphite Bearings: What Industries Are Utilizing Them” from ROC Carbon Company.
