Graphite Copper Sleeves: Superior Wear Resistance

Graphite copper sleeve introduction

A graphite copper sleeve is a type of bearing or bushing used in machinery and mechanical systems. It is typically made from a composite material that combines copper with graphite, offering both good conductivity and self-lubricating properties. Here’s a breakdown of what makes it unique:

1. Material Composition

Copper: Provides strength, durability, and good thermal and electrical conductivity.
Graphite: Acts as a solid lubricant. It creates a self-lubricating surface that reduces friction and wear, even in conditions where regular lubrication might not be practical.

2. Function

The sleeve acts as a bearing or bushing, which is a component that allows a rotating or sliding shaft to move smoothly within machinery.
The graphite embedded in the copper creates a lubricating film over time as it wears, ensuring the components run smoothly and reducing maintenance needs.

3. Applications

Widely used in high-temperature environments because graphite can withstand higher temperatures without losing lubricity.
Common in electrical machinery where both conductive and friction-reducing properties are beneficial.
Often found in industrial equipment, pumps, motors, and valves.

4. Advantages

Self-lubricating: Reduces the need for external lubrication.
High Conductivity: Due to copper, it can be useful in electrical applications.
Reduced Maintenance: Lower wear on moving parts increases the lifespan of the machinery.

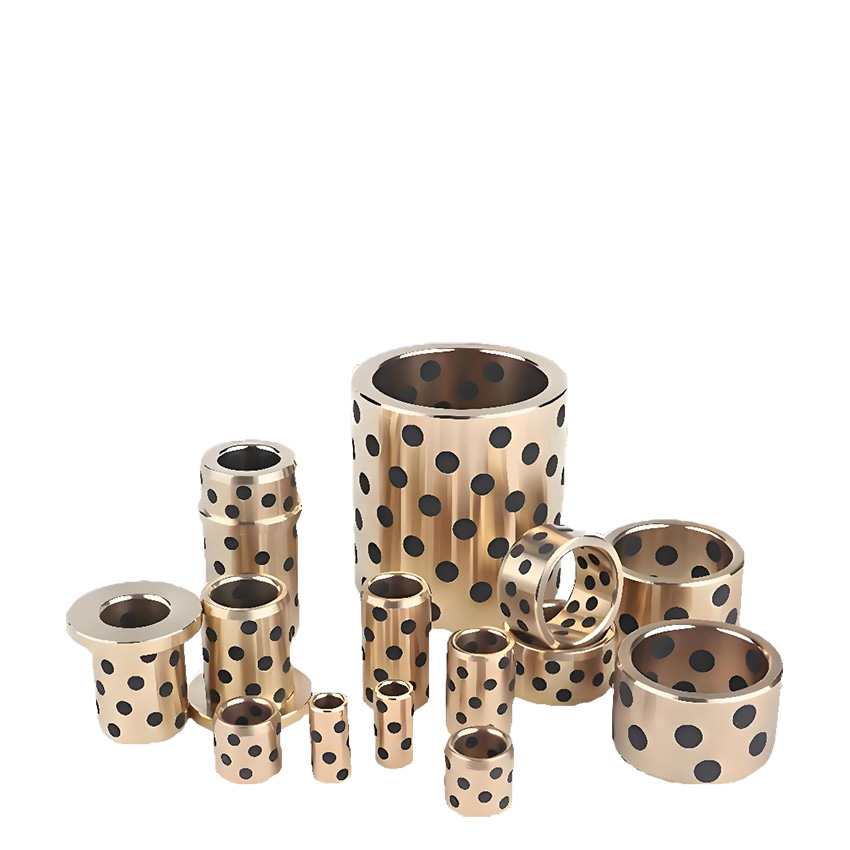

Type of graphite copper jacket

Graphite copper sleeves come in various types, each designed to meet specific operational needs and conditions. The differences often relate to the method of graphite incorporation, the material mix, and the sleeve’s intended use. Here are the main types of graphite copper sleeves:

1. Solid Graphite Copper Sleeves

Composition: Made entirely from a copper-graphite composite material.
Usage: Ideal for applications that require consistent self-lubrication and conductivity across the entire sleeve.
Features: Even distribution of graphite throughout the copper matrix ensures consistent lubrication throughout the sleeve’s lifetime.

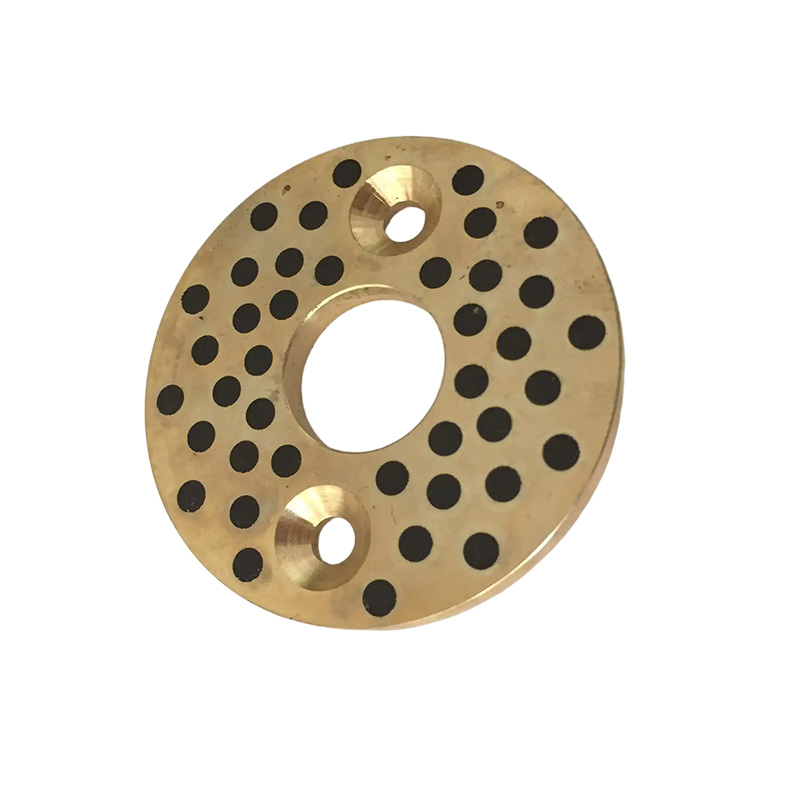

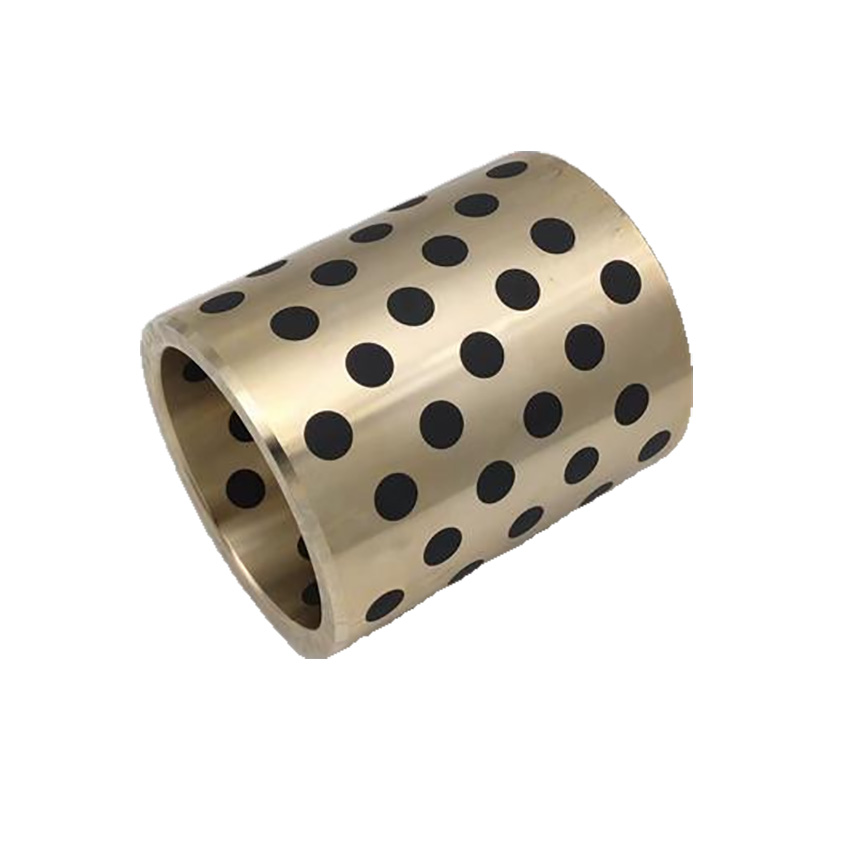

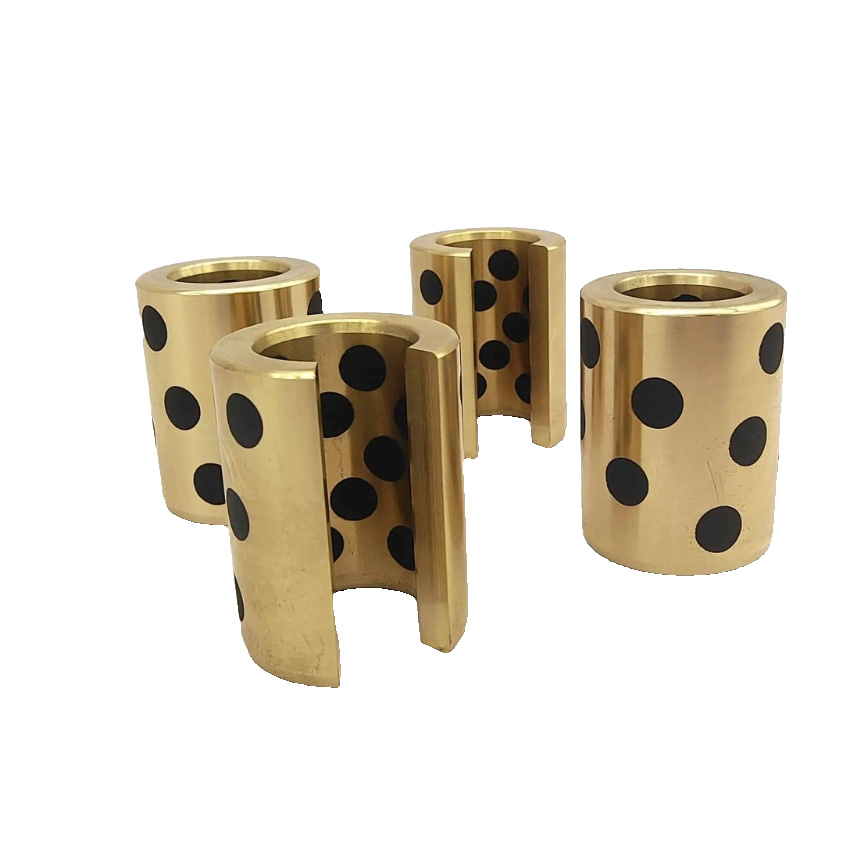

2. Plugged Graphite Copper Sleeves

Composition: Primarily copper or bronze with embedded graphite plugs.
Usage: Suitable for heavy-load applications where additional lubrication is needed. The graphite plugs act as lubricant reservoirs.
Features: Graphite plugs provide high self-lubrication without requiring any external lubrication. They release lubricants over time, making them effective in maintaining low friction under pressure.

3. Wrapped Graphite Copper Sleeves

Composition: A copper base with a thin layer of graphite or a copper-graphite mix wrapped around the sleeve.
Usage: Commonly used in applications requiring both high thermal conductivity and lubrication.
Features: The wrapped layer offers a balance between conductivity and lubrication, making them suitable for moderate mechanical loads.

4. Composite Graphite Copper Sleeves

Composition: Made from multiple layers of materials, such as copper and other metals or ceramics, with an internal layer or inserts of graphite.
Usage: Useful in complex applications where a combination of high strength, wear resistance, and lubrication is needed.
Features: The multi-layer construction enhances mechanical strength and wear resistance, with graphite layers providing lubrication.

5. Sintered Graphite Copper Sleeves

Composition: Manufactured using a sintering process, where a copper and graphite powder mixture is compacted and heated to form a dense and solid sleeve.
Usage: Typically used in high-wear and heavy-duty environments.
Features: Sintered sleeves have a porous structure that allows the graphite to act as a lubricant over time, reducing the need for maintenance.

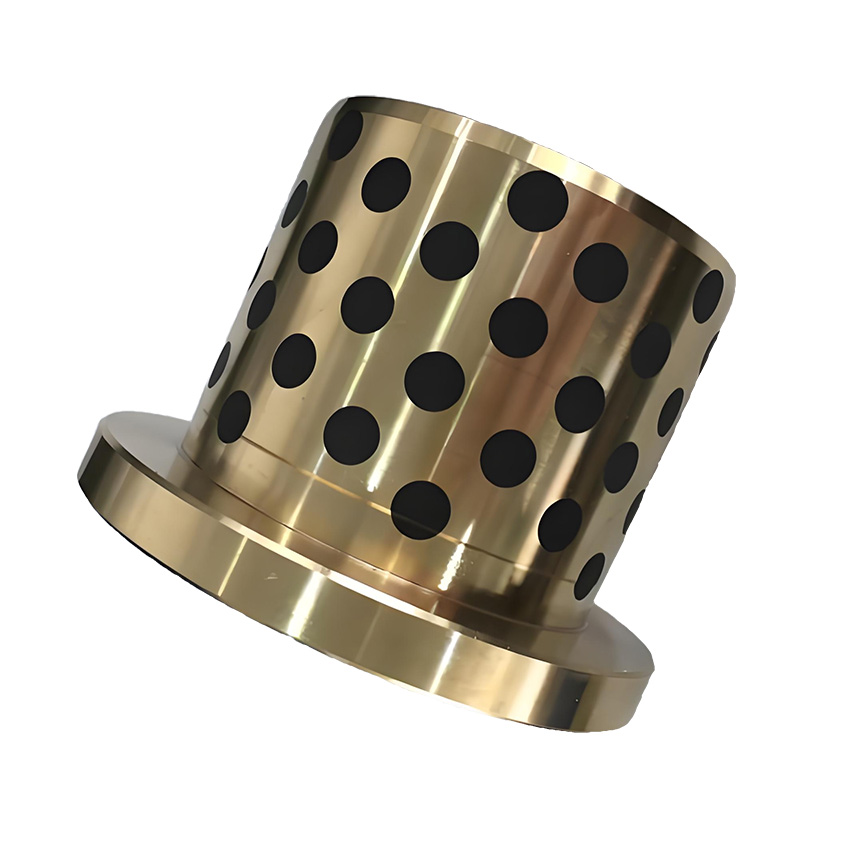

6. Flanged Graphite Copper Sleeves

Composition: Copper sleeves with a flange on one end and graphite inserts or coatings.
Usage: Designed for applications requiring axial alignment, where the flange provides additional stability.
Features: The flange helps in positioning and alignment, while the graphite provides lubrication and reduces friction.

7. Oil-Impregnated Graphite Copper Sleeves

Composition: Copper sleeves that are impregnated with graphite and sometimes additional lubricating oil.
Usage: Ideal for low-speed, high-load applications where lubrication is crucial.
Features: The oil impregnation enhances the lubricating properties, making them more efficient in low-speed or heavy-load situations.

What is Wear Resistance?

Definition of Wear Resistance

Wear resistance refers to a material’s ability to resist abrasion, erosion, and other forms of deterioration caused by mechanical interactions. It’s a critical property for components that undergo frequent contact with moving parts. In essence, wear resistance determines how well a material stands up to the test of time and use.

How Wear Resistance Impacts Equipment Lifespan

High wear resistance directly correlates to longer equipment life. Components that resist wear require fewer replacements, cutting down on maintenance costs and minimizing operational interruptions. For businesses, this means increased productivity and reduced total cost of ownership for machinery.

Common Materials Known for Wear Resistance

Materials like hardened steel, bronze, and composites are renowned for their wear resistance. Each has unique strengths, with bronze offering good lubrication properties and steel delivering high tensile strength. Graphite-enhanced copper, however, strikes a unique balance, combining low friction with thermal stability.

Why Choose Graphite Copper Sleeves?

Unique Properties of Copper-Graphite Combination

The copper-graphite combination brings together two contrasting but complementary properties. Copper provides excellent conductivity and strength, while graphite offers natural lubrication. This synergy results in a sleeve that can handle demanding conditions without frequent lubrication, making it perfect for high-load applications

Advantages Over Traditional Bearings

Traditional bearings often rely on external lubricants, which can wear out or require frequent replenishment. Graphite copper sleeves eliminate this need by incorporating self-lubricating graphite, reducing maintenance requirements. Additionally, their resistance to heat and wear gives them an edge in harsh environments where other bearings might fail.

Cost-Effectiveness in the Long Run

Though graphite copper sleeves might carry a higher initial cost, their durability leads to significant long-term savings. Fewer replacements, reduced maintenance, and better efficiency mean lower operational costs over the lifespan of the machinery. Investing in high-quality sleeves pays off through enhanced performance and reliability.

How Graphite Enhances Wear Resistance

Self-Lubricating Properties of Graphite

Graphite’s naturally slick structure allows it to act as a lubricant without any external oil or grease. As machinery operates, microscopic layers of graphite wear off, continuously providing a fresh lubricating surface. This minimizes direct contact between components, reducing wear and tear.

Reducing Friction in High-Stress Applications

In high-stress environments, friction is a machine’s worst enemy. Graphite excels at minimizing friction, even under heavy loads or high speeds. This makes graphite copper sleeves especially valuable in applications where heat and stress could degrade other materials quickly.

Role of Graphite in Prolonging Sleeve Life

Graphite’s lubricating properties play a significant role in extending the lifespan of graphite copper sleeves. By reducing friction and heat, it lessens the wear that would otherwise deteriorate the material. This prolongs the service life of the sleeve, making it a smart choice for cost-conscious engineers.

The Role of Copper in Graphite Copper Sleeves

Conductivity and Thermal Stability

Copper is well-known for its excellent thermal and electrical conductivity, making it ideal for heat dissipation in machinery. This characteristic allows graphite copper sleeves to handle temperature extremes without deformation. For applications requiring both lubrication and conductivity, these sleeves are a top contender.

Copper’s Durability in Mechanical Applications

Copper is not only conductive but also inherently tough, offering good strength to weight ratio. This durability ensures that graphite copper sleeves can endure mechanical stresses that would wear down lesser materials. It also allows for fine-tuning of the sleeve’s properties to meet specific application needs.

How Copper Supports Wear-Resistant Qualities

Copper provides a solid structural backbone that enhances the sleeve’s ability to resist wear. Its malleability allows it to absorb shocks, while graphite reduces friction, creating a synergistic effect. Together, they form a bearing material that is both strong and adaptable.

Applications of Graphite Copper Sleeves

Use in Heavy Machinery

Graphite copper sleeves are a favorite in heavy machinery where robust performance is a must. From industrial presses to construction equipment, their wear-resistant nature keeps operations running smoothly. This minimizes downtime and keeps production lines humming.

Performance in Electrical Equipment

These sleeves shine in electrical applications where both conductivity and low friction are essential. They help dissipate heat while maintaining efficient movement, which is critical in motors and generators. This combination ensures both safety and performance in high-voltage settings.

Success in Automotive and Aerospace Industries

In the automotive and aerospace sectors, reliability is non-negotiable. Graphite copper sleeves meet these stringent standards by delivering exceptional durability and wear resistance. Their lightweight nature, coupled with high performance, makes them ideal for these precision industries.

Comparing Graphite Copper Sleeves to Other Materials

Steel vs. Graphite Copper Sleeves

Steel is strong and wear-resistant, but it can’t compete with the self-lubricating nature of graphite copper sleeves. Unlike steel, graphite copper sleeves don’t require regular lubrication, making them easier to maintain. For applications where self-lubrication and conductivity are key, graphite copper has the upper hand.

Bronze Bearings vs. Graphite Copper Sleeves

Bronze bearings are known for their smooth operation and corrosion resistance, yet graphite copper sleeves offer lower friction. The addition of graphite enhances the sleeve’s ability to perform under heavier loads. In terms of maintenance and lifespan, graphite copper sleeves often outlast bronze bearings.

Composite Materials vs. Graphite Copper Sleeves

Composites can be tailored for specific needs, but they lack the inherent conductivity and thermal stability of graphite copper sleeves. While some composites can be strong, they may require additional lubrication or special conditions. Graphite copper’s self-sufficiency makes it a more versatile choice in dynamic environments.

Manufacturing Process of Graphite Copper Sleeves

Sintering Method Explained

Sintering is a process where powdered copper and graphite are fused under high heat and pressure. This creates a dense, uniform material that maintains the properties of both components. The method ensures consistent quality, making it the go-to for manufacturing durable sleeves.

Incorporation of Graphite into Copper

Graphite is blended with copper in precise ratios to achieve the desired balance of lubrication and strength. The mixture is then compacted and heated, allowing the materials to bond at a molecular level. This technique creates a homogenous sleeve capable of withstanding harsh operating conditions.

Quality Control in Manufacturing

Each sleeve undergoes rigorous quality checks to ensure it meets industry standards. From dimensional accuracy to wear resistance testing, manufacturers leave no stone unturned. This guarantees that each sleeve delivers the performance expected in demanding industrial settings.

Key Features of Graphite Copper Sleeves

High Temperature Tolerance

Graphite copper sleeves are built to withstand extreme temperatures without compromising performance. They maintain their structural integrity in both high heat and sub-zero conditions. This makes them suitable for diverse applications, from heavy machinery to aerospace components.

Low Friction Coefficient

The low friction coefficient of graphite copper sleeves is a standout feature, minimizing energy loss. This makes them ideal for applications requiring high efficiency and consistent movement. Reduced friction also translates to less heat generation, preserving the sleeve’s integrity over time.

Longevity in Tough Conditions

Graphite copper sleeves are designed to last, even in the harshest environments. Their wear-resistant properties allow them to function smoothly in abrasive and corrosive settings. This durability ensures they continue to perform where other materials would falter.

Benefits of Using Graphite Copper Sleeves

Reduced Maintenance Costs

Thanks to their self-lubricating nature, graphite copper sleeves cut down on maintenance. This saves time and reduces the need for frequent downtime, making them a cost-effective choice. With fewer interventions, machinery stays in operation longer and runs more efficiently.

Improved Equipment Efficiency

Graphite copper sleeves help machinery run smoother, reducing energy consumption. This boosts overall efficiency, particularly in high-speed or continuous operations. Equipment that operates more efficiently is not only cheaper to run but also has a smaller environmental footprint.

Increased Lifespan of Machinery

By mitigating wear and tear, graphite copper sleeves extend the life of machinery components. This results in fewer replacements and less frequent equipment overhauls. A longer lifespan means companies can get more value out of their initial investment.

Summary: Graphite copper sleeves are essential in industries where durability, friction reduction and heat resistance are prioritized. Their selection depends on specific requirements such as load capacity, temperature resistance, electrical conductivity and maintenance needs, making them a versatile and reliable choice for demanding applications.
