Comprehensive Overview: How To Choose The Best High Temperature Bearings

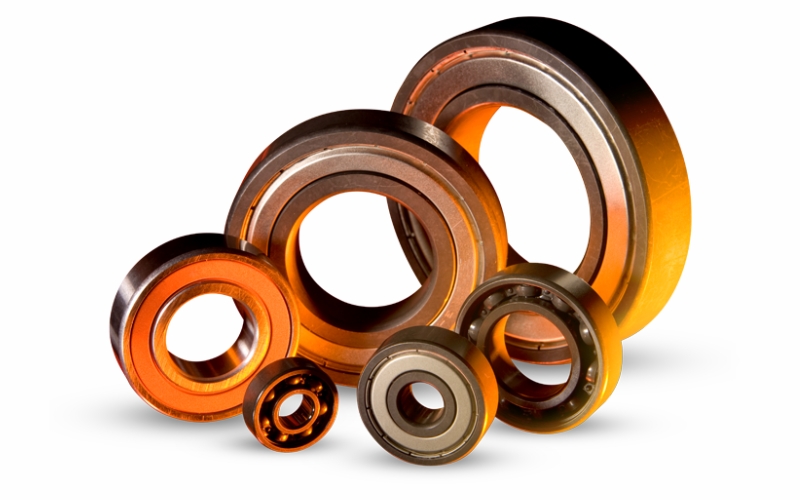

High Temperature Bearings

Introduction

In many industrial applications, especially those involving high temperature environments, it is particularly important to choose suitable high temperature bearings. Ordinary bearings may not be able to withstand extreme temperatures, which can lead to material performance degradation, lubricant failure, and may even lead to mechanical failure or production accidents. Therefore, high temperature bearings are designed to withstand these extreme conditions by using high temperature resistant materials and special designs to maintain reliable operation and long-term stability of the equipment. This article will provide you with comprehensive information and practical suggestions by understanding the basic concepts of high-temperature bearings, and material types, as well as the advantages and applicable occasions of different designs, ensuring that you can choose the most appropriate bearing solution when facing high-temperature challenges.

What Are Potential Concerns For Bearings Used In High-temperature Environments?

In high-temperature environments, a series of failure problems will occur for some ordinary standard bearings without proper thermal stability, so understanding these potential problems is critical to selecting and maintaining high-temperature bearings.

➊. Material degradation: High temperatures can accelerate material fatigue, causing the performance of bearing materials such as metals or plastics to degrade.

➋. Lubrication failure: High temperatures can easily cause the thermal decomposition of traditional lubricating oils and greases, losing their lubrication effect, thereby increasing wear and friction.

➌. Thermal expansion: Materials will expand in a thermal environment, which may cause changes in the internal clearance of the bearing and affect the precise operation of the bearing. Different materials have different coefficients of thermal expansion, which can lead to mismatches between the internal components of the bearing.

➍. Corrosion acceleration: In certain high-temperature environments, if corrosive gases or liquids exist, the high temperature may accelerate chemical reactions, leading to corrosion of bearing materials and further reducing bearing performance and life.

➎. Clearance management issues: Due to thermal expansion, bearing design must account for proper clearance to avoid increased internal pressure and possible structural damage due to elevated temperatures.

➏. Reliability and maintenance issues: High temperature environments require higher reliability and durability of bearings. At the same time, maintenance and inspection cycles may need to be more frequent to prevent unexpected failures.

Understanding High Temperature Bearings

Definition And Typical Operating Temperature

High-temperature bearings are bearings specifically designed to operate in environments outside the normal bearing operating temperature range. Conventional bearings are typically designed to operate in a temperature range of -20°C to 120°C, while high-temperature bearings are capable of maintaining performance and reliability in more extreme temperature conditions, typically extending from 150°C to 350°C. °C or even higher. The design of high-temperature bearings must not only consider heat resistance but also how to deal with material expansion, lubrication problems, and other related thermodynamic and chemical stability issues caused by high temperatures.

Advantages Of High Temperature Bearings

High temperature bearings have several advantages that make their application in high temperature environments very critical and effective, as follows:

  • High temperature bearings are able to operate under extreme temperature conditions without failure and are temperature resistant.
  • High temperature bearings are designed to resist degradation and deformation caused by high temperatures and are more reliable than ordinary bearings.
  • High temperature bearings are often manufactured using special materials and lubricants.
  • High-temperature bearings can reduce overall energy consumption and operating costs of the machine.
  • Using appropriate high-temperature bearings can reduce the risk of equipment failure and improve production safety.
  • High temperature bearings are flexible in design and have wide applicability.

Types Of High Temperature Bearings

High-temperature bearings can be roughly divided into two categories according to their structural design and use: standard structure bearings and special structure bearings.

Standard structure bearings
Usually made of chromium steel or stainless steel, it has good high-temperature resistance within certain limits. High-temperature grease is often used for lubrication to maintain performance at high temperatures and prevent friction and wear.

Special structure bearings
Advanced materials such as ceramics, graphite, or high-performance polymers are often used, which have good resistance to thermal expansion and wear.

High Temperature Bearings

Material Types For High Temperature Bearings

Material Types for High Temperature Bearings
High temperature bearings are crafted from various materials, each offering unique advantages and suitability for specific applications. The primary materials used include ceramic, steel, hybrid configurations, and high-performance polymers.

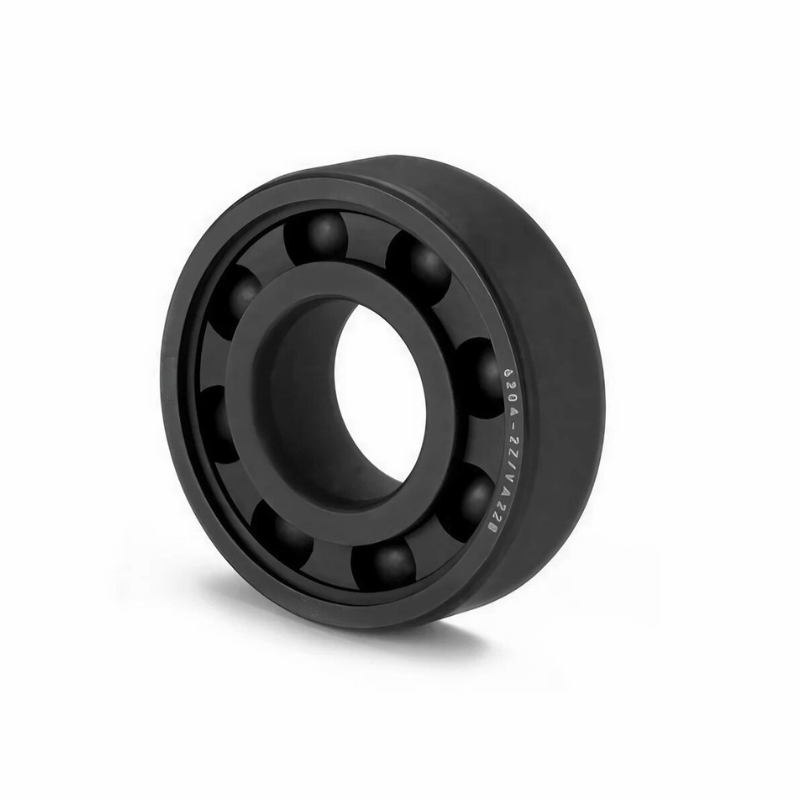

Ceramic Bearings
Advantages:

  • High-Temperature Resistance
  • Corrosion Resistance
  • Low Density
  • Non-Conductive

General Applications:

  • Used in aircraft engines and other aerospace components.
  • Utilized equipment that requires clean room conditions.
  • Employed in medical equipment that may require sterilization at high temperatures.

Stainless Steel Bearings
Advantages:

  • Has high strength and good hardness
  • Has excellent corrosion resistance.
  • It has good wear resistance under load capacity and is not easy to deform.

General application:

  • In the automotive industry, it is preferred for components exposed to corrosive elements.
  • They are used in industrial machinery for heavy machinery or food processing machinery.

Hybrid Bearings
Advantages:

  • Hybrid bearings typically feature ceramic balls combined with steel inner and outer rings. This configuration offers the high load capacity of steel with the reduced friction and high-temperature resistance of ceramics.

General Applications:

  • In electric motors, used where high speed and reduced heat generation are critical.
  • In high-speed machinery, suitable for applications requiring durability and reduced maintenance.

Polymer Bearings
Use of High-Performance Plastics:

  • Includes polytetrafluoroethylene (PTFE), polyether ether ketone (PEEK), and other fluoropolymers that maintain strength and stability at high temperatures.

General Applications:

  • Food Industry， Often used in processing equipment due to their non-toxic and corrosion-resistant properties.
  • Chemical Processing， Suitable in environments where chemical resistance and reduced risk of contamination are important.

Common Applications Of High Temperature Bearings

High temperature bearings are crucial in many industrial and technological settings where operations involve elevated temperatures that standard bearings cannot withstand. Here are some common applications of high-temperature bearings based on their capability to operate under extreme conditions:

  1. Aerospace： Jet engines、Spacecraft components、Auxiliary power units
  2. Automotive： Exhaust systems、Turbochargers、Engine components
  3. Steel Mills： Continuous casting machines、Furnace doors、Rolling mills
  4. Energy Generation：Gas turbines、、Coal-fired power plants、Nuclear reactors
  5. Chemical Processing：Reactors、Pumps handling 、high-temperature fluids、Compressors
  6. Manufacturing Equipment： Injection molding machines、High-temperature ovens、Kilns
  7. Food Processing： Ovens、Fryers、Food packaging machinery

The Difference Between High Temperature Bearings VS Ordinary Bearings

The main difference between high-temperature bearings and ordinary bearings is their ability to operate in extremely high-temperature environments without losing performance. This capability is largely due to the special materials and design used in high-temperature bearings. For example, high-temperature bearings may use high-temperature resistant ceramics, special steels or high-performance polymer materials that can withstand temperatures up to 1000°C or even higher, while ordinary bearings typically use materials such as carbon steel or ordinary stainless steel that can only withstand temperatures up to 1000°C or higher. Withstands temperatures of approximately 250°C.
In addition, the design of high-temperature bearings takes into account the changes in thermal expansion, chemical stability, and mechanical strength at high temperatures, so special internal structures and lubrication systems are often used to adapt to the challenges posed by high temperatures. In practical applications, high-temperature bearings are often used in aerospace, automotive engines, steel production, chemical industry and other fields. Equipment in these fields often need to operate in high-temperature environments for long periods of time.

High Temperature Bearings
High Temperature Bearings

Factors To Consider When Selecting A High-Temperature Bearing

Maximum Operating Temperature

The foremost factor is the maximum temperature that the bearing will be exposed to during operation. Different materials can withstand different levels of thermal stress. For instance:

  • Ceramic bearings are suitable for very high temperatures (up to 1600°C in some cases).
  • Stainless steel bearings might be appropriate for temperatures up to 350-400°C.
  • Polymer bearings generally support lower temperature ranges, up to 270°C.

Load Capacity
Bearings are subject to various loads, including axial, radial, and combined loads. High temperatures can weaken materials, reducing their load-carrying capacity. Therefore, it’s crucial to choose a bearing that not only withstands high temperatures but also supports the mechanical loads specific to the application.

Coefficient Of Thermal Expansion (CTE)
Different materials expand at different rates when heated. This expansion can affect the clearance within the bearing assembly, potentially leading to increased friction, wear, or even seizure of the bearing.

Corrosion Resistance
In many high-temperature environments, corrosive elements may also be present, such as in chemical processing or marine applications. Materials such as high-grade stainless steel or ceramics provide better corrosion resistance and maintain bearing integrity.

Lubrication Needs
High temperatures can degrade conventional lubricants, leading to increased friction and wear. It’s important to consider whether the bearing will require special lubricants.

Environmental Factors
Beyond temperature, other environmental factors such as dust, humidity, and vibration can affect bearing performance.

Speed Requirements
High-speed operation can exacerbate thermal generation in bearings. It’s important to consider the speed at which the bearing will operate to ensure it can handle the additional thermal load without failure.

Conclusion

In conclusion, choosing the best high-temperature bearings demands a nuanced understanding of the application’s specific requirements and environmental conditions. Key considerations include selecting the appropriate materials that can withstand extreme temperatures without degrading, ensuring the bearings can handle the expected load and speed, and factoring in the coefficient of thermal expansion to maintain operational integrity. Additionally, corrosion resistance and suitable lubrication systems are crucial for sustaining performance and extending the lifespan of the bearings in harsh environments. By carefully assessing these factors, you can make informed choices that enhance the efficiency and reliability of your machinery in high-temperature settings.
