Mastering Precision: Jewel Bearings, Jewels, and Pivots Selection Guide
Introduction
Jewel bearings, often overlooked components in mechanical systems, play a pivotal role in ensuring the smooth operation and longevity of precision instruments. In this comprehensive guide, we delve into the intricacies of jewel bearings, the significance of jewels in precision instruments, and the critical connection provided by pivots. Whether you’re a watch enthusiast, engineer, or simply curious about the inner workings of mechanical devices, this guide aims to shed light on the importance of selecting the right jewels and pivots for optimal performance.
Importance of Gemstone Bearings and Pivots in Precision Engineering
Gemstone bearings and pivots play a crucial role in precision engineering due to their hardness, wear resistance, and low friction properties. These characteristics make them ideal for use in high-precision machines and instruments where even the slightest amount of play or wear can result in significant inaccuracies. By utilizing gemstones such as sapphire or ruby, engineers can create bearings and pivots that are able to withstand extreme conditions, maintain their performance over extended periods of time, and provide a high level of accuracy and stability. As a result, gemstone bearings and pivots are often found in applications such as aerospace, horology, and scientific instruments where precision and reliability are paramount.

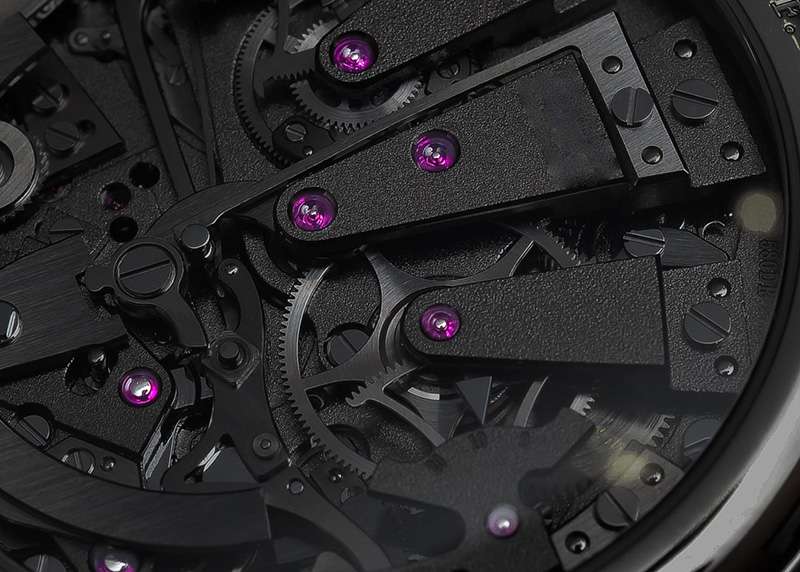

Significance of Jewel Bearings in Mechanical Movements
Jewel bearings play a pivotal role in mechanical movements, serving as crucial components in timekeeping precision. Typically crafted from synthetic sapphires or rubies, these tiny jewels reduce friction between moving parts, ensuring smoother operation and longevity of mechanical watches and instruments. Their exceptional hardness and low friction properties enhance accuracy, enabling precise timekeeping and minimizing wear on intricate gears. The meticulous incorporation of jewel bearings exemplifies the commitment to precision engineering, elevating the reliability and durability of mechanical movements in various timekeeping devices.

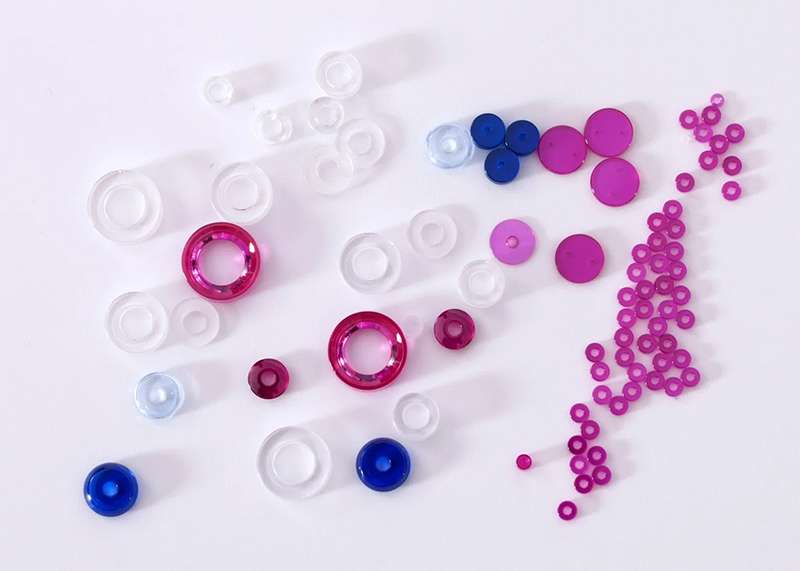

Types of Jewel Bearings
Synthetic sapphire
There are several types of jewel bearings made from synthetic sapphire, each with its unique characteristics and applications. The most common type is the full-cut jewel bearing, which is faceted and polished to a high shine, providing maximum wear resistance and a long service life. Another popular type is the groove-cut jewel bearing, which features a groove machined into the surface to improve oil retention and reduce friction. Other types include the concave-cut, the convex-cut, and the double-convex cut, each with its specific advantages depending on the requirements of the movement. Additionally, there are specialized versions of these bearings, such as the shock-resistant or anti-magnetic varieties, which are designed to withstand extreme conditions or environmental factors. Overall, the choice of synthetic sapphire jewel bearing depends on the specific needs of the mechanical movement and the desired level of performance and durability.
Ruby
Ruby jewel bearings, prized for their exceptional hardness and durability, stand as a pinnacle in precision engineering within mechanical movements. Derived from synthetic corundum, these jewels offer superior wear resistance, reducing friction between intricate gears and pivots. The application of ruby jewel bearings extends across various timekeeping devices, notably in high-end mechanical watches and delicate instruments where accuracy is paramount. Their hardness, second only to diamonds, ensures prolonged service life, maintaining optimal performance over time. The manufacturing process involves cutting, shaping, and polishing the rubies with meticulous precision, emphasizing the artisanal craftsmanship involved in horology. The resulting bearings provide a smooth and frictionless environment for moving components, contributing significantly to the accuracy and longevity of mechanical movements. In the realm of precision timekeeping, ruby jewel bearings remain a hallmark of excellence, embodying the marriage of tradition, craftsmanship, and technological innovation.
Other types
Factors to Consider in Jewel Selection
When selecting jewels for use in bearings, there are several factors that must be considered to ensure optimal performance and longevity. The first factor is the material composition of the jewel, as different materials have varying levels of hardness, toughness, and resistance to wear and corrosion. Some common materials used for jewels include sapphire, ruby, and synthetic diamond, each with its own unique properties and advantages.
Another important factor is the shape and size of the jewel, as these will affect its ability to reduce friction and withstand load. Jewels come in various shapes, including flat, rounded, and beveled, and the choice of shape will depend on the specific application and the design of the bearing. The size of the jewel must also be carefully selected to ensure that it fits properly into the bearing and provides adequate support and guidance.
The quality of the jewel is another critical factor, as defects or impurities can significantly reduce its performance and lifespan. Jewels should be free of cracks, chips, or other defects, and they should be carefully inspected before being installed in a bearing.
Finally, the operating conditions of the bearing must be taken into account when selecting jewels. For example, jewels used in high-temperature applications must be able to withstand the heat without degradation, while those used in wet environments must be resistant to corrosion. By considering all of these factors, it is possible to select jewels that will provide optimal performance and reliability in a given application.
Size and Shape Considerations
When selecting jewel bearings, it’s crucial to consider their size and shape, as these factors play a significant role in determining their performance and suitability for a particular application. The size of a jewel bearing is typically measured by its diameter and thickness, and these dimensions must be carefully matched to the requirements of the application. A bearing that is too small may not provide adequate support or stability, while one that is too large may cause unnecessary friction or wear.
The shape of a jewel bearing is also important, as it determines how the bearing will interact with the surfaces it contacts. Common shapes include flat, convex, and concave, and the choice of shape will depend on factors such as the load distribution and the desired movement of the bearing. For example, a convex bearing is well suited for applications where the load is concentrated at a single point, while a concave bearing is better for distributing the load over a larger area.
In addition to standard sizes and shapes, jewel bearings are also available in custom configurations to meet specific application requirements. It’s essential to work closely with a reputable supplier who can provide expert advice and assistance in selecting the right size and shape of jewel bearing for the job. By carefully considering these factors, you can ensure that your bearing system will perform at its best and deliver optimal results.
Pivots and Their Importance
Functions of pivots
The pivot is a critical component in jewel bearings, serving as the central point around which the bearing rotates. It provides a stable and secure mounting point for the rotating element, ensuring that it maintains its alignment and stability during operation. The pivot is typically made from a hard and durable material, such as steel or tungsten carbide, and is precision-machined to very tight tolerances to ensure smooth and accurate rotation.
In jewel bearings, the pivot is often housed within a jewel cap or setting, which is designed to hold it in place and provide additional support and guidance. The cap or setting is usually made from a softer material, such as brass or bronze, to prevent damage to the pivot during assembly or operation. The pivot and cap or setting work together to form a pivot bearing, which is capable of supporting heavy loads and providing long-lasting performance in a wide range of applications.
Different types of pivots
In jewel bearings, three main types of pivots are used: straight pivots, tapered pivots, and barrel pivots. Straight pivots are cylindrical in shape and have a constant diameter along their length. They are simple in design and easy to manufacture, making them a popular choice for general purpose applications. Tapered pivots, on the other hand, have a conical shape, with the diameter gradually decreasing from one end to the other. This design provides improved stability and alignment, making tapered pivots well-suited for high precision applications. Barrel pivots are cylindrical in shape but have a curved surface, similar to the shape of a barrel. This design provides excellent load distribution and resistance to shock loads, making them ideal for heavy duty or high vibration applications. Each type of pivot offers unique advantages and is suited to different types of applications, so careful consideration must be given to the specific requirements of the bearing in order to choose the most appropriate pivot design.
Importance of selecting the right pivot for your watch
Selecting the right pivot for your watch is crucial for ensuring its proper function and long-term reliability. The pivot serves as the axis around which the watch’s movement rotates, and its design and construction directly impact the accuracy, smoothness, and durability of the watch. A poorly designed or poorly constructed pivot can lead to issues such as increased friction, misalignment, and premature wear, which can negatively affect the performance of the watch and shorten its lifespan.
When selecting a pivot for your watch, it’s important to consider factors such as the material used, the shape and size of the pivot, and the intended use of the watch. Different materials, such as steel, tungsten carbide, or ceramic, offer varying levels of hardness, wear resistance, and corrosion resistance, and the choice of material will depend on the specific requirements of the watch. The shape and size of the pivot must also be carefully considered to ensure that it fits properly within the watch movement and provides adequate support and stability.
Conclusion
In conclusion, jewel bearings and pivots are integral components in precision engineering, particularly in mechanical movements where accuracy and longevity are paramount. Gemstone bearings like synthetic sapphire and ruby, along with various pivot designs, offer exceptional hardness, low friction, and stability, ensuring smooth operation and reliability in high-precision instruments. Selection considerations including material composition, size, shape, and operating conditions are crucial in optimizing performance and durability. Whether in aerospace, horology, or scientific instruments, the meticulous incorporation of jewel bearings and pivots exemplifies a commitment to precision engineering, enhancing the reliability and longevity of mechanical movements. By understanding their significance and selecting the right components, engineers and enthusiasts alike can appreciate the intricate inner workings of mechanical devices, ensuring optimal performance and functionality.
References
- 1.”Jewel bearing” from Wikipedia;
- 2. “Jewel Bearings -Low Friction Sapphire” from Swiss Jewel;
- 3. “Ruby Jewel Bearing for industrial applications” from Industrial Jewels.
