Locomotive Bearing Specs That Matter Most

Chips

1. Introduction

Why Bearing Specs Matter for Procurement

In the railroad world, the devil’s in the details—and locomotive bearing specs are a prime example. These specs directly impact uptime, maintenance intervals, and safety on the rails. Skimping on the right bearing choice is like bolting cheap tires on a freight truck—you’re cruising for a bruising.

How Poor Bearing Selection Affects Rail Operations

When the wrong bearing is chosen, it doesn’t just wear out faster—it compromises the entire drivetrain. Vibration increases, heat builds up, and before long, you’re sidelining engines for preventable breakdowns. In worst-case scenarios, bearing failure can derail schedules or even equipment.

Purpose of This Technical Guide

This guide lays out the nuts and bolts of locomotive bearing selection, cutting through the jargon to give you real-world insights. From load ratings to heat dissipation, each section zeros in on the specs that matter most. Whether you’re sourcing new parts or auditing your supply chain, this is the reference playbook for staying on track.

2. Understanding Locomotive Bearings

Basic Function in Rail Movement

Locomotive bearings serve as the unsung heroes of rail mobility, reducing friction between metal components under immense loads. They allow the drivetrain to translate torque into forward motion efficiently and reliably. Simply put, without robust bearings, nothing rolls.

Types of Bearings Used in Locomotives

You’ll typically find tapered roller bearings, cylindrical roller bearings, and in some modern applications, spherical roller bearings. Each type brings different strengths, from axial load handling to misalignment tolerance. Selection depends heavily on axle design and service conditions.

Where They Are Located in the Drivetrain

Bearings are strategically positioned throughout the powertrain—most critically at axleboxes, traction motor supports, and gearbox assemblies. Their location determines the type of load they bear—rotational, radial, or axial. Misspecifying bearings for their location can throw the entire drivetrain out of balance.

3. Load Capacity – The Most Critical Factor

Static vs. Dynamic Load Ratings Explained

Static load rating refers to the maximum load a bearing can support while stationary without incurring permanent deformation. Dynamic load rating, on the other hand, reflects its performance under ongoing motion. Both values must be well-matched to locomotive weight and operational stress.

How Overloading Accelerates Bearing Failure

When bearings are regularly pushed beyond their rated loads, internal races and rolling elements begin to fatigue prematurely. This wear not only shortens service life but also increases vibration and heat generation. Overloading is one of the fastest ways to grind operations to a halt.

Matching Load Specs to Locomotive Weight

Proper selection starts with understanding axle load and distribution across bogies. Heavy-haul freight locomotives require beefier bearings than passenger trains due to their gross weight and inertia. Always consult load curves and engineering guidelines before procurement.

4. RPM & Speed Ratings for Longevity

Maximum Permissible Speed Limits

Each bearing comes with a threshold for rotational speed, beyond which lubrication fails and wear skyrockets. Exceeding this limit even briefly can result in pitting, seizure, or catastrophic failure. It’s crucial to pair speed specs with the train’s expected service velocity.

Heat Generation Risks at High RPM

As RPM increases, so does friction—especially in improperly lubricated or misaligned bearings. This generates excessive heat, which can degrade lubricant and damage components. Thermal buildup, if left unchecked, can deform cages and accelerate fatigue.

Balancing Speed and Durability

A good rule of thumb is to prioritize balance over extremes—high-speed bearings should still offer decent load-handling capacity. Over-specifying for speed at the expense of durability often backfires. A well-matched spec optimizes both efficiency and life expectancy.

5. Material Composition & Durability

Steel Alloys vs. Hybrid Ceramic in Bearings

Traditional locomotive bearings are made from high-carbon chromium steel alloys known for toughness and fatigue resistance. However, hybrid ceramic bearings are gaining traction due to their lighter weight and superior heat tolerance. The tradeoff? Ceramics cost more and may crack under shock loads.

Corrosion Resistance for Harsh Environments

Railways operate in varied climates—from humid coasts to frigid mountains—so corrosion-resistant materials are vital. Stainless steel variants or coated surfaces prevent rust, which can pit races and reduce bearing life. Selecting the right alloy can make or break long-term reliability.

How Material Fatigue Impacts Lifespan

Material fatigue accumulates over time with load cycles and temperature swings. Micro-cracks form below the surface and slowly work their way outward, eventually leading to flaking or spalling. Better materials delay this process, extending mean time between failures.

6. Precision Grades & Tolerance Levels

ABEC Ratings and What They Mean

The ABEC scale rates bearing precision on dimensions, roundness, and noise. While ABEC-1 is sufficient for most industrial uses, locomotives often benefit from ABEC-3 or higher. Higher ratings translate to tighter tolerances and better vibration control.

Importance of Micron-Level Tolerances

Bearings in high-load applications like rail transport must maintain micron-level clearances to avoid misalignment and energy loss. Even minor deviations can amplify stress across drivetrain components. Precision tolerances also enhance safety by reducing unpredictable movement.

How Precision Reduces Vibration & Wear

Tighter tolerances mean smoother rolling contact, which reduces vibration and slows the rate of surface wear. This directly translates to quieter operation and extended bearing life. Less vibration also minimizes the domino effect of damage across adjoining parts.

7. Lubrication Requirements & Efficiency

Grease vs. Oil-Lubricated Bearings

Grease is common in sealed applications, offering long-lasting protection with minimal maintenance. Oil, however, provides better cooling and is preferred in high-speed or high-temperature environments. Choosing between them depends on the application’s heat load and service interval.

Sealed vs. Open Lubrication Systems

Sealed bearings trap lubricant inside and contaminants out, making them ideal for dirty or remote environments. Open systems, on the other hand, require external lubrication and more frequent maintenance—but offer easier inspection. The decision often comes down to accessibility and runtime.

Maintenance Intervals for Optimal Performance

Even the best lubricants degrade over time—especially under high loads and temps. Following OEM-recommended intervals or switching to condition-based monitoring keeps bearings from running dry. Skipping maintenance is a surefire way to invite failure.

8. Sealing Technology for Contamination Protection

Contact vs. Non-Contact Seal Types

Contact seals physically rub against the bearing surface, offering superior protection but introducing slight drag. Non-contact seals minimize resistance and heat but don’t seal out contaminants as effectively. Each type suits different operational priorities.

Preventing Dust and Moisture Ingress

In rail environments, bearings face grit, mud, moisture, and chemical splash—all of which degrade internal components. Proper seals act as the first line of defense, preventing contamination-related failures. Investing in good sealing tech is cheaper than replacing fried bearings.

How Seals Impact Maintenance Frequency

A robust sealing system reduces the need for frequent relubrication and inspection. It also prolongs bearing life by shielding critical surfaces from wear. Over time, quality seals pay for themselves through lower operating costs.

9. Bearing Design & Configuration

Tapered Roller vs. Spherical Roller Bearings

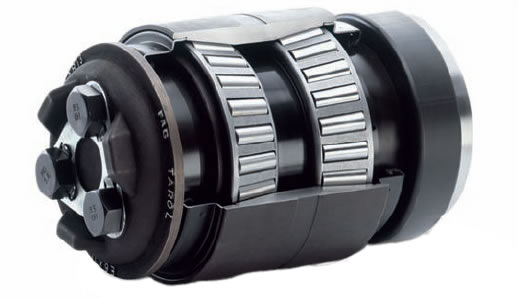

Tapered roller bearings are commonly used in axleboxes due to their excellent handling of combined radial and axial loads. Spherical rollers, on the other hand, offer self-aligning capabilities and higher shock resistance, making them a solid choice for variable load conditions. Choosing the right type affects everything from heat buildup to component longevity.

Single vs. Double Row Designs

Single row bearings are compact and cost-effective but limited in load capacity. Double row configurations provide better load distribution and support higher radial and axial forces—especially useful in freight applications. The choice depends on how much stress each axle is expected to endure.

Why Configuration Affects Load Distribution

Bearing geometry dictates how loads are transferred across rolling elements and races. Poor configuration can concentrate stress in one area, leading to premature wear and fracture. A well-matched design ensures uniform pressure, smoother motion, and longer life.

10. Temperature Resistance & Heat Dissipation

High-Temp Bearing Materials for Locomotives

Locomotive bearings must withstand extreme temperatures from both ambient conditions and internal friction. High-grade steel alloys with special heat treatments or hybrid ceramic materials help maintain structural integrity under heat. These materials prevent softening or warping when the going gets hot.

Heat Dissipation Methods in Bearing Design

Modern bearings incorporate design features like thermal grooves, vented housings, or integrated cooling channels. These enhancements help radiate heat away from the contact surfaces. Managing thermal flow not only protects the bearing but also safeguards adjoining components.

Consequences of Thermal Expansion Failure

As bearings heat up, they expand—sometimes enough to seize inside their housing or skew alignment. If thermal expansion isn’t accounted for, races may crack or shift under load. Smart material and housing selection is key to controlling this risk.

11. Vibration Damping & Noise Reduction

How Bearings Influence Ride Smoothness

Bearings act as the foundation for rotational motion, so any imperfection ripples through the entire drivetrain. Precision-ground components with damping elements minimize jolts and vibrations. The result is a smoother, quieter ride for both cargo and crew.

Impact of Vibration on Locomotive Components

Unchecked vibration accelerates fatigue in everything from axleboxes to suspension mounts. It also contributes to fastener loosening, electrical connector failures, and general discomfort. Mitigating vibration at the bearing level saves repair costs down the line.

Noise Reduction for Passenger Comfort

While freight trains don’t mind a little rattle, passenger rail demands silence and comfort. Low-noise bearing designs, with tight tolerances and advanced cages, help deliver that “glide on rails” feeling. Quieter operation also improves worker conditions and reduces noise pollution in urban zones.

12. Certification & Compliance Standards

AAR, ISO, and Other Industry Standards

Bearings used in locomotives must meet stringent standards set by groups like AAR (Association of American Railroads) and ISO. These benchmarks verify performance, reliability, and safety under real-world operating conditions. Non-certified bearings can cause procurement headaches or even operational bans.

Why Compliance Prevents Warranty Issues

OEMs often require certified components for their warranty policies. Using off-spec or uncertified bearings might void coverage on high-value assemblies. Sticking to compliant parts not only ensures safety but protects your investment in the long run.

International Railway Regulations to Consider

Different countries maintain their own safety codes and approval bodies—like EN standards in Europe or CRCC in China. If you’re running a cross-border fleet or exporting railcars, bearings must meet multi-jurisdictional standards. Always confirm compatibility before ordering.

13. OEM vs. Aftermarket – Spec Comparison

Key Differences in Raw Material Quality

OEM bearings typically use premium steel or ceramics that meet tight quality control. Aftermarket options may cut corners with inconsistent metallurgy or subpar heat treatment. This difference becomes apparent under high load and high cycle conditions.

Manufacturing Tolerances and Consistency

OEMs adhere to stricter dimensional control, ensuring every unit performs as expected. In contrast, aftermarket suppliers can have wider variation between batches—leading to performance inconsistencies. Precision matters, especially in high-speed rail operations.

Total Lifecycle Cost Implications

While aftermarket bearings might seem cheaper upfront, they often require earlier replacement or more frequent maintenance. OEM parts, with better durability and certification, usually offer lower total cost of ownership. It’s worth running the math beyond the purchase price.

14. How to Validate Supplier Spec Sheets

Red Flags in Misleading Performance Claims

Watch out for vague ratings, inflated load capacities, or missing certifications—these are signs of unreliable suppliers. Any claim that sounds “too good to be true” probably is. Always verify performance data with test documentation.

Third-Party Testing and Certifications to Request

Independent labs can validate critical specs like fatigue life, speed rating, and material composition. Look for certifications from organizations like SGS, TUV, or ASTM-aligned bodies. These third-party validations separate the real deal from the pretenders.

Sample Inspection Protocols for Procurement

Before making bulk purchases, insist on a pilot batch for dimensional, metallurgical, and performance inspection. Use tools like coordinate measuring machines (CMM) and ultrasonic testers. This upfront diligence avoids headaches once bearings hit the rails.

15. Cost vs. Performance Optimization

When to Invest in Higher-Grade Bearings

If your locomotives are running long-haul freight or high-speed passenger lines, higher-grade bearings quickly pay off. They offer better durability, reduced maintenance, and fewer unplanned stoppages. For mission-critical operations, reliability trumps bargain pricing every time.

Cost-Saving Without Sacrificing Reliability

That said, not every bearing needs to be top-tier. Consider mixing tiers—premium for critical systems, mid-range for non-load-bearing components. Strategic specification saves money without putting performance on the chopping block.

ROI Calculation for Premium Bearings

Calculate return on investment by factoring in service intervals, downtime costs, labor, and warranty coverage. Often, premium bearings outperform lower-cost ones over their full lifecycle—even if the initial price tag is steeper. It’s a marathon, not a sprint.

16. Conclusion: Smart Procurement Strategies

Recap of Critical Bearing Specs to Prioritize

When sourcing locomotive bearings, zero in on load capacity, RPM limits, material durability, precision grades, and sealing systems. These specs directly influence safety, efficiency, and operating cost. Cutting corners here usually costs more in the long run.

Steps to Ensure Long-Term Rail Fleet Reliability

Adopt a spec-first procurement mindset—don’t let price dictate quality. Vet suppliers thoroughly, demand certification, and always test before trust. And remember: bearings may be small, but they bear the weight of your entire operation.

Next Actions for Technical Evaluation

Audit your current bearing usage against the parameters in this guide. Engage engineering teams to review spec sheets and supplier credentials. From there, build a procurement strategy that keeps your locomotives rolling steady, mile after mile.
