Spin the Future: Unveiling Magnetic Bearings Wonders
Introduction
In today’s dynamic engineering and technological arena, magnetic bearings represent a groundbreaking evolution in the traditional domain of bearings. Departing from conventional norms, these pioneering components redefine expectations by introducing unprecedented levels of precision, efficiency, and reliability. In the following exploration, we will meticulously dissect the intricacies of magnetic bearings, unveiling the profound impact they hold on various industries. From unraveling the underlying principles to dissecting real-world applications, this journey promises a comprehensive understanding of how magnetic bearings are reshaping the future landscape of rotational technology.
Magnetic Bearing Basics
Definition of Magnetic Bearings
Magnetic bearings are advanced mechanical devices that use magnetic forces to suspend and control the movement of rotating components, eliminating the need for traditional physical contact with lubricants. Evolution of magnetic bearings began in the 20th century with initial applications in high-speed turbomachinery, gradually expanding to various industries. In the 1970s, active magnetic bearings emerged, incorporating electronic control systems for enhanced stability. Further advancements in materials, sensors, and control algorithms have enabled widespread adoption in precision machinery, such as flywheels, turbines, and even some consumer electronics, enhancing efficiency and reducing maintenance requirements. This evolution continues to drive innovation in diverse fields, promoting cleaner and more reliable technologies.

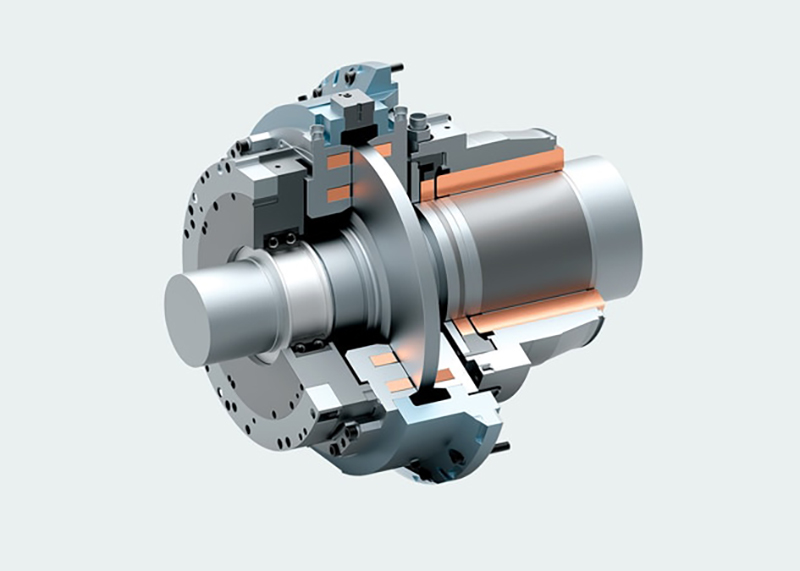

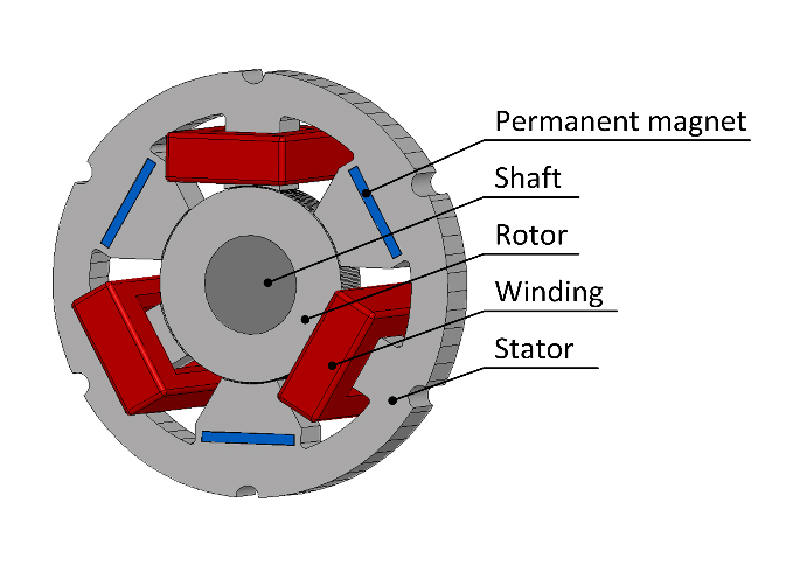

Components of Magnetic Bearings
Stator: The stator houses the electromagnets or permanent magnets that generate the magnetic field, playing a crucial role in creating the forces necessary for magnetic levitation and control of the rotor.
Rotor: The rotor is the rotating component supported by the magnetic field. It typically contains either permanent magnets or electromagnets, influencing the overall system performance and efficiency.
Sensors: Sensors, such as Hall-effect sensors or eddy current sensors, monitor the position and movement of the rotor. The data collected by these sensors are crucial for the control system to make real-time adjustments and maintain the desired position and stability.
Control System: The control system processes information from sensors and adjusts the current supplied to the electromagnets accordingly. It ensures precise control over the magnetic forces, allowing for dynamic stabilization, alignment, and response to changing operating conditions.
Power Supply: The power supply provides the necessary electrical energy to drive the electromagnets. In active magnetic bearings, a reliable power supply is essential for continuous operation, while passive systems rely on the inherent magnetic forces without the need for an external power source.
Feedback System: The feedback system receives information from the sensors and provides data to the control system. This closed-loop system allows the magnetic bearings to continuously adjust and optimize the magnetic forces, ensuring stable and controlled rotor movement.
Bearings Support Structure: The physical structure supporting the magnetic bearings within the machinery, designed to withstand external forces and vibrations, providing stability to the overall system.
How Magnetic Bearings Work
Magnetic bearings operate based on two fundamental principles: magnetic levitation and attraction/repulsion forces. The magnetic levitation principle involves the use of electromagnets in the stator to create a magnetic field that induces a corresponding polarity in the rotor. This induces a repulsion force, counteracting gravitational forces and allowing the rotor to levitate without physical contact.
Attraction and repulsion forces come into play in maintaining the rotor’s position. Sensors continuously monitor its alignment, and the control system adjusts the electromagnet currents accordingly. If the rotor deviates, the electromagnets create forces to attract or repel, correcting its position. This dynamic process ensures precise control over the rotor’s movements, offering frictionless rotation and stability. Magnetic bearings find applications in high-speed machinery where reduced friction, maintenance, and enhanced precision are critical.
Importance of Electromagnetic Fields
The electromagnetic field in magnetic bearings plays a crucial role in their functioning and effectiveness. This field is created by electromagnets in the stator, inducing a corresponding magnetic polarity in the rotor. This interaction establishes the magnetic levitation principle, countering gravitational forces and allowing the rotor to float without physical contact. Additionally, the electromagnetic field is dynamically adjusted based on sensor feedback to control the rotor’s position. By manipulating the field’s strength and orientation, attraction and repulsion forces are generated to correct any deviations, ensuring precise and stable rotor positioning. The electromagnetic field is pivotal in providing the frictionless, efficient, and reliable operation characteristic of magnetic bearings.
Types of Magnetic Bearings
Magnetic bearings come in two main types: Active and Passive.
Active Magnetic Bearings
Active magnetic bearings (AMB), which use electromagnets and a control system to actively suspend and control the movement of rotating components. The system includes electromagnets in the stator and sensors to monitor the rotor position. A feedback control system continuously adjusts the electromagnet current to maintain precise alignment and stability. This real-time control allows for dynamic adjustments to minimize vibration and ensure optimal performance. Active magnetic bearings are used in various high-speed rotating machinery and have the advantages of reducing friction, improving accuracy and eliminating mechanical wear. Their adaptability and efficiency make them an integral part of industries ranging from aerospace to power generation.
Passive Magnetic Bearings
Passive magnetic bearings rely on permanent magnets and the inherent magnetic forces to achieve rotor suspension without the need for an active control system. The system typically consists of permanent magnets in both the stator and rotor, arranged to generate stable magnetic fields. The attraction and repulsion forces between these magnets counteract gravitational forces, enabling the rotor to levitate. Unlike active magnetic bearings, passive systems lack an external power source or control electronics. While simpler and more energy-efficient, passive magnetic bearings are generally less adaptable to dynamic changes and are often employed in applications where lower speed, lower precision, and reduced complexity are acceptable, such as in certain industrial fans or non-critical machinery.
Advantages of Magnetic Bearings
Improved Efficiency: Magnetic bearings eliminate friction, leading to higher energy efficiency by reducing energy losses associated with traditional mechanical bearings.
Energy Savings: The elimination of friction in magnetic bearings results in energy savings, making them more environmentally friendly and cost-effective over time.
Precision and Accuracy: Magnetic bearings provide precise control over the rotor’s position, ensuring accurate alignment and minimizing vibrations, crucial for applications demanding high levels of precision.
Less Maintenance: With no physical contact and wear between components, magnetic bearings require less maintenance compared to traditional bearings, reducing downtime and operational costs.
Extended Service Life: The absence of wear and tear on components contributes to a longer service life for magnetic bearings, enhancing the overall reliability of machinery.
Reduced Heat Generation: Magnetic bearings produce minimal heat due to the absence of friction, preventing potential thermal damage and contributing to a cooler operating environment.
Quiet Operation: The frictionless nature of magnetic bearings results in quieter operation, making them suitable for applications where noise reduction is a consideration.
Applications Across Industries

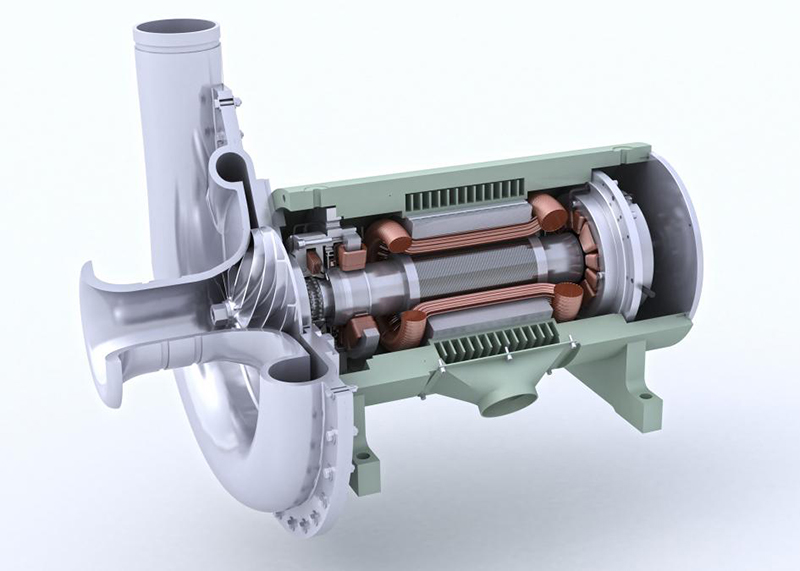

Turbomachinery: Magnetic bearings find widespread use in high-speed turbomachinery such as compressors, turbines, and pumps, where their ability to operate at high speeds with precision and minimal friction is crucial.
Energy Storage Systems: Magnetic bearings are employed in flywheel energy storage systems, where they enable the efficient storage and release of energy by maintaining stable rotation at high speeds.
Magnetic Levitation Trains: Magnetic bearings are integral to magnetic levitation (maglev) trains, allowing for frictionless movement and precise control of the train’s position above the tracks, leading to high-speed and smooth travel.
Vacuum Systems: In applications requiring ultra-high vacuum conditions, such as semiconductor manufacturing, magnetic bearings are utilized to avoid contamination and ensure smooth, maintenance-free operation.
Spacecraft Gyroscopes: Magnetic bearings are used in spacecraft gyroscopes for their ability to provide stable rotation without physical contact, ensuring accurate navigation and control in space missions.
Challenges and Solutions
Temperature Sensitivity: Magnetic bearings can be sensitive to temperature fluctuations, affecting their performance. Implement thermal management systems, such as cooling mechanisms, to stabilize temperatures and maintain optimal operational conditions.
Cost and Complexity: Magnetic bearing systems can be expensive and complex to implement. Ongoing research and technological advancements can help streamline manufacturing processes and materials, reducing costs and enhancing the accessibility of magnetic bearing technology.
Power Supply Reliability: Active magnetic bearings require a reliable power supply for continuous operation. Implement backup power systems or explore energy-efficient designs to ensure reliability in case of power interruptions.
Dynamic Stability: Maintaining stability in rapidly changing dynamic conditions can be a challenge for magnetic bearings. Develop advanced control algorithms and sensing technologies to enhance the dynamic stability of magnetic bearing systems, adapting to varying operating conditions.
Material Compatibility: Material compatibility issues, such as magnetic interference with sensitive components, can arise in certain applications. Conduct thorough material studies and design considerations to address compatibility challenges, ensuring magnetic bearings can be integrated seamlessly into diverse systems without adverse effects.
Conclusion
In conclusion, magnetic bearings represent a transformative leap in rotational technology, offering unparalleled precision, efficiency, and reliability. From their inception in high-speed turbomachinery to diverse applications in aerospace, energy storage, and transportation, magnetic bearings redefine operational standards. Active and passive magnetic bearings each play crucial roles, providing energy savings, extended service life, and precise control. Challenges, such as temperature sensitivity and cost, demand ongoing research and technological innovation. As magnetic bearings continue to reshape industries, their frictionless operation and adaptability herald a future where machinery operates with unprecedented efficiency and sustainability.
References
1.”Magnetic bearings” from Wikipedia;
2. “How Active Magnetic Bearings Work” from Waukesha Bearings;
3. “Magnetic bearings and systems” from SKF.
