Understand The Effect Of One Way Clutch Bearings And Their Keyways On Torque Transmission
Introduction

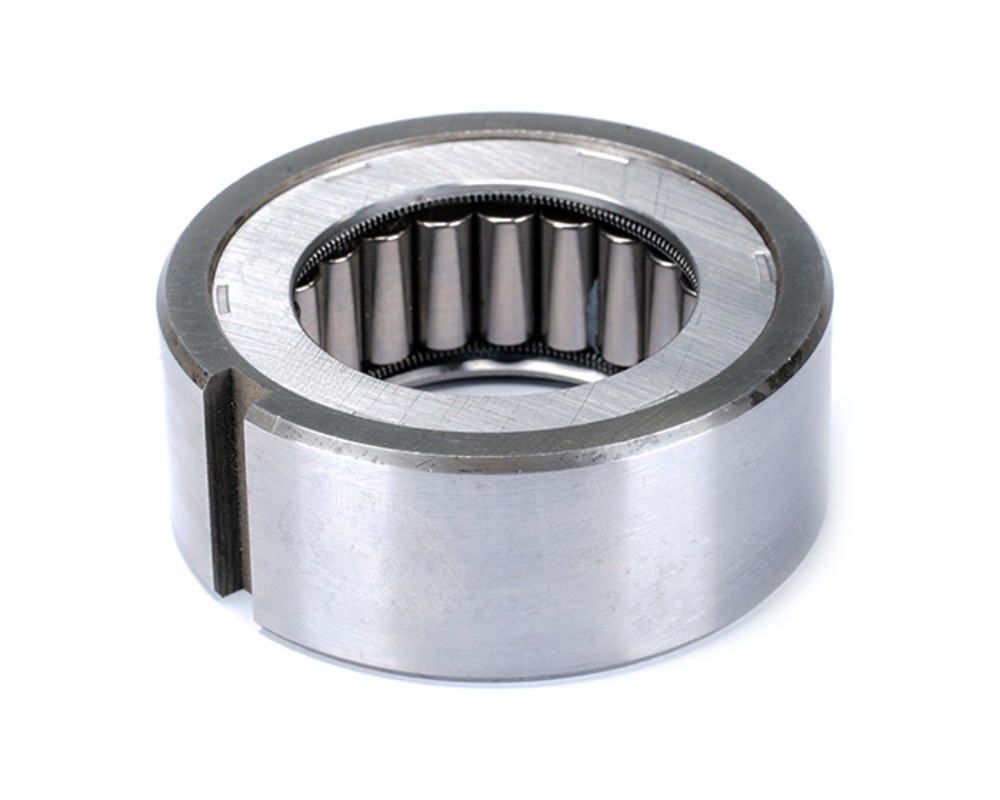

A mechanical component designed for systems that require torque to be transmitted on only one side while allowing the other side to move freely is known as a one way clutch bearing and does not allow reverse motion. These bearings are imperative to the designs of a wide range of mechanical and transmission systems as it is essential that those systems are provided with precise motion control and protection mechanisms. To a certain extent, the one way clutch bearing relies on its special working principle to ensure the safety and efficiency of the system, and it can also avoid mechanical failure to a greater extent. This article presents some keyway designs and the effects on torque transmission of one-way bearings.
Types of One Way Clutch Bearings
One way clutch bearings are special bearings designed to allow the axis to rotate freely in one direction, but lock in the opposite direction, preventing reverse rotation.
There are two types of one-way clutch bearings: traditional one-way clutch bearings and wedge-type one-way clutch bearings.
- Traditional One-Way Clutch Bearings:
The most common type of one-way clutch bearings and usually utilizes a spring-loaded ratchet and gear mechanism to achieve its function. In the normal direction of operation, the gear rotates freely; when an attempt is made to rotate in the opposite direction, the ratchet bites into the gear, thus preventing reverse movement.
- Wedge-type one-way clutch bearings:
Wedge-type one-way clutch bearings, by the wedge and the slope of the composition of one-way lock. As long as the shaft is allowed to rotate in the proper direction, the wedge block can slide harmlessly up and down the incline; but when the shaft starts to rotate in the wrong direction, the wedge block is forced firmly between the inclines, producing a great deal of friction which resists the shaft trying to reverse. The bearing of this type is preferred in applications where high torque and durability are required thanks to its elementary design, strength, and ease of maintenance.
The Function Of One Way Clutch Bearings
The basic function of one-way clutch bearings are to allow a mechanical shaft to rotate freely in one direction while locking it in the opposite direction, preventing reverse rotation. This function is critical to ensure that mechanical systems operate effectively in the intended direction while avoiding damage or failure due to unexpected reverse motion.
Understand The Design Differences Of Keyways Of One way Clutch Bearings

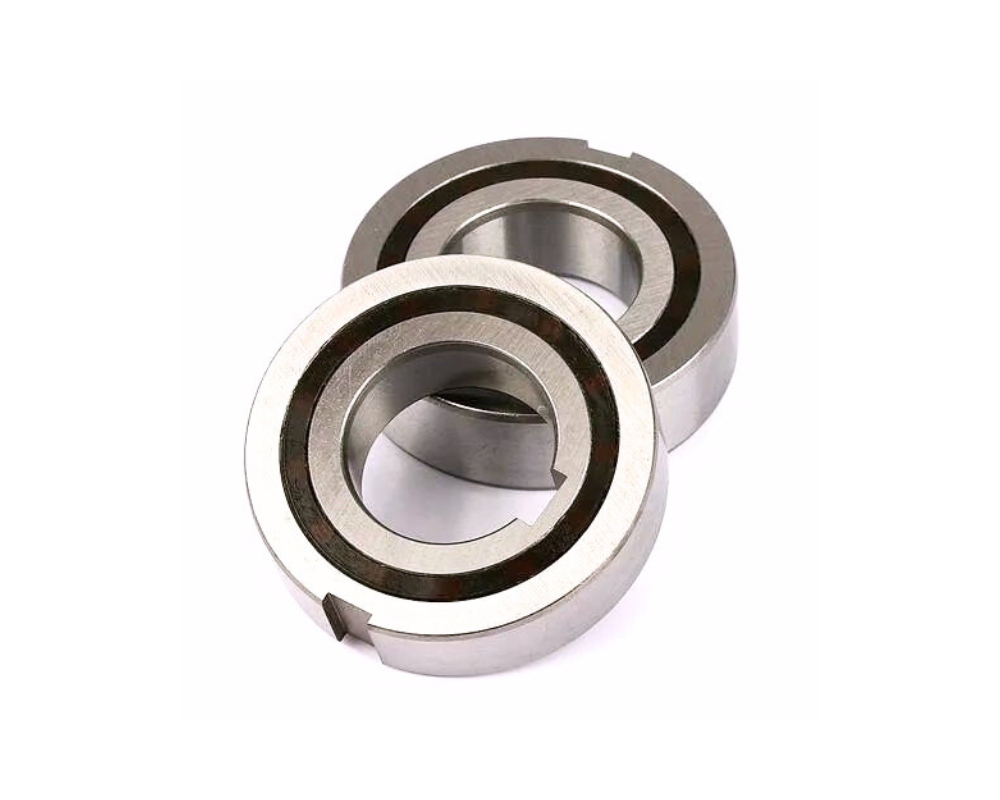

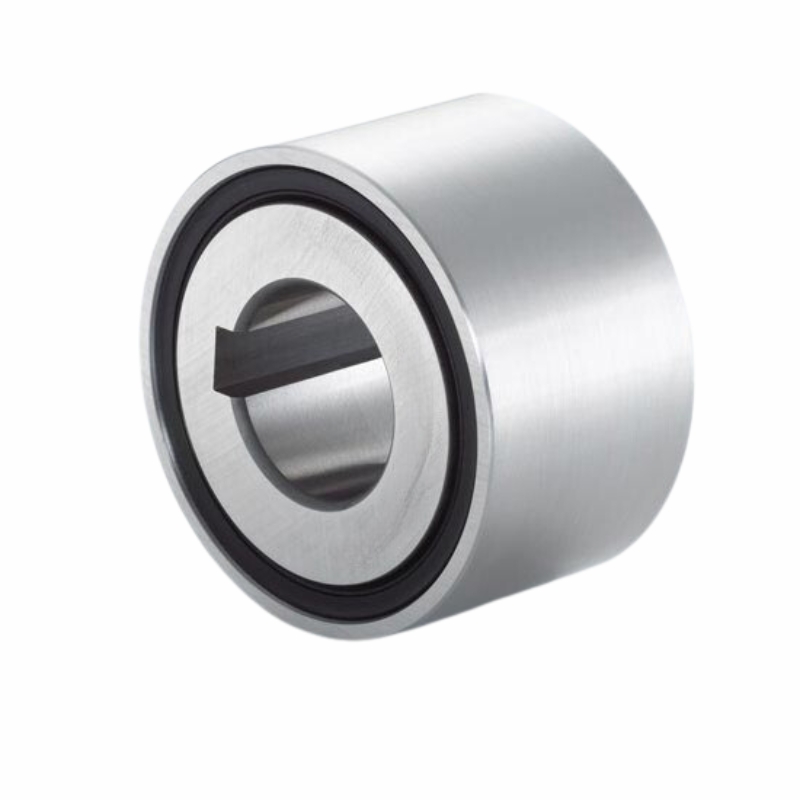

Unidirectional Keyway
A unidirectional keyway is a shaft or rotating part that has only one keyway for a key to ensure unidirectional torque transmission. This design is suitable for applications where power or torque needs to be transmitted in only one direction, such as conveyor belt systems or unidirectional drives. The advantage of a unidirectional keyway is its simplicity and reliability, which makes it suitable for many basic engineering needs.
Bidirectional keyways
Bidirectional keyways, as opposed to unidirectional keyways, have a double keyway, machined on the shaft and rotating part, allowing the key to be inserted in both directions. This design allows for bi-directional torque transmission and is suitable for applications that require frequent changes of direction, such as gearboxes or reversible motors. The advantage of the double keyway is its flexibility and versatility for more complex engineering designs.
The opposite of a keyway is a keyless design, in which there is no key or slot between the shaft and the rotating part. This design relies on fasteners (such as bolts or nuts) to secure the connection, and is typically suited to application scenarios with low stresses and speeds, as well as low precision requirements. The advantage of a keyless groove is that it simplifies the design and machining process, but accordingly sacrifices some ability to transmit torque.
Differentiating factors
The one-way keyway restricts the key to be inserted in only one direction and is suitable for one-way torque transmission; the two-way keyway allows the key to be inserted in both directions and is suitable for two-way torque transmission and has flexibility; the keyless keyway has no key or groove and relies on fastening Parts connection is suitable for scenarios with smaller stress and rotation speed, simplifying the design and processing process, but the ability to transmit torque is weak.
Types Of Keyway Designs
- Standard rectangular keyway: The most common keyway design is the standard rectangular keyway. It has simple rectangular grooves machined into the shaft and bearing bore respectively. While this design is simple and easy to manufacture, it may not provide the best torque transfer characteristics in applications with high loads or vibration.
- Trapezoidal Keyway: A trapezoidal keyway has a trapezoidal cross-section rather than a rectangular one. This design offers several advantages over standard rectangular keyways. The tapered sides of a trapezoidal keyway distribute stresses more evenly, reducing the possibility of stress concentrations and potential failure points. In addition, the wider base of the trapezoidal keyway provides better key-to-shaft contact and improved torque transmission.
- Radial Keyways: Radial keyways are slots machined perpendicular to the axis of rotation and cross the shaft and bearing bore at right angles. Unlike axial keyways, which are parallel to the axis of rotation, radial keyways distribute torque more evenly around the shaft circumference, minimizing the risk of twisting distortion and enhancing overall stability.
- Round-head keyways: Round-head keyways usually require more precision machining for installation on shafts. They provide higher shear strength and are suitable for higher torque applications.
- Wood dowel keyways: This type of keyway has a round or oval head that can reduce stress concentration while transmitting torque. It is often used in industrial applications with high power.
- Splines: Splines provide multiple small keyways distributed throughout the connection interface to increase the uniformity of contact area and torque transmission. They are suitable for high-precision applications such as power transmission.
Effect of keyways on torque transmission
The choice of keyway design has a significant impact on the torque transfer capability of a one-way bearing. Factors such as key material, surface finish and lubrication also play a key role in determining the overall performance of the bearing system. However, keyway design directly affects stress distribution, contact area between mating surfaces, and resistance to wear and fatigue.
Efficiency
A well-designed keyway can minimize energy losses due to friction, sliding and deformation, thus improving the overall efficiency of the bearing system. Trapezoidal and radial keyways, with their enhanced contact characteristics and stress distribution profiles, generally provide higher torque transfer efficiency than standard rectangular keyways.
Torque Transmission Capability
The keyway works to transmit rotation of torque from one part, say a motor shaft, to another, such as a gear or bearing. The maximum torque the key can carry is directly related to the shape and size of the keyway. If the keyway is too small or has an inadequate design to accommodate the forces present in high-torque applications, sliding and shear damage may occur.
Stress Concentration
This keyway causes stress concentrations in the material, particularly at the transition area between the key and keyway due to the localized elastic deformation which occurs upon loading. Poor keyway design can result in extremely high stress concentrations that accelerate fatigue fracture. Proper design (i.e., radiused corners or dowel keyways), can help mitigate some of these stress risers and increase overall mechanical properties.
Load Performance
Under high loads, the ability of the keyway to withstand shear forces and prevent relative motion between the shaft and bearing is critical. Trapezoidal keyways, with their wider contact area and tapered sides, show superior load carrying capacity to standard rectangular keyways. While radial keyways are less common, their excellent load distribution characteristics make them suitable for heavy-duty applications.
Assembly And Alignment
The accuracy of the keyway is essential to ensure that the components are properly aligned. An inaccurate keyway may result in improper assembly, causing misalignment or vibration of the shaft, which will reduce mechanical efficiency and increase wear.
Wear and Life
The keyway can be a point of wear over time (particularly in high-load applications) if the material is not adequately selected or lubricated. Further wear leads to fitting to loosen, therefore, the loss of the effectiveness torque transmission as well as the system reliability.
Materials and Manufacturing
The durability and performance of keyways can be improved by using high-strength materials and manufacturing them with high precision. Keyways can be heat treated or plated (coated) to enhance their resistance to wear, galling and corrosion, thus improving performance in the harshest environments.
Characteristics Of One Way Clutch Bearings
- Usable as one-way rotation—— The device can freely rotate in one direction and can be locked in the other direction to prevent rotation.
- Auto-Locking mechanism——The bearing locks automatically without requiring external control if a wrong direction of rotation is tried.
- High torque transmission—— Capable of transmitting high torque while stably resisting in an opposing direction
- Easy to care for——The simplicity of their innards mostly means that they have no or low maintenance requirements.
- It is easy to integrate into the existing mechanical systems owing to its small size.
Application Of One Way Clutch Bearings
- Automobile industry: used in automobile starters and automatic transmissions.
- Industrial transmission systems: In industry, used in conveyor belts and rotating equipment.
- Power industry: used in generators to prevent reverse rotation of the generator from damaging the wind wheel.
- Agricultural machinery: used to protect machinery such as harvesters and balers.
- Bicycle industry: used in freewheel mechanisms.
- Aerospace: Used in helicopter rotor drive systems to ensure that the rotors continue to rotate freely in the event of an engine failure.
Conclusion
Through the discussion in this article, we have a deeper understanding of how one way clutch bearings and their keyways affect the efficiency and reliability of torque transmission. One-way clutch bearings designed so that they can rotate freely in one direction and locked in the other optimize power transmission and active energy loss as well as improve mechanical efficiency at critical moments. The presence of the keyway increases the strength of the interface between the shaft and the bearing to ensure that the torque is transmitted at the critical moment. It is critical to correctly understand and execute these devices when designed and implemented to ensure excellent mechanical performance. In addition, the correct materials and implementation methods can be selected to ensure differential or efficient performance of the shaft and bearing.
References
- Overview of ”One Way Clutch Bearings “from NZ Miniature Bearings
- About Selecting the Right High Torque” One Way Clutch Bearings“ from GMN BEARING USA
