The Ultimate Guide To Enhancing Equipment Life With Quality Pin And Bushings
Introduction
Pin and bushings are mechanical equipment components, and in a variety of mechanical equipment these components work in concert to promote smooth, controlled movement between parts, minimize wear and prolong the life of the equipment. They are designed to be inserted into housings or support structures to provide a bearing surface for rotating or sliding shafts, pins or other mating parts.

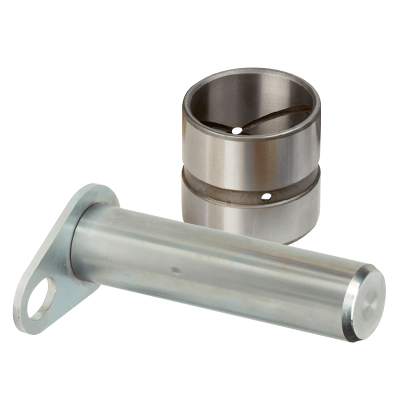

Understanding Pin And Bushings
pin
Pins is cylindrical or tapered components that are inserted into pin bushings and mating components and serve as rotating or sliding elements. Made of hardened steel or other material capable of withstanding the workload and wear and tear. Its primary use is to hold parts together or as a pivot, hinge, shaft, or pin within a mechanical assembly. Pins are often used to ensure alignment between components, allowing relative movement in a controlled manner.
Bushings:
A bushing, on the other hand, is a type of bearing – a cylindrical sleeve that reduces friction between moving parts. Bushings are inserted into a housing or bore to provide a wear-resistant surface for a rotating or sliding shaft. Like pins, bushings can be made from a variety of materials, including metals (such as bronze or steel), plastics, or composite materials. The choice of material depends on the application’s requirements, such as load capacity, speed, and environmental conditions.
The Relationship Between Pin And Bushings
Pin and bushings are indispensable mechanical components that work together in a symbiotic relationship to promote smooth, low-friction movement within various components. For example, when a pin is used as a pivot or hinge, a bushing is often used as an interface between the pin and surrounding components. This arrangement allows for smooth rotational or sliding motion and reduces direct metal-to-metal contact, which can otherwise lead to rapid wear and increased friction. Bushings can also be designed to absorb shock and evenly distribute stress, further increasing the durability and efficiency of the component.

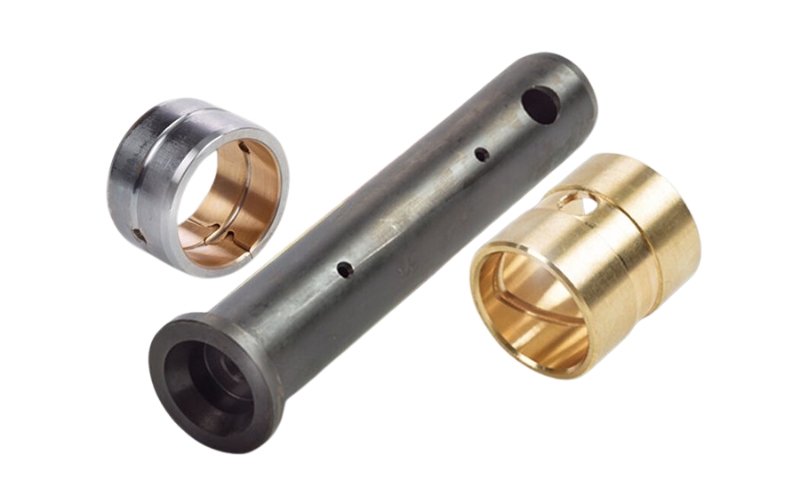

What Are The Pin And Bushings Made Of?
Materials for Pin:
The material of the pin can be hardened steel, stainless steel, alloy steel or ceramic. Hardened steel has high strength, wear resistance and can withstand heavy loads; when it is in a highly corrosive environment, stainless steel should be used;
However, in certain high temperature or corrosive environments, ceramic pins made of materials such as silicon nitride or zirconia may be used. But for situations involving high temperatures or harsh environments, alloy steel is most suitable.
Whatever material is selected should ensure optimal performance and service life of the pin and bushing assembly in the specific application.
Materials for Bushings：
Bushings can be made from a variety of materials, including: bronze, nylon or plastic, composites, polytetrafluoroethylene (PTFE) or bimetallic and metallic polymers; each material has its own specific properties.
Bronze is the most common material for bushings and, like plastic bushings, has wear resistance and self-lubricating properties;
Polytetrafluoroethylene (PTFE) is often used where smooth operation and minimal lubrication are required due to its low coefficient of friction.
Composite bushings are suitable where wear resistance and resistance to harsh environmental conditions are required;
While bimetallic bushings combine two types of metal to provide strength and wear resistance, metallic-polymer bushings offer a durable metal backing and low-friction polymer surface.
How Do Pin And Bushings Work?
Pin and bushings facilitate component movement in mechanical systems and carry radial and axial loads by providing a low-friction sliding interface that enables smooth transitions between opposing components in a rotational or sliding motion.
The wear-resistant self-lubricating material of the bushing cooperates with the pin to effectively reduce movement resistance and wear, ensuring efficient and reliable operation of the assembly.
Applications Of Pin And Bushings
Pin and bushings applications in mechanical systems include:
- Automotive: In vehicles, pin and bushings are used in components such as suspension systems, door hinges, and gear linkages to ensure smooth operation and reliable performance.
- Industrial Machinery: In manufacturing equipment, conveyor systems, and heavy machinery, pin, and bushings assist in movement and load bearing, helping to increase the efficiency and longevity of the machine.
- Electronics: On a smaller scale, such as in electronic devices, pin and bushings are used in hinges or movable parts to ensure precise movement and alignment.
- Construction: In construction equipment such as excavators and cranes, pin and bushing assemblies allow joints to articulate and arms and buckets to move.
Case Analysis:
In heavy machinery, take a crawler bulldozer as an example to analyze the role of pin and bushings:
The track system of a bulldozer is made up of many metal links, each of which is hinged together by pin and bushings. The bushing is installed on the inside of the chain link, and the pin passes through the chain link and bushing to form a rotating joint.
When working in harsh environments, the track system requires pins and bushings to not only have extremely high wear resistance and strength to withstand the huge wear caused by mud, sand, and gravel, and the heavy pressure of heavy machinery and operating loads but also must It has sufficient corrosion resistance to resist erosion by environmental factors such as moisture and salt.
Therefore, these critical components are usually made of high-strength alloy steel, stainless steel, or special alloy materials. At the same time, to adapt to the compact design of the track links and facilitate daily maintenance and replacement, split or detachable pins and split bushings should be used. This design not only meets the performance requirements of the bulldozer but also greatly simplifies maintenance work and improves the reliability and maintenance efficiency of the entire system.
Benefits Of Pin And Bushings
Pin and bushings are used in various applications, and they offer several benefits, including:
- Reduces friction between moving parts, promoting smooth operation and preventing wear.
- Bushings help distribute loads evenly across their surface, preventing stress concentrations and reducing the risk of deformation or failure.
- Friction reduction and correct alignment facilitated by pin and bushings help increase operating efficiency and energy savings while reducing downtime.
- Versatility in pin and bushing materials and design flexibility, each offering specific advantages for different applications and meeting unique operating requirements.
- Easy maintenance and lower cost effectiveness
Therefore, pin and bushings have become one of the most commonly used and basic components in the field of mechanical transmission. Correct design and application will maximize their benefits.
Inspect Pin And Bushings Regularly
What Are The Signs It’s Time To Replace Pin And Bushings?
Detect the wear of pin and bushings in time and replace them appropriately. Here are some common signs that pin and bushings need to be replaced:
Excessive clearance or increased rotational resistance
Over time, wear will occur between the pin and bushing, resulting in increased clearance or increased rotational resistance. If this situation continues to worsen, it will increase wear, reduce efficiency, and even cause jamming.
Abnormal noise or vibration increases
When the pins and bushings are worn to a certain extent, abnormal noise or vibration will often occur, which is a warning signal that requires attention.
Temperature rise
Due to the increased friction caused by wear, the operating temperature of the pin and bushing will be higher than normal, and high temperatures may accelerate wear and worsen it.
Mechanism is inaccurate or stuck
Severe wear will cause the mechanism to be misaligned or completely stuck. At this time, the pin and bushing must be replaced immediately to avoid greater damage.
Regular inspection reveals wear and tear
According to the maintenance plan, regularly disassemble and inspect the wear of the pin and bushings. If they exceed the allowable limit, they need to be replaced in time.
Tips For Avoiding Wear On Pin And Bushings
In order to extend the service life of pin and bushings and slow down the wear process, some tips and precautions can be taken:
- Correct material selection and processing according to the application environment and load conditions.
- For pin bushings that require lubrication, maintain good lubrication.
- Avoid exceeding the design load limit of the pin bushing and control impact loads during operation.
- High rotational speed will increase wear, so the maximum rotational speed of the pin should be appropriately limited according to actual needs.
- Prevent contaminants from intruding into the moving area of the pin bushing.
- Ensure the alignment of the pin and bushing to avoid eccentricity or tilt
- Check the wear of the pin bushing regularly as planned and deal with it in time.
- For environments prone to corrosion, take necessary protective measures such as using corrosion-resistant materials, sealing, etc.
- Store and handle pin bushings correctly to avoid damage to wear surfaces.
Why Choose Our Pin And Bushings?
FHD as a professional pin and bushing manufacturer, we look forward to establishing a long-term and trustworthy cooperative relationship with you.
First of all, we have excellent customized production capabilities. We understand that every application has unique requirements for pin and bushings. Whether it’s materials or performance indicators, we can tailor the best solution according to your needs.
Secondly, we have extremely high standards and requirements for product quality. We use advanced production technology and testing equipment, and strictly control every link from raw material procurement to final delivery to ensure that our products reach the top level in the industry.
In addition, we have more than two decades of industry experience and expertise. Whether you are in the automotive, aerospace, heavy machinery or other fields, we can provide practical and professional solutions.
