Introduction to plastic linear bearings
Plastic linear bearings are a type of bearing designed to provide smooth, low-friction motion along a linear path. Unlike traditional metal bearings, which typically rely on rolling elements like balls or rollers, plastic linear bearings are made from durable, self-lubricating plastic materials that can reduce wear and tear while minimizing maintenance. They’re commonly used in environments where corrosion resistance, quiet operation, and lightweight design are important factors.
Key Features of Plastic Linear Bearings:
- Material: Typically made from high-performance plastics like acetal (POM), PTFE, or UHMWPE, which offer low friction and wear resistance.
- Self-lubrication: Many plastic bearings are self-lubricating, meaning they don’t require external lubrication, which helps reduce maintenance and operational downtime.
- Lightweight: Plastic bearings are generally lighter than their metal counterparts, making them ideal for applications where weight is a concern.
- Corrosion Resistance: They excel in environments where metal bearings might corrode, such as in food processing, medical equipment, or outdoor machinery.
- Cost-effective: While not as strong as metal bearings, plastic linear bearings are often more affordable, especially in high-volume applications where weight and corrosion resistance are prioritized over strength.
- Noise and Vibration: Plastic bearings can offer quieter operation compared to metal ones, which is beneficial in applications where noise reduction is important.
Applications:
- 3D printers: Frequently used in 3D printing machinery due to their low friction and ability to support smooth movement.
- Automation systems: Employed in conveyors, robotics, and other automated machinery where precise linear motion is needed.
- Medical devices: Their non-corrosive nature makes them ideal for use in clean or sterile environments like medical equipment.
- Food processing: Plastic bearings resist corrosion from harsh cleaning chemicals and can safely be used in food contact areas.
Advantages:
- Reduced wear and maintenance costs due to self-lubricating properties.
- Better suited for harsh environments (wet, corrosive, high-temperature).
- Suitable for applications requiring quiet operation.
- Lightweight and energy-efficient, reducing system load.
Disadvantages:
- Not as strong as metal bearings, so they might not be suitable for high-load applications.
- Limited temperature resistance compared to metal bearings, though high-performance plastics can handle moderate temperatures.

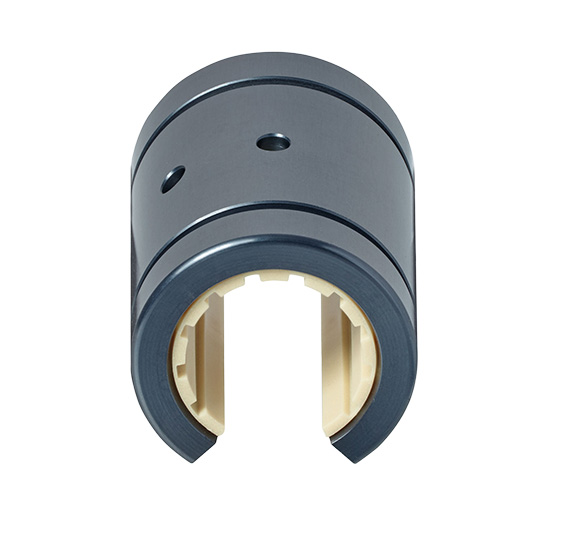

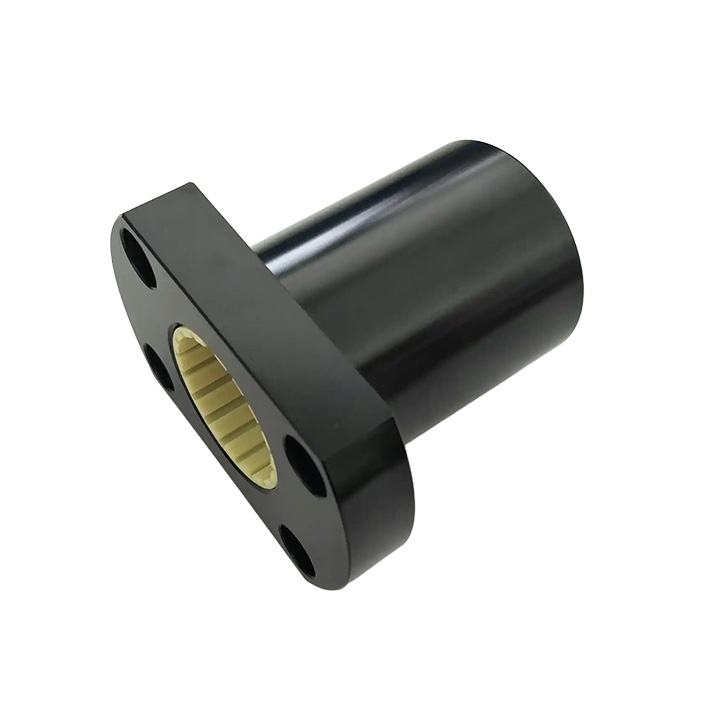

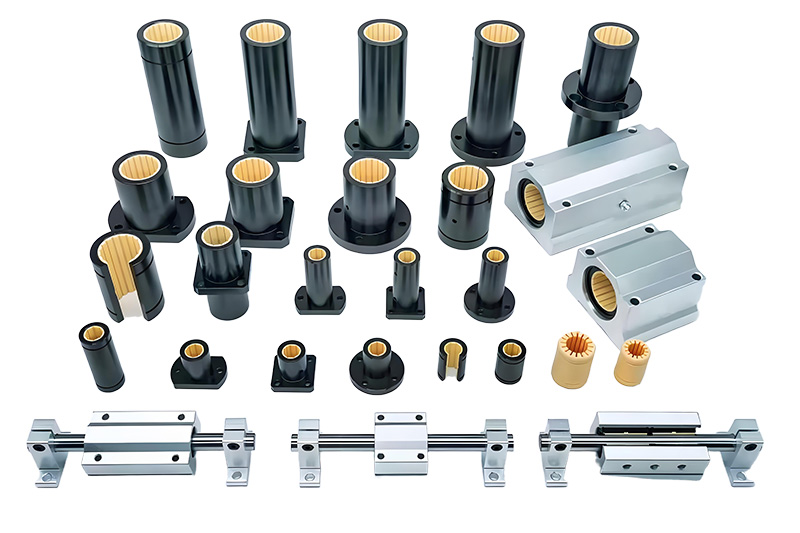

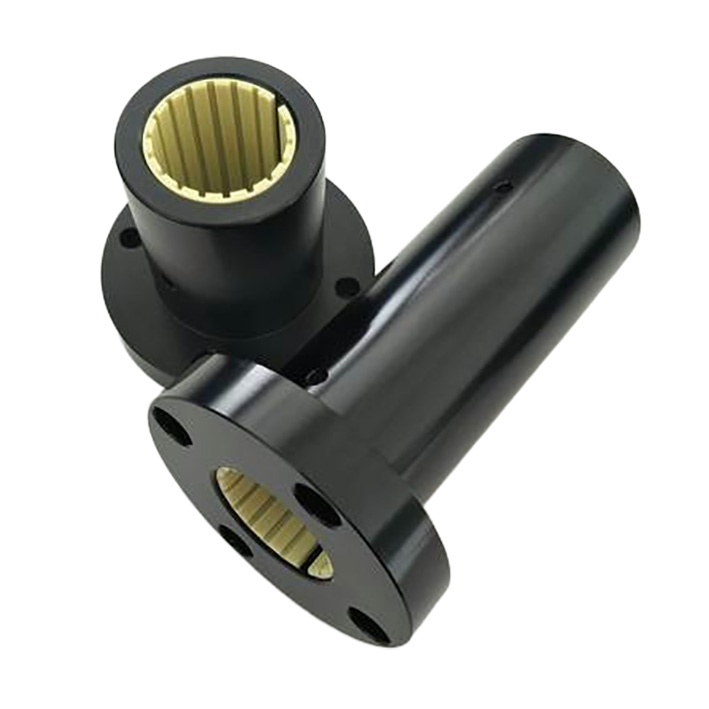

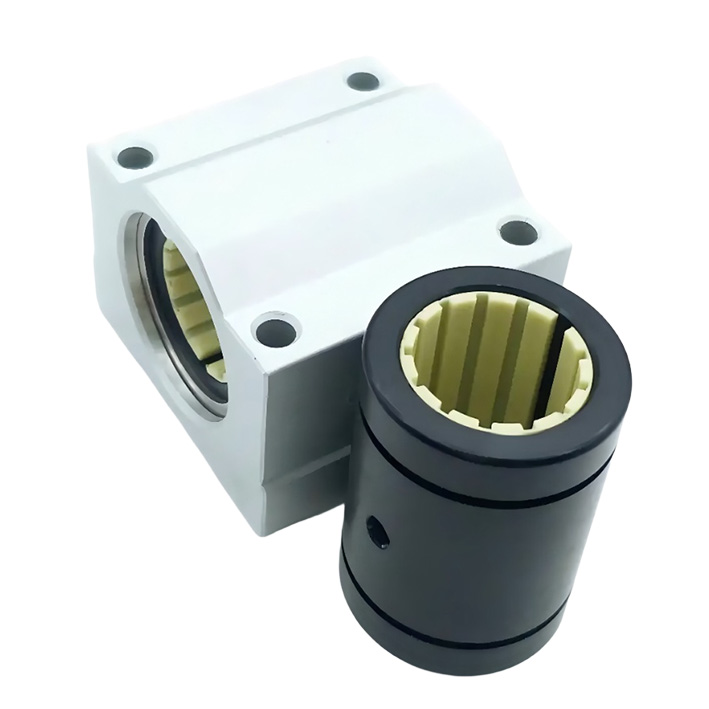

1. Plastic linear bearing
What Are Plastic Linear Bearings?
Plastic linear bearings are a type of bearing designed to provide smooth, low-friction movement along a linear path. Made from durable plastics like POM, PTFE, and UHMWPE, these bearings are engineered to outperform traditional metal bearings in many ways. They are commonly used in automation systems, robotics, and other applications where precision and smooth motion are key.
How Do They Differ from Traditional Bearings?
While traditional metal bearings typically rely on steel or aluminum components, plastic bearings leverage advanced polymers. The key difference lies in their self-lubricating properties, which reduce the need for external grease or oil, minimizing maintenance. Additionally, plastic bearings are lightweight, corrosion-resistant, and capable of operating in harsher environments compared to their metal counterparts.
The Growing Demand for Plastic Bearings in Various Industries
As industries move toward more cost-effective, eco-friendly solutions, plastic bearings are gaining traction. With the push toward automation, additive manufacturing, and precision engineering, the demand for lightweight, durable bearings that don’t compromise on performance is growing. Whether it’s for 3D printing, food processing, or robotics, plastic linear bearings are proving to be a smart choice across diverse sectors.
2. The Key Benefits of Plastic Linear Bearings
Understanding ABEC Standards
Plastic linear bearings are typically more affordable than their metal counterparts. This is largely due to the lower material costs and less expensive manufacturing processes, such as injection molding. For businesses looking to cut expenses without compromising on performance, plastic bearings provide a solid return on investment.
Lightweight and Energy-Efficient
One of the standout benefits of plastic linear bearings is their low weight. This can reduce the overall weight of machinery and systems, leading to improved energy efficiency. Lighter systems require less energy to operate, and less strain on components translates to fewer repairs and a longer operational lifespan.
Reduced Maintenance and Downtime
Plastic bearings are often self-lubricating, which drastically reduces the need for routine maintenance. This, in turn, leads to lower downtime and less labor dedicated to upkeep. For companies that rely on continuous production, plastic bearings’ ability to reduce maintenance requirements ensures smooth, uninterrupted operations.
3. How Plastic Linear Bearings Save Money
Lower Initial Investment
When purchasing bearings for large-scale manufacturing, the initial cost is a major consideration. Plastic linear bearings are often significantly cheaper than metal options, meaning companies can save upfront. For procurement professionals, this can be an attractive option when trying to stay within budget without sacrificing performance.
Reduced Maintenance Costs
Plastic bearings’ self-lubricating nature means fewer lubricants are required, which can save on both material costs and labor. Over time, the reduction in maintenance expenses adds up, resulting in significant savings. Fewer repairs and part replacements mean longer intervals between service calls and a more streamlined maintenance process.
Energy Efficiency and Reduced Operational Costs
Because plastic bearings are lighter than traditional metal bearings, they help lower energy consumption in systems that rely on high-speed or high-load operations. Additionally, the reduced wear on components means less energy is spent overcoming friction, leading to savings on power bills. The energy savings over time contribute directly to overall cost reductions.
4. Material Choices for Plastic Linear Bearings
Common Plastics Used (POM, PTFE, UHMWPE)
The materials used to manufacture plastic linear bearings are carefully selected based on their wear resistance, self-lubricating properties, and load-bearing capacity. POM (Polyoxymethylene), PTFE (Polytetrafluoroethylene), and UHMWPE (Ultra-High Molecular Weight Polyethylene) are some of the most popular choices. Each material offers unique benefits, from POM’s superior dimensional stability to PTFE’s low friction and UHMWPE’s extreme durability.
The Role of Material Selection in Cost Control
Choosing the right plastic for the application can make all the difference in terms of both performance and cost efficiency. Materials that are too expensive for the job will increase the overall bearing cost without offering tangible benefits. On the other hand, using a lower-cost plastic that still meets performance requirements can optimize both the functional life of the bearing and the procurement budget.
How Material Impacts Bearing Durability
The longevity of a plastic linear bearing is often directly tied to the material from which it’s made. For example, PTFE offers excellent wear resistance, while POM’s rigidity makes it ideal for high-load applications. By understanding the material properties and their relationship to the specific application, you can ensure a longer-lasting and cost-effective bearing solution.
5. Durability and Longevity of Plastic Linear Bearings
Resistance to Wear and Tear
Plastic bearings are engineered for exceptional wear resistance, even in harsh conditions. The materials used, such as POM and UHMWPE, have been specifically developed to handle continuous motion without quickly degrading. This durability means they can last longer in applications with high usage, reducing the need for frequent replacements.
Self-Lubricating Properties
Unlike metal bearings that require periodic lubrication, plastic bearings often feature self-lubricating properties. This ability to maintain smooth operation without additional grease or oil saves both time and money. In addition, it helps reduce environmental contamination caused by excess lubricant waste.
Lifespan Comparison: Plastic vs. Metal Bearings
While metal bearings may offer superior load capacity, plastic bearings have an impressive lifespan when used in the right applications. Their resistance to corrosion, chemical damage, and the absence of lubrication requirements make them a highly durable option in conditions where metal bearings would fail prematurely.
6. Performance and Reliability in Harsh Environments
Corrosion Resistance in Wet and Chemical Environments
Plastic linear bearings excel in environments where metal bearings would corrode quickly. For industries such as food processing, pharmaceuticals, or chemical handling, plastic bearings provide a dependable solution that won’t degrade from exposure to moisture, acids, or other harsh chemicals. Their corrosion resistance ensures long-lasting performance in these demanding settings.
Performance in High-Temperature Settings
Certain plastics like POM and PTFE can withstand temperatures far higher than typical lubricated metal bearings. This makes them an ideal choice for applications exposed to elevated heat, where metal bearings might lose their strength or fail due to overheating. As industries push toward more extreme working conditions, the demand for high-performance plastic bearings increases.
Plastic Bearings for Outdoor Applications
In outdoor applications, exposure to rain, dust, and varying temperatures can quickly degrade bearings made from metal. Plastic bearings, however, offer resilience against these elements. Whether for outdoor robotics, agricultural machinery, or transportation systems, their ability to resist environmental wear makes them a go-to option for reliability.
7. Key Industries Using Plastic Linear Bearings
Automation and Robotics
Plastic linear bearings are widely used in automation and robotics due to their precision and low maintenance. With the rise of Industry 4.0, these bearings are key components in systems that demand continuous motion without downtime. Their self-lubricating properties and ability to handle high-speed operations make them ideal for robotic arms, conveyor belts, and automated machinery.
3D Printing and Additive Manufacturing
In the world of 3D printing, plastic linear bearings are often the unsung heroes. Their low-friction properties and smooth operation ensure that printing heads move accurately and consistently during production. In an industry where precision is critical, these bearings help ensure a high-quality print every time.
Food Processing and Medical Equipment
Plastic bearings are a popular choice in food processing and medical equipment due to their resistance to corrosion and contamination. Since these industries require high hygiene standards and compliance with strict regulations, plastic bearings meet the necessary criteria. Their ease of cleaning and ability to operate in sterile conditions make them ideal for use in production lines and medical devices.
8. Challenges and Limitations of Plastic Linear Bearings
Load-Bearing Capacity Limits
Plastic bearings, while versatile and cost-effective, do have their limits. One of the primary challenges is their load-bearing capacity. Compared to steel or other metals, plastic bearings can’t support the same heavy loads without risking deformation or failure. Therefore, it’s crucial to understand the weight and stress requirements of your application before opting for plastic bearings.
Temperature Resistance Concerns
Although plastics like PTFE and POM offer good temperature resistance, they can still be susceptible to degradation at extremely high or low temperatures. In environments where temperatures fluctuate significantly or where high heat is generated, plastic bearings may not provide the same level of performance as metal bearings. Careful material selection can mitigate this, but it remains a key consideration in extreme environments.
When Plastic Bearings Aren’t the Right Choice
Plastic bearings are not suitable for every application. If an operation requires bearing components that handle high shock loads, extreme pressures, or constant high-speed rotations, metal bearings may be a better choice. It’s essential to conduct a thorough analysis of your system’s needs before making a decision to ensure that the selected bearing material can withstand the conditions of the specific environment.
9. Innovative Features of Modern Plastic Linear Bearings
Enhanced Lubrication Systems
Modern plastic linear bearings often come with integrated lubrication systems designed to minimize friction and wear. These enhanced systems ensure that the bearing operates smoothly, even under high-load conditions, while maintaining a low need for external lubricants. These innovations provide extended performance, especially in applications where external lubrication isn’t feasible.
Noise Reduction Technology
A key feature of some advanced plastic bearings is noise reduction technology. Plastic bearings are inherently quieter than metal bearings, but further innovations, such as vibration-damping materials and improved bearing design, have taken this to the next level. These noise-reducing features make plastic bearings ideal for applications in noise-sensitive environments, such as medical equipment or office automation.
Sum up
Plastic linear bearings are a cost-effective, durable, and low-maintenance alternative to traditional metal bearings, offering significant savings in both initial investment and long-term operational costs. Their lightweight, self-lubricating properties make them ideal for a variety of industries, including automation, robotics, and food processing. Customizable for specific applications, these bearings provide excellent performance in demanding environments while contributing to sustainability goals. With reduced downtime, improved energy efficiency, and minimal maintenance, plastic linear bearings are becoming a go-to solution for modern manufacturing needs.
