Introduction to Roller Bearings
Overview of Roller Bearings
Roller bearings are the unsung heroes in countless applications, responsible for reducing friction and carrying heavy loads with remarkable efficiency. These mechanical components are ubiquitous, found in everything from industrial machinery to everyday vehicles. They are designed to handle both radial and axial loads, making them indispensable in the smooth operation of rotating equipment.
Importance of Longevity in Roller Bearings
The longevity of roller bearings is not just a matter of convenience; it’s a critical factor that can determine the success or failure of an entire operation. Bearings that last longer reduce the frequency of maintenance, minimize downtime, and save on replacement costs. In industries where operational efficiency is paramount, extending the life of roller bearings can lead to significant cost savings and enhanced productivity.
Common Applications of Roller Bearings
Roller bearings are versatile and used in a wide range of applications, from automotive wheels to industrial conveyor systems. In the automotive sector, they are crucial for the smooth functioning of wheel hubs and gearboxes. In heavy machinery, roller bearings support the rotation of large shafts and are integral to the operation of conveyors, elevators, and turbines.
Understanding Roller Bearing Construction
Components of a Roller Bearing
A typical roller bearing consists of several key components: the inner and outer races, the rolling elements (which can be cylindrical, spherical, or tapered), and the cage that separates and guides the rolling elements. The inner race fits onto the rotating shaft, while the outer race is mounted within the housing. The rolling elements bear the load and reduce friction by rolling between the races rather than sliding.
Different Types of Roller Bearings

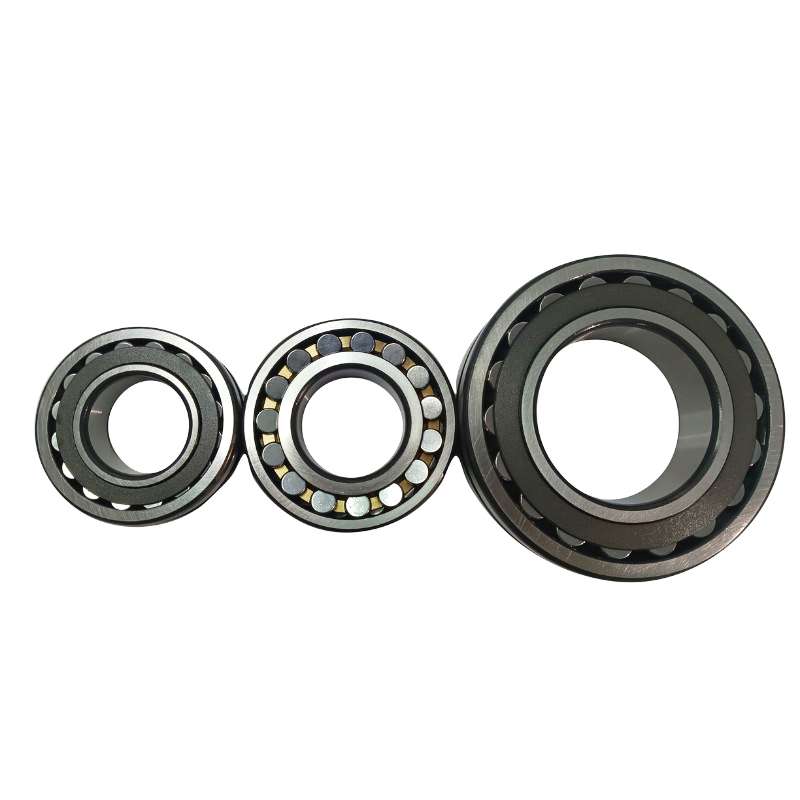

There are several types of roller bearings, each designed for specific applications. Cylindrical roller bearings, for example, are ideal for high-speed applications due to their ability to handle heavy radial loads. Tapered roller bearings, on the other hand, are designed to support both radial and axial loads, making them suitable for applications like vehicle axles and gearboxes. Spherical roller bearings are used in applications where there is a need to accommodate misalignment between the shaft and the housing.
Material Selection for Roller Bearings
The material used in roller bearings is critical to their performance and durability. Most bearings are made from high-carbon chromium steel, known for its strength and wear resistance. In applications where corrosion is a concern, stainless steel or other corrosion-resistant alloys may be used. Advanced materials like ceramics are also employed in high-performance bearings to reduce weight and increase speed capabilities.
The Causes of Roller Bearing Failures
Overloading and Its Effects on Bearings
Overloading is one of the most common causes of roller bearing failure. When bearings are subjected to loads beyond their design limits, the rolling elements and races can become deformed, leading to increased friction and eventual failure. This can happen due to improper design, unexpected operational conditions, or incorrect bearing selection. Overloading not only shortens the lifespan of the bearing but also increases the risk of catastrophic failure.
Improper Lubrication Practices
Lubrication is the lifeblood of roller bearings, and improper lubrication practices can lead to premature failure. Insufficient lubrication causes increased friction, leading to excessive heat and wear, while over-lubrication can cause churning, which increases operating temperatures and leads to leakage. The type and amount of lubricant used must be carefully selected and maintained to ensure the bearing operates within its optimal parameters.
Contamination and Its Impact on Bearing Life
Contamination is a silent killer of roller bearings, often leading to failure before the expected service life is reached. Contaminants such as dirt, dust, and moisture can enter the bearing through seals or during maintenance activities. Once inside, these particles can cause abrasive wear, corrosion, and increased friction, all of which reduce the bearing’s lifespan. Maintaining a clean operating environment and using high-quality seals are essential to protecting bearings from contamination.
Importance of Proper Bearing Selection
Matching Bearings to Application Requirements
Selecting the right bearing for a specific application is crucial to ensuring its longevity and performance. The selection process involves considering factors such as load capacity, speed, temperature, and environmental conditions. Using a bearing that is not suited to the application’s demands can result in premature failure, increased maintenance costs, and operational downtime.
Consideration of Load and Speed Ratings
Load and speed ratings are two of the most important factors to consider when selecting a roller bearing. Bearings are designed to operate within specific load and speed limits, and exceeding these limits can lead to overheating, excessive wear, and ultimately, failure. It’s important to choose a bearing that can handle the expected loads and speeds while providing a margin of safety to account for unexpected variations.
Selecting Bearings for Specific Environments
The operating environment plays a significant role in bearing selection. Factors such as temperature, humidity, exposure to chemicals, and the presence of contaminants must be considered. For example, in high-temperature applications, bearings made from heat-resistant materials or with special lubricants may be required. In corrosive environments, stainless steel or ceramic bearings may be necessary to prevent premature failure.
The Role of Lubrication in Bearing Longevity
Types of Lubricants Suitable for Roller Bearings
The type of lubricant used in roller bearings can significantly affect their performance and lifespan. Greases are commonly used in applications where re-lubrication is difficult, as they provide a long-lasting protective layer. Oils, on the other hand, are used in high-speed applications where heat dissipation is critical. Solid lubricants, such as graphite or molybdenum disulfide, are used in extreme conditions where conventional lubricants would fail.
Lubrication Intervals and Maintenance
Establishing the correct lubrication intervals is essential for maintaining bearing performance. Over-lubrication can cause excessive heat and lead to bearing failure, while under-lubrication can result in increased friction and wear. Regular maintenance checks should be performed to ensure that the bearings are receiving the correct amount of lubrication at the appropriate intervals, based on the specific operating conditions.
The Consequences of Over- and Under-lubrication
Both over- and under-lubrication can have detrimental effects on roller bearings. Over-lubrication can cause the grease to churn, leading to increased temperature and leakage, while under-lubrication can cause metal-to-metal contact, resulting in excessive wear and potential failure. Finding the right balance is key to ensuring the longevity of the bearing, as well as the overall efficiency of the system in which it operates.
Best Practices for Bearing Installation
Proper Handling Techniques to Avoid Damage
Handling roller bearings with care during installation is critical to preventing damage. Dropping or striking a bearing can cause microscopic dents, known as brinelling, which can lead to premature failure. It’s important to handle bearings with clean hands or gloves and use proper tools to avoid contamination and physical damage. Additionally, bearings should be kept in their protective packaging until just before installation to prevent exposure to contaminants.
Tools and Equipment for Correct Installation
Using the right tools and equipment during bearing installation ensures that the process is done correctly and safely. Specialized tools, such as bearing pullers, presses, and alignment devices, are designed to apply even pressure and avoid damage to the bearing. Proper installation also requires precise measurement tools, like micrometers and dial indicators, to ensure that the bearing is mounted with the correct fit and alignment.
Common Installation Mistakes to Avoid
Several common mistakes can occur during the installation of roller bearings, leading to premature failure. These include applying excessive force during installation, misalignment of the bearing, and incorrect lubrication. Ensuring that the bearing is installed according to the manufacturer’s specifications and guidelines is essential to avoid these pitfalls and ensure the bearing’s long-term performance.
Monitoring and Maintenance of Roller Bearings
Establishing a Routine Maintenance Schedule
A well-planned maintenance schedule is the backbone of bearing longevity. Regular inspections, lubrication, and cleaning should be part of the routine to catch any potential issues before they escalate. The frequency of maintenance tasks should be based on the operating conditions, such as load, speed, and environmental factors. A proactive maintenance approach helps in extending the service life of the bearings and reducing unexpected downtime.
Predictive Maintenance Techniques
Predictive maintenance involves monitoring the condition of bearings using advanced techniques like vibration analysis, thermography, and oil analysis. These methods allow for the early detection of wear, misalignment, or lubrication issues before they lead to failure. By predicting potential problems, maintenance can be scheduled at the most convenient time, minimizing disruption to operations and avoiding costly breakdowns.
Importance of Regular Inspections
Regular inspections are essential to ensure that roller bearings are operating within their optimal parameters. Inspections should focus on checking for signs of wear, corrosion, and lubrication levels, as well as ensuring that the bearings are properly aligned and free from contamination. Catching and addressing issues early can prevent minor problems from turning into major failures, saving time and money in the long run.
Troubleshooting Common Bearing Issues
Identifying Signs of Bearing Wear and Tear
Recognizing the early signs of bearing wear and tear is crucial for preventing failures. Common indicators include unusual noises, increased vibration, and excessive temperature during operation. Additionally, visual inspections may reveal signs of wear such as pitting, spalling, or discoloration of the bearing components. Identifying these signs early allows for corrective action before the bearing fails completely.
Analyzing Noise and Vibration Indicators
Noise and vibration are two of the most common indicators of bearing issues. Abnormal noises, such as grinding, clicking, or humming, can signal problems such as misalignment, contamination, or insufficient lubrication. Vibration analysis is a more advanced diagnostic tool that can detect subtle changes in the bearing’s condition, helping to identify the root cause of the problem before it leads to failure.
Addressing Temperature Anomalies in Bearings
Temperature anomalies in bearings can be a sign of various issues, such as overloading, improper lubrication, or contamination. A bearing running hotter than normal can indicate excessive friction, while a bearing running cooler may suggest under-lubrication. Monitoring and addressing these temperature changes is vital for maintaining the bearing’s performance and preventing unexpected failures.
Extending Bearing Life Through Environmental Controls
Protecting Bearings from Dust and Debris
Dust and debris are common contaminants that can wreak havoc on roller bearings. These particles can enter the bearing through seals or during maintenance activities, causing abrasive wear and reducing the bearing’s lifespan. Implementing effective sealing solutions and maintaining a clean operating environment are essential steps in protecting bearings from these harmful contaminants.
Managing Humidity and Moisture Levels
Humidity and moisture are major enemies of roller bearings, leading to corrosion and premature failure. In environments where moisture is prevalent, such as in outdoor or marine applications, it’s crucial to use bearings with corrosion-resistant materials or protective coatings. Additionally, controlling the humidity levels in the operating environment can help prevent condensation from forming inside the bearing, further extending its life.
Temperature Control Strategies for Bearings
Temperature control is vital for maintaining the performance and longevity of roller bearings. Excessive heat can cause the lubricant to break down, leading to increased friction and wear. Implementing cooling systems, such as air or oil cooling, and using temperature-resistant lubricants can help manage the operating temperature of the bearing. Regular monitoring of temperature trends can also provide early warning signs of potential issues.
The Impact of Bearing Alignment on Performance
The Importance of Shaft and Housing Alignment
Proper alignment of the shaft and housing is critical to the performance and longevity of roller bearings. Misalignment can cause uneven loading on the bearing, leading to increased friction, heat, and wear. Ensuring that the shaft and housing are aligned within the manufacturer’s specifications helps to distribute the load evenly across the bearing, reducing the risk of premature failure.
Methods to Ensure Proper Alignment
There are several methods to ensure proper alignment of roller bearings during installation. These include using alignment tools, such as laser alignment systems, and following precise measurement techniques. Additionally, checking the alignment periodically during operation can help identify any shifts or changes that may occur due to vibration or thermal expansion.
Consequences of Misalignment on Bearing Life
The consequences of misalignment on bearing life can be severe. Misaligned bearings are subjected to uneven loads, which can cause excessive wear on one side of the bearing, leading to premature failure. In severe cases, misalignment can cause the bearing to seize, resulting in catastrophic damage to the equipment. Ensuring proper alignment is a key factor in maximizing bearing life and avoiding costly repairs.
Advanced Bearing Technologies for Enhanced Durability
Coatings and Surface Treatments
Advanced coatings and surface treatments are used to enhance the durability of roller bearings. These treatments can improve wear resistance, reduce friction, and protect against corrosion. Common coatings include titanium nitride, diamond-like carbon, and ceramic coatings, each offering specific benefits depending on the application. Surface treatments can extend the life of the bearing, especially in harsh or demanding environments.
Use of Hybrid Bearings with Ceramic Elements
Hybrid bearings, which incorporate ceramic elements in place of steel rolling elements, offer several advantages over traditional bearings. Ceramic materials are harder and lighter than steel, resulting in reduced friction and improved wear resistance. They also operate at lower temperatures and are less susceptible to thermal expansion, making them ideal for high-speed or high-temperature applications. The use of hybrid bearings can significantly enhance the durability and performance of the system.
Sealed vs. Open Bearings: Which is Better?
The choice between sealed and open bearings depends on the specific requirements of the application. Sealed bearings are pre-lubricated and protected from contaminants, making them ideal for environments where re-lubrication is difficult or where contamination is a concern. Open bearings, on the other hand, offer lower friction and are suitable for applications where frequent re-lubrication is possible. The decision should be based on factors such as operating conditions, maintenance capabilities, and the desired balance between performance and longevity.
The Role of Bearing Manufacturers in Quality Assurance
Understanding Manufacturer Specifications
Manufacturer specifications provide critical information about the design, performance, and maintenance requirements of roller bearings. Understanding these specifications is essential for selecting the right bearing for a given application and ensuring that it is installed and maintained correctly. Specifications include details such as load ratings, speed limits, material composition, and recommended lubrication practices, all of which contribute to the bearing’s overall performance and longevity.
The Importance of Certifications and Standards
Certifications and standards are important indicators of a bearing’s quality and reliability. Bearings that meet or exceed industry standards, such as those set by the International Organization for Standardization (ISO) or the American National Standards Institute (ANSI), are more likely to perform consistently and reliably. Additionally, certifications from third-party organizations provide assurance that the bearing has been tested and verified to meet specific quality criteria.
Working with Trusted Bearing Suppliers
Choosing to work with trusted bearing suppliers is crucial for ensuring the quality and performance of the bearings used in your applications. Reputable suppliers offer bearings that are manufactured to strict quality standards and provide comprehensive support services, including technical assistance, warranty coverage, and access to maintenance tools and resources. Building a strong relationship with a reliable supplier can help you avoid the pitfalls of counterfeit or substandard bearings and ensure the long-term success of your operations.
Case Studies: Avoiding Roller Bearing Failures
Success Stories in Bearing Maintenance
Success stories in bearing maintenance highlight the importance of proper installation, regular maintenance, and the use of high-quality bearings. For example, a manufacturing plant that implemented a predictive maintenance program saw a significant reduction in bearing failures, leading to increased uptime and lower maintenance costs. By following best practices and investing in quality bearings, the plant was able to achieve long-term reliability and performance.
Lessons Learned from Bearing Failures
Learning from past bearing failures is essential for preventing similar issues in the future. In one case, a heavy machinery operator experienced repeated bearing failures due to improper lubrication practices. After analyzing the root cause, the company implemented a new lubrication schedule and upgraded to higher-quality lubricants, resulting in improved bearing performance and reduced downtime. This example underscores the importance of understanding the causes of bearing failures and taking corrective action.
Best Practices Derived from Real-world Applications
Real-world applications provide valuable insights into the best practices for bearing maintenance and selection. For instance, a transportation company that operated in a dusty environment successfully extended the life of its bearings by switching to sealed bearings and implementing a more rigorous cleaning schedule. By adapting maintenance practices to the specific challenges of the operating environment, the company was able to achieve better performance and longer bearing life.
The Economic Impact of Bearing Failures
Cost of Downtime Due to Bearing Failure
The cost of downtime due to bearing failure can be substantial, especially in industries where equipment is running continuously. When a bearing fails, it can cause unplanned shutdowns, resulting in lost production, missed deadlines, and additional labor costs for repairs. In some cases, the cost of downtime can far exceed the cost of the bearing itself, making it crucial to invest in proper maintenance and high-quality bearings to minimize the risk of failure.
Long-term Savings with Proper Bearing Care
Proper bearing care offers significant long-term savings by extending the life of the bearings and reducing the frequency of replacements. Regular maintenance, including lubrication and inspections, helps prevent premature bearing failures, resulting in lower overall maintenance costs and increased equipment reliability. By investing in preventive maintenance and using quality bearings, companies can achieve substantial cost savings over the lifespan of their equipment.
Calculating the Total Cost of Ownership (TCO)
Calculating the Total Cost of Ownership (TCO) for bearings involves considering not just the initial purchase price, but also the costs associated with installation, maintenance, downtime, and replacements. By taking a comprehensive approach to TCO, companies can make more informed decisions about bearing selection and maintenance practices. Investing in high-quality bearings and proper maintenance can result in a lower TCO over time, making it a cost-effective strategy for ensuring long-term operational success.
Training and Education for Maintenance Teams
The Importance of Continuous Learning
Continuous learning is essential for maintenance teams to stay updated on the latest bearing technologies, installation techniques, and maintenance practices. As bearing designs and materials evolve, ongoing training ensures that maintenance personnel have the knowledge and skills needed to properly care for and install bearings. Investing in continuous education helps prevent common mistakes, reduces the risk of bearing failures, and improves overall equipment reliability.
Training Programs on Bearing Maintenance
Training programs on bearing maintenance are valuable resources for equipping maintenance teams with the knowledge and skills needed to properly care for roller bearings. These programs cover topics such as bearing selection, lubrication practices, installation techniques, and troubleshooting methods. By participating in these programs, maintenance teams can gain a deeper understanding of how to extend the life of bearings and improve the performance of their equipment.
Creating a Culture of Proactive Maintenance
Creating a culture of proactive maintenance within an organization is key to achieving long-term success in bearing performance. This involves fostering an environment where regular inspections, predictive maintenance, and continuous learning are prioritized. By encouraging maintenance teams to take a proactive approach to bearing care, companies can reduce the risk of unexpected failures, improve equipment reliability, and ultimately achieve greater operational efficiency.
Innovations in Bearing Monitoring Systems
Use of IoT and Smart Sensors in Bearings
The use of IoT (Internet of Things) and smart sensors in bearings represents a significant advancement in monitoring and maintenance practices. These technologies enable real-time monitoring of bearing conditions, such as temperature, vibration, and lubrication levels, allowing for predictive maintenance and early detection of potential issues. By leveraging IoT and smart sensors, companies can optimize their maintenance schedules, reduce downtime, and extend the life of their bearings.
Real-time Monitoring for Predictive Maintenance
Real-time monitoring systems provide valuable data that can be used for predictive maintenance, helping to identify potential bearing issues before they lead to failure. These systems continuously collect and analyze data on bearing performance, allowing maintenance teams to address problems proactively. By implementing real-time monitoring, companies can reduce the risk of unexpected bearing failures and optimize their maintenance practices.
Analyzing Data for Improved Bearing Performance
Analyzing data collected from bearing monitoring systems can lead to significant improvements in bearing performance. By examining trends in temperature, vibration, and lubrication levels, maintenance teams can identify patterns that may indicate potential issues. This data-driven approach allows for more informed decision-making, enabling companies to fine-tune their maintenance practices, improve bearing performance, and extend the life of their equipment.
The Future of Roller Bearings
Emerging Trends in Bearing Technology
Emerging trends in bearing technology are shaping the future of roller bearings, with advancements in materials, coatings, and manufacturing processes leading the way. For example, the development of self-lubricating bearings and the use of advanced ceramics are reducing maintenance requirements and increasing bearing life. As technology continues to evolve, the future of roller bearings looks promising, with innovations that promise to improve performance, reduce downtime, and lower costs.
Environmental Considerations in Bearing Design
Environmental considerations are playing an increasingly important role in bearing design, with manufacturers focusing on sustainability and energy efficiency. This includes the development of bearings that require less lubrication, operate at lower temperatures, and are made from environmentally friendly materials. As industries strive to reduce their carbon footprint, the demand for environmentally conscious bearing solutions is expected to grow, driving further innovation in this area.
The Shift Towards Sustainability in Bearing Manufacturing
The shift towards sustainability in bearing manufacturing is being driven by a growing awareness of the environmental impact of industrial processes. Manufacturers are adopting more sustainable practices, such as reducing waste, using recycled materials, and improving energy efficiency in production. This trend is not only benefiting the environment but also leading to the development of bearings that are more durable and require less maintenance, contributing to longer equipment life and lower operating costs.
Customizing Bearings for Unique Applications
The Process of Custom Bearing Design
The process of custom bearing design involves working closely with the customer to understand their specific requirements and developing a solution that meets those needs. This may involve selecting the appropriate materials, designing special features, or creating a completely new bearing design. Custom bearings are often used in specialized applications where standard bearings are not suitable, and they can provide significant performance advantages in challenging environments.
Benefits of OEM and ODM Services for Bearings
OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) services offer several benefits for companies looking to source custom bearings. These services allow for the design and production of bearings that are tailored to the specific needs of the application, ensuring optimal performance and longevity. Working with an OEM or ODM can also provide access to expert engineering support, quality assurance, and a streamlined supply chain, making it easier to bring custom bearing solutions to market.
Case Studies of Custom Bearing Solutions
Case studies of custom bearing solutions demonstrate the value of tailored designs in addressing unique challenges. For example, a company operating in a high-temperature environment required a bearing that could withstand extreme heat without compromising performance. By working with an OEM, they were able to develop a custom bearing with special materials and coatings that met their needs and significantly extended the life of their equipment. These examples highlight the importance of customization in achieving the best possible performance and reliability.
Myths and Misconceptions About Bearing Care
Debunking Common Bearing Myths
Debunking common bearing myths is essential for ensuring proper maintenance practices. One prevalent myth is that all bearings are the same and can be used interchangeably, when in fact, selecting the right bearing for the application is critical to its performance and longevity. Another myth is that bearings require little to no maintenance, which can lead to neglect and premature failure. By understanding and addressing these misconceptions, maintenance teams can take a more informed approach to bearing care.
Understanding the Real Causes of Bearing Failures
Understanding the real causes of bearing failures is key to preventing them. Common causes include improper installation, inadequate lubrication, contamination, and misalignment. By identifying these issues and taking corrective action, companies can reduce the risk of bearing failures and extend the life of their equipment. It’s also important to recognize that bearing failures are often the result of multiple factors, making it crucial to address all aspects of bearing care.
Best Practices vs. Common Misunderstandings
Best practices in bearing care often contradict common misunderstandings, leading to better outcomes and longer bearing life. For example, while some may believe that more lubrication is always better, over-lubrication can actually cause bearing damage. Similarly, while it may be assumed that bearings only need to be inspected when there is a problem, regular inspections are essential for catching issues early and preventing failures. By following best practices and avoiding common misconceptions, companies can achieve better performance and reliability from their bearings.
Conclusion: Ensuring the Longevity of Your Roller Bearings
Recap of Key Points in Bearing Maintenance
In conclusion, ensuring the longevity of your roller bearings requires a comprehensive approach to maintenance, including proper selection, installation, lubrication, and monitoring. By understanding the key factors that contribute to bearing performance and taking proactive steps to address them, companies can significantly extend the life of their bearings and reduce the risk of failures.
Final Tips for Avoiding Bearing Failures
To avoid bearing failures, it’s important to choose the right bearing for the application, follow proper installation procedures, maintain the correct lubrication levels, and regularly inspect the bearings for signs of wear or damage. Additionally, implementing predictive maintenance techniques and staying informed about the latest bearing technologies can help prevent unexpected failures and improve overall equipment reliability.
The Path Forward: Investing in Bearing Longevity
Investing in bearing longevity is a smart strategy for achieving long-term operational success. By prioritizing quality in bearing selection, maintenance, and monitoring, companies can reduce downtime, lower maintenance costs, and improve the performance of their equipment. As technology continues to evolve, staying up-to-date with the latest advancements in bearing design and care will be essential for maintaining a competitive edge in the industry.
