Design Optimization of Rubber Bearings: Engineering for Resilience and Shock Absorption
Introduction
Importance of Rubber Bearings in Engineering
Rubber bearings play a crucial role in engineering applications due to their unique properties that enable resilience and shock absorption. These bearings are essential components in various structures and machinery where dynamic loads, vibrations, and seismic events are prevalent. By providing flexibility and damping characteristics, rubber bearings help mitigate the impact of external forces, thereby enhancing the structural integrity of bridges, buildings, and industrial equipment. Their ability to adapt to changing conditions, distribute loads effectively, and isolate vibrations makes them indispensable in ensuring safety, stability, and longevity in diverse engineering environments.
Significance of Resilience and Shock Absorption
The significance of resilience and shock absorption in rubber bearings lies in their capacity to protect structures and machinery from potentially damaging forces. Resilience refers to the ability of rubber bearings to recover their original shape after deformation, thus maintaining structural integrity over time. This resilience ensures durability and longevity in dynamic environments where loads vary or seismic events occur. Additionally, rubber bearings excel in shock absorption, dissipating energy to reduce the impact of sudden forces such as vibrations or impacts. This capability minimizes structural damage and enhances safety, making rubber bearings essential components in engineering designs aiming for stability and longevity.
Fundamentals of Rubber Bearings

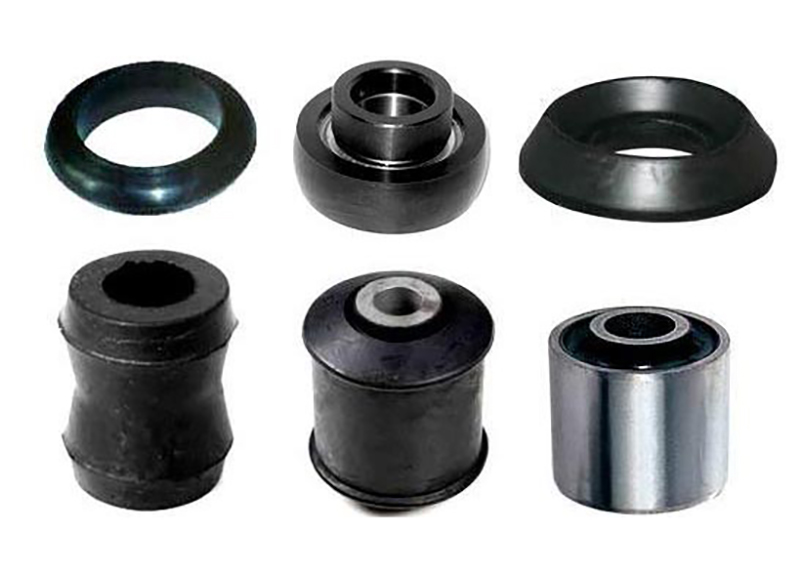

Rubber bearings come in several forms, including elastomeric bearings, neoprene bearings, and lead-rubber bearings, each tailored to specific engineering requirements. Elastomeric bearings, composed of high-quality rubber compounds, offer flexibility and resilience, making them ideal for absorbing dynamic loads in structures like bridges and buildings. Neoprene bearings, known for their resistance to oil, weather, and ozone, find applications in environments where exposure to harsh conditions is expected. Lead-rubber bearings, incorporating lead cores within rubber layers, excel in damping vibrations and isolating structures from seismic events.
The material properties of rubber, including elasticity, compliance, and damping characteristics, contribute significantly to the performance of rubber bearings. Rubber exhibits exceptional elasticity, allowing it to deform under load and return to its original shape, thus providing resilience against repetitive stresses. Moreover, its inherent damping properties enable rubber bearings to dissipate energy and reduce vibrations, enhancing stability and durability in dynamic environments.
Engineering Considerations for Resilience
Load Capacity Analysis
Engineering considerations for resilience in rubber bearings entail meticulous analysis of their load capacity. This involves assessing how the bearings respond to both static and dynamic loads, understanding their stiffness characteristics, and determining their ability to withstand varying levels of force. Static load analysis involves evaluating how the bearings support the weight of structures or equipment over time, ensuring they can maintain stability and structural integrity under constant pressure. Dynamic load analysis, on the other hand, focuses on how the bearings handle sudden or fluctuating loads, such as those induced by vibrations or seismic events. Engineers must account for factors like frequency, magnitude, and duration of dynamic loads to ensure the bearings can effectively absorb and dissipate energy without compromising their resilience. Additionally, understanding the stiffness of rubber bearings is crucial for predicting their deformation behavior under different load conditions, enabling engineers to optimize designs for maximum resilience and longevity.
Designing for Vertical Load
Engineering considerations for resilience in rubber bearings extend to designing for vertical load, a critical aspect in ensuring their performance and longevity. When designing for vertical load, engineers must evaluate the compression strength of the rubber material, which determines its ability to withstand and support vertical forces exerted by structures or equipment. This involves selecting rubber compounds with appropriate hardness and resilience to resist deformation and maintain structural integrity under the applied load. Moreover, engineers need to analyze the load-deflection characteristics of the bearings, understanding how their stiffness changes as they undergo compression. This enables the prediction of the bearing’s behavior under varying loads and ensures that the design can accommodate different load conditions without compromising performance.
Shear Load Distribution
Shear load distribution refers to the way rubber bearings distribute and transmit horizontal forces across their surfaces when subjected to lateral movements or vibrations. Engineers must carefully evaluate the shear modulus of the rubber material, which determines its resistance to shear deformation and its ability to maintain stability under lateral loads. Additionally, the interface friction between the rubber bearing and adjacent surfaces plays a crucial role in shear load distribution, influencing the efficiency of load transfer and the overall stability of the structure or equipment. By optimizing the design parameters related to shear load distribution, such as material selection, surface texture, and interface conditions, engineers can enhance the resilience of rubber bearings and ensure they provide reliable support and stability in dynamic environments.
Enhancing Vibration Isolation
Enhancing vibration isolation in rubber bearings involves a multifaceted approach, starting with a comprehensive understanding of vibration frequency. Vibration frequency denotes the rate at which a structure or machinery oscillates in response to external forces, encompassing a broad spectrum of frequencies. Engineers scrutinize the resonance frequency, the natural frequency at which a system vibrates most efficiently, to identify potential resonance issues that could amplify vibrations and lead to structural damage. By discerning the vibration frequency spectrum of the system, engineers can target specific frequency ranges for isolation, particularly focusing on high-frequency vibrations that pose significant challenges.
Isolating high-frequency vibrations is crucial as they can cause excessive wear, fatigue, and noise in machinery and structures. These vibrations often result from rotating machinery, impact loads, or environmental factors and can lead to reduced equipment lifespan and increased maintenance costs if left unaddressed. Therefore, engineers must develop strategies to effectively isolate and dampen high-frequency vibrations to protect both equipment and personnel from potential harm.
To address high-frequency vibrations, engineers employ various isolation techniques tailored to the specific frequency range of concern. Tuned mass dampers (TMDs) are one effective method used to mitigate vibrations at specific resonance frequencies by introducing a secondary mass-spring-damper system tuned to counteract the vibrations. Additionally, frequency-dependent damping mechanisms are implemented to selectively attenuate vibrations within targeted frequency bands, further enhancing isolation efficiency. These techniques are complemented by the use of base isolation systems, which decouple the structure or machinery from its foundation to minimize the transmission of vibrations.
Damping Characteristics in Rubber Bearings
Mechanisms of Damping in Rubber
Understanding the mechanisms of damping in rubber is essential for engineers designing resilient and effective bearing systems. Rubber exhibits two primary mechanisms of damping: hysteresis damping and viscoelastic damping. Hysteresis damping occurs when rubber undergoes cyclic deformation, such as compression or shearing, resulting in energy loss due to internal friction within the material. This mechanism is particularly effective in dissipating energy during repetitive loading cycles, contributing to the resilience of rubber bearings. Viscoelastic damping, on the other hand, involves the transformation of mechanical energy into heat as rubber deforms and relaxes over time. This damping mechanism is influenced by factors such as temperature, strain rate, and frequency of loading, making it versatile in dampening vibrations across different operating conditions.
Importance of Damping in Shock Absorption
The importance of damping in rubber bearings lies in its critical role in shock absorption, safeguarding structures and machinery from the detrimental effects of sudden impacts and vibrations. Damping helps dissipate energy generated by dynamic loads, thereby reducing the magnitude and duration of vibrations transmitted through the system. This is particularly crucial in environments where machinery operates continuously or where structures are exposed to frequent external disturbances, such as seismic events or heavy machinery operations. By effectively dampening vibrations, rubber bearings can prevent resonance effects, structural damage, and fatigue failure, ensuring the safety, stability, and longevity of engineering systems. Furthermore, damping characteristics contribute to improving comfort levels for occupants in buildings and reducing noise levels generated by machinery. Engineers prioritize optimizing damping properties in rubber bearings to enhance their shock absorption capabilities, thereby bolstering overall resilience and performance in dynamic operating conditions.
Optimizing Damping Ratio
Optimizing the damping ratio is a crucial aspect of designing rubber bearings to achieve effective shock absorption and vibration mitigation. The damping ratio, often represented by the ratio of actual damping to critical damping, determines the extent to which a system can dissipate energy and resist oscillation. Engineers aim to strike a balance between stiffness and damping in rubber bearings to achieve optimal performance in dynamic environments. A higher damping ratio indicates greater energy dissipation and damping effectiveness, which can help prevent resonant vibrations and reduce the risk of structural damage. However, excessively high damping ratios may result in overly compliant behavior, compromising the bearing’s ability to provide sufficient support and stability. Therefore, engineers meticulously tune the damping ratio through material selection, geometric design, and damping coefficient adjustments to meet specific performance requirements while ensuring adequate load-bearing capacity and resilience.
Design Optimization Techniques
Finite Element Analysis (FEA)
FEA is a powerful computational tool used by engineers to simulate and analyze the behavior of complex structures under various loading conditions. In the context of rubber bearings, FEA enables engineers to model the deformations, stresses, and dynamic responses of the bearings with high accuracy. By inputting material properties, geometric parameters, and boundary conditions into FEA software, engineers can predict how different design configurations will perform in real-world scenarios. This allows for iterative design improvements and optimizations to achieve desired performance objectives, such as maximizing load capacity, minimizing vibration transmission, or enhancing damping characteristics. FEA facilitates a systematic approach to design optimization, providing valuable insights into the behavior of rubber bearings and guiding the development of robust and efficient designs for diverse engineering applications.
Multi-Objective Optimization
Unlike traditional optimization methods that focus on a single performance metric, multi-objective optimization considers multiple objectives simultaneously, such as maximizing load capacity, minimizing vibration transmission, and enhancing damping characteristics. Engineers utilize mathematical algorithms and computational tools to explore the trade-offs among these objectives, identifying optimal design solutions that represent a compromise between conflicting requirements. By considering a range of design variables, parameters, and constraints, multi-objective optimization enables engineers to explore the design space comprehensively and uncover Pareto-optimal solutions that represent the best compromises among competing objectives. This approach facilitates the development of rubber bearings that exhibit superior performance across a range of criteria, ensuring resilience, stability, and longevity in dynamic operating conditions while meeting specific project requirements and constraints.
Prototyping and Testing
Prototyping involves creating physical prototypes based on design specifications and computational models developed during the design phase. These prototypes allow engineers to evaluate the feasibility and functionality of different design concepts, as well as identify potential manufacturing challenges or limitations. Through rigorous testing, engineers assess the mechanical properties, dynamic response, and durability of the prototypes through various experimental techniques, such as mechanical testing, vibration testing, and accelerated aging tests. By subjecting prototypes to simulated operational conditions and environmental factors, engineers can validate design assumptions, refine design parameters, and identify areas for improvement. This iterative process of prototyping and testing enables engineers to iteratively refine and optimize the design of rubber bearings, ensuring they meet performance requirements and withstand the demands of their intended application.
Conclusion
In conclusion, rubber bearings are indispensable components in engineering, offering resilience and shock absorption vital for structural integrity. Their diverse forms cater to specific needs, with properties like elasticity and damping crucial for performance. Engineering resilience involves meticulous load analysis and design considerations for vertical and shear loads. Optimizing damping, especially through techniques like FEA and multi-objective optimization, enhances vibration isolation. Prototyping and testing ensure designs meet rigorous standards. Rubber bearings epitomize the synergy of material science and engineering principles, crucial for safeguarding structures and machinery in dynamic environments, promising safety, stability, and longevity in the face of diverse challenges.
References
- 1.”Rubber Bearing-Industrial Rubber Good” from industrialrubbergoods.com;
- 2. “Rubber Bearings | Suspension Bushes” from GMT Rubber;
- 3. “Rubber seating rings” from SKF Bearings.
