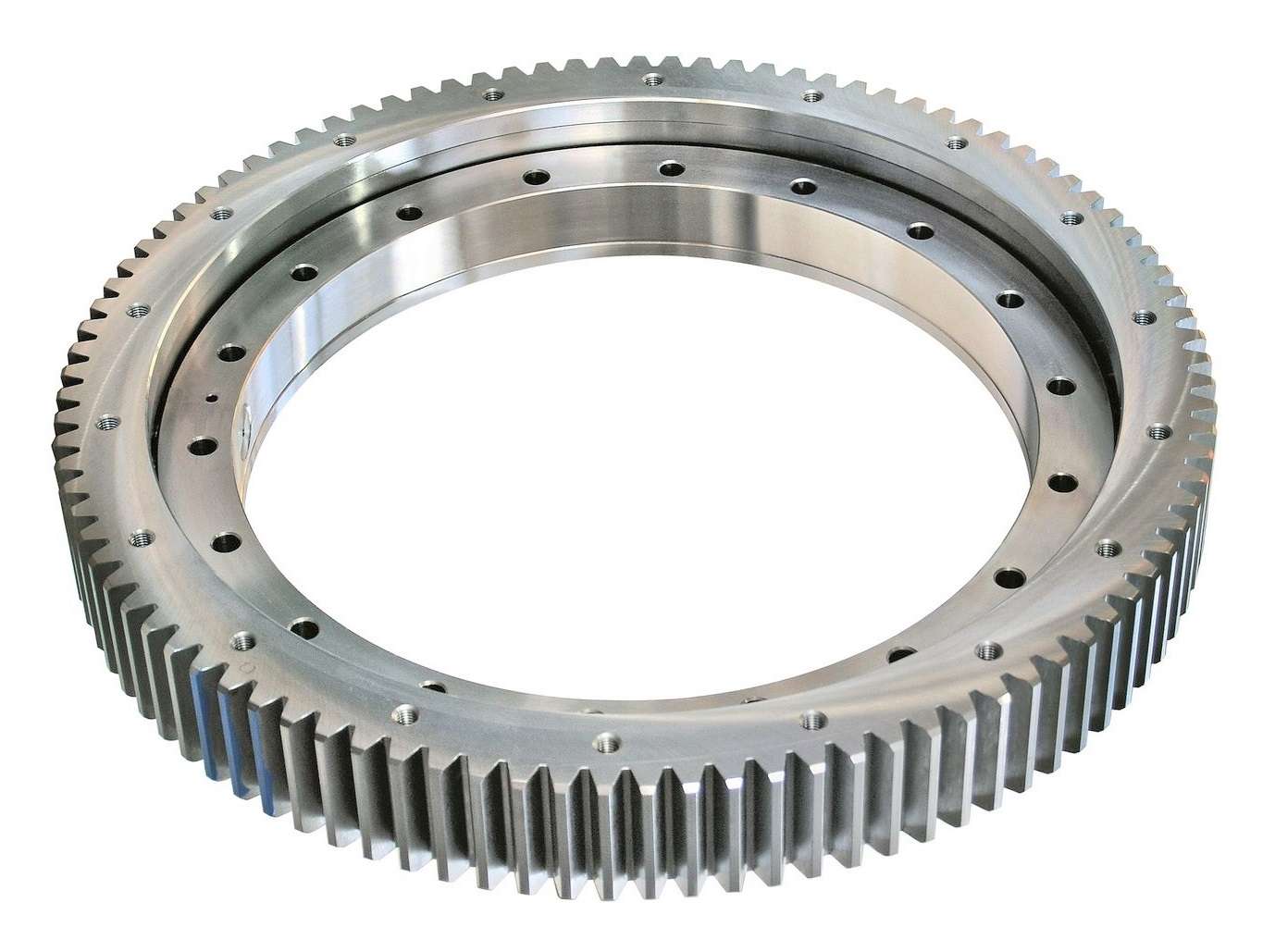

Slewing Bearing 101: Get Started
![Slewing Bearing,Turntable Bearing](https://fhdbearings.com/wp-content/uploads/2023/11/CBC-Bearings-Slewing-Bearing.jpg)
Table of Contents
Introduction
When it comes to heavy machinery, whether it’s construction equipment, wind turbines, or solar tracking systems, slewing bearings are the unsung heroes that keep things moving smoothly. In this comprehensive guide, we’ll dive into the world of slewing bearings, exploring their components, applications, maintenance, and much more. Let’s get started!
Understanding Slewing Bearing
What Are Slewing Bearing?
- Definition and Overview: Slewing bearings, also known as slewing rings or turntable bearings, are essential components in machinery, enabling the smooth and controlled rotation of heavy loads. These bearings play a pivotal role in various industries, ranging from construction and manufacturing to renewable energy and robotics.
- Historical Evolution:The concept of slewing bearings dates back to ancient times when early civilizations utilized primitive forms of these bearings to move heavy structures. Over centuries, technological advancements and innovations have transformed slewing bearings into the precision-engineered components we rely on today. Understanding their historical evolution is key to appreciating their importance in modern industries.
Types of Slewing Bearings
Slewing bearings come in several types, each designed to suit specific applications and load requirements. Here are some of the most common types:
Single-Row Ball Slewing Bearings: These compact bearings consist of a single row of balls or rollers and are ideal for lighter-duty applications.
Double-Row Ball Slewing Bearings: Offering higher load capacity and stability, double-row ball slewing bearings have two rows of balls for improved performance.
Cross-Roller Slewing Bearings: Featuring crossed rollers between the inner and outer rings, these bearings provide high rigidity and load-carrying capacity.
Three-Row Roller Slewing Bearings: Known for their exceptional load-carrying capacity, these bearings use three rows of rollers to distribute heavy loads evenly.
Wire Race Slewing Bearings: Wire race bearings are lightweight and often used in applications where space is limited.
The choice of slewing bearing type depends on the specific demands of the application, such as load capacity, rotational speed, and environmental factors.
Applications of Slewing Bearings
Slewing bearings find a wide range of applications across various industries due to their ability to support controlled rotation and manage heavy loads. Some notable applications include:
Construction Machinery: Slewing bearings are integral components in cranes, excavators, and concrete pumps, enabling smooth and stable movement of heavy construction equipment.
Wind Turbines: These bearings support the rotation of wind turbine blades, allowing them to face the wind for maximum energy generation.
Mining Equipment: Slewing bearings are used in mining machinery like bucket-wheel excavators, stacker-reclaimers, and conveyor systems, ensuring efficient material handling.
Solar Tracking Systems: In solar power plants, slewing bearings help solar panels follow the sun’s movement throughout the day to maximize energy capture.
Maritime Industry: They are crucial in ship and offshore platform design for swiveling cranes, winches, and other heavy-duty equipment.
Slewing Bearing Components
Ring Races and Rolling Elements
Slewing bearings consist of three main components: the inner ring, the outer ring (also known as the outer race), and the rolling elements. Here’s a brief introduction to each:
Inner Ring (Inner Race): The inner ring is the stationary part of the slewing bearing, and it typically connects to the machinery’s structure. It acts as a fixed base for the bearing system and provides a pivot point for controlled rotation.
Outer Ring (Outer Race): The outer ring is the part of the slewing bearing that rotates. It is designed to support and distribute the load placed on the bearing. The outer ring is often attached to the rotating part of the machinery, allowing it to turn smoothly.
Rolling Elements: The rolling elements, such as balls or rollers, are positioned between the inner and outer rings. They enable the controlled and smooth rotation of the bearing. The choice of rolling elements (ball or roller) depends on factors like load capacity, rigidity, and speed requirements.
These components work together to provide a robust and reliable solution for supporting both axial and radial loads while allowing controlled rotation, making slewing bearings essential in various applications across industries.
![Slewing Bearing,Turntable Bearing](https://fhdbearings.com/wp-content/uploads/2023/11/Slewing-Bearing-Details-1024x401.jpg)
Gear Mechanisms
Internal gears, external gears, and gearless slewing bearings are different configurations that determine how slewing bearings achieve controlled rotation and movement. Here’s a brief introduction to each:
Internal Gears: Slewing bearings with internal gears have a gear mechanism integrated into the bearing’s structure, usually on the inner ring. These gears engage with a pinion or other driving mechanism to control and drive the bearing’s movement. Internal gears are commonly used in applications where precise positioning and power transmission are required, such as in cranes and construction equipment.
External Gears: In contrast, slewing bearings with external gears have the gear teeth located on the outer ring’s periphery. They engage with a stationary pinion or other external mechanism to control the bearing’s rotation. External gears are often chosen when a compact design or space constraints make it challenging to integrate internal gears.
Gearless Slewing Bearings: Gearless slewing bearings do not have an integrated gear mechanism. Instead, they rely on external gears or other drive components attached to the machinery for controlled movement. Gearless slewing bearings are preferred in applications where the gear mechanism is separate from the bearing, allowing for customized gearing solutions or simplified maintenance.
Slewing Bearing Standards and Regulations
Industry Standards and Certifications
Industry standards and certifications are crucial for slewing bearings as they ensure product quality, reliability, and safety.
Industry Standards and Certifications:
ISO Standards: The International Organization for Standardization (ISO) has established standards specific to slewing bearings, such as ISO 6124 and ISO 7176. These standards cover dimensions, load ratings, and testing procedures, ensuring uniformity and quality.
API Standards: The American Petroleum Institute (API) provides standards for slewing bearings used in the oil and gas industry, particularly for applications like drilling equipment and offshore platforms.
Quality Certifications: Manufacturers often obtain certifications like ISO 9001 (Quality Management) and ISO 14001 (Environmental Management) to demonstrate their commitment to quality and environmental responsibility.
Importance of Complying with Standards and Certifications:
Product Quality: Standards and certifications set benchmarks for product quality, ensuring that slewing bearings meet specific criteria for performance, durability, and safety.
Interoperability: Compliant bearings are more likely to work seamlessly with other components and equipment, reducing the risk of compatibility issues.
Safety: Meeting industry standards is critical for applications in which safety is paramount, such as construction, aerospace, and defense. Compliance helps prevent accidents and equipment failures.
Legal and Regulatory Compliance: In some industries, adhering to specific standards is a legal requirement. Non-compliance can result in legal consequences and financial penalties.
Customer Trust: Companies that adhere to industry standards and hold relevant certifications build trust with their customers, assuring them of product reliability and quality.
Environmental Responsibility: Certifications like ISO 14001 demonstrate a commitment to environmental responsibility, which is increasingly important in today’s business landscape.
Compliance and Safety
To ensure safety and compliance when using slewing bearings, consider the following four key points:
Adherence to Industry Standards: Always use slewing bearings that meet industry-specific standards and certifications. This ensures that the bearings are designed and manufactured to meet safety and performance criteria.
Regular Inspections and Maintenance: Implement a routine inspection and maintenance schedule to detect wear, damage, or lubrication issues. Address any issues promptly to maintain the bearings’ integrity and safety.
Load Management: Adhere to the recommended load limits for the slewing bearings to prevent overloading, which can lead to premature wear and failure. Implement load monitoring and management practices.
Operator Training and Safety Protocols: Provide comprehensive training to operators on the proper use of machinery with slewing bearings. Ensure they are well-versed in safety procedures and emergency protocols to minimize risks and ensure compliance with safety regulations.
Conclusion
In conclusion, slewing bearings play a vital role in various industries and applications, providing a smooth and reliable method of rotation and movement. Their importance cannot be overstated, as they support heavy loads, enable precise positioning, and minimize downtime.
Understanding their components, applications, and standards is crucial for selecting the right slewing bearing for a specific application. Ensuring compliance with safety protocols and regular maintenance is essential to maintaining the integrity and reliability of the bearings.
By adhering to industry standards, implementing regular inspections and maintenance, managing load limits, and providing operator training, companies can ensure the safe and reliable operation of their equipment.
