Uncommon Knowledge about Thin Section Bearings
Table of Contents
What are thin section bearings?

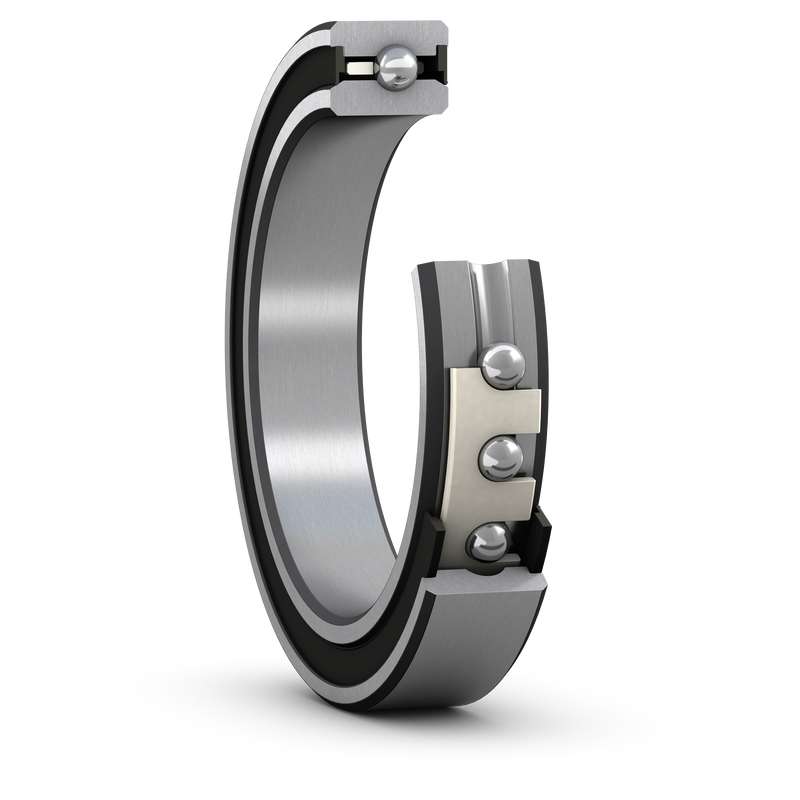

Thin section bearings, also known as slim bearings or slim-section bearings, are a type of ball bearing designed with a small cross-sectional thickness compared to their bore diameter. These bearings are used in applications where space is limited and weight reduction is critical, such as robotics, aerospace, medical devices, and precision machinery.
The key feature of thin-section bearings is their thin cross-section, which allows them to be used in applications where conventional bearings would be too bulky. Despite their reduced size, thin-section bearings maintain the performance and load-carrying capacity of standard bearings.
The Microscopic World of Thin Section Bearings
Cross-Sectional Structure: Thin section bearings have a minimalistic cross-sectional structure. The outer and inner rings have a larger diameter compared to the bearing’s overall thickness. The raceways, where the balls or rollers make contact, are designed with precision to reduce friction and enable smooth rotation.
Balls or Rollers: These bearings utilize smaller balls or rollers in comparison to standard bearings, contributing to their slim design. The balls or rollers are evenly spaced to distribute the load and ensure uniform rotation.
Material Composition: Thin section bearings are often made from high-quality materials, such as chrome or stainless steel, to provide durability and corrosion resistance. Advanced manufacturing processes, including precision machining, are employed to achieve the required tolerances.
Seals and Lubrication: Microscopic details include seals that protect the internal components from contaminants and retain lubrication, ensuring proper functioning over extended periods. Lubrication channels or reservoirs are designed to maintain a thin layer of lubricant between moving parts, minimizing friction and wear.
In summary, the microscopic intricacies of thin section bearings, from their cross-sectional design to material composition, play a pivotal role in industries where space, weight, and precision are critical factors. Their small size belies their significance in enabling the smooth and reliable functioning of a wide range of applications.
Stealth Technology Connection
1. Reduced Size and Weight: Thin section bearings are inherently smaller and lighter compared to traditional bearings. In aerospace applications, especially those focused on stealth, minimizing the size and weight of components is crucial. The compact design of thin section bearings allows for streamlined integration into the aircraft structure without compromising on performance.
2. Space Optimization: Stealth aircraft are designed with smooth, aerodynamic surfaces to minimize radar reflections. Thin section bearings, with their slim profile, enable the optimization of internal spaces within the aircraft. This contributes to the overall design goal of reducing protruding structures that could reflect radar signals, thus enhancing the stealth characteristics of the aircraft.
3. Reduced Radar Reflections: The reduced cross-sectional thickness of thin section bearings contributes to a decreased radar signature. Traditional bearings might have larger cross-sections, potentially acting as radar reflectors. Thin section bearings, with their minimalistic design, reduce the surfaces available for radar waves to bounce off, making it more challenging for radar systems to detect and track the aircraft.
4. Vibration and Noise Reduction: Stealth aircraft aim to minimize vibration and noise, as these factors can also contribute to increased radar visibility. Thin section bearings, with their precision engineering, contribute to smoother and quieter mechanical operation. This reduces the acoustic and vibration signatures that could be detected by radar systems.
5. Enhanced Maneuverability: The reduced weight and size of thin section bearings contribute to the overall weight savings of the aircraft. This, in turn, can enhance the maneuverability of the aircraft, allowing it to execute more agile and evasive maneuvers to avoid detection.
In summary, thin section bearings play a crucial role in stealth technology by contributing to the reduction of radar cross-section in aerospace applications. Their compact design, reduced size and weight, and optimized integration into aircraft structures all contribute to the stealthiness of modern aircraft. As technology continues to advance, the use of specialized components like thin section bearings becomes increasingly vital in achieving the stealth objectives of next-generation aerospace platforms.
Biomechanical Inspirations
The design of thin section bearings can indeed draw inspiration from natural organisms and their biomechanical adaptations. Nature often serves as a rich source of inspiration for engineers, and the parallels between thin section bearings and biomechanics can be explored in various ways:
1. Joint Mechanisms:
- Biomechanics Inspiration: Natural organisms often exhibit intricate joint mechanisms that allow for smooth and precise movement. Examples include the joints in the limbs of animals or the articulations in insect legs.
- Engineering Adaptation: Thin section bearings, with their minimalistic and precise design, can draw inspiration from these joint mechanisms. Mimicking the efficiency and flexibility of natural joints can lead to the development of bearings that enhance mechanical movement in machinery and robotics.
2. Lightweight Structures:
- Biomechanics Inspiration: Many organisms, especially those with efficient flight capabilities like birds and insects, have evolved lightweight skeletal structures to optimize energy consumption and enhance mobility.
- Engineering Adaptation: Thin section bearings, known for their reduced weight and compact design, parallel the lightweight structures found in nature. This can be crucial in applications where weight reduction is essential, such as aerospace and robotics.
3. Adaptive Materials:
- Biomechanics Inspiration: Some organisms possess adaptive materials that respond to environmental conditions, allowing for flexibility and resilience. Examples include the musculature of certain animals that can change stiffness based on activity.
- Engineering Adaptation: Thin section bearings could be designed with adaptive materials that respond to varying loads or environmental conditions. This adaptability could improve the overall performance and longevity of the bearings in diverse applications.
4. Friction Reduction:
- Biomechanics Inspiration: Natural organisms often have specialized structures to minimize friction, such as the lubrication systems in joints and the hydrophobic surfaces of certain animals.
- Engineering Adaptation: Thin section bearings can incorporate advanced lubrication systems and surface treatments inspired by nature to minimize friction, reduce wear, and enhance the efficiency of mechanical systems.
5. Flexible and Durable Structures:
- Biomechanics Inspiration: Organisms in nature often feature structures that are both flexible and durable, allowing for a combination of strength and adaptability.
- Engineering Adaptation: Thin section bearings can benefit from biomimicry by incorporating materials and designs that offer a balance between flexibility and durability, ensuring optimal performance in various conditions.
In summary, by drawing inspiration from the biomechanical adaptations observed in nature, the design of thin section bearings can be enriched. These parallels can lead to innovations that not only optimize mechanical performance but also contribute to sustainability, efficiency, and adaptability in engineering applications. Nature continues to be a powerful muse for engineers seeking to create advanced and optimized mechanical systems.
Origami and Folding Bearings
Origami-inspired bearings take inspiration from the art of folding paper to create compact and versatile mechanical components. In recent developments, these principles have been applied to thin section bearings, making them more efficient and adaptable.
Key Ideas:
Foldable Structures:
- Idea: Thin section bearings can now fold and unfold like origami, making them useful in tight spaces or deployable structures.
Flexibility and Adaptability:
- Idea: Origami-inspired bearings are flexible, adapting to different loads and conditions in various mechanical applications.
Reduced Weight and Material Efficiency:
- Idea: These bearings use materials efficiently, minimizing waste and reducing weight, which is beneficial in aerospace for fuel efficiency.
Ease of Assembly:
- Idea: Inspired by origami simplicity, these bearings are easy to assemble and disassemble, reducing manufacturing complexity and maintenance efforts.
Scalability:
- Idea: Origami-inspired bearings can be made in different sizes, suitable for everything from small robotic systems to large industrial machinery.
Applications:
Space Exploration:
- Example: Used in space missions, these bearings can fold during launch and unfold in space for various purposes.
Robotics:
- Example: Ideal for robots needing compactness and adaptability, contributing to their agility.
Medical Devices:
- Example: Applied in certain medical devices due to their versatility and lightweight design.
The Sound of Bearings
1. Material Selection:
- Acoustic Impact: The choice of materials in thin section bearings significantly influences their acoustic properties. Materials with damping characteristics, such as certain polymers or composites, can help absorb vibrations and reduce noise.
- Optimization: Engineers can optimize the design by selecting materials that minimize sound transmission and resonance, contributing to a quieter overall machinery operation.
2. Surface Finish and Precision:
- Acoustic Impact: The surface finish of bearing components and the precision of their manufacturing affect friction and, consequently, noise generation during operation.
- Optimization: By employing advanced machining techniques and ensuring smooth surface finishes, the design of thin section bearings can be optimized to reduce frictional noise, resulting in quieter machinery.
3. Lubrication and Maintenance:
- Acoustic Impact: Inadequate lubrication can lead to increased friction and wear, generating more noise during bearing operation.
- Optimization: Designing thin section bearings with efficient lubrication systems, possibly self-lubricating features, reduces friction and minimizes noise. Additionally, designing for easy maintenance ensures proper lubrication over the bearing’s lifespan.
4. Load Distribution:
- Acoustic Impact: Uneven load distribution can lead to localized stress and increased noise as the bearing operates under varying pressures.
- Optimization: Optimal design includes features that distribute loads evenly, reducing stress concentrations and minimizing the likelihood of noisy operation. This can be achieved through careful engineering of the bearing’s internal geometry.
5. Vibration Damping Techniques:
- Acoustic Impact: Vibrations generated during bearing operation can contribute to overall machinery noise.
- Optimization: Integrating vibration damping techniques, such as using elastomeric materials or incorporating isolation mechanisms, can help absorb vibrations and reduce the transmission of noise, especially in applications sensitive to sound levels.
Thin Section Bearings in Everyday Products
Thin section bearings play a crucial but often unnoticed role in various everyday products, contributing to their functionality and efficiency. Here are some examples of products where thin section bearings are commonly used:
Smartphones and Tablets:
- Role: Thin section bearings are essential components in the hinge mechanisms of foldable smartphones and tablets. They enable smooth and precise folding, contributing to the overall durability and usability of these devices.
Printers and Scanners:
- Role: Many printers and scanners use thin section bearings in their paper feed mechanisms. These bearings ensure accurate paper handling and contribute to the reliable performance of these office devices.
Digital Cameras:
- Role: Thin section bearings are often employed in the swivel and tilt mechanisms of digital cameras, allowing users to adjust the angle of the display screen or the position of the camera lens with ease.
Automotive Applications:
- Role: Thin section bearings are utilized in various automotive applications, including steering columns, transmissions, and door hinges. Their compact design and efficiency contribute to the smooth functioning of these components.
Drones and Quadcopters:
- Role: In the rotating arms and propeller mechanisms of drones and quadcopters, thin section bearings are used to ensure precise and smooth rotation. Their lightweight nature is particularly beneficial in these aerial devices.
Conclusion
In conclusion, thin section bearings play a crucial role in the design and operation of many industrial and consumer products. They offer several advantages over traditional bearings, including reduced size and weight, improved strength and stiffness, and higher operating speeds. With their ability to provide high-precision rotation and smooth operation, thin section bearings are essential components in a wide range of applications, including foldable smartphones, printers, scanners, digital cameras, and automotive systems. By utilizing advanced materials and manufacturing techniques, thin section bearings can be tailored to specific applications, ensuring optimal performance and durability. In the future, we can expect to see continued growth in the use of thin section bearings, as they continue to evolve to meet the demands of the modern world.
