Specialized Split Bearing Designs for Specific Applications: Tailoring Solutions for Unique Challenges
Introduction
Brief overview of bearings and their importance in various industries
Bearings play a crucial role in various industries by enabling rotational or linear motion while minimizing friction and supporting heavy loads. They are fundamental components in machinery ranging from automobiles and aircraft to industrial equipment and household appliances. Bearings facilitate smooth operation, prolonging the lifespan of moving parts and reducing energy consumption. Their importance cannot be overstated, as they contribute to the efficiency, reliability, and performance of countless applications. As technology advances, the demand for specialized bearing designs tailored to specific challenges and environments continues to grow.
Introduction to specialized split bearing designs
Introduction to specialized split bearing designs marks a significant evolution in bearing technology, catering to the diverse requirements of modern industries. Unlike traditional solid bearings, split bearings feature a design that allows them to be easily disassembled into two or more components. This split design offers numerous advantages, including simplified installation, maintenance, and replacement procedures. By dividing the bearing into segments, specialized split bearing designs enhance accessibility to internal components, making servicing more efficient. Furthermore, split bearings accommodate shafts without the need for disassembly, reducing downtime and operational disruptions in critical applications.

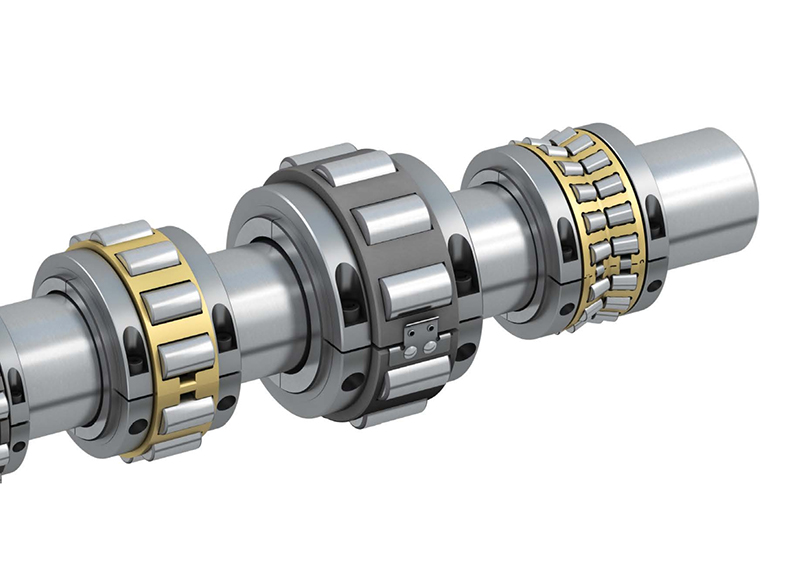

Understanding Split Bearings

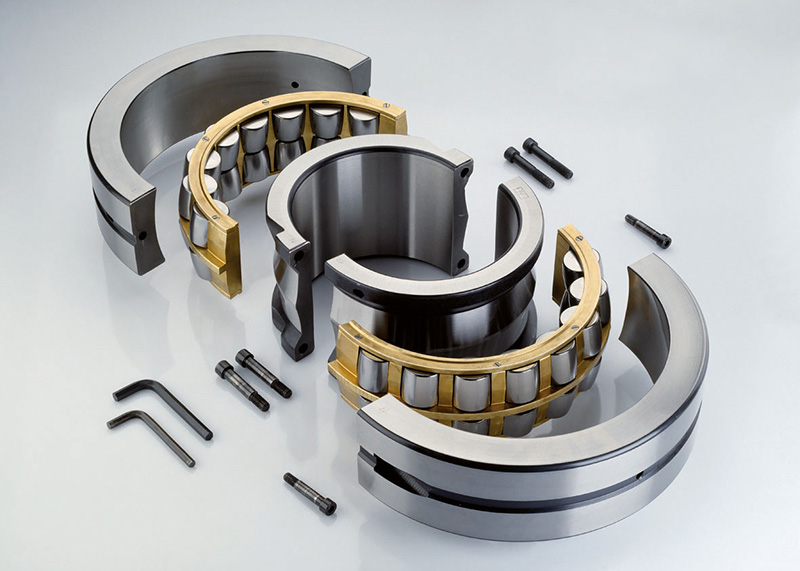

Split bearings, also known as split-type bearings or divided bearings, are a specialized type of bearing designed with a unique structure that allows them to be easily disassembled into multiple components. Unlike solid bearings, split bearings feature a distinct separation along their circumference, typically along the inner ring or outer ring.
The advantages of split bearings over solid bearings are multifaceted. Firstly, their segmented structure simplifies maintenance and replacement procedures, reducing downtime and associated costs. Secondly, split bearings offer greater flexibility in terms of shaft size compatibility, as they can be mounted onto shafts without the need for axial movement. Additionally, the ability to access internal components without complete disassembly enhances serviceability and prolongs bearing lifespan.
Split bearings can be tailored to address unique challenges such as high-speed operation, corrosive environments, extreme temperatures, heavy loads, and space constraints. By incorporating specialized materials, coatings, and structural features, manufacturers can optimize split bearing designs to ensure optimal performance and reliability in targeted applications. This customization capability underscores the importance of split bearings as versatile solutions for a wide range of industrial needs.
High-Speed Machinery Applications
Challenges posed by high-speed machinery
High-speed machinery presents unique challenges for bearings due to the increased forces and velocities involved. The demanding operating conditions in high-speed applications can lead to issues such as excessive heat generation, increased friction, and accelerated wear and tear. These challenges can compromise the performance and reliability of traditional bearings, leading to premature failure and costly downtime. Additionally, high-speed machinery often requires bearings with precise tolerances and dynamic characteristics to maintain stability and accuracy during operation. Meeting these requirements necessitates specialized split bearing designs that are engineered to withstand the rigors of high-speed applications. By incorporating features such as precision machining, advanced lubrication systems, and optimized cage designs, split bearings can effectively mitigate the challenges posed by high-speed machinery, ensuring smooth and reliable performance even under demanding conditions.
Features of specialized split bearings for high-speed applications
Specialized split bearings designed for high-speed applications boast several key features that make them uniquely suited to withstand the demands of rapid rotational motion. Firstly, these bearings are precision-engineered with tight tolerances and optimized geometries to ensure smooth operation at elevated speeds. This precision machining minimizes vibration and reduces the risk of instability, enhancing overall system performance and reliability. Additionally, specialized split bearings for high-speed applications often incorporate advanced cage designs that promote efficient lubricant distribution and minimize frictional losses. These cages are meticulously engineered to maintain proper alignment of rolling elements, thereby reducing wear and extending bearing lifespan. Furthermore, split bearings for high-speed applications may utilize advanced materials such as ceramic or high-grade steel alloys, which offer enhanced strength, durability, and temperature resistance. By incorporating these features, specialized split bearings for high-speed applications provide the performance and reliability necessary to meet the stringent requirements of modern industrial machinery operating at high velocities.
Corrosive Environments
Impact of corrosion on traditional bearings
Corrosion poses a significant threat to traditional bearings, compromising their performance and longevity in various industrial applications. When exposed to corrosive environments, such as those containing moisture, chemicals, or abrasive substances, traditional bearings are susceptible to degradation and material loss. This corrosion can lead to surface pitting, erosion, and ultimately, structural failure of the bearing components. In addition to diminishing the bearing’s load-bearing capacity and rotational efficiency, corrosion also contributes to increased friction and heat generation, further accelerating wear and deterioration. Furthermore, the presence of corrosion can introduce contaminants into the lubrication system, exacerbating the damage and impairing overall system functionality. As a result, the impact of corrosion underscores the importance of utilizing specialized bearings designed to withstand corrosive environments and maintain optimal performance over extended periods.
Specialized materials and coatings for split bearings in corrosive environments
Specialized materials and coatings play a crucial role in enhancing the corrosion resistance of split bearings, ensuring their durability and reliability in challenging environments. Manufacturers employ a variety of advanced materials, such as stainless steel, ceramic, and high-performance alloys, known for their inherent resistance to corrosion. These materials offer superior strength and stability while mitigating the effects of chemical exposure and oxidation. Additionally, split bearings designed for corrosive environments often feature protective coatings that provide an extra layer of defense against corrosion and wear. These coatings, such as PTFE (polytetrafluoroethylene) or ceramic coatings, create a barrier between the bearing surfaces and corrosive agents, preventing direct contact and minimizing the risk of material degradation. Furthermore, specialized surface treatments, such as passivation or anodizing, can be applied to enhance the corrosion resistance of bearing components, particularly in highly aggressive environments. By incorporating these specialized materials and coatings, split bearings are able to withstand the detrimental effects of corrosion, ensuring reliable performance and prolonged service life in corrosive industrial settings.
Extreme Temperature Conditions
Challenges of operating in extreme temperature conditions
Operating in extreme temperature conditions presents numerous challenges for bearings, affecting their performance and longevity.High temperatures can lead to thermal expansion of bearing components, altering clearances and causing misalignment, which in turn increases friction and accelerates wear. Conversely, low temperatures can result in decreased lubricant viscosity, leading to inadequate lubrication and increased friction between bearing surfaces. Extreme temperature fluctuations also pose challenges, as rapid heating and cooling cycles can induce thermal stress and fatigue, compromising the structural integrity of bearing components. Furthermore, extreme temperatures may cause degradation of bearing materials, reducing their mechanical properties and diminishing load-bearing capacity. Overall, the challenges of operating in extreme temperature conditions highlight the importance of utilizing specialized bearings designed to withstand a wide range of temperatures while maintaining optimal performance and reliability.
Features of split bearings designed for extreme temperatures
Split bearings designed for extreme temperatures feature several key characteristics to withstand heat and temperature fluctuations:
Heat-resistant materials like ceramic or high-grade steel alloys are used to construct the bearing components. These materials can better withstand the high temperatures and thermal stresses encountered in demanding applications.The bearing races and rolling elements are made from specialized alloys that retain their strength and dimensional stability at elevated temperatures.
Additionally, the lubrication systems in these bearings are optimized to perform reliably despite temperature variations. The lubricants are formulated with additives and base oils that maintain their viscosity and protective properties across a wide temperature range.Specialized lubrication delivery methods ensure adequate lubrication is provided to the bearing surfaces even as operating conditions fluctuate.
By combining heat-resistant materials and temperature-stable lubrication, split bearings designed for extreme temperatures can operate safely and reliably in applications exposed to very high or rapidly changing temperatures. This allows them to be used in a variety of industrial, aerospace, and energy generation equipment that experiences challenging thermal environments.
Heavy Load Applications
Problems associated with heavy loads on bearings
One of the primary issues associated with heavy loads is increased friction and wear on bearing surfaces. The excessive force applied to the bearing components can result in accelerated material fatigue and surface deformation, ultimately leading to premature failure. Moreover, heavy loads can cause deformation or misalignment of bearing components, adversely affecting their ability to maintain proper contact and alignment. Additionally, the high forces exerted by heavy loads can lead to thermal issues, such as increased heat generation and reduced lubrication effectiveness, further exacerbating wear and degradation. Overall, the challenges posed by heavy loads underscore the importance of utilizing robust bearing designs capable of withstanding the demanding conditions imposed by heavy-duty applications.
Specialized design considerations for split bearings in heavy load applications
Firstly, robust bearing housing designs are critical for enhancing load-bearing capacity. Split bearings intended for heavy load applications feature sturdy housing structures engineered to withstand the significant forces exerted by heavy loads. These housing designs distribute the load evenly across the bearing components, minimizing stress concentration and preventing premature failure. The robust housing also provides a stable foundation for the bearing components, ensuring proper alignment and minimizing the risk of misalignment-related issues.
Additionally, reinforced cage structures are incorporated into split bearing designs to withstand heavy loads effectively. These cages are engineered with durable materials and optimized geometries to provide enhanced support and stability to the rolling elements, ensuring smooth operation and minimizing the risk of cage deformation or failure under heavy load conditions. The reinforced cage structure helps maintain the proper spacing and alignment of the rolling elements, even when subjected to high forces, ensuring reliable performance and extending the bearing’s service life.
Space-Constrained Environments
Challenges of limited space for bearing installation
When space is constrained, the installation of traditional bearings becomes difficult and may even be impossible. Limited access and clearance around machinery components make it challenging to mount and maintain bearings effectively. Additionally, space constraints may restrict the size and configuration of bearings that can be accommodated, limiting design options and potentially compromising performance. In tight spaces, there may also be limitations on the types of tools and equipment that can be used for installation and maintenance tasks. These challenges can lead to inefficient operations, increased downtime, and higher maintenance costs. Thus, finding innovative solutions to overcome space limitations is crucial for ensuring the smooth functioning of machinery and maximizing productivity in industrial environments.
Compact designs of split bearings for space-constrained environments
Firstly, slimline bearing profiles are engineered to minimize the footprint of the bearing assembly, allowing for installation in tight spaces where traditional bearings may not fit. These slimline designs feature reduced dimensions while maintaining robustness and load-bearing capacity, making them ideal for applications with limited clearance. Additionally, split bearings incorporate modular designs that facilitate easy installation in confined spaces. By breaking down the bearing into separate components, such as inner and outer rings, cages, and rolling elements, manufacturers enable flexibility in assembly and positioning within constrained environments. This modular approach allows for individual components to be maneuvered and installed independently, overcoming obstacles posed by limited access and clearance. Furthermore, modular split bearings can be assembled in situ, eliminating the need for extensive disassembly of machinery components and minimizing downtime during installation and maintenance procedures. Overall, compact designs and modular construction of split bearings offer practical solutions for optimizing space utilization and ensuring seamless operation in space-constrained industrial environments.
Conclusion
In conclusion, specialized split bearing designs represent a significant advancement in bearing technology, offering tailored solutions to meet the diverse challenges faced by modern industries. These bearings provide enhanced accessibility, durability, and reliability, addressing specific requirements such as high-speed operation, corrosive environments, extreme temperatures, heavy loads, and space constraints. By incorporating innovative features, materials, and construction techniques, split bearings optimize performance, minimize downtime, and prolong service life, ultimately contributing to the efficiency and productivity of industrial machinery across various sectors. As industries continue to evolve, the versatility and adaptability of split bearings ensure their continued relevance and importance in meeting the ever-changing demands of today’s dynamic manufacturing landscape.
References
- 1.”How to Use Split Roller Bearings to Increase Efficiency” from Emerson Bearing;
- 2. “Split bearing design” from Eng-Tips Forums;
- 3. “Cooper split roller bearings” from SKF Bearings.
