The Impact of Shaft Deflection on Take-Up Bearing Performance
Introduction
Definition of Take-Up Bearings

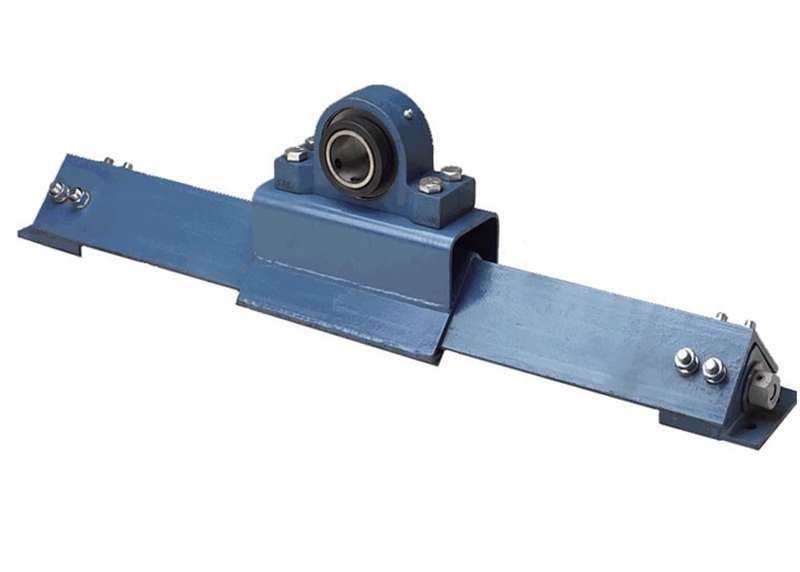

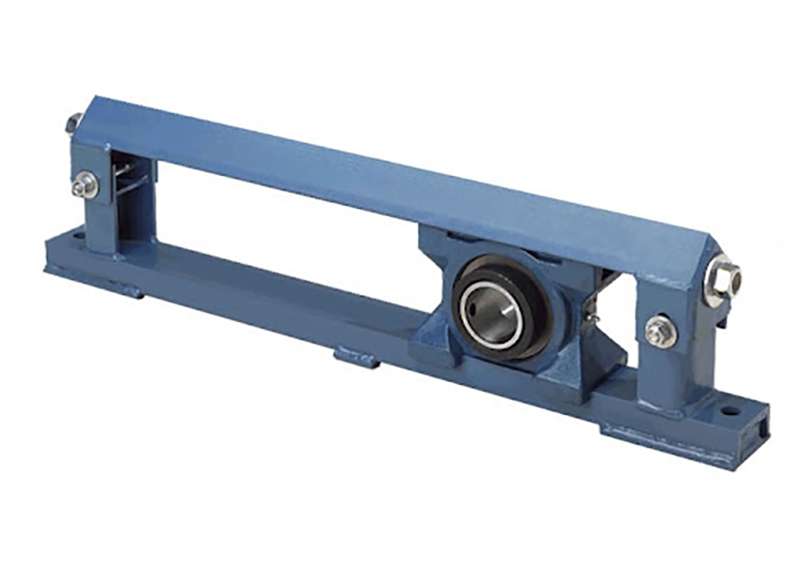

Take-up bearings are mechanical components designed to support rotating shafts or axles while allowing for axial movement to accommodate variations in shaft length or alignment. They consist of a bearing housing and an insert bearing, typically mounted on a sliding or adjustable base. Take-up bearings are commonly used in conveyor systems, belt drives, and other machinery where shaft adjustment is necessary. The adjustable nature of take-up bearings facilitates easy maintenance and installation by allowing for precise positioning of the shaft to ensure optimal performance and longevity of the machinery.
Importance of Take-up Bearings in Conveyor Systems
Take-up bearings play a crucial role in conveying systems by providing essential support and flexibility to the shafts or axles driving the conveyor belts. These bearings allow for the accommodation of variations in shaft length or alignment, which can occur due to factors such as thermal expansion, belt tension changes, or machinery adjustments. Without take-up bearings, excessive strain could be placed on the conveyor components, leading to premature wear, misalignment, or even system failure. By enabling precise adjustment and alignment of shafts, take-up bearings ensure smooth operation, optimal performance, and prolonged service life of conveying systems, thus enhancing efficiency and reducing maintenance costs.
Importance of Shaft Alignment in Conveyor Systems
Shaft alignment in conveyor systems is paramount for ensuring smooth operation, minimizing wear and tear, and maximizing efficiency. Proper alignment of shafts ensures that the conveyor components, such as pulleys, rollers, and bearings, are in optimal position to transmit power effectively and without undue strain. Misalignment can lead to increased friction, vibration, and premature wear on the conveyor belts and components, resulting in downtime and maintenance costs. Additionally, accurate alignment reduces energy consumption by minimizing power losses associated with friction. By prioritizing shaft alignment, conveyor systems can operate reliably, achieve higher throughput, and maintain consistent performance, contributing to overall productivity and cost-effectiveness in industrial operations.
Understanding Shaft Deflection
Definition and Causes of Shaft Deflection
Shaft deflection refers to the bending or flexing of a rotating shaft under load, resulting in a deviation from its intended axis of rotation. This deviation can occur due to various factors, including mechanical forces, material properties, and operating conditions. Causes of shaft deflection often stem from excessive loads, misalignment, or inadequate support. Heavy loads applied to the shaft can induce bending, especially if the shaft’s diameter or material strength is insufficient to withstand the stress. Misalignment between connected shafts can also lead to uneven loading and subsequent deflection. Additionally, insufficient support or improper bearing selection can contribute to shaft deflection by allowing excessive movement or inadequate stability. Environmental factors such as temperature fluctuations or vibrations can further exacerbate shaft deflection. Understanding and addressing the causes of shaft deflection are essential to maintaining optimal performance, minimizing wear and fatigue, and ensuring the longevity of rotating machinery in various industrial applications.
Types of Shaft Deflection
Shaft deflection manifests in several distinct types, each with its own characteristics and causes. One common type is linear deflection, where the shaft bends along its axis due to applied loads or moments. This bending typically occurs in a single plane and is influenced by factors such as the shaft’s material properties, diameter, and the magnitude and direction of the applied load. Torsional deflection, on the other hand, involves twisting or rotation of the shaft around its axis, often induced by torque or rotational forces. Torsional deflection can result from uneven distribution of torque, shaft misalignment, or insufficient torsional stiffness. Another type is lateral deflection, where the shaft bends perpendicular to its axis, typically caused by radial loads or moments. Lateral deflection can occur due to misalignment, inadequate support, or excessive bending loads. Understanding the various types of shaft deflection is crucial for effectively diagnosing and addressing issues in rotating machinery, ensuring optimal performance, and preventing premature wear or failure.
Effects of Shaft Deflection on Take-Up Bearing Performance
Shaft deflection can have a significant impact on the performance of take-up bearings. When a shaft deflects under load, it causes misalignment between the bearing and the shaft, which can lead to increased wear and tear, reduced bearing life, and decreased overall system efficiency. The degree of deflection depends on factors such as the length of the shaft, its diameter, and the load it is subjected to. In addition, shaft deflection can cause vibrations and oscillations that can further exacerbate the problem. These vibrations can cause the bearing to resonate, leading to premature failure. Moreover, the deflection can also cause the bearing to run at an angle, which can result in uneven load distribution and increased friction. All these effects can compromise the performance of the take-up bearing and ultimately lead to system failure if not addressed properly. It is essential to ensure that shafts are designed and supported properly to minimize deflection and maintain proper alignment with the bearings to ensure optimal performance and longevity.
Engineering Strategies to Mitigate Shaft Deflection
Proper Shaft Design
Proper shaft design is a fundamental engineering strategy to mitigate shaft deflection and ensure optimal performance in rotating machinery. This approach involves careful consideration of factors such as shaft material, diameter, and geometry to withstand applied loads and minimize bending. By selecting materials with high strength and stiffness properties and appropriate diameters based on load requirements, engineers can enhance shaft rigidity and reduce the likelihood of deflection under operational conditions. Additionally, optimizing shaft geometry, such as incorporating fillets or chamfers at critical stress points, can help distribute loads more evenly and mitigate stress concentrations that may lead to deflection. Through meticulous attention to shaft design parameters, engineers can effectively mitigate shaft deflection and enhance the reliability and longevity of rotating machinery.
Alignment Techniques
Alignment techniques are pivotal engineering strategies employed to counteract shaft deflection and uphold optimal performance in rotating machinery. Among these techniques, laser alignment methods and dial indicator alignment stand out as prominent approaches. Laser alignment utilizes precision laser beams to accurately measure and adjust shaft positions, angles, and parallelism. This technique offers high levels of accuracy and efficiency, allowing engineers to achieve precise alignment with minimal effort and downtime. On the other hand, dial indicator alignment involves the use of dial indicators to measure shaft misalignment and make adjustments accordingly. While dial indicator alignment may require more manual labor and time compared to laser alignment, it remains a widely used and effective method, particularly in situations where laser equipment may not be readily available or suitable. By employing these alignment techniques, engineers can mitigate shaft deflection and optimize the performance and longevity of rotating machinery across various industrial applications.
Use of Stiffening Elements
Stiffening elements, such as shaft supports, keyways, or ribs, are strategically integrated into the design of shafts and related components to increase their rigidity and resistance to bending forces. By reinforcing the shaft structure, these elements effectively distribute loads more evenly, minimizing the risk of excessive deflection under operational conditions. Additionally, stiffening elements can help mitigate stress concentrations and prevent localized deformation, thereby reducing wear and fatigue over time. Engineers carefully consider factors such as material selection, geometry, and placement of stiffening elements to optimize their effectiveness in mitigating shaft deflection while maintaining overall system functionality. Through the strategic incorporation of stiffening elements, engineers can significantly improve the reliability, efficiency, and longevity of rotating machinery in diverse industrial applications.
Incorporation of Flexible Couplings
Flexible couplings are designed to connect shafts while allowing for a certain degree of misalignment, angular displacement, and axial movement. By accommodating these variations, flexible couplings reduce the transmission of bending moments and torsional stresses between connected shafts, thereby mitigating the risk of shaft deflection. Additionally, flexible couplings help dampen vibrations and shock loads, further protecting the integrity of the shaft and associated components. Engineers carefully select and design flexible couplings based on factors such as the magnitude of misalignment, torque transmission requirements, and environmental conditions to ensure optimal performance and longevity of rotating machinery in various industrial applications.
Advanced Technologies for Deflection Monitoring and Correction
Real-Time Monitoring Systems
These systems employ sensors, such as accelerometers or strain gauges, strategically placed along the shaft to continuously measure parameters such as vibration, temperature, and stress levels. The collected data is then analyzed in real-time using sophisticated algorithms to detect any deviations from expected operating conditions indicative of shaft deflection. By providing instantaneous feedback, real-time monitoring systems enable proactive interventions to mitigate deflection-related issues promptly, such as adjusting operational parameters or triggering maintenance alerts. Furthermore, some advanced systems can even incorporate predictive analytics to anticipate potential deflection events based on historical data and trends, allowing for preemptive corrective actions to be taken. Overall, real-time monitoring systems offer a proactive and efficient approach to managing shaft deflection, enhancing the reliability and performance of rotating machinery across various industrial applications.
Adaptive Bearing Designs
These advanced bearings incorporate sensors and actuators within their structure to actively respond to changes in shaft deflection and operating conditions. Through real-time monitoring of parameters such as load, vibration, and temperature, adaptive bearings can dynamically adjust their internal configuration, such as bearing clearance or preload, to compensate for any detected deflection or misalignment. By actively adapting to changing conditions, these bearings optimize load distribution, minimize friction, and reduce the risk of premature wear or failure associated with shaft deflection. Additionally, some adaptive bearing designs leverage advanced control algorithms and machine learning techniques to predict and preemptively mitigate deflection events, further enhancing the reliability and performance of rotating machinery. Overall, adaptive bearing designs represent a cutting-edge solution for effectively managing shaft deflection and improving the longevity and efficiency of industrial equipment.
Integration of Predictive Maintenance
By leveraging advanced sensors, data analytics, and machine learning algorithms, predictive maintenance systems continuously monitor various parameters, including vibration, temperature, and lubrication conditions. These systems analyze real-time and historical data to identify patterns and trends indicative of potential shaft deflection or other issues. By detecting early warning signs of impending deflection, predictive maintenance systems enable proactive interventions to be scheduled before critical failures occur. This proactive approach helps minimize downtime, reduce maintenance costs, and extend the operational lifespan of rotating machinery. Additionally, predictive maintenance allows for targeted corrective actions to address underlying causes of deflection, such as misalignment or inadequate lubrication, further enhancing equipment reliability and performance. Overall, the integration of predictive maintenance represents a powerful tool for effectively managing shaft deflection and optimizing the efficiency and longevity of industrial machinery.
Conclusion
In conclusion, take-up bearings are vital components in conveyor systems, facilitating shaft adjustment and alignment to ensure smooth operation and longevity. Shaft deflection poses a significant challenge to take-up bearing performance, leading to wear, vibration, and potential system failure. Mitigating shaft deflection requires careful engineering strategies such as proper shaft design, alignment techniques, use of stiffening elements, and incorporation of flexible couplings. By addressing shaft deflection effectively, engineers can enhance the reliability, efficiency, and longevity of rotating machinery, ultimately optimizing industrial operations and reducing maintenance costs.
References
- 1.”Take-Up Units On NTN Bearing Corp. of America” from NTN Bearing Finder;
- 2. “Shaft Deflection – an overview” from ScienceDirect;
- 3. “Take-up ball bearing units” from SKF Bearings.
