Tapered Roller Bearings: Mastering the Art of It
Table of Contents
Introduction

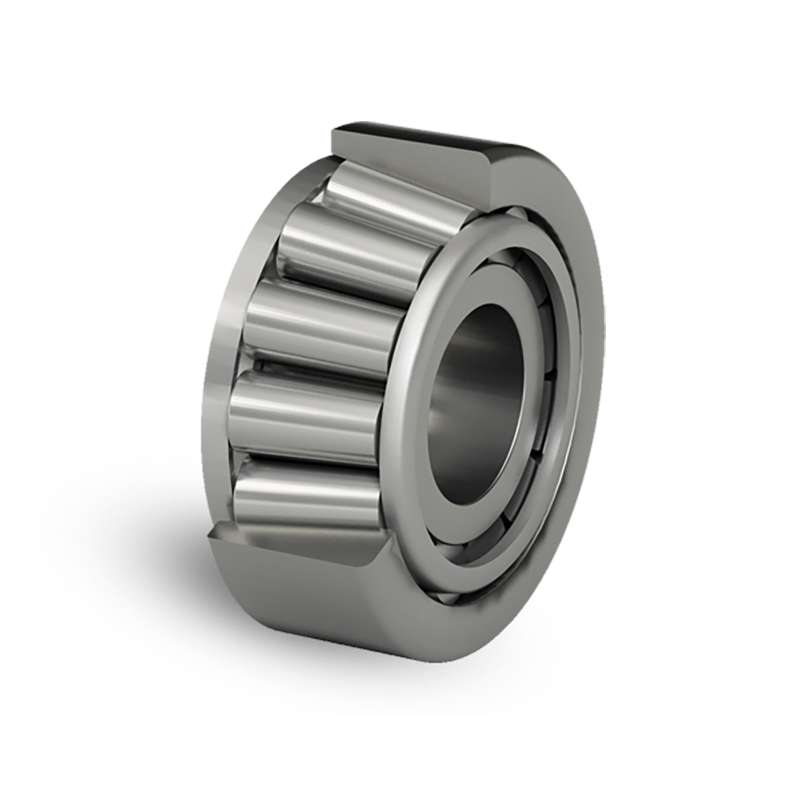

Tapered Roller Bearings are precision-engineered components widely used in various industries, from automotive to manufacturing. Designed with tapered inner and outer ring raceways, they efficiently handle radial and axial loads, ensuring smooth rotational motion. Their unique design minimizes friction, enhances durability, and optimizes performance in demanding applications. Tapered Roller Bearings play a pivotal role in machinery, offering reliability and precision, making them a cornerstone in the seamless operation of diverse systems across the industrial landscape.
Load Capacity and Performance
Radial and axial loads
Tapered roller bearings are designed to handle both radial and axial loads efficiently. Here are six key points that explain how tapered roller bearings accomplish this:

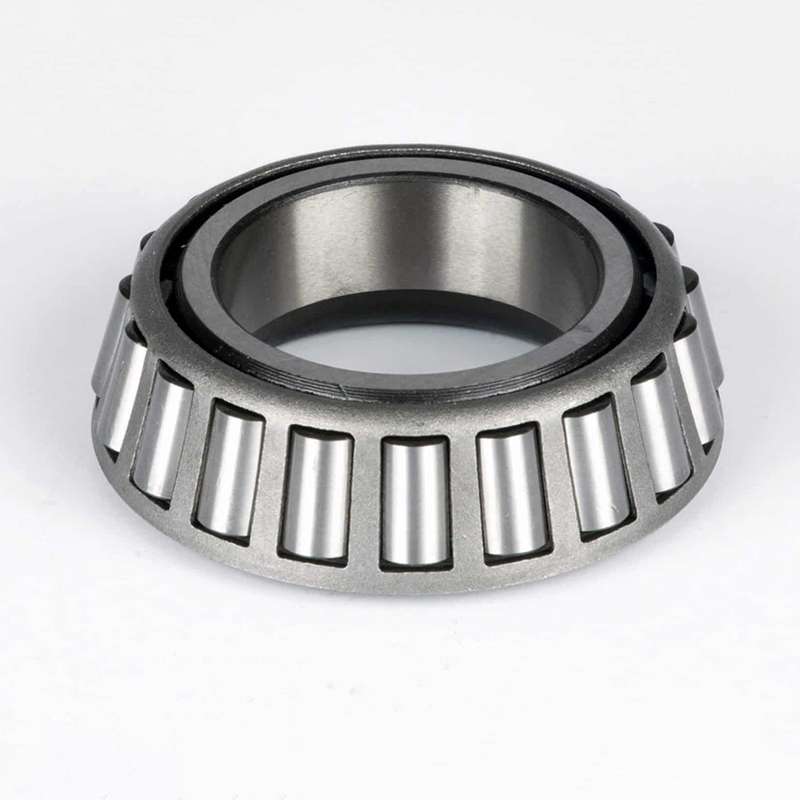

Conical Design: Tapered roller bearings have a conical shape, with the outer raceway (cup) and the inner raceway (cone) forming a taper. This design allows the rollers to distribute loads along the entire length of the rollers, facilitating effective load sharing.
Axial Load Capacity: The tapered design enables these bearings to handle axial (thrust) loads in addition to radial loads. The tapered geometry results in a line contact between the rollers and the raceways, allowing for the transmission of both radial and axial forces.
Reduced Friction: Tapered roller bearings are designed to minimize friction during rotation. The tapered shape helps in distributing loads evenly, reducing sliding friction between the rollers and the raceways. This results in smoother operation and improved efficiency.
Angular Contact: Tapered roller bearings are capable of handling both radial and axial loads simultaneously due to their ability to accommodate angular misalignment between the inner and outer races. This angular contact helps distribute the loads in a way that minimizes stress concentrations.
Adjustability: Tapered roller bearings often come with the option of being preloaded or adjusted during installation. This adjustability allows for fine-tuning the bearing clearance, optimizing performance under varying loads and operating conditions.
Rigidity and Stability: The tapered roller bearing design provides a high level of rigidity and stability, especially under heavy loads. This rigidity helps prevent excessive deflection or deformation, ensuring that the bearing maintains its structural integrity and continues to function reliably.
In summary, the tapered roller bearing’s conical design, ability to handle both radial and axial loads, reduced friction, angular contact, adjustability, and overall rigidity make it a versatile and effective component for a wide range of applications where combined radial and axial loads are present.
Factors affecting load capacity
The load capacity of tapered roller bearings is influenced by various factors. Here are six key factors:
Taper Angle (Cone Angle): The angle formed by the tapered surfaces of the inner and outer races is a critical factor influencing load capacity. A steeper taper angle generally results in a higher load capacity. However, it’s essential to strike a balance because extremely steep angles may lead to increased friction and heat generation.
Number of Rows: Tapered roller bearings can have a single row or multiple rows of rollers. Bearings with multiple rows can distribute loads more effectively and often have higher load capacities compared to single-row bearings. Common configurations include single-row, double-row, and four-row tapered roller bearings.
Cage Design: The cage holds the rollers in place and affects their distribution. A well-designed cage ensures proper spacing and alignment of the rollers, contributing to load-carrying capacity. The material and design of the cage can influence the overall strength and performance of the bearing.
Material and Heat Treatment: The material used for the bearing components, such as the inner and outer rings, rollers, and cage, impacts the bearing’s strength and ability to withstand loads. Heat treatment processes can enhance the hardness and durability of these components, contributing to increased load capacity.
Precision and Tolerance Levels: Higher precision in manufacturing processes and tighter tolerance levels lead to better alignment of bearing components. This precision reduces the risk of uneven load distribution and improves the overall load-carrying capacity of the tapered roller bearing.
Lubrication and Cooling: Adequate lubrication is crucial for minimizing friction and preventing premature wear. Proper lubrication also helps dissipate heat generated during operation. Efficient cooling, whether through external means or internal design features, contributes to maintaining the bearing’s load capacity by preventing overheating.
These factors interact in a complex manner, and the optimal combination depends on the specific application and operating conditions. Engineers consider these factors collectively to select tapered roller bearings that provide the required load capacity and performance for a given application.
Advantages and Limitations of Tapered Roller Bearings
Tapered roller bearings offer several advantages but also come with certain limitations.
Advantages:
High Radial and Axial Load Capacity: Tapered roller bearings are designed to handle both radial and axial loads efficiently, making them suitable for applications with combined loads.
Good Thrust Capability: Due to their tapered design, these bearings can accommodate axial thrust loads in one direction or both directions, depending on the arrangement of the bearings.
Durable and Long Life: Tapered roller bearings are known for their durability and long service life, especially when properly maintained. This is important in applications where frequent replacements are impractical or costly.
Reduced Friction: The tapered design allows for line contact between the rollers and raceways, minimizing sliding friction and contributing to smoother operation and improved efficiency.
Adjustability: Tapered roller bearings can be adjusted or preloaded during installation, allowing for fine-tuning of the bearing clearance. This adjustability is beneficial for optimizing performance under various loads and operating conditions.
Limitations:
Limited Misalignment Capability: Tapered roller bearings are less tolerant of misalignment compared to some other bearing types. Excessive misalignment can lead to increased stress and reduced bearing life.
Complex Installation: Achieving proper preload and adjustment during installation requires careful attention to detail. In some cases, specialized tools may be needed, making installation more complex than with some other bearing types.
Sensitivity to Contaminants: Tapered roller bearings can be sensitive to contaminants such as dirt and water, which may accelerate wear and reduce bearing life. Proper sealing and maintenance practices are essential.
Higher Cost: Tapered roller bearings can be more expensive than other bearing types, particularly in applications with lower load requirements where simpler bearings may be sufficient.
Limited Speed Capability: In high-speed applications, tapered roller bearings may not be as suitable as some other types of bearings. Excessive speeds can lead to increased friction and heat generation.
Despite these limitations, tapered roller bearings remain a popular choice in many applications, especially where their advantages, such as high load capacity and durability, outweigh their drawbacks.
Comparisons with Other Bearings
The difference
Ball Bearings:
- Advantages:
- Low friction, leading to high-speed capabilities.
- Smaller size and lightweight.
- Suitable for applications with moderate radial loads.
- Simple and cost-effective.
- Minimal sensitivity to misalignment.
- Limitations:
- Lower load capacity compared to tapered roller bearings.
- Limited ability to handle axial loads.
- Reduced durability in heavy-load applications.
Cylindrical Roller Bearings:
- Advantages:
- Good radial load capacity.
- Suitable for applications with high radial loads and moderate axial loads.
- Can accommodate some misalignment.
- Various designs, including single-row and double-row configurations.
- Generally easier to install compared to tapered roller bearings.
- Limitations:
- Limited thrust capability compared to tapered roller bearings.
- May have higher friction than ball bearings.
- May require more space compared to ball bearings in certain configurations.
In summary, the choice between tapered roller bearings, ball bearings, and cylindrical roller bearings depends on the specific requirements of the application. Tapered roller bearings are preferred in applications with high radial and axial loads, ball bearings excel in high-speed applications with lighter loads, and cylindrical roller bearings find use in applications with high radial loads and some axial loads. Each type has its strengths and weaknesses, and proper selection is crucial to achieving optimal performance and longevity in a given application.
Circumstances where tapered roller bearings are more suitable
Tapered roller bearings are particularly well-suited for certain applications where their specific characteristics provide advantages. Here are four points indicating situations when tapered roller bearings are more suitable:
Combined Radial and Axial Loads: Tapered roller bearings excel in applications where both radial and axial loads are present simultaneously. Their unique design with a tapered cone and cup allows them to efficiently handle forces in both directions, making them suitable for scenarios with combined loads.
High Load Capacity Requirements: When a bearing is required to support high radial and axial loads, tapered roller bearings are often more suitable due to their robust design. They can withstand heavy loads and distribute the forces evenly along the length of the rollers, making them durable and long-lasting in demanding applications.
Adjustability and Preload Requirements: Tapered roller bearings offer the advantage of adjustability during installation. This is particularly useful when precise control over bearing clearance or preload is required to optimize performance under varying loads and operating conditions. The ability to fine-tune the bearing’s internal clearance is crucial in many industrial applications.
Applications with Limited Misalignment: Tapered roller bearings are well-suited for applications where misalignment is limited. While they can accommodate some degree of misalignment, they are generally less forgiving in this aspect compared to other bearing types. Therefore, when misalignment is minimal or can be controlled, tapered roller bearings are a suitable choice.
In summary, tapered roller bearings are more suitable in scenarios involving combined radial and axial loads, high load capacity requirements, applications with adjustability and preload needs, and situations where misalignment is limited. Properly selecting tapered roller bearings based on the specific demands of the application is crucial to ensuring optimal performance and reliability.
Installation and Maintenance
Installation guide

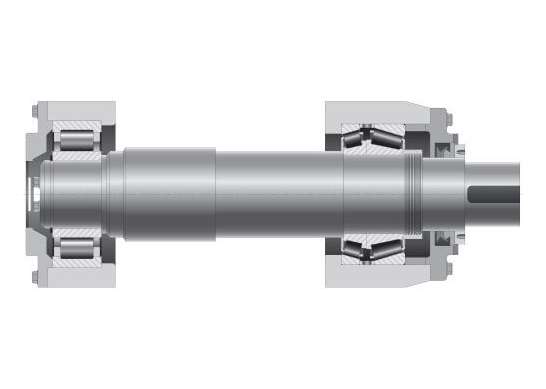

Proper installation is crucial to ensure the optimal performance and longevity of tapered roller bearings. Here are five key points to consider during the installation process:
Clean and Inspect Components: Thoroughly clean all bearing components, including the inner and outer rings, rollers, and cage. Inspect for any signs of damage, wear, or contamination. Ensure that the mounting surfaces are clean and free from burrs or nicks that could affect the bearing’s performance.
Accurate Shaft and Housing Alignment: Achieve precise shaft and housing alignment to prevent unnecessary stress on the bearing. Misalignment can lead to increased friction, premature wear, and reduced bearing life. Use appropriate tools and methods to measure and adjust alignment, considering both radial and axial aspects.
Proper Lubrication: Apply the correct type and amount of lubricant as specified by the manufacturer. Proper lubrication is essential for reducing friction, dissipating heat, and preventing premature wear. Ensure that the lubricant is evenly distributed and that the bearing is adequately lubricated throughout its service life.
Controlled Bearing Clearance and Preload: Follow the manufacturer’s guidelines for setting the appropriate bearing clearance or preload. This step is critical for optimizing the bearing’s performance under varying loads and operating conditions. Use precision tools to measure and adjust the clearance or preload according to specifications.
Use Correct Installation Tools: Utilize the proper tools and techniques for mounting tapered roller bearings. Avoid excessive force during installation, as this can lead to damage or misalignment. Employ tools such as bearing heaters or hydraulic presses to ensure a controlled and even application of force. Consult the manufacturer’s recommendations for specific installation tools and methods.
Adhering to these installation guidelines helps maintain the integrity of tapered roller bearings, reduces the risk of premature failure, and ensures optimal performance throughout their operational life. Always refer to the manufacturer’s instructions and specifications for the specific bearing model being installed.
Maintenance guide
Regular Inspection and Lubrication: Periodically inspect tapered roller bearings for signs of wear, damage, or contamination. Establish a routine maintenance schedule and follow the manufacturer’s recommendations. Ensure proper lubrication with the correct type and quantity of lubricant. Regularly monitor lubricant condition and replace it when necessary.
Temperature Monitoring: Keep an eye on the operating temperature of the bearings during operation. Abnormal temperature increases can indicate issues such as insufficient lubrication, misalignment, or excessive preload. Monitoring temperature helps identify potential problems early and prevent premature bearing failure.
Seal and Shield Maintenance: If equipped with seals or shields, regularly check their condition. Damaged or worn seals can allow contaminants to enter the bearing, leading to increased friction and wear. Replace seals promptly if they show signs of damage. Ensure that seals are correctly installed and functioning to maintain a protective barrier.
Alignment Checks: Periodically check and, if necessary, readjust shaft and housing alignment to prevent excessive loads on the bearing. Misalignment can lead to premature wear and reduced bearing life. Ensure that the bearing is correctly seated and aligned within the housing to maintain optimal performance.
Prevent Contamination: Minimize the risk of contamination by keeping the surrounding environment clean. Implement proper sealing and shielding measures to protect the bearing from dirt, dust, and other contaminants. When handling bearings, use clean tools and work in a clean environment to prevent introducing particles during installation or maintenance.
Adhering to a proactive maintenance plan that includes these key points can extend the service life of tapered roller bearings, reduce the risk of unplanned downtime, and optimize overall equipment performance. Always refer to the manufacturer’s guidelines for specific maintenance recommendations based on the bearing type and application.
Conclusion
Tapered Roller Bearings stand as vital components in various industries, excelling in handling combined radial and axial loads with efficiency. Their conical design, adjustability, and durability make them versatile, though considerations such as taper angle and lubrication impact load capacity. Despite complexities in installation and sensitivity to contaminants, their advantages in high-load applications often outweigh drawbacks. Proper selection, installation, and maintenance are crucial for optimal performance, ensuring these bearings remain integral to the seamless operation of diverse industrial systems.
If you want to know more related information, you can also browse: SKF or Wikipedia: Tapered roller bearings
