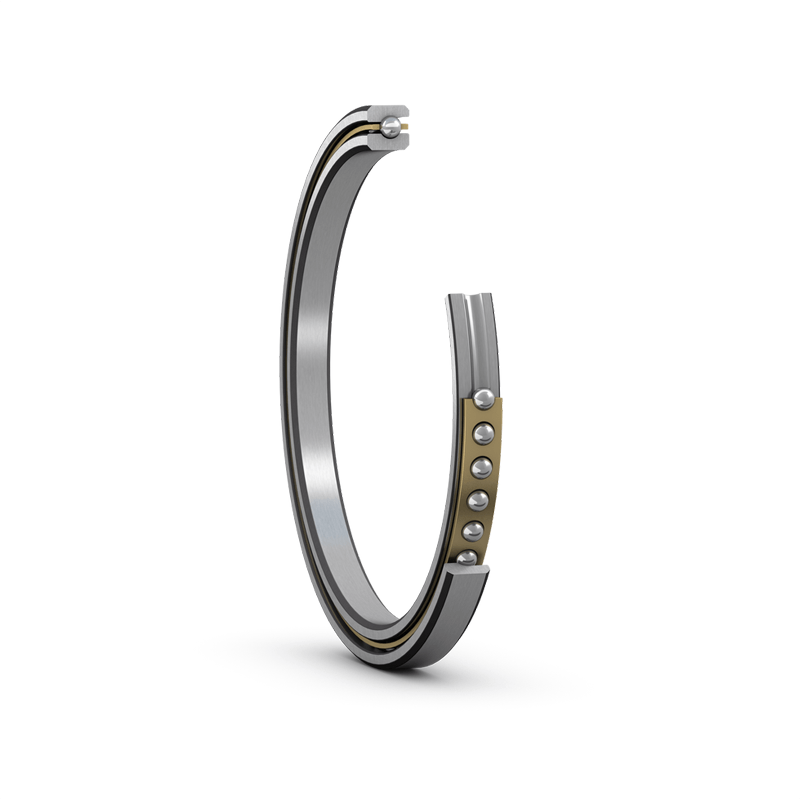

What is a Thin Section Bearing?

Definition

“Thin section bearings” refer to specialized bearings engineered to accommodate radial, axial, and moment loads while maintaining a minimal cross-sectional area. These bearings are designed to conserve space, reduce the overall weight of your assemblies, and offer high levels of rigidity.

Introduction

The Importance of Bearings in Modern Machinery

Bearings are the cornerstone of myriad mechanical systems, serving as the fulcrum around which rotational motion is facilitated. Their role in mitigating friction and wear is indispensable, making them a sine qua non in everything from simple household gadgets to complex industrial machinery.

The Evolution of Bearings: From Bulk to Precision

The historical trajectory of bearings is marked by a transition from rudimentary, bulky designs to intricate, precision-engineered components. This evolution is a manifestation of the relentless strides made in metallurgy and mechanical design, culminating in specialized variants like thin section bearings.

Introducing Thin Section Bearings: A Niche but Vital Category

Thin section bearings are not merely another type of bearing; they are a specialized category designed to meet the exigencies of applications where spatial constraints and weight considerations are non-negotiable. Despite their niche status, their unique attributes render them indispensable in a multitude of high-stakes, high-tech applications.

The Anatomy of Thin Section Bearings

Inner Ring, Outer Ring, and Ball: The Core Components

A thin section bearing is an assemblage of an inner ring, an outer ring, and a series of balls, typically separated by a polymeric or metallic cage. This ensemble functions in a harmonious synergy to provide rotational motion with minimal frictional dissipation.

Material Science: What Makes Them Different

The material constitution of thin section bearings often incorporates advanced ceramics like silicon nitride and specialized steel alloys such as AISI 440C. These materials confer superior mechanical attributes, including high stiffness, low density, and excellent wear resistance, thereby augmenting their performance envelope.

Dimensional Parameters: Bore, Outer Diameter, and Width

The defining characteristic of thin section bearings is their reduced cross-sectional dimensions. These parameters are meticulously calibrated to meet the exacting specifications of particular applications, whether it be the confined spaces of a satellite or the intricate mechanisms of a surgical robot.

Types of Thin Section Bearings

Radial Contact Bearings

Radial contact bearings are predominantly employed in applications where the primary load is radial in nature. Their design is particularly efficacious in electromechanical systems like electric motors and fluid transfer devices like hydraulic pumps.

Angular Contact Bearings

Angular contact bearings are engineered to accommodate combined radial and axial loads. Their design is integral to high-precision systems such as CNC machine tool spindles, where both types of loads are often present.

Four-Point Contact Bearings

These bearings are a paragon of versatility, capable of supporting radial, axial, and moment loads in a concurrent fashion. Their multifaceted utility renders them an ideal choice for intricate mechanical systems, such as multi-axis robotic arms and aerospace actuation mechanisms.

Applications of Thin Section Bearings

Aerospace and Defense

In aerospace and defense applications, the attributes of thin section bearings—namely, their lightweight and compact architecture—are invaluable. Their incorporation into systems like gyroscopes and actuation mechanisms significantly enhances fuel efficiency and payload optimization.

Medical Devices

In the realm of medical technology, devices like MRI machines, CT scanners, and surgical robots demand unparalleled levels of precision and reliability. Thin section bearings are pivotal in meeting these stringent criteria, thereby playing an indispensable role in life-saving technologies.

Robotics and Automation

In the burgeoning domain of robotics and automation, thin section bearings are instrumental in achieving the high degree of kinematic accuracy and operational speed required for intricate tasks such as microassembly and high-precision sorting.

Renewable Energy Systems

In renewable energy systems like wind turbines and photovoltaic tracking mechanisms, thin section bearings contribute to both energy efficiency and sustainability. Their lightweight and low-friction characteristics are particularly beneficial in optimizing the energy output of these systems.

Aerospace and DefensAdvantages of Thin Section Bearingse

Space Efficiency

The compact form factor of thin section bearings allows for a more judicious utilization of spatial resources, which is especially beneficial in applications where mechanical real estate is at a premium, such as in satellites or unmanned aerial vehicles.

Weight Reduction

The lightweight constitution of these bearings significantly enhances the overall system efficiency, particularly in mobile and airborne applications where weight is a critical determinant of operational efficacy.

High Precision and Rigidity

Engineered to exacting geometrical tolerances, thin section bearings offer unparalleled levels of kinematic precision and structural rigidity. This makes them an irreplaceable component in high-precision applications like semiconductor manufacturing and optical alignment systems.

Lower Friction Coefficients

The incorporation of advanced materials and precision engineering methodologies results in lower friction coefficients. This not only reduces thermal dissipation but also prolongs the operational lifespan of the bearing, thereby contributing to overall system longevity.

Limitations and Challenges

Load Capacity Constraints

One of the intrinsic limitations of thin section bearings is their diminished load-carrying capacity. This makes them less suitable for heavy-duty, high-load applications like industrial gearboxes or construction machinery.

Sensitivity to Misalignment

The high-precision nature of thin section bearings makes them susceptible to performance degradation due to misalignment. This necessitates meticulous installation protocols and regular maintenance regimens to ensure their optimal functionality.

Cost Factors

The use of exotic materials and high-precision manufacturing techniques often escalates the unit cost of thin section bearings. This makes them a more expensive alternative to their standard counterparts, necessitating a careful cost-benefit analysis during the selection process.

Selection Criteria

Load Ratings

A comprehensive understanding of both dynamic and static load ratings is imperative for the judicious selection of a thin section bearing. These metrics must be rigorously evaluated to ensure that the bearing can withstand the operational loads without premature failure.

Speed Requirements

The operational speed of the application is another critical parameter that must be considered. Exceeding the speed capabilities of the bearing can lead to catastrophic failures, such as cage disintegration or lubricant breakdown.

Environmental Conditions

Environmental variables such as temperature extremes, corrosive atmospheres, and high humidity levels must be factored into the selection algorithm to ensure the bearing’s long-term performance and durability.

Material Considerations

The material composition of the bearing can have a profound impact on its performance attributes. Factors such as corrosion resistance, thermal stability, and wear resistance must be carefully evaluated during the selection process.

Maintenance and Longevity

Lubrication Requirements

Adequate lubrication is indispensable for the smooth operation and longevity of thin section bearings. The choice of lubricant—whether it be a mineral oil, synthetic fluid, or solid lubricant—can significantly influence the bearing’s frictional characteristics and, by extension, its operational lifespan.

Inspection and Replacement Cycles

Periodic inspection protocols and planned replacement cycles are crucial for averting mechanical failures and ensuring the bearing’s continued efficacy. Negligence in this regard can lead to system downtime, operational inefficiencies, and increased maintenance costs.

Conclusion

The Future of Thin Section Bearings

As we stand on the cusp of a technological renaissance, thin section bearings are poised for further advancements in material science, design engineering, and manufacturing methodologies. These innovations are likely to expand their applicability across a diverse array of industries, from nanotechnology to space exploration.

Summary of Key Takeaways

Thin section bearings offer a unique amalgamation of advantages, including spatial and weight efficiency, high precision, and reduced friction. However, they are not without their limitations and challenges. Therefore, meticulous selection, diligent maintenance, and a nuanced understanding of their operational parameters are paramount for leveraging their full potential.
