Choosing The Right Ball Screws For Your Application: A Comprehensive Guide
Introduction
Ball Screws are the high-efficiency method of converting rotary motion to linear motion by using a recirculating ball mechanism between the screw shaft and the nut. Compared with a conventional sliding screw, the ball screw requires a driving torque of one-third or less, making it ideal for saving drive motor power. This guide provides an in-depth look at ball screws and how they work, their areas of application, and the advantages they bring to industrial use.
What Are Ball Screws?
Ball Screws are the high-precision, high-efficiency mechanical transmission element that converts rotary motion into linear motion or linear motion into rotary motion through the rolling contact between the ball between the helical threaded screw and the nut. This design significantly reduces friction, making Ball Screws widely used in fields such as machine automation and precision instruments.
The core function of Ball Screws is to achieve highly efficient and accurate load transfer and positioning control. The main advantages of Ball Screws over conventional Lead Screws are their low coefficient of friction and high transmission efficiency. In a Ball Screw, as the screw rotates, the balls embedded between the nut and screw roll along the threaded path, driving the nut axially along the screw. This rolling reduces the friction caused by direct contact, so Ball Screws not only run smoother but also last longer and can withstand higher speeds and loads.

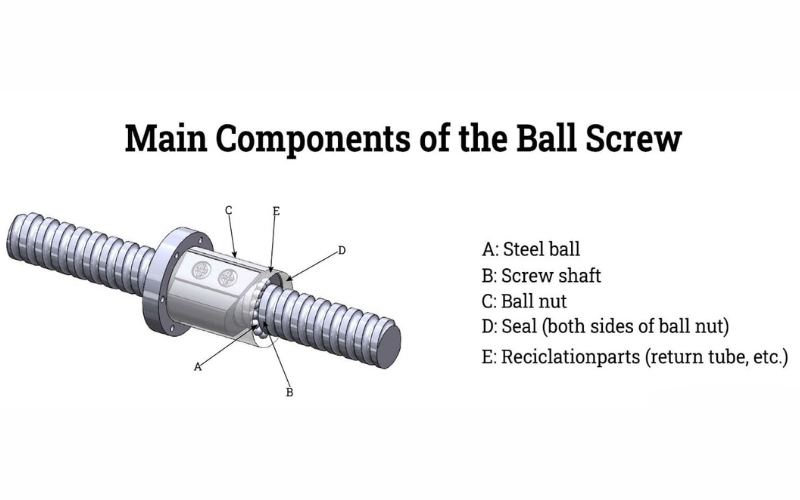

Components Of Ball Screws
Ball Screws, as an efficient mechanical transmission device, have a sophisticated design that consists of several key components including a Screw Shaft, Nut, Ball, and Return System.
1. Screw Shaft
The Screw Shaft is the spindle of a Ball Screw system and is usually a long rod with precision helical threads machined on its surface. These threads not only provide the path for the movement of the balls, but are the basic medium for transmitting force and motion. The screw must withstand the loads imposed by the nut and ball and is usually made of heat-treated alloy steel or other durable materials.
2. Nut
The nut is the part that surrounds the screw and has the same threads machined on the inside that are compatible with the screw. The primary function of the nut is to convert the rotational motion of the screw into a linear movement of the nut, or vice versa. In a ballscrew system, the nut is designed so that it can accommodate multiple balls and precisely guide these balls as they roll through the threads of the screw.
Nuts are typically made of wear-resistant materials, such as hardened steel or bronze, to ensure durability and stability.
3. Balls
Balls are an important part of a Ball Screw, they are located between the screw and the nut and are responsible for reducing friction on the contact surfaces. Balls roll instead of the sliding friction of conventional threads, significantly reducing energy loss and increasing transmission efficiency.
Balls are usually made of hardened steel or coated with a wear-resistant material to increase hardness and wear resistance.

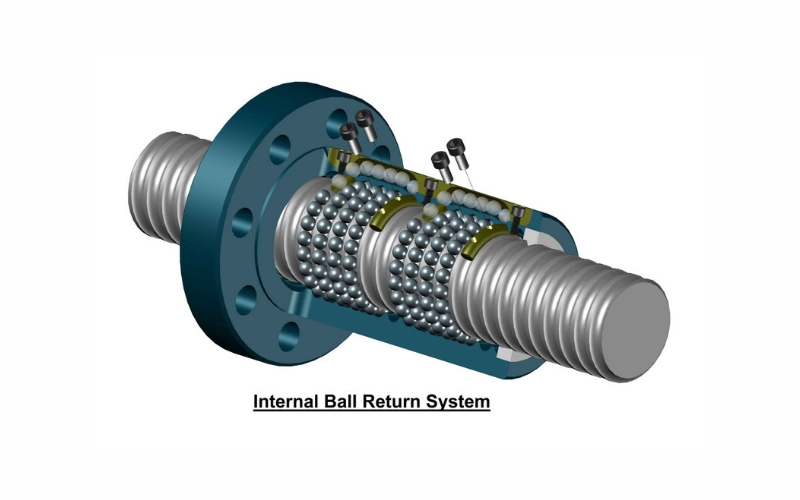

4. Return System
The Return System is a key mechanism in Ball Screws that allows the ball, after rolling from one end of the nut to the other, to return to its starting position and begin the cycle again. This ensures that the ball can continue to work without breaking away from the nut.
Principle Of Operation
Conversion of rotary motion into linear motion
As the screw shaft rotates, the ball is guided by the helical groove and moves linearly in the axial direction. This process converts rotary motion into precise linear motion.
Reduced friction
In conventional threaded drive systems (e.g. common screw and nut configurations), there is usually direct sliding contact between the screw and the nut, which generates high friction. High friction not only increases energy consumption but also accelerates wear of the parts, thus shortening the service life of the equipment.
Ball screws solve this problem by introducing balls between the screw and the nut. In the Ball Screw design, the direct contact between the screw and the nut is replaced by balls. The balls roll in the threaded path of the screw and in the internal threaded groove of the nut. Since the coefficient of rolling friction is much lower than sliding friction, the overall friction is dramatically reduced.
Increased transmission efficiency
Low friction directly brings the advantage of high transmission efficiency. In ball screws, energy losses are significantly reduced as the balls provide virtually frictionless contact. This means that less energy is required to drive the same load, or faster motion and higher responsiveness can be achieved with the same energy input.
The efficient drive of a ball screw not only improves mechanical efficiency, it also helps to reduce wear due to heat and friction, which in turn extends the operating life of the entire system. In addition, due to the significant reduction in friction, ball screws also operate with less noise than conventional screw systems, which is very beneficial for improving the overall working environment of the equipment.
Controlled Backlash
Controlled backlash in the design of a ball screw bearing is the key to its high accuracy. This means that the ball screw bearing responds quickly to reverse motion, reducing errors and increasing the accuracy of the system.
High Load Capacity
Ball Screw Bearings are able to withstand high loads due to their rolling rather than sliding design, ensuring efficient operation under high load conditions.
Types Of Ball Screws
Ball Screws are available in a variety of designs. According to their structural characteristics and application requirements, the common types can be classified into the following three types:
- Single Nut Ball Screws
Single Nut Ball Screws are designed with a single nut, which is simple in structure, light in weight and low in cost. Single Nut Ball Screws are widely used in a variety of industrial automation equipment, general machine tools, medical equipment and so on.
- Double Nut Ball Screws
Double Nut Ball Screws are designed with two nuts, which are usually pre-tensioned together to eliminate loosening and improve the rigidity and accuracy of the system. Bidirectional Ball Screws are mainly used in applications requiring high accuracy and rigidity, such as high-precision machine tools, aerospace equipment, and precision measuring equipment.
- High-Speed Ball Screws
High-Speed Ball Screws are designed with optimized thread shapes and ball return systems to meet the demands of high-speed motion. These design improvements reduce heat build-up and noise while maintaining smoothness and accuracy of motion. They are mainly used in applications that require fast movements, such as high-speed machine tools, automated assembly lines, and production equipment in the automotive industry.
Comparison Of Ball Screws And Lead Screws
Ball Screws and Lead Screws are both mechanical elements that convert rotary motion into linear motion, but they differ significantly in design and performance.
Ball screws offer high efficiency (up to 90 per cent or more) by dramatically reducing friction through the rolling of balls between the screw and the nut, making them suitable for applications that carry high loads and require high accuracy, such as CNC machine tools and aerospace equipment.
In contrast, lead screws offer higher friction and lower efficiencies (20-40 per cent) due to their direct sliding contact, and are more suitable for cost-sensitive and lighter-load applications such as simple linear guidance or consumer-grade 3D printers.

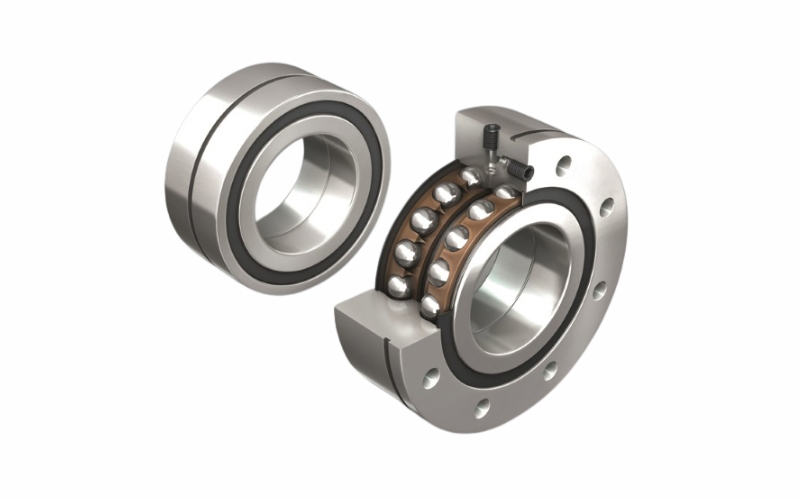

What Types Of Bearings Are Used In Ball Screws?
Ball Screws typically use specific types of bearings in their design to support the screw and ensure precise, smooth motion. Commonly used bearing types are:
- Angular contact ball bearings: capable of supporting both radial and axial loads.
Commonly used in the bearing end of ball screws, as these bearings can handle the compound loads due to the rotation and loading of the screw very well.
- Deep groove ball bearings: with simple structure, easy maintenance, low cost, and can withstand a certain radial and axial load.
They are usually used in the fixed end or supporting end of ball screws.
- Tapered roller bearings： especially suitable for heavy and shock loads, with high load-carrying capacity.
Such as large machinery and heavy equipment.
Advantages In Industrial Processes
1. Precision and accuracy:
Ball screw bearings are designed to provide excellent precision linear motion. This characteristic is critical for many industrial applications, especially in machine tools, automation systems and other areas where high precision motion is required. By reducing friction and backlash, ball screw bearings ensure that the system responds precisely to commands, thereby increasing the accuracy of the production process.
2. Efficiency and reduced wear:
The recirculating ball design greatly reduces friction, thereby increasing the efficiency of the entire system. Compared to traditional threaded drive systems, ball screw bearings reduce energy loss when converting rotary motion to linear motion. In addition, the reduced friction results in less wear and tear on the mechanical components of the system, extending the life of the ball screw bearing.
3. Longevity and reliability:
Ball screw bearings feature a robust construction and highly optimised design, enabling them to withstand high loads and remain stable. This not only helps to reduce maintenance requirements but also extends the life of the entire system. Their reliability makes ballscrew bearings ideal for applications that require long running times and consistent performance, such as production line equipment and automation systems.
4. Customised options:
Manufacturers offer ball screw bearings in a variety of sizes and dimensions for different application requirements. This customisation option allows companies to select the most appropriate product for their specific industrial application needs. From load capacity to speed requirements, the flexibility of ball screw bearings allows them to be adapted to a variety of different industrial scenarios.
5. Energy saving and high efficiency:
Due to their efficient design, ball screw bearings contribute to energy savings in industrial processes. Energy losses and wear are reduced, increasing the overall efficiency of the system. This is an important advantage for companies seeking sustainability and lower energy costs.
Where To Buy From
Price and advanced materials are important considerations when choosing a supplier. A good supplier will not only offer standard products, but will also be able to provide customised solutions for specific application requirements.
Ball screw bearings from FHD Bearings are a prime example of a company that uses advanced materials and technology to provide customized solutions and full technical support while maintaining competitive pricing and excellent customer service. Choosing FHD as a supplier ensures the purchase of a high quality ballscrew that meets your specific needs.
References
1. Detailed explanations of” Ball Screws“ are available from Medical Design Company
2. Sources on how “ball screws ”work are from Heason Company
