Understanding Noise Measurement in Ball and Roller Bearings
Introduction
Importance of Measuring Bearing Noise
The significance of noise measurement in bearings can’t be overstated. Noise isn’t merely a nuisance; it can be a harbinger of underlying mechanical issues. For engineers, detecting and analyzing noise early can prevent catastrophic failures, ensuring machinery runs smoothly and efficiently.
Overview of Ball and Roller Bearings
Bearings, the unsung heroes of machinery, come primarily in two types: ball and roller. Ball bearings use spherical balls to maintain the separation between the bearing races, reducing rotational friction. Roller bearings, on the other hand, use cylindrical rollers, offering higher load capacities and efficiency for various industrial applications.
Purpose of the Blog Post
This blog post aims to shed light on the intricacies of noise measurement in bearings. We will delve into the fundamentals, causes, measurement methods, and standards, providing a comprehensive understanding. By the end, you’ll have a robust grasp of how to tackle bearing noise effectively.
Types of Bearing Noise
Bearing noise can be an undesired sound produced during operation. It can result from various factors, such as wear and tear, contamination, and misalignment. Depending on the cause, bearing noise can range from a faint humming or whirring sound to a loud, grinding noise that can be heard from a distance1. Let’s break down the different categories of noise in rolling bearings:
1. Structural Vibration:
- Includes race, click, squeal, and cage noise.
- Can be continuous or intermittent.
- Understanding these specific noises helps identify their source and implement appropriate solutions.
2. Manufacturing Vibration:
- Arises from geometric imperfections.
- Produces continuous waviness noise.
- Addressing manufacturing-related noise involves precision and quality control.
3. Handling Vibration:
- Linked to flaws or contamination.
- Generates irregular noise during operation.
- Proper handling practices and contamination prevention are crucial.
4. Other Noise Sources:
- These may include factors beyond the structural and manufacturing aspects.
- Comprehensive noise analysis tools are essential for effective noise reduction strategies.
Specific Noises Explained
Race noise is the most basic, smooth, and continuous sound present in all bearings, used to assess quality. It is affected by factors such as speed, radial clearance, lubricant viscosity, and housing rigidity. Despite advanced machining technology, waviness in the raceways and rolling elements can still cause race noise. Click noise is more common in larger bearings at low speeds under radial loads, occurring when rolling elements collide with the cage or inner ring. Squeal noise, a metallic sound similar to metal sliding on metal, often occurs in large bearings under radial loads and is more frequent with grease lubrication at low temperatures. Cage noise results from the collision of the cage with rolling elements or rings and can be minimized by reducing mounting errors. Understanding these specific noises helps in developing better manufacturing and maintenance practices to reduce them.
Causes of Noise in Bearings
Manufacturing Defects
Manufacturing defects can manifest as surface irregularities or dimensional inaccuracies, leading to unwanted noise. Even minor imperfections in the bearing components can cause significant operational disruptions. Ensuring precision during manufacturing is essential to minimize these defects.
Installation Errors
Improper installation is a common culprit behind bearing noise. Misalignment, incorrect mounting, and the use of inappropriate tools can all introduce defects. Following correct installation procedures is crucial to avoid these issues and ensure optimal bearing performance.
Operational Conditions
Operational conditions such as load, speed, and temperature greatly influence bearing noise. Excessive loads or speeds beyond the bearing’s specifications can lead to noise generation. Regular monitoring and adjustment of operating parameters are vital for maintaining noise levels within acceptable limits.
Methods for Measuring Bearing Noise
Vibration Analysis
Vibration analysis is a powerful method for assessing bearing noise. By measuring the vibrations emitted from a bearing, engineers can detect irregularities and potential faults. This technique provides valuable insights into the bearing’s condition and helps in proactive maintenance.
Acoustic Emission Testing
Acoustic emission testing involves capturing the high-frequency sound waves produced by bearing components during operation. This method can identify cracks, fractures, and other defects early. It’s particularly useful for continuous monitoring and early fault detection.
Sound Pressure Level Measurement
Sound pressure level measurement quantifies the noise emitted from a bearing in decibels. This method provides a straightforward assessment of noise levels, helping to identify excessively noisy bearings. Regular sound pressure measurements can guide maintenance decisions and ensure compliance with noise standards.
Tools and Equipment for Noise Measurement
Vibration Meters
Vibration meters are essential tools for measuring the intensity and frequency of vibrations in bearings. These portable devices provide real-time data, enabling quick diagnostics and immediate corrective actions. By detecting and analyzing vibration patterns, engineers can identify early signs of wear, misalignment, or imbalance in the bearings. This timely information helps prevent unexpected machinery failures, reduces downtime, and extends the lifespan of the equipment. Vibration meters are a staple in any engineer’s toolkit for maintaining machinery health, ensuring that production processes run smoothly and efficiently.
Sound Level Meters
Sound level meters are used to measure the acoustic noise emitted from bearings. These devices offer precise readings of noise levels, which are crucial for identifying excessively noisy bearings that might indicate underlying issues. By quantifying the sound levels, engineers can determine whether the bearings are operating within acceptable noise limits and comply with industry standards. Sound level meters help ensure that machinery operates quietly, contributing to a safer and more comfortable working environment. Additionally, controlling noise levels is essential for meeting regulatory requirements and minimizing the impact of industrial noise pollution.
Spectrum Analyzers
Spectrum analyzers provide a detailed frequency analysis of noise, helping to pinpoint specific sources of bearing noise. These sophisticated instruments decompose the noise into its constituent frequencies, allowing engineers to identify and address the root causes of noise issues with pinpoint accuracy. By analyzing the frequency spectrum, engineers can distinguish between different types of noise, such as mechanical friction, electrical interference, or aerodynamic turbulence. Spectrum analyzers are invaluable for comprehensive diagnostics and troubleshooting, enabling engineers to implement targeted solutions and optimize bearing performance. Their advanced capabilities are crucial for maintaining high standards of quality and reliability in various industrial applications.

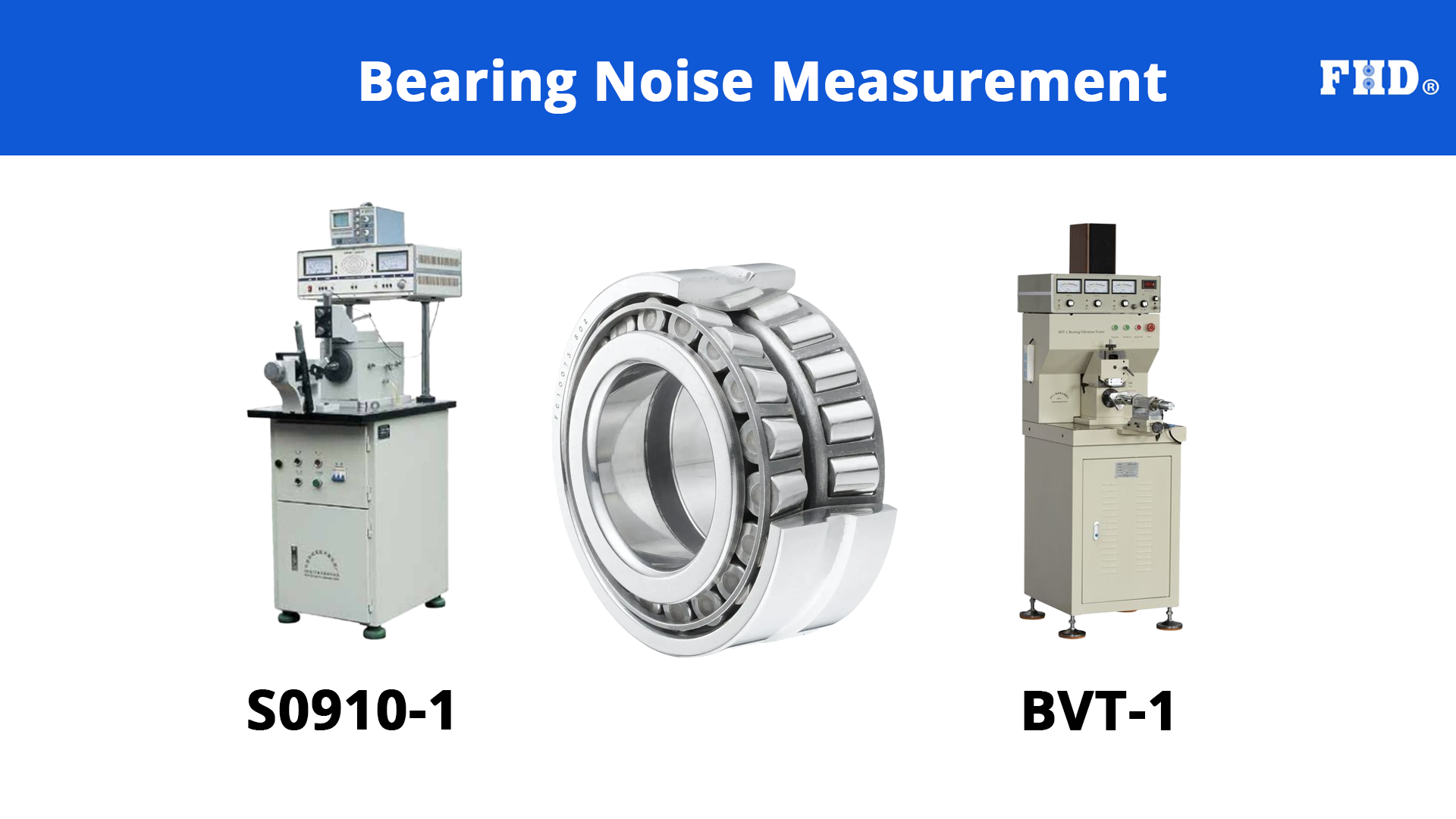

Testing Machine S0910-1
The S0910-1 is a specialized testing machine designed for advanced noise measurement in bearings. It combines multiple diagnostic tools to deliver comprehensive noise analysis, ensuring precise identification of issues that may affect bearing performance. This machine integrates vibration and sound level measurements with advanced data processing algorithms, providing a holistic view of the bearing’s condition. The S0910-1 is particularly useful for high-stakes applications where noise reduction is critical, such as in aerospace, automotive, and precision manufacturing industries. Its robust design and high accuracy make it an indispensable tool for quality assurance and continuous improvement in bearing manufacturing and maintenance.
Testing Machine BVT-1
The BVT-1 is a high-precision tool engineered for bearing noise testing. It excels in measuring both vibration and sound levels, providing detailed data for noise diagnostics. The BVT-1 utilizes state-of-the-art sensors and signal processing technology to deliver accurate and reliable results. Its advanced capabilities include real-time monitoring, trend analysis, and predictive maintenance insights. Using the BVT-1, engineers can identify potential issues before they escalate, ensuring optimal bearing performance and longevity. This device is particularly valuable for applications where precision and reliability are paramount, such as medical equipment, robotics, and high-speed machinery. The BVT-1 enhances maintenance programs’ overall efficiency and effectiveness, contributing to increased operational uptime and reduced maintenance costs.
Vibration Analysis in Bearings
Fundamentals of Vibration Analysis
Vibration analysis involves monitoring and interpreting the vibrations produced by bearings during operation. Understanding the fundamental principles, such as amplitude and frequency, is crucial. This analysis helps in diagnosing underlying issues and preventing potential failures.
How Vibration Analysis is Performed
Vibration analysis is typically performed using accelerometers and vibration sensors. These devices capture and transmit vibration data to analysis software, where it is interpreted. The process requires skilled personnel to accurately diagnose and address any issues detected.
Interpreting Vibration Analysis Results
Interpreting vibration analysis results involves understanding the patterns and anomalies in the vibration data. Engineers look for changes in amplitude and frequency that indicate wear, misalignment, or defects. Accurate interpretation is key to implementing effective maintenance strategies.
Acoustic Emission Testing
Principles of Acoustic Emission
Acoustic emission testing is based on the detection of transient elastic waves produced by the rapid release of energy from localized sources within a material. In bearings, this technique detects high-frequency sound waves generated by defects such as cracks or surface irregularities. Understanding these principles allows for early fault detection and prevention.
Equipment Used in Acoustic Emission Testing
The equipment used in acoustic emission testing includes sensors, preamplifiers, and data acquisition systems. Sensors are placed on the bearing surface to detect sound waves, while preamplifiers boost the signal for accurate data collection. These tools work together to provide a comprehensive analysis of bearing condition.
Advantages and Limitations of Acoustic Emission
Acoustic emission testing offers the advantage of early defect detection, allowing for proactive maintenance. However, it can be sensitive to external noise, requiring a controlled environment for accurate results. Despite these limitations, it remains a valuable tool for bearing diagnostics.
Sound Pressure Level Measurement
Basics of Sound Pressure Level
Sound pressure level (SPL) is a measure of the pressure variation caused by a sound wave, expressed in decibels (dB). In bearing noise measurement, SPL quantifies the loudness of the noise emitted. Understanding SPL basics is essential for assessing and managing noise levels in machinery.
Measuring Sound Pressure in Bearings
Measuring sound pressure in bearings involves using sound level meters to capture the noise emitted during operation. The meters provide dB readings, which help identify bearings that exceed acceptable noise thresholds. Regular measurements ensure bearings operate within specified noise limits.
Understanding Sound Pressure Level Readings
Interpreting SPL readings requires knowledge of decibel scales and thresholds. Higher dB levels indicate louder noises, which may suggest bearing issues. Understanding these readings helps engineers make informed decisions about maintenance and repairs.
Noise Measurement Procedures
Preparation for Bearing Noise Measurement
Preparation for noise measurement involves ensuring the bearing and surrounding environment are in suitable condition. This includes cleaning the bearing, checking for contamination, and setting up measurement equipment correctly. Proper preparation is crucial for obtaining accurate and reliable data.
Steps Involved in Noise Measurement
Noise measurement typically involves several steps: setting up the equipment, calibrating sensors, performing the measurement, and recording the data. Each step must be performed meticulously to ensure accurate results. Following a structured procedure helps maintain consistency in noise measurement.
Recording and Analyzing Data
Recording and analyzing data involves capturing noise measurements and interpreting the results. Data should be recorded systematically for future reference and analysis. Analyzing this data helps identify trends and anomalies, guiding maintenance and repair decisions.
Factors Influencing Bearing Noise
Load and Speed
The load and speed at which a bearing operates significantly influence the noise it generates. Higher loads and speeds can increase stress on the bearing, leading to elevated noise levels. Monitoring these factors is essential for managing and mitigating bearing noise.
Lubrication
Proper lubrication reduces friction and wear, which in turn minimizes noise. Inadequate or inappropriate lubrication can lead to increased friction and noise. Regular lubrication checks and maintenance are crucial for keeping bearing noise at acceptable levels.
Environmental Conditions
Environmental conditions such as temperature, humidity, and contamination can affect bearing noise. Extreme temperatures can alter material properties, while contamination can introduce noise-producing particles. Maintaining optimal environmental conditions is vital for minimizing bearing noise.
How to reduce Bearings Noise
Design Improvements
Design improvements such as optimized bearing geometry and material selection can reduce noise. Advanced design techniques can minimize surface irregularities and enhance load distribution. Continuous innovation in bearing design is key to achieving quieter operation.
Proper Installation Techniques
Proper installation techniques are essential for preventing noise. This includes ensuring correct alignment, using appropriate tools, and following manufacturer guidelines. Proper installation minimizes the risk of introducing defects that can lead to noise.
Maintenance Practices
Regular maintenance practices such as cleaning, lubrication, and inspection help reduce bearing noise. Proactive maintenance can identify potential issues before they escalate, ensuring smooth and quiet operation. Adopting a comprehensive maintenance strategy is crucial for long-term noise management.

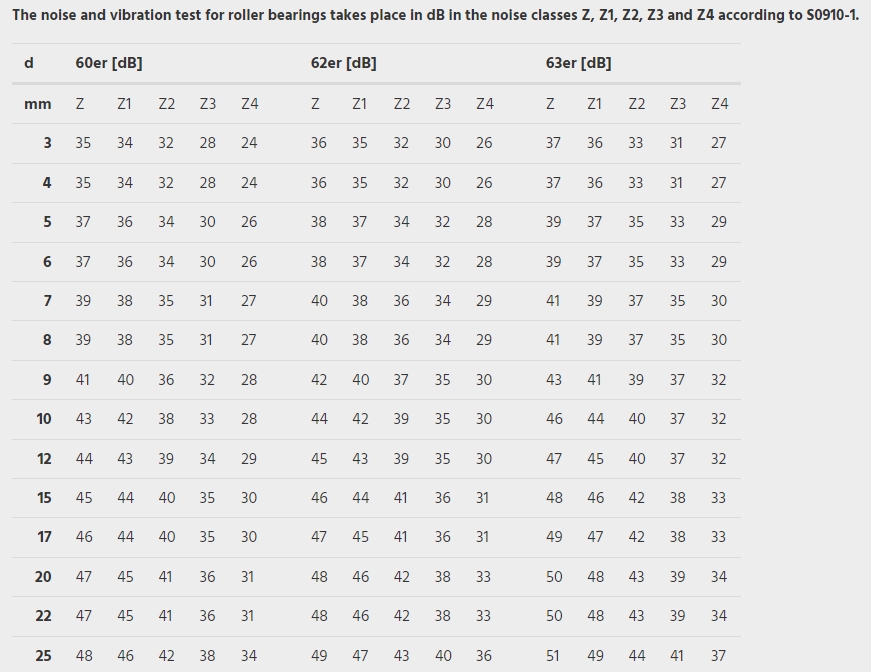

Noise test by vibration level for deep groove ball bearings

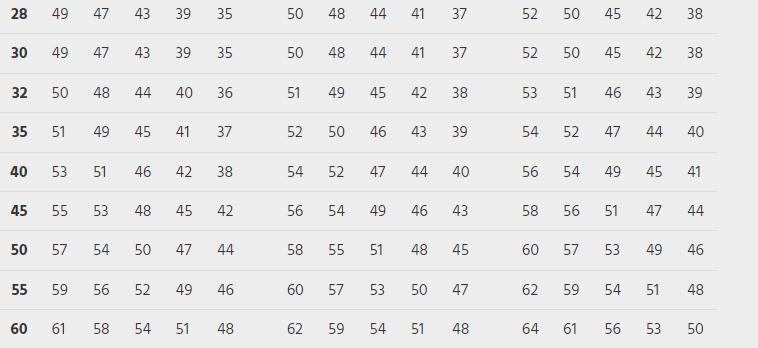

Noise test by vibration level for tapered roller bearings
Advanced Measurement Techniques
At FHDBearings, we use sophisticated equipment to measure noise across a wide frequency range (50 to 10,000 Hz). Advanced algorithms compare actual noise results with the natural frequencies of bearing components, identifying and correcting manufacturing issues. Techniques like time domain analysis, enveloping methods, and Fourier Transformation (FT) provide detailed noise insights, ensuring high-quality, low-noise bearings. These advanced techniques enable precise identification of noise sources, facilitating targeted interventions. By continuously refining these measurement methods, we stay ahead in delivering superior bearing solutions. Our commitment to advanced noise measurement underscores our dedication to quality and customer satisfaction.
Conclusion
Accurate noise measurement is essential for bearing manufacturers. FHD Bearings offers cutting-edge testing equipment to ensure our bearings meet the highest standards for quiet operation. By investing in advanced noise measurement technology and rigorous quality control, we are committed to delivering superior products that enhance the performance and longevity of machinery across various industries. Our ongoing innovation in noise reduction techniques sets us apart in the competitive bearing market. We aim to not only meet but exceed industry standards, ensuring our customers receive the best products available. For more information, contact us at info@fhdbearings.com.
