A Comprehensive Overview Of Bearing Retainers
Introduction
Bearing Retainers, also called bearing cages, are components in bearings that are part of the inner or outer ring and help prevent elements from agglomerating and rubbing against each other or wearing the raceways, thereby optimizing the overall performance of the bearing by ensuring stability and reducing wear. This article will take a closer look at the different types of Bearing Retainers, and their advantages, and provide insights into choosing the best Bearing Retainers for your application by understanding their construction and the various materials used in specific applications.
The Function Of Bearing Retainers
Bearing retainers play crucial roles in mechanical systems by ensuring that rolling elements like balls or rollers are evenly spaced, preventing clumping and ball-to-ball contact. This spacing is key for reducing friction and wear, allowing the bearing to operate at higher speeds and increasing its durability. Additionally, retainers help maintain consistent lubrication around the rolling elements and raceways, enhancing smooth operation and preventing premature wear.
Types Of Bearing Retainers
Bearing retainers, categorized broadly into ball bearing retainers and roller bearing retainers, are designed to meet different mechanical demands based on the nature of their applications.

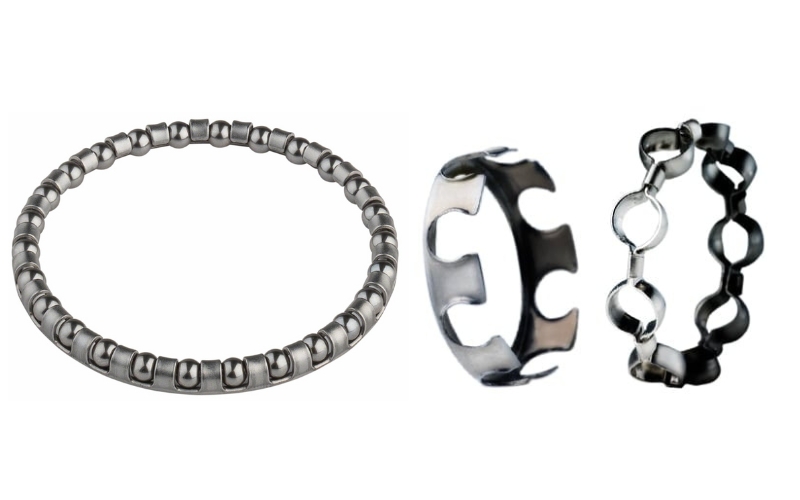

Ball bearing retainers are predominantly used in scenarios where low friction and high speed are essential. Examples include electric motors, automotive wheels, and hard drives.
In contrast, roller bearing retainers are built to support applications that involve heavier loads and require high-impact resistance. Roller bearings are generally cylindrical, spherical, or tapered. This makes roller bearing retainers ideal for applications such as conveyor belts, heavy machinery, and vehicle axles where the bearings must endure significant weight and force.
The Best Bearing Retainers Material For Your Application

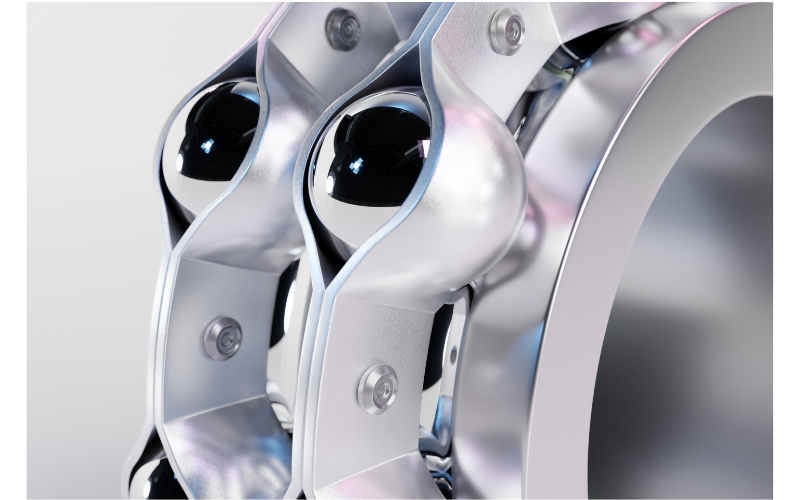

Metal Crown / Ribbon Retainers
Metal retainers, often made from steel or brass, are robust and designed to endure high loads and temperatures. Suitable for Deep groove ball bearings, Cylindrical roller bearings, and angular contact bearings.Temperature Range: Suitable for high-temperature environments, typically up to several hundred degrees Celsius.
Polyamide Retainers
Made from synthetic thermoplastics, polyamide retainers offer a good balance of strength and wear resistance. Suitable for Precision ball bearings, and spindle bearings.Temperature Range: usually up to 120°C.
Polyethylene Retainers
Polyethylene Retainers
Polyethylene is a lightweight, corrosion-resistant plastic. Able to operate in high-humidity environments and resist water absorption. Suitable for stainless steel bearings.Temperature range: Typically up to 80°C.
Reinforced Nylon Retainers (PA)
Nylon retainers are reinforced with fibers such as glass or carbon fibers to improve their performance. They have high strength and good wear resistance. Temperature range: typically up to 150°C.
PEEK Retainers
Polyether ether ketone (PEEK) is a high-performance thermoplastic with excellent mechanical and chemical resistance. Ideal for high-temperature and aggressive chemical environments.Temperature Range: Suitable for use in temperatures up to 250°C.
PTFE Retainers
Polytetrafluoroethylene (PTFE) is known for its outstanding low friction and chemical resistance properties. Offers the lowest friction among retainer materials and excellent performance in extreme conditions.Temperature Range: from cryogenic temperatures up to 260°C.
Full complement retainer
Without retainer and places more rolling elements inside the bearing. It helps increase load capacity but reduces the ability to handle high speeds. Temperature range: Depends on the materials of the rolling elements and raceways.

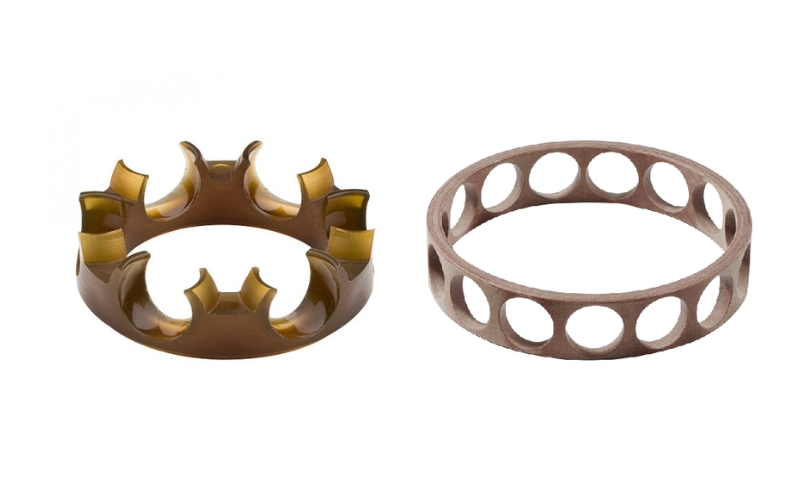

Differences Between Metal And Plastic Retainers
Metal and plastic retainers offer distinct advantages because they are made from different materials. Metal retainers are typically made from steel or brass and are valued for their superior strength and ability to withstand high temperatures.
On the other hand, plastic retainers made from materials such as polyamide, PEEK, or PTFE offer excellent corrosion resistance, making them suitable for applications exposed to harsh chemicals or high humidity environments, such as chemical processing or marine equipment. Plastic retainers are also lighter than metal retainers, helping to reduce the overall weight of the assembly and mitigate energy efficiency losses. Additionally, plastic retainers are quieter in operation and can reduce vibration.
Advantages Of Using Bearing Retainers
- Evenly spaced rolling elements – The retainer prevents rolling elements from clumping together and ensures they are evenly spaced, helping to evenly distribute loads on the bearing.
- Reduced friction – By maintaining proper spacing between rolling elements, retainers reduce friction and wear.
- Extended Bearing Lifespan – With reduced friction and even load distribution, overall stress on the bearing is reduced.
- Increase operating speeds – Retainers help the elements within the bearing roll more smoothly, allowing for higher operating speeds.
- Improve lubrication efficiency – Retainers help maintain lubricant distribution within the bearing, ensuring adequate lubrication, which reduces wear and overheating.
- Prevent element deformation and damage – By holding rolling elements in place, bearing retainers help prevent them from falling out or becoming damaged under high speed or high load conditions.
- Reduce noise and vibration – Bearing retainers can also provide quieter operation and reduce vibration.
Common Bearing Retainers Problems
In the case of long-term use, the bearing retainer will have these problems.，that can lead to retainer failure and bearing malfunction:
- Material Fatigue
- Improper Installation
- Lubrication Failure
- Corrosion
- Excessive Load
- High Operating Temperatures
- Contamination
Addressing these issues promptly is crucial to maintaining bearing integrity and functionality, thereby extending the life of the machinery or application in which they are used.
Factors To Consider When Selecting A Bearing Retainer
➊ Load: The greater the load, the stronger the retainer material.
➋ Speed: High-speed applications require retainers that reduce friction and withstand centrifugal forces.
➌ Temperature: Retainers must operate effectively over the operating temperature range.
➍ Corrosion: Corrosive substances or high-humidity environments require corrosion-resistant materials like stainless steel or certain polymers.
➎ Contamination: Environments that may be contaminated by dirt, dust, or chemicals require retainers that resist wear and prevent debris from compromising the function of the bearing.
➏ Strength: The retainer must be strong enough to maintain its integrity under the expected loads and operating conditions.
➐ Wear resistance: The retainer should be made of a material that can resist wear from continuous contact with the rolling elements and any external contaminants.
How Bearing Retainers Improve Performance
Bearing Retainers are essential for reducing friction within bearings by maintaining optimal spacing between rolling elements. This spacing prevents excessive contact between elements and with other parts of the bearing, minimizing friction for smoother, more efficient operation. By ensuring that rolling elements are evenly spaced and move freely, cages also help maintain alignment of these elements during rotation. This alignment is critical because it prevents tilting and imbalance, which can prevent uneven wear and potentially catastrophic bearing failure.
In addition, Bearing Retainers improve the durability of the entire bearing system. By holding rolling elements in precise positions, they prevent these components from colliding with each other or scraping against the raceways, significantly reducing the risk of premature wear and failure.
In addition to this, Bearing Retainers act as a physical barrier, reducing direct contact between the rolling elements and other parts of the bearing, thereby reducing the wear rate and extending the life of the bearing. This ensures that the bearing continues to operate with minimal internal resistance. Therefore, the design and material selection of Bearing Retainers are key considerations in bearing engineering to ensure that they meet the specific needs of their application, thereby maximizing performance and service life.
Conclusion
Overall, choosing the right Bearing Retainers is critical to achieving optimal performance, durability, and reliability of bearings used in a variety of mechanical applications. Bearing Retainers significantly reduce friction and wear by managing the spacing and alignment of rolling elements, thereby improving the efficiency and life of the entire bearing. Different types of Bearing Retainers are made of different materials and have unique advantages suitable for specific conditions – whether it is high loads, speeds or corrosive environments. Therefore, it is important to understand the characteristics and benefits of each retainer type to ensure that the retainer you choose meets the specific needs of the application, thereby maximizing the operating efficiency and life of the bearing.
References
- 1. Something about Navigating“ bearing retainers ”design options from BEARING TIPS
- 2.” Bearing Retainers “and Cages Information From GlobalSpec
