Bearing Splitters Explained: Detailed Insights and Practical Advice
Introduction
Functionality of Bearing Splitters
Mechanics Behind Bearing Separation
The functionality of bearing splitters revolves around their ability to safely separate bearings from shafts or housings without causing damage. They work by applying controlled force to create a gap between the bearing and its mounting surface, allowing for easy removal. The mechanics behind this separation involve utilizing hydraulic pressure or manual force to expand the splitter jaws, which grip the bearing securely. Once in position, the splitter exerts outward pressure, gradually pushing the bearing away from its seat. This process is essential for tasks like replacing worn bearings or performing maintenance on machinery. By efficiently dislodging bearings, splitters save time and effort compared to traditional methods, making them a go-to tool for mechanics and engineers alike. Whether in a garage workshop or a manufacturing plant, the mechanics behind bearing splitters ensure smooth operations and reliable results.

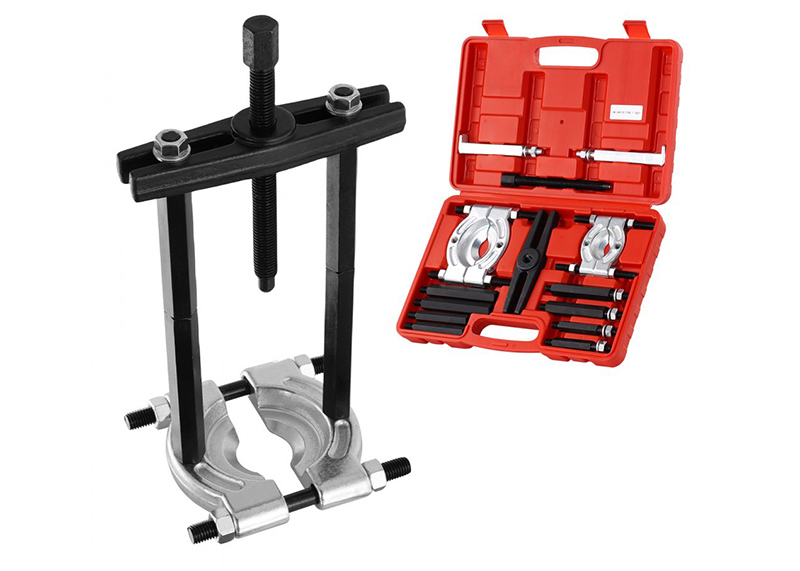

Key Components of Bearing Splitters
The functionality of bearing splitters relies on several key components working together seamlessly. These typically include sturdy jaws or arms that grip the bearing securely, often adjustable to accommodate various sizes. Additionally, there’s usually a threaded rod or hydraulic cylinder mechanism to exert force on the splitter jaws, creating the necessary separation between the bearing and its housing. Some splitters may feature a hydraulic pump or hand-operated lever for applying pressure, while others might integrate with a hydraulic press for more significant force. The design often incorporates durable materials like hardened steel or aluminum to withstand the rigors of frequent use. Overall, these components ensure that bearing splitters deliver reliable performance and longevity, making them essential tools for any mechanic or technician dealing with bearing-related tasks.
Operational Mechanisms
The operational mechanisms of bearing splitters vary depending on their design and type. Hydraulic bearing splitters typically utilize a hydraulic pump to generate pressure, which is then transmitted to the splitter jaws or arms, causing them to expand and create separation. This hydraulic system allows for precise control over the amount of force applied, making it suitable for a wide range of bearing sizes and tightness levels. On the other hand, manual bearing splitters rely on hand-operated levers or screws to exert force on the splitter arms, requiring physical effort from the user. While hydraulic splitters offer greater convenience and efficiency, manual splitters can still be effective for smaller tasks or in situations where a hydraulic system is not available. Regardless of the operational mechanism, bearing splitters provide a reliable and efficient solution for removing bearings in various mechanical applications.
Types of Bearing Splitters
There are primarily two types of bearing splitters: hydraulic and manual. Hydraulic bearing splitters are powered by a hydraulic pump, which applies pressure to expand the splitter jaws or arms, allowing for controlled separation of the bearing from its mounting surface. These splitters offer precise force adjustment and are suitable for a wide range of bearing sizes and tightness levels. They are often favored for heavy-duty applications and professional use due to their efficiency and convenience. On the other hand, manual bearing splitters rely on hand-operated levers or screws to exert force on the splitter arms, requiring physical effort from the user. While they may not offer the same level of precision and ease of use as hydraulic splitters, manual splitters are still effective for smaller tasks or situations where a hydraulic system is not available. Both types of bearing splitters play essential roles in mechanical work, providing reliable solutions for bearing removal in various industrial and automotive settings.
Factors to Consider When Choosing Bearing Splitters
Bearing Size and Compatibility
When selecting a bearing splitter, one crucial factor to consider is the size and compatibility with the bearings you’ll be working with. Different splitters are designed to handle specific ranges of bearing sizes, so it’s essential to ensure that the splitter you choose can accommodate the bearings you need to remove or install. Compatibility also extends to the type of bearings, whether they’re ball bearings, roller bearings, or other variations. Choosing a splitter that aligns with the size and type of bearings you commonly work with will ensure optimal performance and efficiency in your mechanical tasks. Additionally, considering compatibility reduces the risk of damaging the bearings or surrounding components during the removal process, ultimately saving time and resources.
Load Capacity and Durability
When picking out a bearing splitter, it’s crucial to pay attention to its load capacity and durability. The load capacity refers to the maximum amount of force the splitter can handle without breaking or deforming. You want a splitter that can tackle the workload you’ll throw at it without buckling under pressure. Durability is equally important—you need a tool that can withstand repeated use without wearing out or falling apart. Look for splitters made from robust materials like hardened steel or aluminum, as they’ll hold up better over time. Investing in a splitter with a high load capacity and excellent durability ensures that it can handle whatever tasks you throw its way, making it a reliable tool in your workshop arsenal.
Ease of Use and Maintenance
When selecting a bearing splitter, it’s important to consider factors like ease of use and maintenance. You want a splitter that’s straightforward to operate, with intuitive controls and ergonomic design. A user-friendly splitter saves you time and frustration, allowing you to focus on the task at hand without struggling with complicated mechanisms. Additionally, consider the maintenance requirements of the splitter. Opt for models that are easy to clean and lubricate, with accessible components that can be inspected and serviced as needed. Choosing a splitter that’s easy to use and maintain ensures smooth operations and prolongs the lifespan of the tool, ultimately saving you both time and money in the long run.
Applications of Bearing Splitters
Bearing splitters find wide-ranging applications across various industries, thanks to their versatility and effectiveness in bearing removal tasks. In the automotive sector, they’re commonly used for tasks like removing wheel bearings and extracting transmission bearings. Mechanics and technicians rely on splitters to streamline maintenance and repair operations, reducing downtime and ensuring vehicles are back on the road quickly.
In manufacturing and industrial settings, bearing splitters play a crucial role in equipment maintenance and repair, helping to keep production lines running smoothly. Whether it’s disassembling machinery for routine maintenance or replacing worn bearings during equipment overhaul, splitters provide a reliable solution for separating bearings from shafts and housings.
Their applications extend beyond mechanical work, finding use in construction, mining, and other sectors where bearings are integral components in machinery and equipment. Overall, bearing splitters are indispensable tools for any industry where efficient bearing removal is essential for maintaining productivity and minimizing downtime.

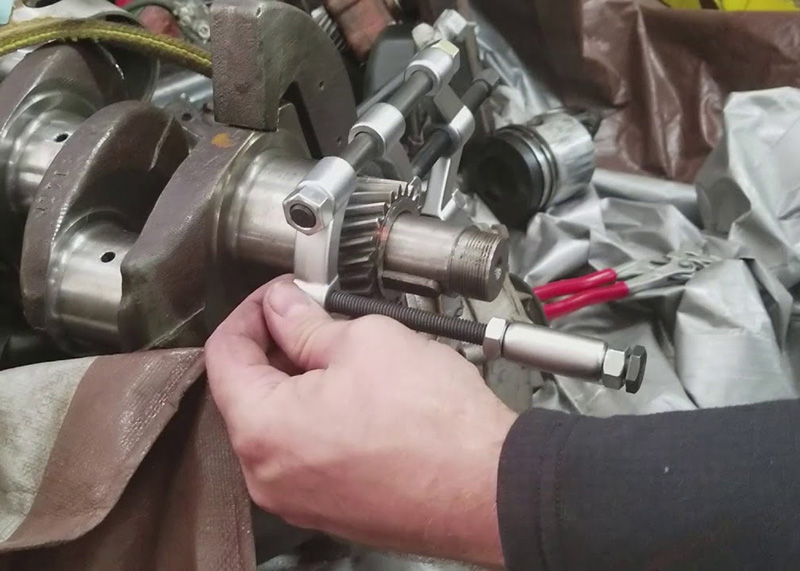

Techniques for Using Bearing Splitters
Using bearing splitters effectively requires some key techniques to ensure safety and efficiency. Start by preparing your work area, making sure it’s clean and organized. Position the bearing splitter correctly around the bearing, ensuring the jaws are evenly aligned for a firm grip. This alignment is crucial to avoid damaging the bearing or surrounding components.
Once everything is in place, gradually apply force using the hydraulic pump or manual lever, depending on your splitter type. It’s important to apply pressure slowly and steadily to allow the splitter to work its way between the bearing and its seat without causing sudden jolts or slips. Safety should always be a priority, so wear appropriate protective gear and follow any manufacturer guidelines.
After the bearing is removed, inspect both the splitter and the bearing for any signs of damage. By following these techniques, you can efficiently and safely use bearing splitters to remove bearings from various machinery and equipment.
Maintenance and Care of Bearing Splitters
Proper maintenance and care of bearing splitters are essential for their longevity and performance. Start by regularly cleaning the splitter after each use, removing any dirt, grease, or debris that can accumulate and cause wear over time. Use a brush and mild solvent if necessary, but avoid harsh chemicals that could damage the tool’s components. Lubrication is another key aspect; ensure all moving parts, especially the jaws and threaded rods, are well-oiled to prevent rust and ensure smooth operation.
Inspect the splitter frequently for any signs of wear or damage, such as cracks in the jaws or stripped threads. Address these issues promptly to avoid further damage or potential accidents during use. Store your bearing splitter in a clean, dry place to protect it from environmental factors like moisture and dust, which can degrade the tool over time. By following these simple maintenance steps, you can keep your bearing splitter in top condition, ensuring it remains a reliable tool in your workshop for years to come.
Common Issues and Troubleshooting
Conclusion
References
- 1.”Bearing Splitters & Sets” from Grainger;
- 2. “How To Use A Bearing Separator” from YouTube;
- 3. “Bearing Separator and Puller Set” from Harbor Freight Tools.
