Bearings Vibration and Noise: What Does Z1, Z2, Z3 & V1, V2, V3 Mean?
Table of Contents
Understanding Vibration and Its Units
Vibration is a phenomenon that encompasses a wide spectrum of experiences, from pleasant to perilous. In this article, we delve into the realm of vibrations and explore the various units associated with this intricate subject.
What is Bearings Vibration?
Vibration, while not possessing a specific physical unit, is a complex signal that characterizes the state of an object subjected to physical acceleration due to diverse forces. Typically, vibrations manifest when an object repetitively moves within a specific range but remains around an equilibrium point. When quantifying vibrations, they are expressed using units related to Frequency, Velocity, Acceleration, and Displacement, denoted as f, v, a, and d. This is due to the fact that vibrations are, in essence, a composite of numerous frequencies at varying amplitudes.
Units of Bearings Vibration
The question of what constitutes the unit of vibration is not straightforward. It depends on the properties of the vibration in question. Here, we break down the topic and explore the different units associated with vibration:
Frequency (f)
Frequency measures the number of cycles or repetitions generated by a vibrating object in one second. It is quantified in Hertz (Hz), representing cycles per second.
Displacement (d)
Displacement refers to the amplitude, or the distance between the peaks of vibration. It also signifies the distance a vibrating object deviates from its fixed position. Units for displacement can include meters (m), micrometers (μm), and millimeters (mm).
Velocity (v)
Velocity corresponds to the maximum speed reached by a vibrating object during its vibration cycle. Units such as millimeters per second (mm/s) or centimeters per second (cm/s) are used to measure the rate of change in displacement (d) over time.
Acceleration (a)
Acceleration is defined as the rate of change of velocity (v) per unit time. Vibration can be quantified in units such as meters per second squared (m/s²), centimeters per second squared (cm/s²), or millimeters per second squared (mm/s²).
Other Possible Units
In the context of ‘vibration’ as sound, the relevant SI unit is watts per square meter (W/m²).
Understanding these units is essential when dealing with vibrations in diverse applications, whether it’s the melodic hum of a guitar string or the seismic threat of an earthquake.
Bearings Vibration Ratings (Z1, Z2, Z3)
Introduction
Bearing quality is paramount in various industries where precision, reliability, and performance matter. Two critical factors that determine a bearing’s quality are vibration and noise ratings. In this article, we will delve into the mysteries of Z1, Z2, Z3, V1, V2, and V3 ratings, and their significance in the world of bearings.
Explaining Z1 Vibration Rating
When it comes to bearing quality, Z1 is an important factor. This rating denotes the lowest vibration level and meets strict industry standards. Bearings with a Z1 rating are ideal for applications where even the slightest vibration can be detrimental. These bearings are often used in precision machinery, medical equipment, and aerospace.
Delving into Z2 Vibration Rating
Z2, the next level up, allows for slightly more vibration but is still considered high quality. Comparing Z1 and Z2, you’ll notice a subtle difference in performance. Z2-rated bearings find applications in various industries, including automotive and manufacturing, where the balance between cost and performance is crucial.
Understanding Z3 Vibration Rating
Z3 is the pinnacle of vibration ratings. Bearings with a Z3 rating offer the highest standard of vibration control. They are used in applications where extreme precision and minimal vibration are essential, such as in optical instruments and certain medical devices.

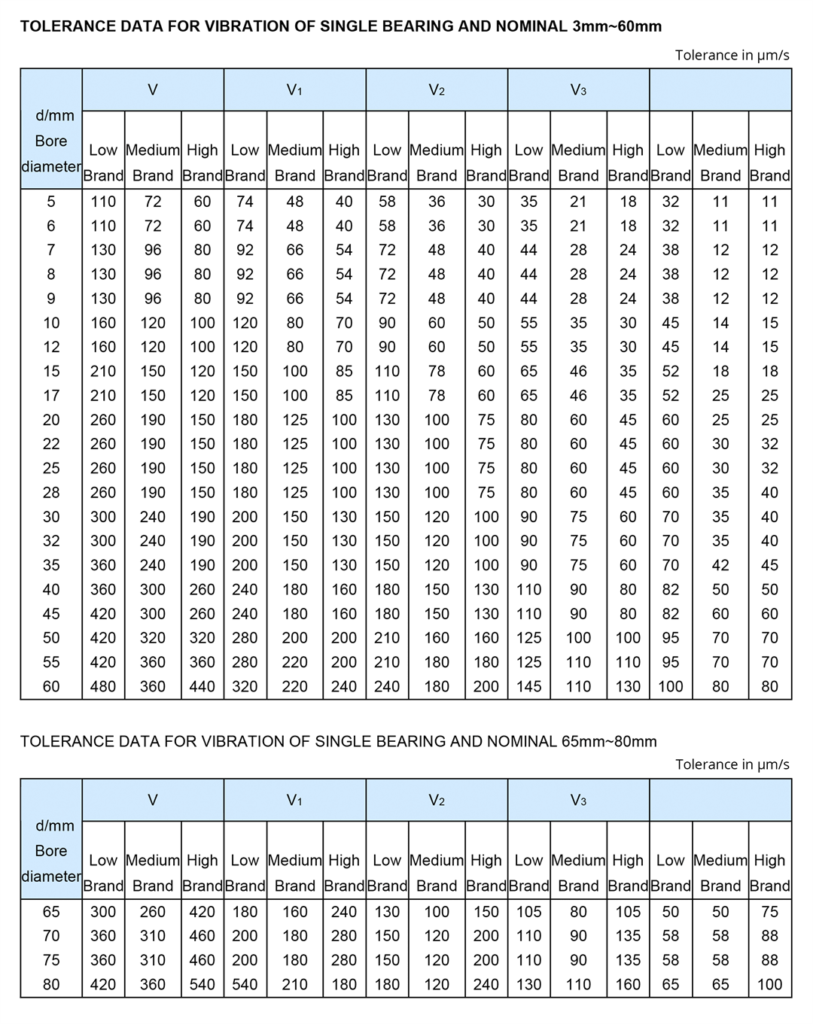

Bearings Noise Ratings (V1, V2, V3)
Deciphering V1 Noise Rating
V1 noise-rated bearings are engineered for minimal noise production. They are vital in applications where reducing noise is critical, such as in electric motors for office equipment or appliances. These bearings contribute to quieter and more comfortable experiences.
Exploring V2 Noise Rating
V2 noise ratings represent a slightly higher noise level but are still considered good quality. When comparing V1 and V2, the difference in noise levels is noticeable. Bearings with a V2 rating are often used in situations where noise reduction techniques can be employed to achieve the desired noise level.
Unveiling V3 Noise Rating
V3 noise-rated bearings are the quietest in the spectrum. They are used in precision machinery and other applications where silence is golden. These bearings offer the advantage of exceptionally low noise levels, ensuring optimal performance in sensitive environments.
Correlation Between Vibration and Noise
How Vibration Relates to Noise
Vibration and noise are closely linked. Excessive vibration often leads to increased noise levels. This relationship is particularly evident in mechanical systems where components interact dynamically. For instance, in automotive engines, the vibrations from moving parts can generate noise that affects both performance and passenger comfort. Understanding this correlation is crucial for engineers and designers looking to optimize machine performance. By studying the vibration patterns, they can identify potential sources of noise and implement measures to reduce it, enhancing the overall efficiency and user experience of their products.
Analyzing Bearing Characteristics
In the world of engineering, selecting the right combination of bearings is key to achieving the desired level of vibration and noise. Different types of bearings can significantly influence the performance and longevity of mechanical systems. For example, precision-engineered bearings can minimize friction and reduce vibration, leading to quieter operation. Case studies from various industries will highlight the real-world applications of these ratings. These examples will demonstrate how proper bearing selection can improve machinery performance, reduce maintenance costs, and extend the lifespan of equipment. By examining these case studies, engineers can gain valuable insights into the practical benefits of using high-quality bearings in their designs.
Application of Z1, Z2, Z3 & V1, V2, V3 in Industry
Automotive Sector
In the automotive industry, vibration and noise ratings play a significant role in ensuring a smooth and comfortable ride. Different ratings are preferred for various automotive components, considering factors like cost and performance. For instance, Z3 and V3-rated bearings might be used in high-end vehicles where noise reduction is paramount, while Z1 and V1-rated bearings might be more suitable for cost-effective, mass-market models. The choice of bearing ratings directly impacts the overall driving experience and longevity of vehicle components.
Manufacturing Machinery
Reducing downtime in manufacturing processes is essential. Noise control through bearing selection can significantly contribute to a more efficient and productive manufacturing environment. By choosing bearings with appropriate Z and V ratings, manufacturers can minimize machinery vibrations, leading to longer equipment life and fewer maintenance interruptions. Additionally, improved noise control enhances worker comfort and can lead to a more pleasant and safer workplace environment.
Aerospace and Precision Instruments
In industries like aerospace and precision instruments, Z3 and V3-rated bearings are indispensable. Their ability to maintain low vibration and noise levels is vital for precision, reliability, and safety. In aerospace applications, these high-rated bearings ensure that critical components operate smoothly under extreme conditions, reducing the risk of mechanical failure. Similarly, in precision instruments, maintaining minimal vibration is crucial for the accuracy and functionality of sensitive equipment, ensuring consistent performance and high-quality results.
Mining and Heavy Equipment
In the rugged world of mining and heavy equipment, bearings must withstand extreme conditions. Understanding Z and V ratings is crucial for selecting the right bearings to ensure operational efficiency and safety. Bearings with higher Z and V ratings can endure the harsh environments and heavy loads typical in mining operations, leading to reduced downtime and maintenance costs. Furthermore, the right bearing choice can significantly enhance the safety of heavy equipment, preventing accidents and extending the lifespan of costly machinery.
Selecting Bearings Based on Z and V Ratings
Tips for Bearing Selection
Choosing the right bearing involves balancing cost and performance. Z1-rated bearings might be the best choice for applications demanding high precision, as they offer superior accuracy. On the other hand, if noise reduction is a priority, V3-rated bearings are known for their silent operation, making them ideal for environments where noise is a concern. We’ll provide practical tips to help you make informed decisions, about whether you need Z1-rated bearings for precision or V3-rated bearings for silence. Understanding the specific requirements of your application will help you select the most appropriate bearing, ensuring optimal performance and longevity.
Custom Orders and OEM Solutions
Sometimes, standard bearings won’t cut it. Custom orders and OEM (Original Equipment Manufacturer) solutions can address unique challenges that off-the-shelf products cannot. We’ll explore how to work with suppliers to meet specific requirements and ensure your machinery operates at its best. Collaborating closely with manufacturers can lead to the development of bearings tailored to your exact specifications, enhancing efficiency and reliability in your operations. Additionally, understanding the customization process can help you anticipate lead times and costs associated with bespoke bearing solutions.
Testing and Quality Assurance
Quality Inspection Procedures
Ensuring that your bearings meet the desired Z and V ratings involves rigorous quality inspection procedures. These procedures typically include dimensional checks, material verification, and performance testing to confirm compliance with specified standards. We’ll walk you through the steps to verify the quality of your bearings, ensuring they perform reliably in their intended applications. Regular inspection and adherence to stringent quality control measures can prevent failures and extend the service life of your bearings, reducing maintenance costs and downtime.
In-house vs. Third-party Testing
When it comes to testing, should you rely on in-house quality control or third-party testing facilities? In-house testing allows for direct oversight and quick adjustments during the production process. We’ll discuss the pros and cons of each approach, including cost considerations, reliability, and potential biases. Third-party testing, on the other hand, provides an unbiased evaluation and may offer specialized testing capabilities that are not available in-house. Understanding the advantages and limitations of each option can help you decide the best testing strategy for your specific needs, ensuring the highest quality and performance of your bearings.
Overcoming Common Challenges
In the bearing industry, several challenges can impede efficient operations and product quality. From communication issues with suppliers to delays in shipments and the threat of certificate fraud, businesses need effective strategies to navigate these obstacles. By addressing these common challenges head-on, companies can maintain high standards and ensure customer satisfaction.
Inefficient Communication with Suppliers
Efficient communication with bearing suppliers is essential to get the quality you need. Clear and consistent communication helps in setting the right expectations and ensuring that both parties are on the same page. We’ll provide strategies to improve your interaction with suppliers, including utilizing modern communication tools and establishing regular check-ins to monitor progress and address any issues promptly.
Addressing Delayed Shipments
Dealing with delays in bearing shipments can be frustrating and costly. Such delays can disrupt production schedules and lead to a loss of customer trust. We’ll explore strategies to ensure timely deliveries and avoid missing peak sales seasons, such as building strong relationships with reliable logistics partners and implementing a robust tracking system to anticipate and mitigate potential delays.
Dealing with Certificate Fraud
Certificate fraud is a common challenge in the industry, posing significant risks to product quality and brand reputation. Ensuring the authenticity of certificates is crucial for maintaining trust and compliance with industry standards. We’ll discuss steps to ensure the authenticity of quality certificates provided by suppliers, including conducting thorough audits and leveraging blockchain technology to verify and trace certificate origins.
Conclusion
Balancing vibration and noise levels in bearings is an art that directly impacts the performance of various machines and equipment. Properly balanced bearings lead to smoother operations and extended machinery lifespan. Making informed choices based on Z1, Z2, Z3, V1, V2, and V3 ratings can elevate your business by ensuring the right bearing quality for your specific needs. By understanding these ratings and their implications, businesses can optimize their machinery and enhance overall efficiency.
Reference
1. Ball Bearing Noise and Vibration from SMB bearings;
2. Ball Bearing Noise and Vibration from Bearing News;
3. Types of Vibration and Sound in Bearings from Luoyang Huigong Bearing Technology Co.,Ltd.
