Essential Insights Into Cartridge Bearings: What You Need To Know
Introduction
The main difference between cartridge bearings and other common types of bearings, such as ball bearings and sealed bearings, is their “integrated” design. In traditional ball bearings, the balls usually roll freely between the inner and outer rings, whereas in cartridge bearings, the balls are fixed in a unit that can be replaced in one piece. This design can effectively enhance the overall stability and dustproof and waterproof capabilities, provide more comprehensive protection for the closed structure, and is more suitable for extreme environments and highly polluted applications. Let’s learn the basics about cartridge bearings and understand how they differ from traditional bearings.
Understanding Cartridge Bearings
Cartridge bearings are a type of complete, enclosed unit typically consisting of an inner ring, an outer ring, a retainer, and balls. What distinguishes these bearings is that all components are encapsulated within a single unit, unlike traditional bearings where the components are usually separate. This design not only simplifies the installation process but also makes the bearings easier to maintain and replace.

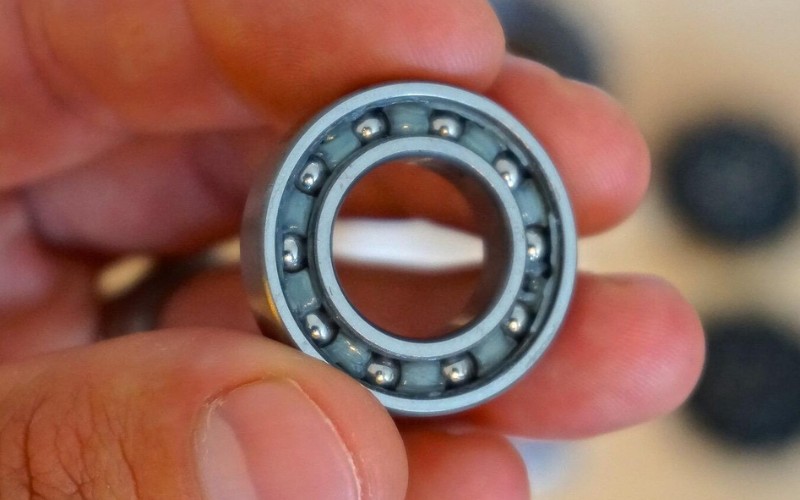

Structure And Components Of Cartridge Bearings
- Inner Ring: This is the smaller ring located inside the bearing and typically mounts onto a shaft.
- Outer Ring: This is the larger ring that forms the exterior of the bearing.
- Balls: These are the rolling elements sandwiched between the inner and outer rings and facilitate smooth rotation. They can be made of steel, ceramic or other materials.

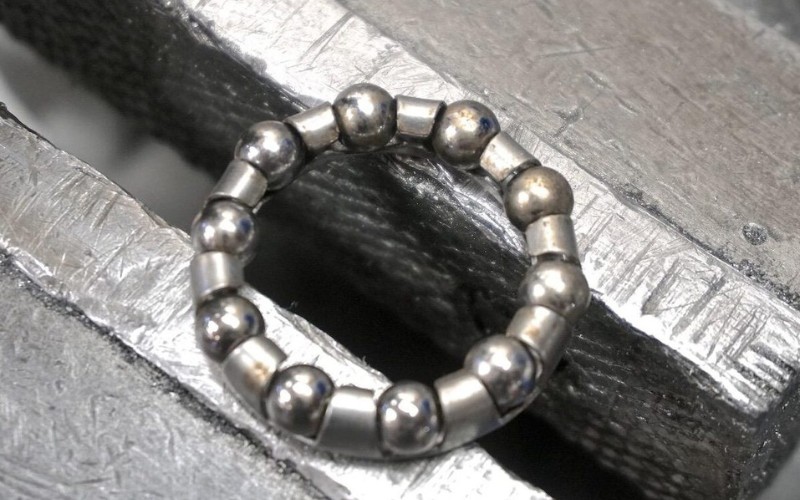

- Cage: Also known as a retainer, this component holds the balls at equal distances from each other to ensure balanced distribution of load.
- Seals: Cartridge bearings are equipped with seals on both sides to prevent the ingress of dirt and the egress of lubricant.
Key Features And Design Characteristics
Cartridge bearings, as a self-contained unit, are sealed to help prevent contamination and maintain lubrication, also allowing for easy installation and replacement without detailed assembly or adjustments. Because this sealing design prevents contaminants from entering and retains grease, maintenance requirements are also significantly reduced.
Material Of Cartridge Bearings
The inner and outer rings and balls of most cartridge bearings are made of high-strength, wear-resistant steel, such as chromium steel or stainless steel, which provide good durability and load-bearing capacity.
In some high-end or special applications, the balls may be made of ceramic materials, such as silicate ceramics. Ceramic balls are lighter than steel balls, more wear-resistant, reduce friction, and improve bearing performance and life.
Cages are usually made of nylon or other engineering plastics, which provide good wear resistance and reduce friction.
The material used for sealing is usually rubber or other soft synthetic materials to ensure good sealing performance, prevent contaminants from entering the inside of the bearing, and keep lubricant from leaking.
Advantages Of Cartridge Bearings
Durability and reliability
- Overall closed structure: The cartridge bearing adopts a closed design, which can effectively prevent the intrusion of dust, moisture, and other pollutants. Can maintain long-term performance stability.
- High-quality materials: Typically manufactured from advanced materials such as high-strength steel or ceramics, which offer excellent wear and fatigue resistance.
- Pre-lubricated: Most cartridge bearings are pre-filled with grease at the factory. This pre-lubricated state helps the bearing maintain optimal performance throughout its service life, further enhancing its reliability.
Ease of installation and maintenance
Due to the integrated design, the cartridge bearing can be directly installed on the equipment as a whole without the need for complicated assembly processes. When bearings need replacing, the entire unit can be quickly and easily removed and replaced without the need for complex disassembly of the equipment. The sealed design reduces the need for periodic cleaning or relubrication, reducing maintenance costs and downtime.
Improved performance due to precision manufacturing
High-precision processes are used in the production of cartridge bearings to ensure optimal size and fit accuracy of all components, providing smooth operation and efficient load-carrying capabilities. Precision manufacturing processes and the use of high-quality materials reduce internal friction, making cartridge bearings more efficient in power transmission, especially suitable for applications requiring high-speed operation. The precise design makes the cartridge bearings generate less noise and vibration during operation, improving the operating quality of the overall equipment.
Common Applications Of Cartridge Bearings
Cartridge bearings are widely used in multiple industries due to their high durability and convenience in design. like:
Use in bicycles
- Wheels: Cartridge bearings in bicycle wheels provide smooth rotation and good durability, making for a smoother ride and less frequent maintenance.
- Cartridge Bearing Bottom Bracket: The bottom bracket is a key component connecting the pedal and the frame. The use of cartridge bearings can effectively improve the smoothness of the pedal rotation and the stability of the overall structure.
- Cartridge Bearing Headset: The head tube bearing is the key connection component between the bicycle front fork and the frame, ensuring smooth directional steering.
Industrial applications
- Motor: In motors, cartridge bearings are used to support the shaft, maintain its correct rotational position, and reduce friction.
- Conveyor Belts: Cartridge bearings in conveyor belt systems help keep the drums rotating smoothly.
- Fans: In industrial fans, cartridge bearings are used to support the fan blades to ensure stability and efficiency when operating at high speeds.
Car use
- Wheel Hubs: A car’s wheel hubs use cartridge bearings to provide smooth wheel rotation and the ability to carry the vehicle’s weight.
- Steering mechanism: The use of cartridge bearings in a car’s steering system can improve steering accuracy and response speed.
How Water-resistant Are Cartridge Bearings?
Cartridge bearings are designed with full consideration for use in humid and moist environments, so they have excellent waterproof performance. This type of bearing usually adopts a sealed design, in which the grease inside the bearing is sealed in a strong shell, effectively preventing the intrusion of moisture and other contaminants. During the manufacturing process of this sealing technology, sealing materials such as rubber or special synthetic materials are used, which are not only waterproof, but also dustproof and corrosion-proof, increasing the service life and reliability of the bearings.
In addition, the waterproof design of cartridge bearings provides a reliable foundation for its wide range of applications in various industries, especially in environments that require water resistance, corrosion resistance, and long-term reliability.
Which Is Better, Cartridge Bearings Vs Sealed Bearings?
Although cartridge bearings and sealed bearings are similar in many ways, particularly in providing protection and ease of maintenance, there are some key differences in their design and application areas. First of all, cartridge bearings are an integral design that usually includes a housing with the bearing and grease inside. This structure makes the bearings easier to install and replace and reduces the possibility of installation errors due to its pre-assembled nature. sex. Cartridge bearings are particularly suitable for applications that require frequent bearing replacement, such as bicycles or light industrial equipment, as they are designed to allow for quick replacement and upgrades.
Sealed bearings emphasize providing a seal between each rolling element of the bearing. This design can more effectively prevent the intrusion of dust, water and other contaminants, thereby protecting the bearing from damage and maintaining the lubrication effect. Such bearings are typically used in environments that require greater protection, such as automotive interiors or industrial machinery. The advantage is that it can provide longer maintenance intervals and more reliable performance in more demanding environments.
From a performance perspective, sealed bearings generally outperform cartridge bearings in terms of durability and reliability in high-contamination environments due to their superior protective properties. However, cartridge bearings win out in terms of ease of installation and maintenance, especially in those situations where bearings are replaced frequently or where quick on-site maintenance is required.
Therefore, when there are many pollutants in the application environment, or the bearing protection requirements are extremely high, sealed bearings may be a better choice. Conversely, if quick maintenance and ease of replacement are more important, cartridge bearings may be a more suitable choice. Therefore, when selecting bearings, it is critical to consider the specific conditions of the application and the specific performance requirements.
Conclusion
From bicycle wheels to industrial machinery to steering systems in automobiles, cartridge bearings demonstrate their superior performance, especially in applications that require high precision and durability. Their sealed design effectively prevents the intrusion of dust, water and other contaminants, ensuring long-term bearing performance and reducing maintenance requirements. The reliability of this kind of bearing is particularly important in industrial applications because it is directly related to the operating efficiency and safety of the entire mechanical system.
However, despite the many advantages of cartridge bearings, selecting the appropriate bearing type still requires careful consideration based on specific application needs. For example, in extreme or highly contaminated environments, more sealed bearings may be more suitable. Therefore, it is critical to understand the performance limitations and optimal application scenarios of cartridge bearings.
In summary, cartridge bearings are an efficient, reliable and easy-to-maintain solution suitable for a wide range of industries and applications. Through the insights in this article, we hope readers can better understand the advantages of cartridge bearings and make an informed choice based on their needs. Whether upgrading existing systems or designing new machinery, cartridge bearings provide powerful support to help achieve efficient and stable operations.
References
- 1.Other important analysis on “cartridge bearings “from Pinkbike Company
- 2. How to replace ”cartridge bearings “from Buckyrides
- 3. Detailed analysis of “cartridge bearings” from Cyclist Company
