Unveiling the Basics of Tapered Roller Bearings: A Comprehensive Guide
Table of Contents
Introduction
Definition and basic functions
Tapered roller bearings are a type of rolling element bearing designed to handle both radial and axial (thrust) loads. They are named for their distinct tapered inner and outer ring raceways, which converge at a common point on the bearing axis. The rollers are also tapered, enabling them to roll smoothly on the raceways.
Basics and Functions：
- Radial Load Support: Tapered roller bearings excel at handling radial loads, which are forces perpendicular to the shaft. The tapered design distributes these loads evenly across the bearing surfaces, allowing for efficient support and rotation.
- Axial Load Support: The tapered shape of both the inner and outer raceways, as well as the rollers, enables tapered roller bearings to accommodate axial loads. This makes them suitable for applications where there are both radial and thrust forces, providing stability and control.
- Tapered Design for Load Distribution: The taper in the bearing design serves a crucial purpose. As loads are applied, the tapered rollers and raceways work together to distribute the forces evenly. This distribution minimizes stress concentrations, reducing the risk of premature wear or failure.
- Operational Stability: Tapered roller bearings contribute to the stability of rotating machinery. The design helps in maintaining proper alignment and handling varying loads, ensuring smooth and efficient operation.
- Versatility Across Industries: Tapered roller bearings find application in a wide range of industries, including automotive, industrial machinery, construction equipment, and more. Their ability to handle both radial and axial loads makes them versatile for various dynamic systems.
In simple terms, tapered roller bearings make sure things rotate smoothly by handling different forces and distributing them evenly, keeping machines working well.
Importance in application
- Automotive Industry: Tapered roller bearings are crucial in automotive applications, particularly in wheel hubs and transmissions. Their ability to handle radial and axial loads is essential for supporting vehicle weight, managing cornering forces, and ensuring smooth wheel rotation.
- Aerospace Sector: In aerospace, tapered roller bearings are vital for landing gear assemblies and engine components. They contribute to structural integrity and support axial loads during takeoff and landing.
- Industrial Machinery: Used in conveyors, gearboxes, and heavy machinery, tapered roller bearings provide stability and durability in industrial applications with high radial and axial forces.
- Construction Equipment: Heavy construction equipment, including excavators and loaders, relies on tapered roller bearings for support under substantial loads, enhancing overall durability.
- Rail Transportation: In rail applications, tapered roller bearings in wheelsets and axles manage dynamic loads, ensuring smooth and reliable train movement along tracks.
- Mining Equipment: Tapered roller bearings withstand heavy loads and harsh conditions in mining operations, contributing to equipment durability.
The versatility of tapered roller bearings in handling combined radial and axial loads makes them indispensable for efficiency, reliability, and longevity across diverse industries.
Bearing design

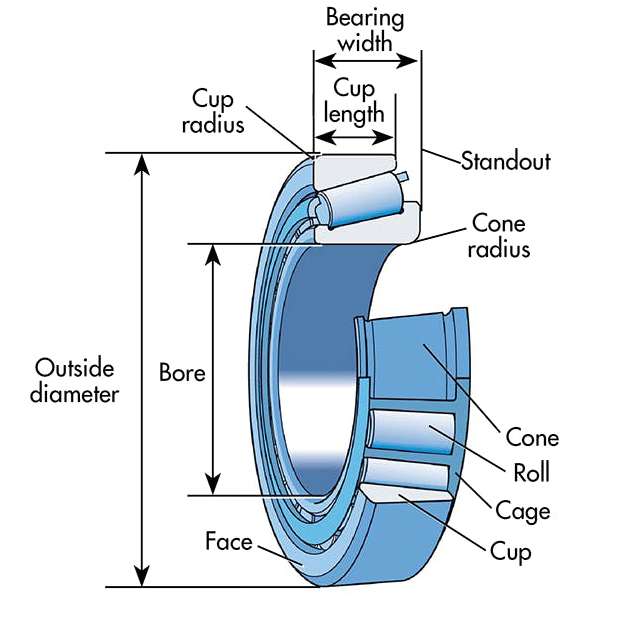

Typical Design of Tapered Roller Bearings
Tapered Rollers: The rollers in tapered roller bearings are not cylindrical but rather have a tapered shape. This taper allows the rollers to smoothly and evenly distribute loads along the entire length of the roller.
Inner and Outer Raceways: Tapered roller bearings consist of inner and outer raceways, which are the surfaces on which the tapered rollers roll. The inner raceway is mounted on the rotating shaft, while the outer raceway is part of the bearing housing.
Converging Design: The inner and outer raceways, as well as the tapered rollers, are designed to converge at a common point on the bearing’s central axis. This convergence point is crucial for distributing loads and managing forces efficiently.
Tapered Angle: The rollers and raceways are carefully engineered with a specific taper angle. This angle determines the ratio of the axial to radial load capacity. A larger taper angle generally results in higher axial load capacity.
Cage or Separator: Tapered roller bearings often include a cage or separator that maintains proper spacing between the rollers. The cage ensures that the rollers do not come into contact with each other, reducing friction and wear.
In summary, the typical design of tapered roller bearings incorporates tapered rollers and converging inner and outer raceways. This design enables efficient load distribution, making tapered roller bearings well-suited for applications where both radial and axial loads need to be accommodated.
Effect
Tapered Shape of Rollers: The tapered shape of the rollers is central to the design. As loads are applied, the larger diameter of the roller near the base handles higher radial loads, while the tapered end efficiently manages axial loads. This tapered configuration ensures that loads are evenly distributed along the entire length of the roller.
Converging Inner and Outer Raceways: The inner and outer raceways of tapered roller bearings converge at a common point on the bearing axis. This design feature ensures that the rollers are in constant contact with the raceways, promoting even load distribution. The convergence point allows for optimal force transmission through the bearing.
Tapered Angle of Raceways and Rollers: The carefully engineered taper angles of both the raceways and the rollers play a crucial role. The taper angle determines the ratio of axial to radial load capacity. By adjusting this angle, the bearing can be optimized for specific load conditions, providing a balance between radial and axial load-carrying capabilities.
Roller Cage or Separator: The presence of a cage or separator between the rollers prevents direct contact and friction between the rollers. This not only reduces wear but also maintains consistent spacing between the rollers, optimizing load distribution.
Types of Tapered Roller Bearings
Tapered roller bearings come in various configurations to meet specific application requirements. The most common types include single-row, double-row, and four-row configurations, each offering unique advantages.
- Single-Row Tapered Roller Bearings: This is the simplest and most common type, consisting of a single set of tapered rollers between an inner and outer raceway.

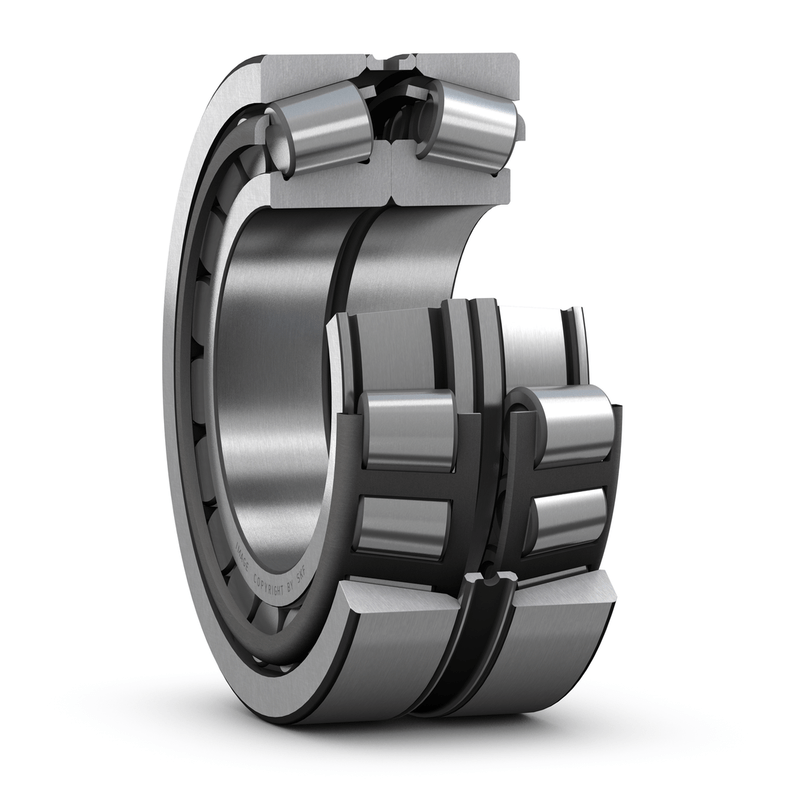

Double-Row Tapered Roller Bearings: In double-row tapered roller bearings, two sets of tapered rollers are arranged in pairs, with a common inner ring and two separate outer rings.
Four-Row Tapered Roller Bearings: Four-row tapered roller bearings consist of four sets of tapered rollers, arranged in two pairs of inner and outer rings.
Double-Direction Thrust Tapered Roller Bearings: These bearings are designed to accommodate axial loads in both directions. They consist of two tapered raceways and tapered rollers with a cage.
Selecting the appropriate type of tapered roller bearing depends on factors such as the magnitude and direction of loads, speed, and the desired level of precision. Engineers carefully consider these factors to choose the most suitable configuration for a particular application, ensuring optimal performance and reliability.
Materials and Manufacturing
Materials
1. Bearing Steel (SAE 52100): Bearing steel, particularly SAE 52100, is a common material for tapered roller bearings. Known for its high hardness, wear resistance, and excellent fatigue strength, bearing steel ensures durability under heavy loads and demanding conditions.
2. Stainless Steel: Stainless steel is chosen for tapered roller bearings when corrosion resistance is a priority. It is ideal for applications where exposure to moisture, chemicals, or harsh environments may pose a threat to the bearing’s performance.
3. Ceramic (Silicon Nitride): Ceramic, specifically silicon nitride, is increasingly used for tapered roller bearings. Ceramic bearings offer high strength, low density, and exceptional resistance to corrosion. They also exhibit reduced friction, contributing to improved efficiency.
4. Alloy Steel: Alloy steel provides enhanced strength and toughness compared to standard carbon steel. Tapered roller bearings made from alloy steel are suitable for applications requiring a balance between durability and cost-effectiveness.
5. Polymer/Plastic Composite: Polymer or plastic composite materials are used in specialized applications where lightweight and corrosion resistance are critical. These materials offer advantages such as reduced friction, lower noise levels, and resistance to certain chemicals and environmental factors.
Manufacturing
Material Selection: The manufacturing process begins with careful material selection. High-quality tapered roller bearings are typically made from specialized steel alloys, ensuring optimal strength, hardness, and durability.
Precision Machining: Precision machining is paramount in crafting high-quality bearings. Advanced machining techniques ensure that the rollers, raceways, and other components meet exact specifications, promoting uniformity and minimizing deviations.
Heat Treatment: Heat treatment is a critical step to enhance the mechanical properties of the bearing components. Through processes like quenching and tempering, the material undergoes controlled heating and cooling to achieve the desired hardness and toughness.
Assembly Accuracy: The assembly process requires meticulous attention to detail. Each component, including the tapered rollers, inner and outer raceways, and cages, must be assembled with precision to ensure proper alignment and functionality.
Quality Control and Testing: Rigorous quality control measures are implemented throughout the manufacturing process. This includes dimensional inspections, surface finish assessments, and performance testing under various conditions. The highest-quality bearings undergo thorough testing to verify load-carrying capacity, friction, and overall reliability.
Applications
Automotive Wheel Hubs: Tapered roller bearings are extensively used in automotive wheel hubs. Their ability to handle both radial and axial loads makes them crucial for supporting the weight of the vehicle and managing forces during cornering.
Gearboxes: Tapered roller bearings play a vital role in gearboxes across various industries. Their robust design and load-bearing capacity ensure smooth and efficient power transmission, contributing to the reliability of gear systems in automotive, industrial, and other applications.
Conveyor Systems: In conveyor systems, where continuous movement and heavy loads are common, tapered roller bearings provide reliable support. They are used in rollers and pulleys to facilitate the smooth and controlled transportation of materials.
Aerospace Applications: Tapered roller bearings are employed in critical aerospace components, such as landing gear assemblies and engine systems. Their ability to handle dynamic loads and provide stability is crucial for the safety and performance of aircraft.
Railway Wheelsets: The railway industry relies on tapered roller bearings for wheelsets in trains. These bearings support the weight of the train and manage both radial and axial loads, ensuring smooth and reliable movement along railway tracks.
Mining Equipment: In the mining industry, where heavy loads and harsh conditions are prevalent, tapered roller bearings are used in equipment like crushers, conveyors, and heavy-duty machinery. Their durability and load-carrying capacity make them well-suited for the challenging mining environment.
Tapered roller bearings are versatile components that find application in a wide range of industries, providing essential support and stability in various dynamic systems.
Conclusion
In conclusion, tapered roller bearings play a pivotal role in numerous industries due to their ability to efficiently handle both radial and axial loads. Their tapered design ensures even load distribution, minimizing stress concentrations and promoting operational stability. Crucial in automotive, aerospace, industrial machinery, construction, rail, and mining applications, these bearings contribute to the longevity and reliability of diverse systems. With various configurations available, meticulous material selection, precision manufacturing, and application-specific designs, tapered roller bearings continue to be indispensable components, ensuring smooth rotation, stability, and durability in dynamic and challenging environments across a broad spectrum of industries.
