Exploring the World of Custom Ball Bearings: A Comprehensive Guide
Introduction
In the intricate realm of industrial machinery, where seamless operations and unparalleled reliability are paramount, the concept of “custom ball bearings” emerges as the linchpin in unlocking precision and optimizing performance. This article delves deep into the scientific intricacies that underpin the design, evolution, and application of these specialized components, shedding light on their pivotal role within diverse industrial landscapes.
Overview of ball bearings and their importance in modern machinery
Ball bearings are essential components in modern machinery, serving a crucial role in facilitating smooth and efficient rotational motion. Comprising an outer and inner ring with metal balls sandwiched in between, they reduce friction between moving parts and distribute loads evenly. This design minimizes wear and tear, enhancing the lifespan and performance of machinery across diverse industries. The precision and reliability of ball bearings contribute significantly to the overall efficiency of mechanical systems, ensuring the smooth operation of everything from electric motors and automotive transmissions to industrial machinery. Their widespread use underscores their pivotal role in maintaining the functionality and longevity of countless devices that form the backbone of modern technology and manufacturing.
Brief history of ball bearings development
The history of ball bearings traces back to ancient times when Leonardo da Vinci conceptualized and sketched designs resembling modern bearings in the 15th century. However, it was not until the 18th century that the first practical ball bearing was patented by Welsh ironmaster Philip Vaughan. Subsequent innovations in the 19th century, including the development of precision manufacturing techniques, improved the design and production of ball bearings. During World War II, the demand for high-performance bearings spurred further advancements. Today, ball bearings are a cornerstone of machinery, embodying centuries of iterative refinement and technological progress.
Understanding Ball Bearings
Definition and basic function of ball bearings
Ball bearings are mechanical components designed to facilitate smooth rotational motion in machinery by minimizing friction and reducing wear between moving parts. Consisting of an outer and inner ring with metal balls positioned in between, they operate on the principle of rolling rather than sliding. As rotational force is applied, the balls distribute the load evenly, preventing direct contact between the surfaces of the rings and thereby reducing friction. This pivotal feature not only enhances the efficiency of machinery but also extends its lifespan. Ball bearings find widespread application in various industries, including automotive, aerospace, and manufacturing, where their precision and reliability are paramount for ensuring the optimal performance of diverse mechanical systems.
Key components: inner ring, outer ring, balls, cage
Ball bearings consist of several key components, each playing a crucial role in facilitating their primary function of enabling smooth rotational motion in machinery. The inner ring, typically mounted on the rotating shaft, serves as the raceway for the steel balls. Positioned concentrically, the outer ring provides the outer raceway against which the balls rotate. Between these rings, steel balls are evenly distributed, minimizing friction as they roll between the two raceways. The cage, also known as the retainer, maintains the proper spacing and orientation of the balls, preventing them from touching and ensuring they move in a controlled manner. This configuration not only reduces friction and wear but also enhances the overall stability and efficiency of the bearing. The synergy of these components is fundamental to the reliable performance of ball bearings across a diverse range of industrial applications.

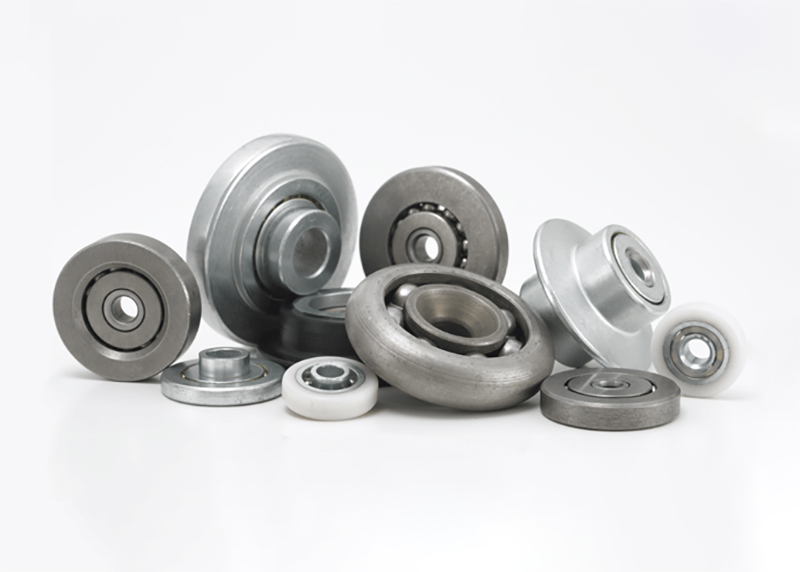

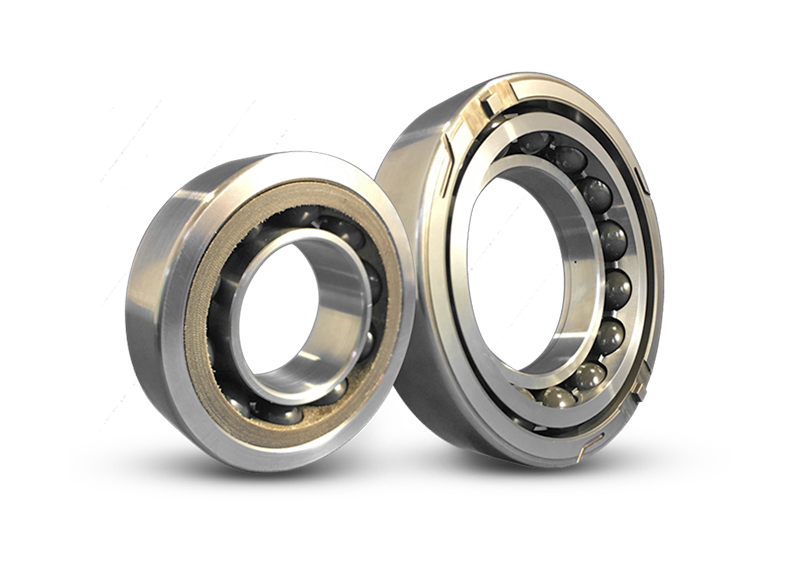

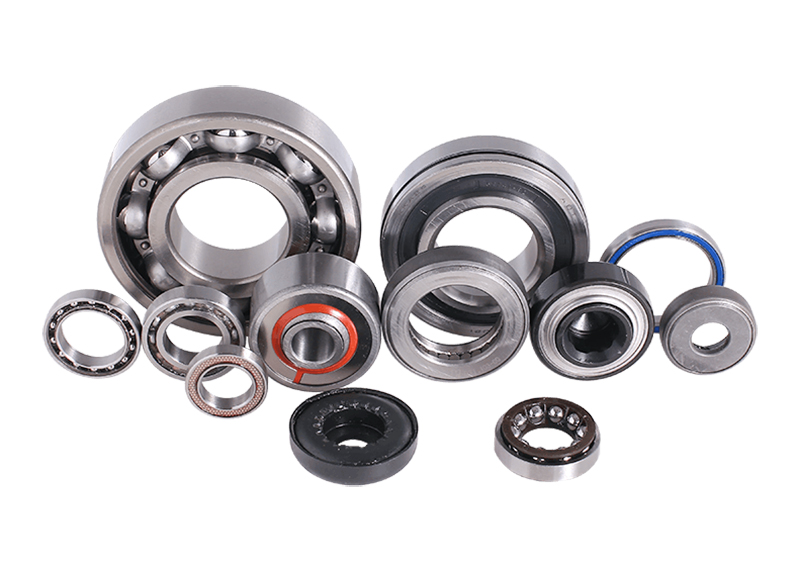

What are Custom Ball Bearings?
A custom ball bearing refers to a specialized variation of the standard ball bearing, tailored to meet specific requirements or unique applications. Manufacturers create custom ball bearings by adapting various design elements, such as size, materials, tolerances, and configurations, to suit the distinct needs of a particular machinery or system. These bespoke bearings are crafted with precision engineering, taking into account factors like load capacity, rotational speed, environmental conditions, and space constraints. Customizations may involve selecting specific materials for the inner and outer rings, choosing alternative ball materials, or designing unique cage structures. The goal is to optimize the bearing’s performance within the parameters of its intended use. Custom ball bearings play a crucial role in addressing niche challenges across diverse industries, ensuring that machinery operates efficiently and reliably in specialized environments.
Why Choose Custom Ball Bearings?
The choice of custom ball bearings is driven by the need for tailored solutions to meet specific operational demands. When standard off-the-shelf bearings may not fully align with the unique requirements of a particular application or machinery, opting for custom ball bearings becomes imperative. Customization allows for precise adjustments in terms of size, materials, load capacity, and environmental resilience. Industries facing unconventional conditions, stringent performance criteria, or space limitations often benefit from bespoke bearings designed to optimize efficiency and durability. Whether it’s addressing extreme temperatures, corrosive environments, or accommodating non-standard dimensions, custom ball bearings offer a personalized engineering approach, ensuring that the components seamlessly integrate into the intended system, ultimately contributing to enhanced reliability and longevity.
Customization Options for Ball Bearings
Snap Ring Grooves: Customizing ball bearings often involves the addition of snap ring grooves, providing a secure axial location and preventing undesirable axial movement.
Solid Lubricants: Another customization option is the use of solid lubricants, enhancing durability and reducing maintenance requirements by offering a consistent and reliable lubrication source.
High-Temperature Grease: For applications in high-temperature environments, incorporating specialized high-temperature grease ensures optimal bearing performance under extreme thermal conditions.
Ceramic Non-Conductive Rolling Elements: In electrically sensitive environments, custom ball bearings can be designed with ceramic, non-conductive rolling elements to minimize the risk of electrical discharge.
Ceramic Coatings and V-Grooves: Adding ceramic coatings or V-grooves on the outer diameter enhances the bearing’s resistance to wear and corrosion, contributing to an extended lifespan.
Adjustable Internal Clearance: Customization options also include adjusting the internal clearance of the bearing, allowing for fine-tuning that influences load-carrying capacity and rotational characteristics based on specific operational needs.
Benefits of Custom Ball Bearings
Custom ball bearings offer distinct advantages by providing tailored solutions to meet specific operational demands. One key benefit is enhanced performance optimization, as customization allows precise adjustments in terms of size, materials, load capacity, and environmental resilience. This ensures that the bearings are finely tuned to the unique requirements of a particular application or machinery. Additionally, custom bearings contribute to increased reliability and longevity by addressing challenges such as extreme temperatures, corrosive environments, or non-standard dimensions. The ability to incorporate features like snap ring grooves, solid lubricants, high-temperature grease, ceramic rolling elements, ceramic coatings, and adjustable internal clearance provides a versatile toolkit for industries to adapt bearings to their exact needs, ultimately resulting in improved efficiency, reduced maintenance, and prolonged service life.
Applications of Custom Ball Bearings
Automotive Industry: Custom ball bearings find extensive use in the automotive sector, where specialized bearings are employed in various components such as wheel hubs, transmissions, and engines. Tailored solutions are often necessary to meet specific load capacities, operational conditions, and dimensional requirements.
Aerospace Applications: The aerospace industry relies on custom ball bearings for critical components like aircraft engines, landing gear systems, and control mechanisms. Customization allows bearings to withstand extreme conditions, including high temperatures, vibrations, and rapid accelerations.
Medical Equipment: In medical devices and equipment, custom ball bearings play a crucial role in ensuring precision and reliability. Specialized bearings are designed to meet the unique requirements of medical machinery, providing smooth and efficient motion in applications such as surgical instruments and diagnostic equipment.
Industrial Machinery: Various types of industrial machinery, including manufacturing equipment, conveyor systems, and robotics, utilize custom ball bearings to optimize performance. Customization allows manufacturers to address specific operational challenges, ensuring seamless functionality and extended service life.
The Customization Process
Identifying Needs and Specifications
The customization process for custom ball bearings begins with a comprehensive analysis to determine specific requirements and specifications for the intended application. This involves a detailed assessment of factors such as load capacities, rotational speeds, environmental conditions, and dimensional constraints. Collaborative discussions between the bearing manufacturer and the client help identify unique challenges and performance criteria. With a clear understanding of these parameters, the customization process moves into material selection, design engineering, lubrication customization, and other tailored adjustments to create a bearing precisely engineered to meet the distinctive demands of the application, ensuring optimal performance, longevity, and reliability.
Designing the Custom Bearing
The customization process for designing custom ball bearings is a meticulous and collaborative effort aimed at tailoring bearings to specific application requirements. It commences with a thorough analysis to ascertain critical factors such as load capacities, environmental conditions, and dimensional constraints. This information informs the subsequent stages, including material selection, design engineering, and lubrication customization. The design phase involves precise adjustments to dimensions, configurations, and features, ensuring the bearing is finely tuned to meet the unique demands of its intended use. This comprehensive approach allows for the creation of custom ball bearings that deliver optimal performance, reliability, and longevity in diverse industrial applications.
Manufacturing the Custom Bearing
The customization process for manufacturing custom ball bearings involves translating design specifications into physical components with precision and attention to detail. Once the design phase is complete, manufacturers select and process materials according to the specified requirements, employing specialized techniques such as heat treatment for enhanced durability. The intricacies of the design are then meticulously translated into the manufacturing process, where components like the inner and outer rings, steel balls, and cages are crafted to exact specifications. Quality control measures ensure the final custom bearings meet stringent standards, guaranteeing optimal performance, reliability, and longevity in their intended applications.
Conclusion
In the dynamic realm of industrial machinery, custom ball bearings emerge as essential components, tailored to meet specific operational demands. Serving a pivotal role in facilitating smooth rotational motion, these bespoke bearings offer precise adjustments in size, materials, and configurations. The customization process, from identifying needs to manufacturing, ensures optimal performance, longevity, and reliability in diverse applications—from automotive and aerospace to medical equipment and industrial machinery. By addressing unique challenges, custom ball bearings underscore their significance in enhancing efficiency and extending the service life of critical machinery across various industries, embodying a personalized engineering approach for specialized environments.
References
- 1.”Custom Bearings” from Lily-Bearing;
- 2. “Ball Bearing Features &Customization” from NMB Technologies;
- 3. “Custom bearing design” from SKF Bearings.
