Hydrostatic and Hydrodynamic Bearings Selection Guide
Introduction
Brief Overview of Bearings in Machinery
Mechanical bearings are crucial components in machinery, designed to facilitate smooth and efficient rotational or linear movement by reducing friction between moving parts. These devices support loads and constrain relative motion, enabling the transfer of loads with minimal resistance. Bearings come in various types, including ball bearings, roller bearings, and plain bearings, each catering to specific applications based on load capacity, speed, and environmental conditions. Ball bearings, for instance, consist of rolling elements between concentric rings, while roller bearings employ cylindrical or tapered rollers. In contrast, plain bearings, such as bushings or sleeve bearings, rely on a sliding interface.
Importance of Proper Bearing Selection
The importance of correct bearing selection cannot be overstated as it directly influences the performance, reliability, and longevity of machinery. Choosing the right type of bearing is crucial to accommodate specific operational requirements, including load capacity, speed, temperature, and environmental conditions. A mismatched or improperly sized bearing can result in increased friction, premature wear, and ultimately lead to machinery failure. Conversely, a well-matched bearing enhances efficiency, reduces energy consumption, and extends the lifespan of the equipment. The correct bearing selection also contributes to smoother operations, minimizing downtime and maintenance costs. Engineers must consider factors such as the type of load, rotational speed, and environmental factors to ensure optimal performance and maximize the overall efficiency of the machinery in diverse industrial applications.
Understanding Hydrostatic and Hydrodynamic Bearings
Hydrostatic bearings and hydrodynamic bearings are both types of fluid film bearings, which utilize a thin layer of fluid between the bearing surfaces to reduce friction and support loads. Hydrostatic bearings are designed to operate with a constant flow of pressurized fluid, which is introduced into the bearing clearance through external pumps or pressure tanks. This fluid forms a supporting film between the bearing surfaces, allowing them to slide freely with very little wear. Due to their ability to provide high stiffness and accuracy, hydrostatic bearings are commonly used in high-precision applications such as machine tool spindles and aerospace turbines.
On the other hand, hydrodynamic bearings rely on the relative motion between the bearing surfaces to generate the fluid film. As one surface rotates, it drags the fluid along with it, creating a pressure gradient that supports the load. Hydrodynamic bearings are self-acting, meaning they do not require external pressurization, and can accommodate a wide range of speeds and loads. They are commonly found in applications such as electric motors, generators, and centrifugal pumps, where they provide efficient and reliable operation. In summary, both hydrostatic and hydrodynamic bearings play crucial roles in supporting rotating machinery, offering low friction, high load capacity, and long service life.
Differences Between Hydrostatic and Hydrodynamic Bearings
Hydrostatic and hydrodynamic bearings are two distinct types of bearings used to support rotating shafts and reduce friction. While both bearings rely on the principle of fluid lubrication, they differ significantly in their working principles, design, and application areas.

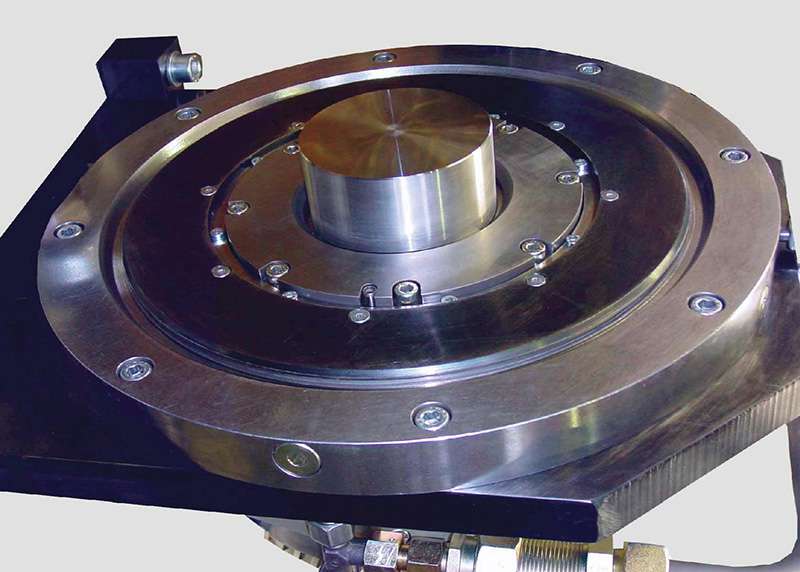

Hydrostatic bearings are designed to maintain a constant fluid film between the bearing surface and the rotating shaft, which is achieved by external pressurization of the fluid. These bearings operate under a constant flow of lubricating fluid, which is introduced into the bearing through ports or grooves. This fluid film provides a separating layer between the bearing and the shaft, reducing wear and tear while allowing for high speeds and precision positioning. Hydrostatic bearings are commonly used in applications where high accuracy, low vibrations, and minimal wear are critical, such as in precision machine tools, aerospace engines, and medical equipment.

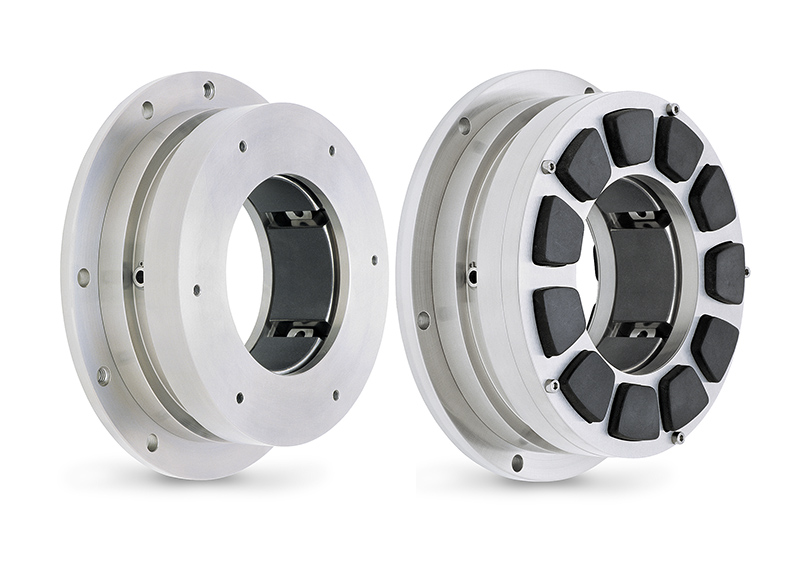

On the other hand, hydrodynamic bearings rely on the relative motion between the bearing and the rotating shaft to generate a fluid film. As the shaft rotates, it drags the lubricating fluid along with it, creating a pressure gradient that supports the load. These bearings do not require external pressurization and can generate higher load-carrying capacities compared to hydrostatic bearings. Hydrodynamic bearings are commonly found in applications where high loads, high speeds, and moderate precision are required, such as in electric motors, generators, and heavy machinery.
In summary, hydrostatic bearings operate on the principle of external pressurization and are suitable for applications requiring high precision and low vibrations, while hydrodynamic bearings rely on the relative motion between the bearing and the shaft and are more suitable for applications involving high loads and high speeds. Both bearing types have their unique advantages and are used in various industries depending on specific requirements.
Factors Influencing Bearing Selection
Load Capacity and Precision Requirements: The magnitude and nature of the applied load are crucial factors influencing the choice between hydrodynamic and hydrostatic bearings. Hydrostatic bearings are often preferred for applications requiring high load-carrying capacity and precision due to the externally pressurized fluid film, providing robust support. Hydrodynamic bearings, while suitable for moderate loads, may excel in scenarios where continuous, smooth operation is essential.
Speed and Rotational Dynamics: The rotational speed of machinery plays a significant role in bearing selection. Hydrodynamic bearings, relying on relative motion to generate the fluid film, are well-suited for high-speed applications. In contrast, hydrostatic bearings, with their externally pressurized fluid, may be favored for lower-speed or stationary equipment where load support and precision are paramount.
Environmental Conditions: The operating environment, including temperature, contaminants, and the presence of aggressive substances, influences the choice between hydrodynamic and hydrostatic bearings. Hydrostatic bearings, being sealed systems, offer better protection against contaminants and are suitable for applications with stringent environmental requirements.
Cost and Complexity: The initial cost and the complexity of the bearing system are significant factors in the decision-making process. Hydrostatic bearings, with their pressurized fluid systems, tend to be more complex and potentially costlier to implement compared to hydrodynamic bearings. The overall cost-benefit analysis, considering the specific requirements of the application, plays a crucial role in selecting the most suitable bearing type for a given scenario.
Design Considerations for Bearings
Material Selection of Fluid Bearings
The selection of materials for hydrostatic and hydrodynamic bearings is crucial for ensuring their performance, durability, and reliability in specific applications. For hydrostatic bearings, materials with good tribological properties, such as ceramics, polymers, and bronze alloys, are often chosen due to their excellent wear resistance and low coefficient of friction. In addition, the material must be able to withstand high pressures and maintain its structural integrity under static and dynamic loads. For hydrodynamic bearings, materials with high hardness and excellent fatigue strength, such as steel alloys and certain types of ceramics, are preferred. The material’s ability to resist deformation under high loads and maintain a stable fluid film is critical for efficient operation.
When selecting materials for hydrostatic bearings, factors such as the operating temperature, chemical compatibility, and lubricant type must be considered. Similarly, for hydrodynamic bearings, the operating speed, load capacity, and precision requirements play significant roles in determining the appropriate material choice. Ultimately, the selection of materials for both bearing types should be based on a thorough understanding of the application requirements and the specific properties of available materials to ensure optimal performance and longevity.
Bearing Geometry
Designing hydrostatic and hydrodynamic bearing geometries involves several important considerations to ensure optimal performance and reliability. For hydrostatic bearings, the geometry of the bearing surface, including the shape and size of the grooves or ports, plays a critical role in regulating the flow of lubricating fluid and maintaining a stable fluid film. Additionally, the clearance between the bearing and the rotating shaft must be carefully controlled to prevent excessive leakage and maintain the desired stiffness and damping characteristics.
For hydrodynamic bearings, the geometry of the bearing surface, such as the taper angle, groove pattern, and land width, influences the load-carrying capacity, stiffness, and stability of the bearing. The bearing’s eccentricity ratio, defined as the ratio of the distance between the bearing center and the shaft center to the bearing clearance, also affects its performance. Careful consideration of these factors is necessary to optimize the bearing’s performance under various operating conditions.
In both cases, the bearing geometry must be designed to withstand the expected loads, temperatures, and environmental conditions, while also considering factors such as manufacturing tolerances and assembly requirements. Finite element analysis (FEA) and other computational tools can be invaluable in predicting the performance of different bearing geometries and optimizing their design for specific applications.
Environmental Considerations in Bearing Selection
Environmental sustainability is an increasingly important consideration in the selection of bearings for various industrial applications. When choosing between hydrodynamic and hydrostatic bearings, it is crucial to evaluate the potential environmental impacts associated with each bearing type. Hydrostatic bearings typically require less lubricant and can be designed with re-circulation and filtration systems, which can minimize oil consumption and waste generation. This characteristic makes them more environmentally friendly compared to hydrodynamic bearings that may require continuous lubrication and generate more waste oil.
Moreover, the materials used in the construction of bearings can also have a significant impact on the environment. Bearings made from biodegradable or recyclable materials, such as certain types of plastics or ceramics, can help reduce the carbon footprint of the equipment they are used in. Therefore, when selecting bearings, it is essential to consider not only their performance characteristics but also their environmental impact and sustainability credentials. By prioritizing environmentally sustainable options, industry can contribute to reducing its carbon footprint and mitigating the impacts of climate change.
Maintenance and Reliability of Bearings
Lubrication Systems
The lubrication system is crucial for the performance, efficiency, and lifespan of hydrodynamic and hydrostatic bearings. Hydrodynamic bearings create a self-sustaining fluid film using shaft rotation, with auxiliary lubrication sometimes needed under extreme conditions. Hydrostatic bearings, however, require an external pressurized lubrication system, consisting of a pump, filters, and regulators, to maintain a constant fluid film. Lubricant type selection depends on the application’s specific requirements, with mineral oils, synthetic oils, and water-based fluids being common options.
Maintenance schedules for hydrodynamic bearings vary based on operating conditions, load, speed, and environmental factors, necessitating regular inspections and cleaning. Hydrostatic bearings, on the other hand, require more frequent maintenance due to the need for lubricant replenishment and filtering. Regular checks on the lubrication system are necessary to prevent bearing failure.
In conclusion, proper lubrication and maintenance are vital for reliable operation and long service life of both bearing types. Implementing effective lubrication strategies and regularly scheduled maintenance can maximize bearing performance, reduce downtime, and extend equipment life.
Monitoring Techniques
Monitoring techniques play a crucial role in maintaining the health and performance of hydrodynamic and hydrostatic bearings. Vibration analysis is a commonly used method to detect anomalies and predict potential failures in bearings. By measuring the amplitude and frequency of vibrations generated by the bearing, operators can identify issues such as misalignment, imbalance, or bearing wear. Condition monitoring tools, such as infrared thermography, ultrasonic testing, and oil analysis, can provide additional insights into the bearing’s health. Infrared thermography can detect hot spots caused by excessive friction or overheating, while ultrasonic testing can identify leaks or damage to bearing seals. Oil analysis can reveal the presence of contaminants or degradation products that could indicate bearing wear or failure. By combining these monitoring techniques, operators can implement proactive maintenance strategies and minimize unscheduled downtime for their equipment.
Conclusion
In conclusion, bearings are pivotal components in machinery, mitigating friction to ensure efficient movement. Proper selection between hydrostatic and hydrodynamic bearings is critical, considering factors like load, speed, and environmental conditions. Each type has unique advantages, impacting precision, load capacity, and maintenance requirements. Material and design considerations are vital for optimizing performance, while environmental sustainability is increasingly significant. Maintenance, including effective lubrication and monitoring techniques, is essential for prolonged bearing reliability. A comprehensive understanding of these factors allows engineers to make informed decisions, enhancing machinery efficiency, longevity, and contributing to sustainable industrial practices.
References
- 1.”Fluid bearing” from Wikipedia;
- 2. “Hydrostatic and Hydrodynamic Bearings Selection Guide” from GlobalSpec;
- 3. “Hydrostatic vs Hydrodynamic bearings” from MROSupply.
