Unlocking the Power of Full Complement Bearings: A Comprehensive Guide
Introduction
Defining Full Complement Bearings
Full complement bearings refer to a type of rolling element bearing where the maximum number of balls or rollers are utilized within the bearing raceways, without the presence of a cage or separator. This design maximizes load-carrying capacity and enhances rigidity compared to caged bearings. By eliminating the cage, full complement bearings allow for closer spacing of the rolling elements, increasing the number of contact points and distributing loads more evenly. Consequently, these bearings are particularly suitable for applications requiring high radial loads and moderate speeds, such as heavy machinery and industrial equipment.
Importance of Full Complement Bearings in Machinery
Full complement bearings play a crucial role in machinery due to their ability to handle heavy loads and maintain stability under demanding operating conditions. By utilizing the maximum number of rolling elements without a cage, they offer increased load-carrying capacity and enhanced rigidity. This design feature is particularly beneficial in heavy machinery applications where significant radial loads are common. Additionally, the absence of a cage allows for closer spacing of the rolling elements, resulting in more contact points and better load distribution, ultimately improving the overall performance and longevity of the machinery.
Understanding Full Complement Bearings
What Are Full Complement Bearings?

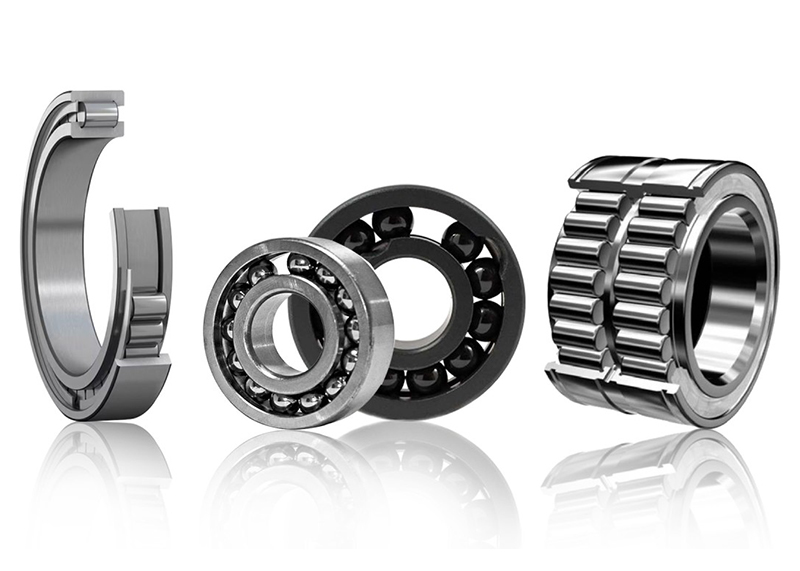

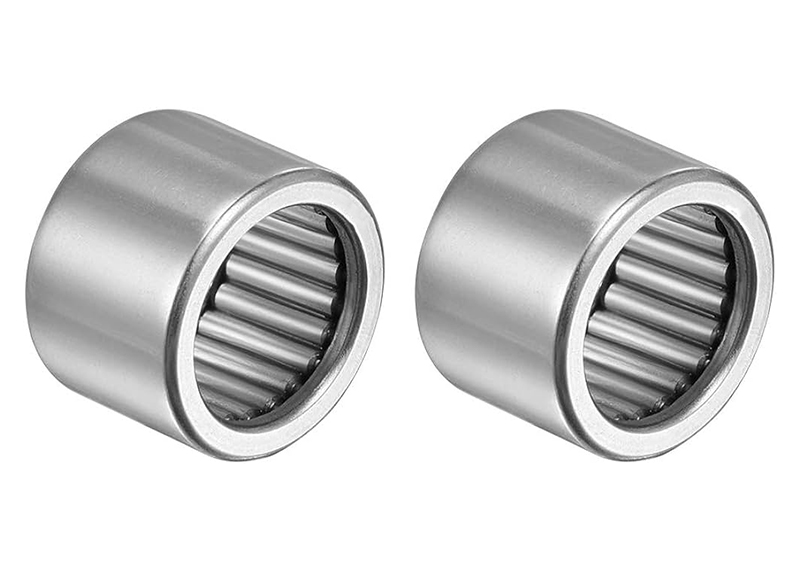

Full complement bearings represent a specialized type of rolling element bearing distinguished by the absence of a cage or separator, enabling the utilization of the maximum number of balls or rollers within the bearing raceways. This design choice enhances load-carrying capacity and rigidity, making full complement bearings particularly suitable for applications subjected to heavy radial loads and moderate speeds. Within full complement bearings, there are several types distinguished by the arrangement and configuration of the rolling elements. The most common types include full complement cylindrical roller bearings, full complement spherical roller bearings, and full complement deep groove ball bearings.

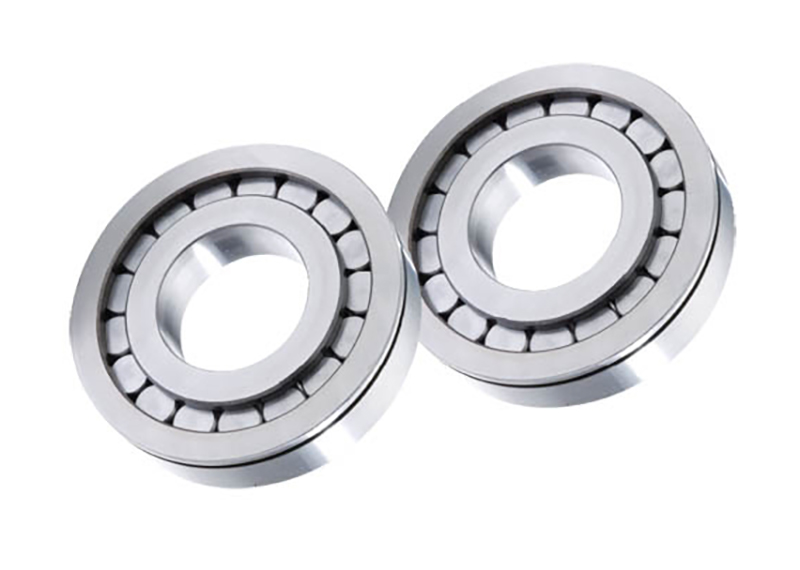

Full complement cylindrical roller bearings feature cylindrical rollers closely packed together in the absence of a cage, providing high radial load capacity and accommodating misalignment. Similarly, full complement spherical roller bearings utilize spherical rollers arranged without a cage, enabling them to handle both radial and axial loads along with misalignment. Full complement deep groove ball bearings, on the other hand, comprise a full set of balls arranged without a cage, delivering enhanced radial load capacity and supporting high-speed applications.
Working Principles
The working principle of full complement bearings revolves around their unique load distribution mechanism, which differs from conventional bearings. In full complement bearings, the absence of a cage allows for the maximum number of rolling elements to be closely packed within the bearing raceways. This configuration results in a more uniform distribution of loads across the bearing surfaces, as each rolling element can share the load more evenly. Additionally, the closer spacing of the rolling elements increases the number of contact points, enhancing load-carrying capacity and rigidity. These factors contribute to improved performance and longevity, especially in applications subjected to heavy radial loads and moderate speeds. Compared to conventional bearings with cages, full complement bearings offer advantages such as higher load capacity, better resistance to shock and vibration, and increased reliability in harsh operating conditions.Overall, the working principle of full complement bearings ensures efficient load distribution and superior performance, making them indispensable in various industrial applications.
Applications of Full Complement Bearings
Benefits of Full Complement Bearings
Increased Load Capacity
The benefits of full complement bearings are manifold, with increased load capacity being one of the most notable advantages. By eliminating the cage typically found in conventional bearings, full complement bearings allow for the maximum number of rolling elements to be packed into the bearing raceways. This design feature significantly enhances the bearing’s ability to withstand radial loads, as each rolling element can share the load more effectively. Additionally, the absence of a cage enables closer spacing of the rolling elements, resulting in a higher number of contact points and a more uniform distribution of loads across the bearing surfaces. Consequently, full complement bearings offer superior load-carrying capacity compared to caged bearings, making them ideal for applications subjected to heavy radial loads and moderate speeds.
Enhanced Reliability
Enhanced reliability is a significant benefit offered by full complement bearings, stemming from their unique design and load distribution mechanism. By eliminating the cage found in conventional bearings, full complement bearings allow for the maximum number of rolling elements to be closely packed within the bearing raceways. This results in a more uniform distribution of loads across the bearing surfaces, reducing stress concentrations and minimizing the risk of premature wear or failure. Additionally, the closer spacing of the rolling elements increases the number of contact points, distributing the load more evenly and enhancing overall stability. As a result, full complement bearings demonstrate improved resistance to fatigue, shock, and vibration, leading to enhanced reliability and longer service life in various industrial applications, particularly those subjected to heavy radial loads and harsh operating conditions.
Performance in Extreme Conditions
The benefits of full complement bearings extend to their exceptional performance in extreme conditions, making them indispensable in demanding industrial environments. Due to their unique design, which eliminates the cage present in conventional bearings, full complement bearings excel in withstanding extreme temperatures, heavy loads, and harsh operating conditions. The absence of a cage allows for the maximum number of rolling elements to be closely packed within the bearing raceways, ensuring robust load-carrying capacity and enhanced stability. This configuration also promotes efficient lubricant distribution and dissipation of heat, further enhancing performance in high-temperature environments. Additionally, full complement bearings exhibit superior resistance to shock, vibration, and contamination, making them well-suited for applications in industries such as steel manufacturing, mining, and heavy machinery, where reliability and durability are paramount. Overall, the ability of full complement bearings to perform consistently under extreme conditions contributes significantly to their widespread adoption in critical industrial applications.
Choosing the Right Full Complement Bearing
Factors to Consider
Selecting the appropriate full complement bearing involves careful consideration of several key factors to ensure optimal performance and reliability in specific applications. Firstly, the load requirements must be thoroughly assessed, including both radial and axial loads, as well as any potential shock or vibration conditions the bearing may encounter during operation. Secondly, the operating speed of the machinery or equipment must be taken into account, as certain full complement bearings may be better suited for high-speed applications than others. Additionally, environmental factors such as temperature extremes, moisture levels, and exposure to contaminants should be evaluated to choose a bearing with appropriate sealing or protection features. Furthermore, compatibility with existing components and mounting arrangements must be considered to ensure seamless integration into the system. Lastly, factors like maintenance requirements, expected service life, and cost considerations should also be weighed to make an informed decision when selecting the right full complement bearing for a particular application.
Consultation with Experts
When it comes to selecting the right full complement bearing, consulting with experts in the field can be invaluable. These experts possess extensive knowledge and experience in bearing selection and application, allowing them to provide valuable insights and recommendations tailored to specific requirements. By engaging with experts, engineers and designers can benefit from comprehensive assessments of factors such as load capacities, operating speeds, environmental conditions, and compatibility with existing systems. Moreover, experts can offer guidance on the latest advancements in bearing technology, helping to identify innovative solutions that optimize performance and reliability while minimizing maintenance requirements and overall costs. Through collaboration with knowledgeable professionals, businesses can make informed decisions that maximize the efficiency, longevity, and profitability of their machinery and equipment, ensuring seamless operation and minimal downtime in various industrial applications.
Installation and Maintenance
Proper Installation Techniques
Before installation, it is crucial to thoroughly inspect the bearing components for any signs of damage or contamination. Cleanliness is paramount during installation, as even small particles or debris can compromise bearing performance. Carefully follow manufacturer recommendations regarding lubrication, ensuring the appropriate type and amount of lubricant are applied to facilitate smooth operation and prevent premature wear. When mounting the bearing, take care to apply even pressure to avoid causing misalignment or damage to the bearing raceways. Utilize the correct tools and equipment for the installation process, ensuring that bearing fits are neither too tight nor too loose. Finally, verify proper alignment and seating of the bearing within the housing or shaft, and perform any necessary adjustments to ensure optimal performance. By adhering to these proper installation techniques, full complement bearings can deliver reliable and efficient operation in a wide range of industrial applications.
Maintenance Practices
Effective maintenance practices are essential for preserving the performance and extending the lifespan of full complement bearings. Regular inspection is a fundamental aspect of maintenance, allowing early detection of potential issues such as wear, damage, or contamination. Proper lubrication is critical to minimize friction and prevent overheating, ensuring smooth operation of the bearing components. Follow manufacturer recommendations regarding lubricant type, quantity, and replenishment intervals to maintain optimal lubrication levels. Additionally, monitor operating conditions such as temperature and vibration levels to identify any abnormalities that may indicate underlying problems. Implementing preventive maintenance measures such as cleaning, relubrication, and alignment checks can help prevent premature wear and failure, ultimately maximizing the reliability and efficiency of full complement bearings in industrial applications.
Challenges and Limitations
While full complement bearings offer numerous advantages, they also face certain challenges and limitations that must be considered. One significant limitation is their tendency to experience higher friction and heat generation compared to caged bearings, particularly under high-speed or continuous operation conditions. This increased friction can lead to accelerated wear and reduced efficiency, requiring more frequent maintenance and lubrication intervals. Additionally, the absence of a cage in full complement bearings may result in reduced stability and increased susceptibility to skewing or misalignment, particularly in applications with fluctuating loads or vibration levels. Furthermore, the closer spacing of rolling elements in full complement bearings can lead to higher manufacturing costs and complexity compared to caged bearings. Despite these challenges, advancements in bearing materials, lubrication technologies, and design optimization continue to address these limitations and expand the capabilities of full complement bearings in various industrial applications.
Conclusion
In conclusion, full complement bearings represent a critical component in various industrial applications, offering increased load capacity, enhanced reliability, and superior performance in extreme conditions. Their unique design, which eliminates the cage found in conventional bearings, allows for maximum utilization of rolling elements, resulting in improved load distribution and stability. Despite facing challenges such as increased friction and complexity, ongoing advancements in bearing technology continue to enhance the capabilities of full complement bearings. Through careful selection, proper installation, and effective maintenance practices, these bearings contribute to the efficiency, longevity, and reliability of machinery and equipment across industries, ensuring smooth operation and minimal downtime.
References
- 1.”The Advantages And Disadvantages Of Full Complement Bearings” from Lily-Bearing;
- 2. “What is the difference between cage-guided and full complement deep groove ball bearings?” from KUGELLAGER SHOP;
- 3. “Single row full complement cylindrical roller bearings” from SKF Bearings.
