Hybrid Ceramic Ball Bearings vs. Steel Bearings: A Comparative Analysis
Introduction of Hybrid Ceramic Ball Bearing
Definition of hybrid ceramic ball bearings and steel bearings

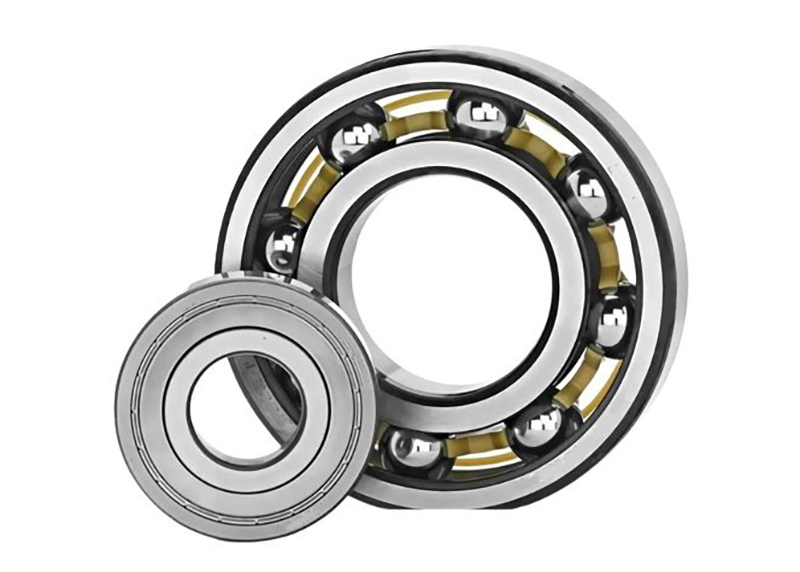

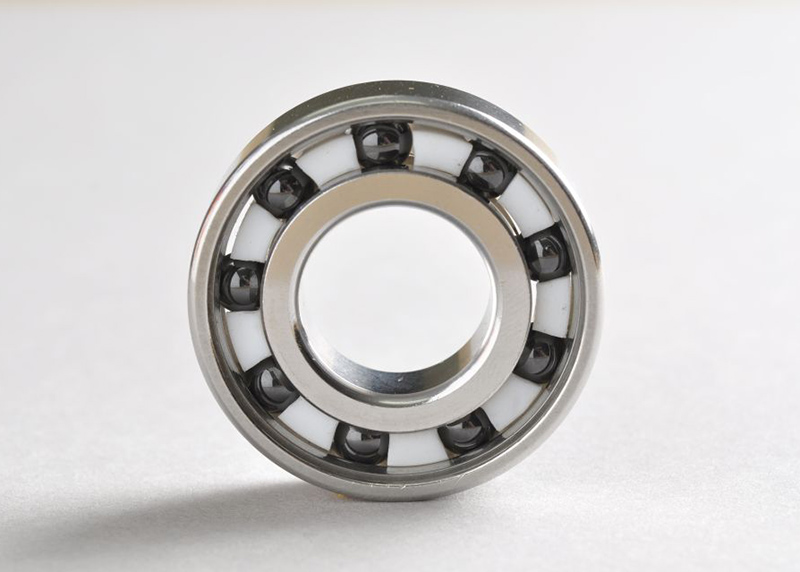

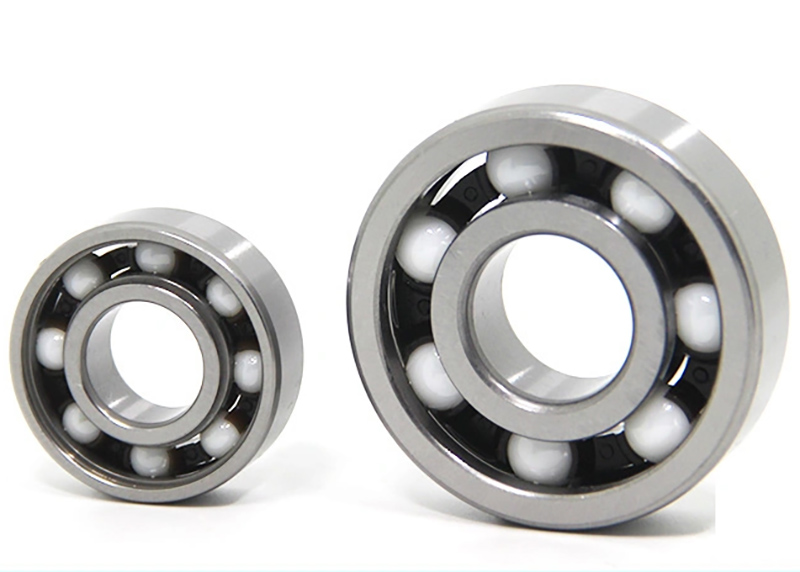

Hybrid ceramic ball bearings combine steel outer and inner rings with ceramic balls. These balls, typically made of silicon nitride or zirconia, offer exceptional hardness, corrosion resistance, and low thermal conductivity. The steel rings provide structural stability and support. In contrast, steel bearings feature steel balls and rings, often made from high-carbon chrome steel or stainless steel. While steel bearings are durable and widely used, they are susceptible to corrosion and have higher friction coefficients compared to hybrid ceramic counterparts. The combination of materials in hybrid ceramic ball bearings aims to optimize performance across various industrial applications.
Purpose of the comparative analysis
The purpose of this comparative analysis is to evaluate the performance differences between hybrid ceramic ball bearings and traditional steel bearings. By examining factors such as friction, weight, temperature resistance, and longevity, this analysis aims to provide insight into the advantages offered by hybrid ceramic bearings over their steel counterparts. Understanding these differences is crucial for industries seeking to optimize the performance and reliability of their machinery and equipment. Ultimately, this analysis will assist engineers, manufacturers, and end-users in making informed decisions regarding bearing selection, considering the specific requirements and operating conditions of their applications.
Composition and Structure
Hybrid ceramic ball bearings and steel bearings differ significantly in their composition and structure, impacting their performance characteristics. Hybrid ceramic ball bearings incorporate a unique blend of materials, featuring steel outer and inner rings coupled with ceramic balls, typically crafted from silicon nitride or zirconia. These ceramic balls offer exceptional hardness, corrosion resistance, and low thermal conductivity, making them ideal for applications requiring high performance and durability.
In contrast, steel bearings consist of steel balls and rings, typically made from high-carbon chrome steel or stainless steel. While steel bearings are known for their durability and widespread use, they are susceptible to corrosion and have higher friction coefficients compared to hybrid ceramic bearings. The choice between these two types of bearings often depends on specific application requirements, with hybrid ceramic ball bearings favored for high-speed, high-temperature, and corrosive environments where reduced friction and extended lifespan are paramount. Understanding the composition and structure of each type of bearing is essential for selecting the most suitable option for a given application, ensuring optimal performance and reliability.
Friction and Lubrication
Friction in Hybrid Ceramic Ball Bearings
Friction in hybrid ceramic ball bearings is notably reduced compared to traditional steel bearings, primarily due to the unique properties of ceramic materials. The ceramic balls in hybrid bearings exhibit a smoother surface finish and lower coefficient of friction, resulting in decreased resistance to motion and reduced heat generation during operation. This characteristic not only enhances the efficiency of the bearing but also contributes to its longevity by minimizing wear on the contacting surfaces. With lower friction, hybrid ceramic ball bearings require less lubrication, which can lead to reduced maintenance needs and operational costs. The superior frictional properties of hybrid ceramic bearings make them particularly well-suited for high-speed applications where minimizing energy loss and heat buildup is critical for optimal performance and reliability.
Friction in Steel Bearings
Steel bearings, in contrast to hybrid ceramic ball bearings, exhibit higher levels of friction due to the properties of steel materials. The steel balls and rings in these bearings typically have rougher surface finishes compared to ceramic counterparts, resulting in increased resistance to motion and higher friction coefficients during operation. As a consequence, steel bearings generate more heat when in use, which can potentially lead to thermal degradation and reduced lifespan if not properly managed. Additionally, the higher friction levels in steel bearings necessitate more frequent lubrication to mitigate wear and ensure smooth operation. Despite these challenges, steel bearings remain widely used across various industries due to their durability and cost-effectiveness, particularly in applications where high-speed performance and extreme operating conditions are not primary concerns.
Lubrication requirements
The lubrication requirements for hybrid ceramic ball bearings are generally lower compared to steel bearings, owing to their reduced friction coefficients and smoother operating surfaces. While steel bearings often necessitate regular lubrication to minimize friction and prevent wear, hybrid ceramic ball bearings can operate efficiently with less lubricant due to their inherent properties. This reduced reliance on lubrication not only simplifies maintenance but also reduces the risk of contamination and lubricant degradation, resulting in longer intervals between servicing. However, proper lubrication remains essential for both types of bearings to ensure optimal performance and longevity. Choosing the appropriate lubricant and establishing a suitable lubrication regimen are crucial steps in maximizing the efficiency and reliability of bearing systems across various industrial applications.
Weight Considerations
Weight of Hybrid Ceramic Ball Bearings
Hybrid ceramic ball bearings offer significant advantages in terms of weight compared to traditional steel bearings. The incorporation of lightweight ceramic balls into the bearing design results in a reduction of overall weight without compromising structural integrity or performance. Ceramic materials are inherently lighter than steel, allowing hybrid ceramic ball bearings to contribute to overall weight savings in machinery and equipment. This reduction in weight can be particularly beneficial in applications where minimizing mass is essential for improving efficiency, reducing energy consumption, or enhancing maneuverability. Additionally, the lighter weight of hybrid ceramic ball bearings can lead to reduced frictional losses and lower inertial forces, further optimizing performance in high-speed and precision applications. Overall, the weight advantages of hybrid ceramic ball bearings make them a compelling choice for industries seeking to optimize the performance and efficiency of their machinery.
Weight of Steel Bearings
Steel bearings, in contrast to hybrid ceramic ball bearings, are typically heavier due to the materials used in their construction. The steel balls and rings in steel bearings are denser than ceramic materials, resulting in higher overall weight for the bearing assembly. While this additional weight may not be a significant concern in some applications, it can impact the efficiency and performance of machinery and equipment, particularly in situations where weight reduction is crucial. Additionally, the heavier weight of steel bearings can contribute to increased frictional losses and higher inertial forces, potentially affecting the speed and responsiveness of the system. Despite these considerations, steel bearings remain widely used across various industries due to their durability, affordability, and suitability for many applications where weight is not a primary concern.
Temperature Resistance
Temperature Stability of Hybrid Ceramic Ball Bearings
Hybrid ceramic ball bearings exhibit exceptional temperature stability, making them well-suited for operation in a wide range of thermal environments. The ceramic materials used in these bearings offer superior heat dissipation properties compared to steel, allowing them to withstand elevated temperatures without compromising performance or structural integrity. This enhanced temperature stability enables hybrid ceramic ball bearings to maintain consistent operation and reliability even in demanding conditions where traditional steel bearings may struggle. Additionally, the low coefficient of thermal expansion of ceramic materials minimizes the risk of dimensional changes and deformation under thermal stress, ensuring precise and reliable performance over a broad temperature range. Overall, the temperature stability of hybrid ceramic ball bearings makes them an ideal choice for applications where temperature fluctuations are common or where operation in high-temperature environments is required.
Temperature Resistance of Steel Bearings
Steel bearings possess moderate temperature resistance, although they may exhibit limitations compared to hybrid ceramic ball bearings in extreme thermal environments. While steel is a durable material, it can experience thermal expansion and deformation at high temperatures, potentially leading to diminished performance and premature wear. Steel bearings typically have specified temperature limits beyond which their operation may become compromised, making them less suitable for applications involving prolonged exposure to extreme heat. However, steel bearings are still widely used across various industries where operating temperatures remain within acceptable limits or where the bearing system can be adequately cooled or insulated to mitigate thermal effects. Understanding the temperature resistance of steel bearings is essential for selecting the appropriate bearing type for specific applications, ensuring optimal performance and reliability under varying thermal conditions.
Longevity and Durability
Longevity and durability are critical considerations when evaluating bearing performance, as they directly impact the lifespan and reliability of machinery and equipment. Hybrid ceramic ball bearings are renowned for their exceptional longevity, owing to the superior properties of ceramic materials such as silicon nitride or zirconia. These materials offer high hardness, corrosion resistance, and low thermal expansion, resulting in reduced wear and extended lifespan under various operating conditions. Additionally, the lower friction coefficients of hybrid ceramic ball bearings contribute to less heat generation and reduced wear on contacting surfaces, further enhancing longevity.
Conversely, steel bearings also offer durability but may exhibit higher susceptibility to wear, corrosion, and thermal degradation compared to hybrid ceramic counterparts. Proper maintenance practices, including regular lubrication and inspection, are essential for maximizing the longevity and durability of both hybrid ceramic ball bearings and steel bearings. Understanding the factors influencing longevity and durability is crucial for selecting the most suitable bearing type for specific applications, ensuring optimal performance and reliability throughout the operational lifespan of machinery and equipment.
Performance in High-Speed Applications
When it comes to high-speed applications, both hybrid ceramic ball bearings and steel bearings offer distinct advantages and considerations. Hybrid ceramic ball bearings are renowned for their exceptional high-speed performance due to the unique properties of ceramic materials. The low friction coefficients and reduced heat generation of ceramic balls allow hybrid bearings to operate smoothly at elevated speeds, minimizing energy loss and ensuring stable performance. Furthermore, the lightweight nature of ceramic balls reduces centrifugal forces, minimizing the risk of skidding or sliding, which can occur at high speeds.
Conversely, steel bearings also demonstrate high-speed capabilities but may exhibit limitations compared to hybrid ceramic counterparts. While steel bearings are durable and widely used, they can experience higher levels of friction and heat generation at high speeds, potentially impacting performance and longevity. Proper lubrication and maintenance are essential for mitigating these challenges and ensuring optimal high-speed performance of steel bearings.
Understanding the specific performance characteristics of both hybrid ceramic ball bearings and steel bearings is crucial for selecting the most suitable bearing type to meet the demands of high-speed applications, ensuring reliable and efficient performance in critical industrial settings.
Applications and Industries
Hybrid ceramic ball bearings are highly sought after in industries where high performance and durability are essential. In aerospace, these bearings excel due to their ability to withstand extreme temperatures, high speeds, and corrosive environments, making them vital components in aircraft engines, landing gear systems, and aerospace instrumentation. Automotive racing extensively relies on hybrid ceramic ball bearings to enhance vehicle performance, with reduced weight and friction contributing to improved acceleration, handling, and fuel efficiency. High-performance machinery, including robotics, medical equipment, and industrial automation, benefits from the superior properties of hybrid ceramic ball bearings, ensuring precise operation and prolonged lifespan in demanding applications. On the other hand, steel bearings remain indispensable in various industries where durability, affordability, and versatility are key factors. From general manufacturing and construction to conventional automotive applications, steel bearings are widely utilized for their robustness and cost-effectiveness, serving in a multitude of machinery and equipment where reliability is crucial.
Conclusion
In conclusion, the comparative analysis highlights the distinct advantages and considerations between hybrid ceramic ball bearings and traditional steel bearings. Hybrid ceramic bearings offer superior performance in terms of reduced friction, lower weight, temperature stability, and longevity, making them ideal for high-speed, high-temperature, and corrosive environments. Steel bearings, while durable and cost-effective, may exhibit limitations in extreme conditions. Understanding the specific requirements of each application is crucial for selecting the most suitable bearing type to optimize performance and reliability. Whether in aerospace, automotive racing, or industrial automation, the choice between hybrid ceramic and steel bearings ultimately depends on balancing performance needs with operational demands to ensure efficient and dependable machinery and equipment.
References
- 1.”Ceramic Hybrid Bearings vs Conventional Steel Bearings” from CeramicSpeed Industry;
- 2. “Unveiling the Advantages of Hybrid Ceramic Bearings” from Iskbearing;
- 3. “Hybrid ceramic ball bearings” from SKF Bearings.
