What is turbocharger ball bearing?
A turbocharger ball bearing is a type of high-speed rolling element bearing used in turbochargers to reduce friction, improve durability, and enhance performance. Unlike traditional journal (fluid-film) bearings, which rely on an oil wedge for support, ball bearings utilize precision steel or ceramic rolling elements to provide low-friction rotation of the turbo shaft.
Key Advantages of Ball Bearing Turbochargers
Reduced Friction and Faster Spool-Up
Ball bearings significantly reduce rotational resistance compared to journal bearings, leading to quicker response times and improved throttle responsiveness.
Higher Efficiency at High Speeds
Turbocharger shafts often rotate at speeds exceeding 100,000 RPM. Ball bearings minimize frictional losses, allowing for better power transfer and improved efficiency.
Lower Oil Dependence
While journal bearings require a steady flow of pressurized oil to function, ball bearing turbos need less oil. This reduces the risk of oil starvation-related failures.
Improved Durability and Longevity
The reduced contact friction in ball bearings minimizes wear, leading to longer service life and better resistance to extreme conditions.
Enhanced Load Handling

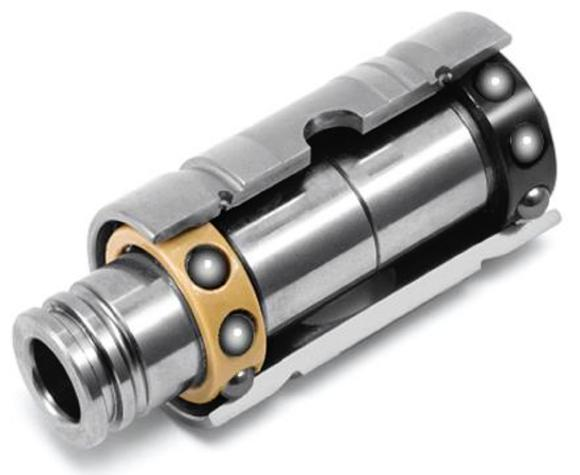

Many modern ball-bearing turbos incorporate a dual ball-bearing cartridge, which distributes radial and axial loads more efficiently than journal bearings.

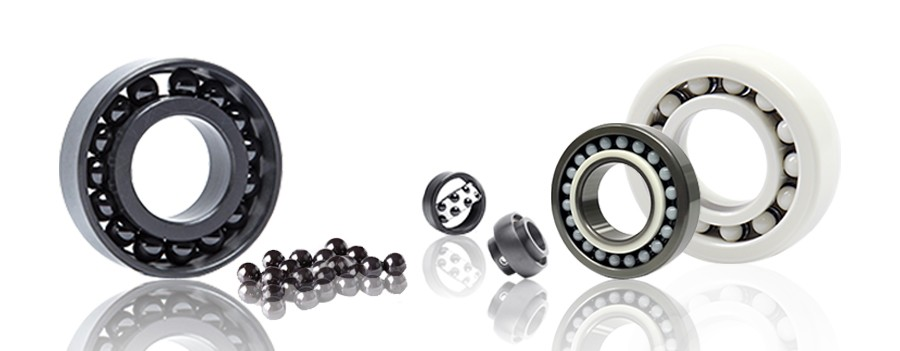

Ceramic vs. Steel Ball Bearings in Turbochargers
Steel Ball Bearings: Cost-effective, durable, and commonly used in performance and OEM turbochargers.
Ceramic Ball Bearings: Lighter, more heat-resistant, and capable of handling higher speeds, but generally more expensive.
Applications of Ball Bearing Turbochargers

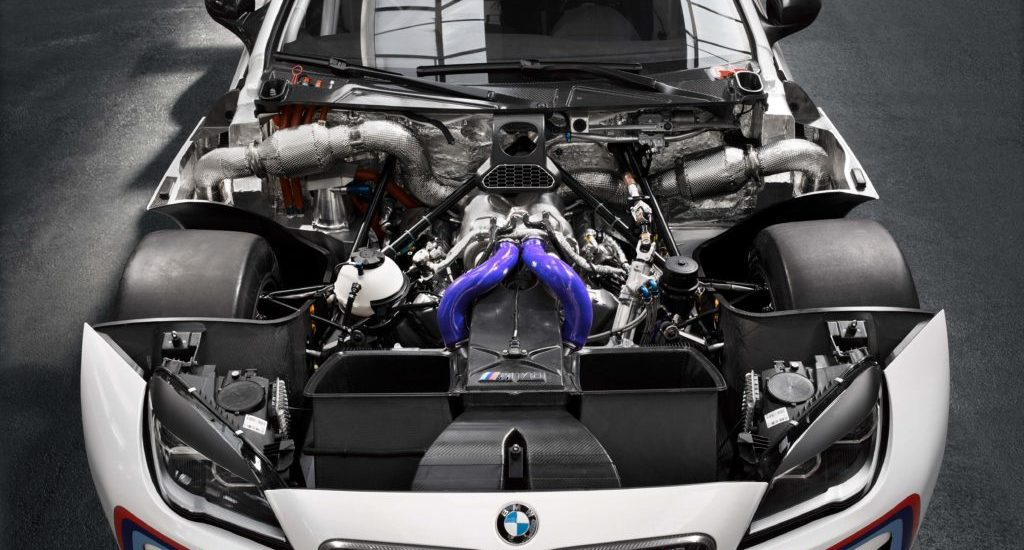

High-performance automotive engines (sports cars, racing vehicles)

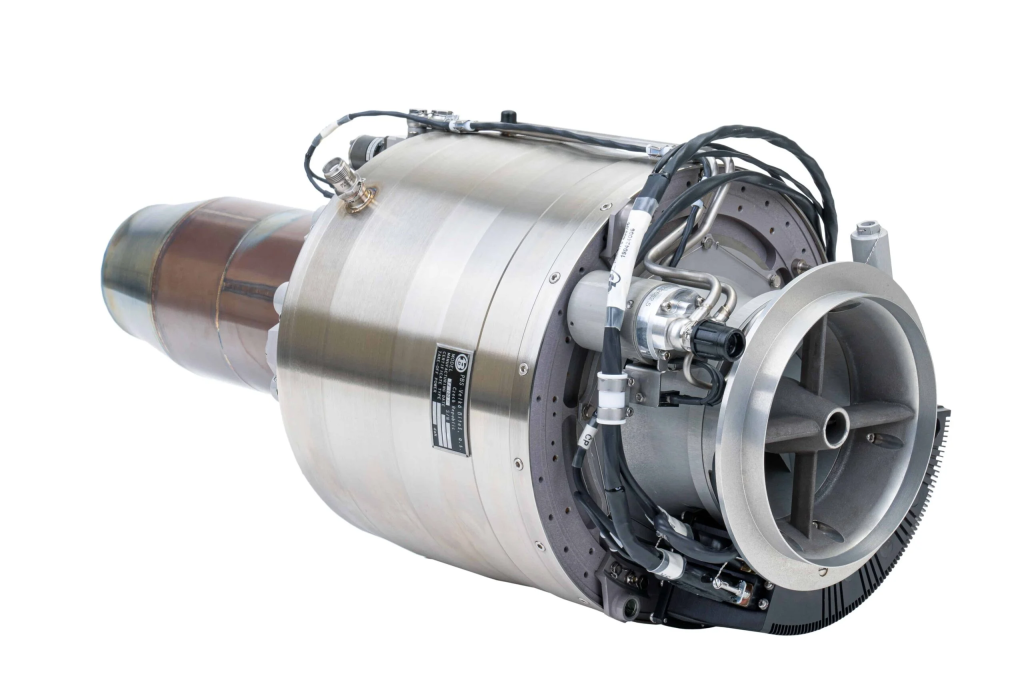

Aerospace applications (small jet engines and UAVs)

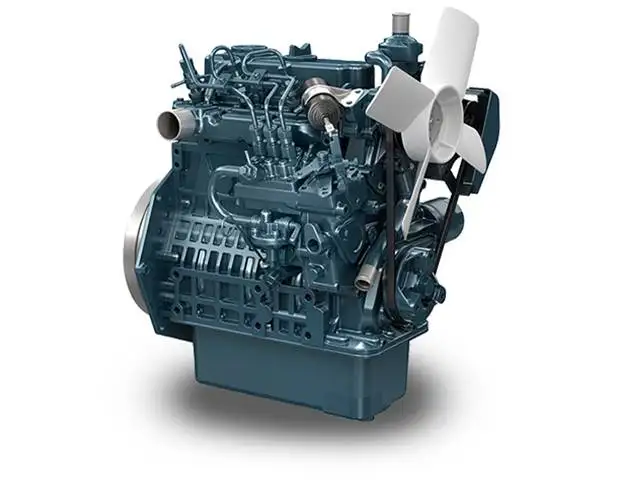

Diesel and industrial engines (for efficiency and longevity)
Advanced Ball Bearing Technology: Ceramic vs. Steel Bearings
Steel Ball Bearings
Traditional material, strong and cost-effective.
Suitable for most performance applications.
Ceramic Ball Bearings
Lighter and harder than steel.
Withstand higher temperatures.
Lower friction, allowing for even faster spool-up.
More expensive but preferred in high-end racing turbos.
Conclusion:
Turbocharger ball bearings reduce friction, improve spool-up speed, and enhance durability compared to traditional journal bearings. They require less oil, generate less heat, and handle higher loads, making them ideal for performance and racing applications. Ceramic ball bearings offer even greater efficiency. Though costlier, they significantly boost turbo response and longevity.
