What do you know about Vehicle Bearings

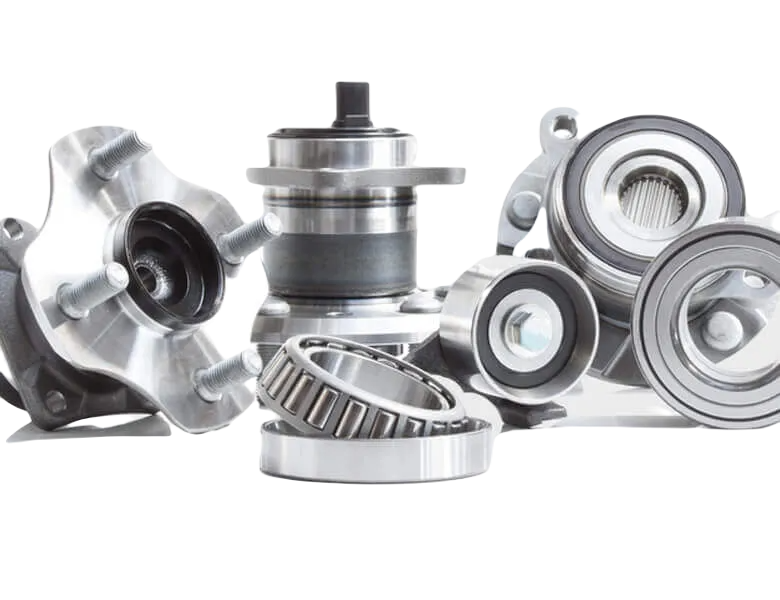

Definition of Vehicle Bearings
Vehicle Bearings refer to mechanical components used in automotive systems to reduce friction between moving parts, support rotational or linear motion, and manage load distribution. They play a crucial role in enabling smooth, efficient operation of various vehicle systems, including the wheels, transmission, suspension, and engine. Vehicle bearings come in various types, each designed for specific applications and load conditions, such as ball bearings, roller bearings, needle bearings, and angular contact bearings. These components are essential for enhancing the overall performance, durability, and safety of the vehicle, ensuring that parts such as wheels, shafts, and gears can rotate or move with minimal friction and wear.
Bearings are vital components in automotive systems, offering essential support and enabling the smooth movement of various parts. A wide range of bearing types are utilized in automotive applications, each tailored to meet specific functional requirements. Below are 16 commonly used types of vehicle bearings:
Different Types of Vehicle Bearings
1. Ball Bearings
Function: Ball bearings feature small, spherical rolling elements held within a ring, reducing friction and facilitating smooth motion between rotating parts. The balls enable both radial and axial load management, making them versatile and efficient for high-speed applications.
Automotive Applications: Commonly used in wheel hubs, ball bearings support wheel rotation and reduce friction for smooth vehicle movement. They are also widely applied in alternators, water pumps, and gearboxes, where high-speed motion and low friction are critical.
2. Roller Bearings
Function: Roller bearings use cylindrical or tapered rollers to distribute load over a larger surface, handling heavier radial and axial loads than ball bearings. The design minimizes friction while enhancing load-bearing capability.
Automotive Applications: Tapered roller bearings are essential in wheel hubs, where they support vehicle weight and manage forces during acceleration and braking. They are also applied in differential systems and transmissions, where high loads and durability are vital.
3. Needle Bearings
Function: Needle bearings feature thin, cylindrical rollers with a high length-to-diameter ratio, allowing them to handle high radial loads while fitting into restricted spaces.
Automotive Applications: Needle bearings are found in automotive components like gearbox shafts and rocker arms. Their compact design and high load capacity make them ideal for space-constrained areas, such as connecting rods and compressors, where high radial load support is necessary.
4. Thrust Bearings
Function: Thrust bearings are engineered to manage axial loads, preventing unwanted axial movement. They come in types such as ball thrust and roller thrust, each suited to specific load and speed requirements.
Automotive Applications: Thrust bearings are crucial in clutch release systems, where they facilitate smooth clutch engagement and disengagement by bearing the axial load during operation. They are also used in certain gearbox assemblies to handle axial forces generated by gears.
5. Spherical Bearings
Function: Spherical bearings allow angular movement and misalignment, thanks to their spherical inner and outer rings. This adaptability is beneficial in situations with variable angles of motion.
Automotive Applications: Spherical bearings are commonly applied in suspension components like control arms and strut mounts. Their ability to absorb shock and accommodate multi-directional movement enhances the suspension system’s stability and comfort on rough terrains.
6. Plain Bearings (Bushings)
Function: Plain bearings, or bushings, offer a low-friction sliding surface between two components. Unlike rolling bearings, they operate via sliding motion and are typically made of durable materials like bronze or polymers.
Automotive Applications: Plain bearings are widely used in suspension systems, providing a friction-reducing interface in components like control arms and sway bars. They also serve as engine connecting rod bushings and pivot points in various chassis parts, aiding in smooth movement without complex rolling elements.
7. Angular Contact Bearings
Function: Angular contact bearings are designed to manage both radial and axial loads by distributing the load at an angle. This arrangement increases the bearing’s load capacity compared to standard ball bearings.
Automotive Applications: Often found in front wheel hubs, angular contact bearings handle the combined load of vehicle weight (radial load) and lateral forces during cornering (axial load). This design enhances stability and performance in wheel assemblies.
8. Tapered Roller Bearings
Function: Tapered roller bearings use cone-shaped rollers that distribute load across a larger surface, making them ideal for handling heavy combined radial and axial loads.
Automotive Applications: These bearings are widely applied in wheel hubs, transmissions, and differential systems. They provide stability in steering and are well-suited for applications requiring durability under intense load conditions, such as off-road vehicles and heavy-duty trucks.
9. Cylindrical Roller Bearings
Function: Cylindrical roller bearings are designed for high radial load capacities but offer limited axial load support. The rollers allow for minimal friction and are ideal for high-speed applications.
Automotive Applications: Common in electric motors, transmissions, and alternators, cylindrical roller bearings offer durability and high-speed capability. They are also used in gearboxes and crankshafts, where steady radial load support is essential.
10. Self-Aligning Ball Bearings
Function: Self-aligning ball bearings have two rows of balls and a shared spherical outer ring raceway, enabling them to compensate for minor misalignments.
Automotive Applications: These bearings are used in applications prone to misalignment, such as steering columns and some suspension components, helping maintain stability and smooth motion even when shafts are not perfectly aligned.
11. Magnetic Bearings
Function: Magnetic bearings use magnetic fields rather than physical contact to support a rotating shaft, eliminating friction and enabling high-speed, low-maintenance applications.
Automotive Applications: Though less common, magnetic bearings are gaining popularity in electric vehicles and turbochargers due to their efficiency and friction-free operation, supporting components that operate at extremely high speeds.
12. Journal Bearings
Function: Journal bearings are simple cylindrical sleeves that support rotating shafts through a lubricated sliding motion, making them highly durable and suitable for high-load applications.
Automotive Applications: Often used in engine crankshafts and camshafts, journal bearings provide reliable support for rotating components under intense pressure. They are particularly useful in internal combustion engines, where consistent high-load handling is critical.
13. Linear Bearings
Function: Linear bearings allow for linear, rather than rotational, motion and provide smooth, low-friction travel along a straight path.
Automotive Applications: Though less common, linear bearings are used in automotive applications like seat adjustments and sliding door mechanisms, where linear motion is required rather than rotation.
14. Clutch Release Bearings
Function: Specifically designed for clutches, these bearings handle axial loads generated during the engagement and disengagement of the clutch system.
Automotive Applications: Clutch release bearings are vital in manual transmission systems, ensuring smooth clutch operation by reducing friction and supporting axial loads during shifting.
15. Hydrodynamic Bearings
Function: Hydrodynamic bearings rely on a thin layer of lubricant to create a load-bearing film between rotating surfaces, allowing smooth, low-friction motion.
Automotive Applications: Commonly used in turbochargers, these bearings are ideal for applications involving high speeds and temperatures, where traditional rolling bearings may not suffice.
16. Air Bearings
Function: Air bearings use a thin film of pressurized air as a cushion to eliminate friction and enable ultra-smooth motion.
Automotive Applications: Primarily found in high-tech or experimental applications, air bearings may be used in specialized automotive testing equipment due to their ability to provide near-frictionless operation.
Each type of bearing plays a specific role, tailored to the varying demands of automotive systems and enhancing the overall efficiency, performance, and durability of vehicles across different operating conditions.
Conclusion:
In conclusion, auto bearings are essential components that drive the performance and longevity of automotive systems, ensuring smooth operation across a variety of moving parts. With a wide range of bearing types engineered for specific roles, they enhance vehicle performance, reliability, and durability across different applications. Whether it’s the common automobile bearings in wheel hubs and alternators or the heavy-duty car bearings designed to withstand high loads in transmissions and differentials, each bearing type serves a critical function in supporting the overall efficiency of automotive systems.
Needle bearings, with their space-efficient design and impressive load-bearing capacity, are invaluable in transmission systems, where compactness is crucial. Thrust bearings, such as those in clutch release mechanisms, manage axial loads, ensuring the clutch engages and disengages smoothly. Spherical bearings provide the necessary flexibility in suspension systems, accommodating misalignment and enhancing shock absorption, ensuring a smoother ride.
Plain bearings, also known as bushings, offer effective friction reduction through sliding motion, proving indispensable in suspension systems and engine components. Angular contact bearings, designed to handle both radial and axial loads, boost the stability and performance of front wheel hub assemblies, ensuring enhanced handling and cornering.
The thoughtful integration of these diverse bearing types is key to the overall performance, safety, and dependability of automotive vehicles. As the automotive industry continues to evolve, ongoing advancements in bearing design and materials will further refine vehicle performance, meeting the changing demands of both manufacturers and consumers and ultimately enhancing the driving experience.
