Comparative Analysis of Wire Race Bearings vs. Traditional Bearing Systems
Introduction
Definition of Bearings
A bearing, in the realm of mechanics and engineering, serves as a critical component that facilitates the smooth rotation or movement of machine parts. Essentially, bearings reduce friction between moving elements, such as shafts or axles, allowing for efficient motion while minimizing wear and tear. They come in various forms, including ball bearings and roller bearings, each designed to accommodate specific load capacities and operational requirements. By mitigating friction, bearings contribute significantly to the overall performance and longevity of machinery, playing a fundamental role in diverse industrial applications.
Importance of Bearings in Industrial Machinery
Bearings hold paramount significance in industrial machinery by virtue of their pivotal role in facilitating smooth movement and minimizing friction between mechanical components. In the intricate workings of industrial equipment, bearings enable the rotation of shafts, wheels, and gears with reduced resistance, thereby enhancing operational efficiency. The use of bearings not only ensures a more seamless performance but also extends the lifespan of machinery by preventing excessive wear. Industries rely on various types of bearings tailored to specific load capacities and environmental conditions, underscoring their versatile utility. In essence, bearings serve as indispensable elements that contribute to the reliability, precision, and overall productivity of diverse industrial processes.
Need for Comparative Analysis
The comparative analysis of bearings is imperative in engineering and industrial contexts, as it allows for an informed selection of the most suitable bearing type for specific applications. With a plethora of bearings available, ranging from ball bearings to roller bearings, each with unique features and performance characteristics, a thorough comparative analysis becomes crucial. Engineers and manufacturers must assess factors such as load capacity, rotational speed, environmental conditions, and maintenance requirements to determine the optimal bearing for a given machinery or system. This meticulous comparison ensures not only the efficient functioning of the equipment but also the longevity and reliability of the entire system, emphasizing the significance of a well-informed approach to bearing selection in diverse industrial settings.
Overview of Traditional Bearing Systems

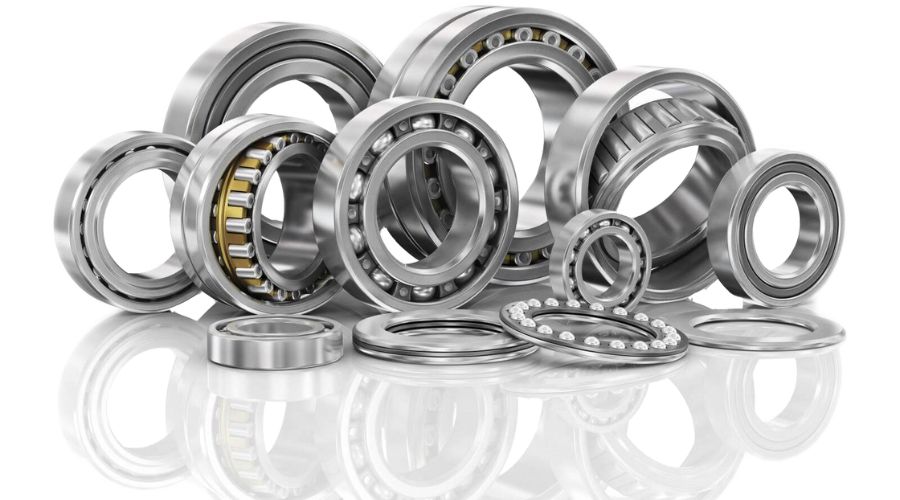

Types of Traditional Bearings
Ball Bearings: These are perhaps the most common type, consisting of spherical rolling elements that allow for smooth, low-friction rotational motion.
Roller Bearings: Roller bearings use cylindrical or tapered rollers instead of balls, offering increased load-carrying capacity and better stability under heavier loads.
Plain Bearings: Also known as sleeve bearings or bushings, these involve a simple cylindrical design where the shaft rotates within a lined sleeve, providing a sliding motion.
Thrust Bearings: Designed to handle axial loads, thrust bearings come in various forms, such as ball thrust bearings and roller thrust bearings, ensuring efficient axial movement.
Needle Bearings: These bearings use long, thin cylindrical rollers known as needles, providing a high load-carrying capacity, especially in applications with limited radial space.
Spherical Roller Bearings: Featuring barrel-shaped rolling elements, these bearings accommodate misalignment and angular deflection, making them suitable for applications where shafts may not be perfectly aligned.
Operating Principles
Traditional bearings operate on the principle of minimizing friction between moving components to facilitate smooth and efficient motion within machinery. In a ball bearing, for instance, the presence of small, spherical balls positioned between the inner and outer rings allows for the distribution of load and the reduction of friction as the rings rotate relative to each other. Roller bearings employ cylindrical or tapered rollers, which similarly reduce friction and provide enhanced load-carrying capabilities. Plain bearings, on the other hand, involve a sliding motion between the shaft and a lined sleeve, maintaining a thin film of lubrication to minimize friction. Regardless of the specific type, the fundamental purpose of traditional bearings is to enable rotational or linear movement while mitigating the effects of friction, thereby optimizing the performance and durability of machinery.
Introduction to Wire Race Bearings
Definition and Basics

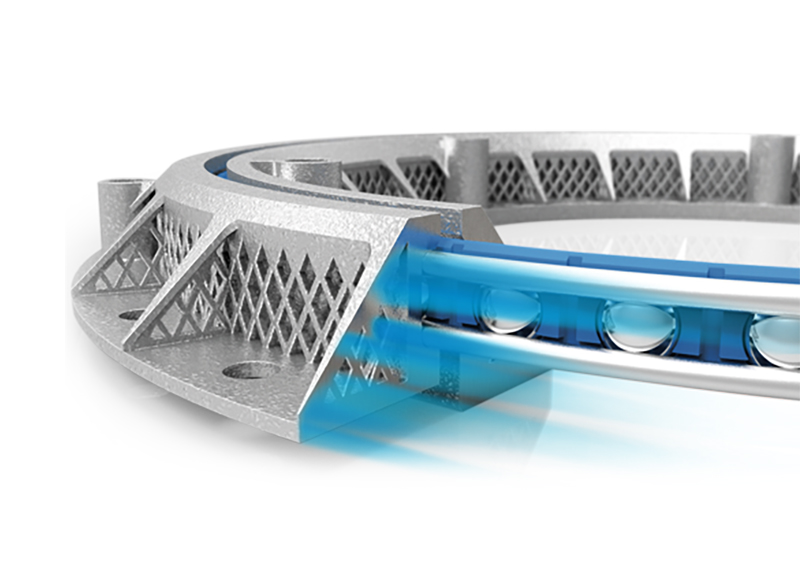

Wire race bearings, a type of rotary bearing, feature a unique design that distinguishes them from traditional bearings. Unlike conventional bearings with solid inner and outer rings, wire race bearings incorporate a thin wire or cable as the raceway for the rolling elements. The rolling elements, often balls or rollers, circulate within this wire race, enabling smooth and precise rotational motion. This innovative approach results in reduced friction, increased load-carrying capacity, and improved overall performance. Wire race bearings find applications in various industries, including robotics, automation, and aerospace, where their lightweight construction, minimal friction, and high precision are advantageous. The distinctive wire race design allows for compact and efficient solutions in situations where space and weight considerations are critical, making wire race bearings a valuable component in modern engineering applications.
Evolution of Wire Race Bearings
The evolution of wire race bearings has been marked by a continuous quest for enhanced performance and efficiency in rotational systems. Originally developed as a response to the limitations of traditional bearings, wire race bearings have undergone advancements in materials, manufacturing techniques, and design optimization. The incorporation of innovative materials and precision engineering has led to improvements in load capacity, durability, and friction reduction. Over time, these bearings have evolved to meet the demands of diverse industries, showcasing a commitment to addressing specific challenges such as weight constraints, space limitations, and the need for high precision in modern applications.
Wire Race Bearings Design and Construction

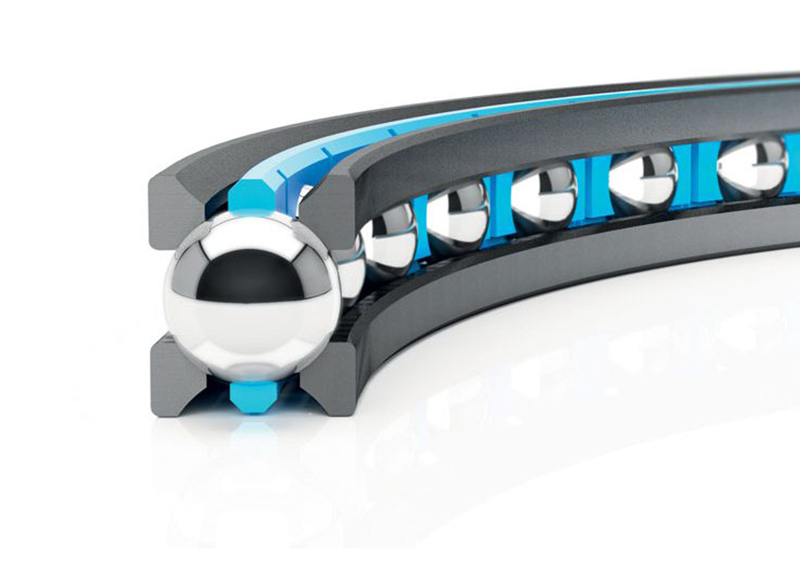

Wire race bearings exhibit a distinctive design characterized by the absence of traditional inner and outer rings. Instead, they feature a thin wire or cable that serves as the raceway for the rolling elements. The rolling elements, typically balls or rollers, circulate within this wire race, allowing for smooth and precise rotation. The wire race design offers advantages such as reduced friction, increased load-carrying capacity, and enhanced precision. The construction involves carefully engineered materials to ensure durability and performance. The wire race is typically made from high-strength alloys or other advanced materials to withstand operational stresses. Surrounding components are designed to maintain proper spacing and alignment of the rolling elements, ensuring optimal functionality. This unique design not only contributes to the compactness and efficiency of wire race bearings but also makes them well-suited for applications where space, weight, and precision are critical considerations.
Operational Characteristics of Wire Race Bearings
Wire race bearings exhibit distinctive operating characteristics that make them stand out in various applications. One key feature is their impressive load-carrying capacity, attributed to the efficient distribution of forces along the wire raceway. This design also contributes to lower friction, enabling smooth rotational motion and reducing wear. Wire race bearings are well-suited for high-speed applications, as the absence of traditional inner and outer rings minimizes rotational inertia. Additionally, the design allows for flexibility in handling misalignments, making them adaptable to diverse load conditions. In terms of noise and vibration levels, wire race bearings often excel due to their precision engineering, providing a quieter and smoother operation. Furthermore, the materials used in their construction often offer excellent temperature resistance, ensuring reliable performance across a range of environmental conditions. These combined characteristics make wire race bearings valuable in industries where efficiency, precision, and adaptability are critical considerations.
Comparative Performance Analysis
Wire race bearings and traditional bearings each present a set of performance advantages and disadvantages. Wire race bearings excel in load distribution efficiency due to their unique design, distributing forces more evenly along the wire raceway, leading to improved load-carrying capacity and reduced friction. Their lightweight construction contributes to higher rotational speed capability, making them suitable for applications requiring swift and precise motion. Additionally, the absence of traditional inner and outer rings minimizes rotational inertia, enhancing overall operational efficiency. However, wire race bearings may have higher manufacturing complexity and cost. Traditional bearings, on the other hand, are widely available, cost-effective, and straightforward in design, making them suitable for various applications. They often have simpler manufacturing processes and a longer history of proven reliability. However, traditional bearings may experience higher friction, limiting their efficiency, and may require more frequent lubrication. The choice between wire race bearings and traditional bearings depends on the specific requirements of the application, balancing factors such as load demands, rotational speed, and cost considerations.
Application-specific Considerations
Wire race bearings offer distinct advantages in various industries due to their unique design and characteristics. In the aerospace sector, their lightweight construction is crucial for minimizing aircraft weight, contributing to fuel efficiency without compromising precision in critical components. In the automotive industry, wire race bearings find application in steering systems and transmissions, where their ability to handle complex load conditions and provide efficient, durable performance is valued. In heavy machinery, such as construction equipment and cranes, wire race bearings excel in minimizing friction, ensuring smooth operation, and accommodating heavy loads. In the field of robotics, the compact and lightweight nature of wire race bearings is ideal for high-speed and precise movements in joints and articulating arms. The adaptability of wire race bearings to diverse operational requirements underscores their versatility, making them a valuable choice across these industries where specific performance characteristics are crucial for optimal functionality.
Cost Analysis
The cost difference between wire race bearings and traditional bearing systems is influenced by various factors. Wire race bearings, with their innovative design and materials, often involve more complex manufacturing processes, contributing to a potentially higher initial cost. The specialized engineering required to create the wire raceway and precision components can increase production expenses. In contrast, traditional bearings, with well-established and simpler designs, tend to be more cost-effective due to widespread availability, standardized manufacturing, and economies of scale. Additionally, traditional bearings may benefit from a longer history of mass production, leading to competitive pricing. However, the overall cost analysis should consider the specific needs of the application. While wire race bearings may have a higher upfront cost, their performance advantages, such as reduced friction, enhanced load capacity, and adaptability to unique conditions, may justify the investment in certain scenarios.
Environmental Impact
Analyzing the environmental impact of wire race bearings versus traditional bearing systems involves considering manufacturing processes, material choices, and overall lifecycle effects. Wire race bearings may potentially have a higher initial environmental footprint due to the precision engineering involved and the use of specialized materials. However, their efficiency in reducing friction and improving operational performance can contribute to energy savings and lower resource consumption during the operational phase. Traditional bearings, while often more straightforward to manufacture, may generate increased friction, requiring more frequent lubrication and potentially leading to higher energy consumption over time. Therefore, a comprehensive assessment should weigh the environmental impact throughout the entire lifecycle, including production, operation, and disposal considerations, to determine the overall sustainability of each bearing system.
Conclusion
In conclusion, bearings play a pivotal role in industrial machinery, reducing friction and enhancing efficiency. Traditional bearings, such as ball and roller bearings, have well-established designs and widespread use. The evolution of technology has led to the development of wire race bearings, offering advantages like reduced friction, increased load capacity, and adaptability in various applications. A comparative analysis reveals that while wire race bearings may have a higher upfront cost, their unique design and performance benefits justify the investment in specific scenarios. The choice between wire race bearings and traditional bearings depends on factors like load demands, rotational speed, and cost considerations, emphasizing the importance of informed selection in diverse industrial settings.
References
- 1.”Wire race bearing” from Wikipedia;
- 2. “Wire Race bearings and linear guides” from Franke GmbH;
- 3. “Wire Race Bearing Elements” from Linear Motion Systems Ltd.
