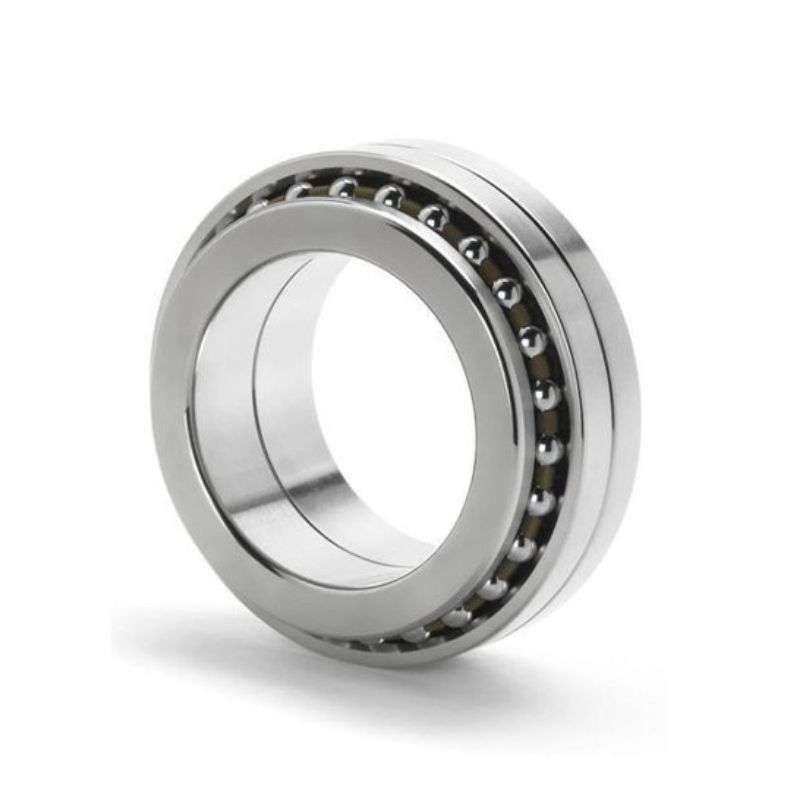

Introduction to Double Direction Angular Contact Thrust Ball Bearings
Definition and Basic Concept
Double direction angular contact thrust ball bearings are specialized components designed to accommodate thrust loads in both directions, all while maintaining their angular contact design. These bearings allow for high precision in axial load-bearing applications, making them ideal for scenarios where bidirectional axial forces are at play. The combination of thrust capability and angular contact design provides a unique solution that’s indispensable in certain mechanical configurations.
Importance in Modern Machinery
In today’s advanced machinery, the role of double direction angular contact thrust ball bearings is nothing short of pivotal. Whether it’s in high-speed turbines or precision-guided machinery, these bearings ensure smooth and reliable operation by handling complex loads with minimal friction. Without them, many modern machines would face premature wear and tear, leading to frequent breakdowns and costly downtimes.
Historical Background and Evolution
The development of double direction angular contact thrust ball bearings traces back to the early 20th century, when the rapid industrialization demanded more efficient load-handling solutions. Originally, thrust bearings were designed to handle unidirectional loads, but the increasing complexity of machinery necessitated the evolution of bidirectional designs. Over the decades, advancements in materials and manufacturing techniques have further refined these bearings, making them more durable, reliable, and efficient.
Design and Structure of Double Direction Angular Contact Thrust Ball Bearings
Inner and Outer Rings Configuration
The inner and outer rings of double direction angular contact thrust ball bearings are meticulously engineered to withstand high axial loads from both directions. The rings are often made from high-grade steel or ceramic materials, ensuring robustness and longevity. Their precise geometry is key to maintaining the bearing’s overall stability and performance, even under strenuous conditions.
Ball Bearing Assembly
The ball bearing assembly within these bearings is a critical component, designed to distribute loads evenly across the bearing surfaces. These balls are typically made from hardened steel or ceramics, chosen for their ability to resist deformation under high pressure. The arrangement of the balls allows the bearing to maintain smooth rotational movement, reducing friction and wear over time.
Angular Contact Mechanics
Angular contact mechanics play a crucial role in the functionality of these bearings, allowing them to handle both axial and radial loads simultaneously. The contact angle between the balls and the bearing races determines the load-carrying capacity and the operational speed of the bearing. A greater contact angle improves the bearing’s ability to handle higher axial loads, making it suitable for demanding applications.
Material Composition
Common Materials Used
Double direction angular contact thrust ball bearings are commonly made from high-strength materials such as chrome steel, stainless steel, and ceramics. Chrome steel offers a good balance of strength, durability, and cost, making it the most widely used material. Ceramics, although more expensive, provide superior resistance to wear and corrosion, making them ideal for specialized applications.
Material Properties and Performance
The performance of these bearings heavily depends on the material properties, including hardness, toughness, and corrosion resistance. For instance, chrome steel bearings are known for their high hardness and load-bearing capacity, while stainless steel variants offer enhanced corrosion resistance. Ceramic bearings, on the other hand, are lightweight and operate with less friction, which can significantly extend the bearing’s lifespan in high-speed applications.
Advances in Material Technology
Recent advancements in material technology have led to the development of hybrid bearings, combining steel rings with ceramic balls. This hybrid design offers the best of both worlds: the strength and durability of steel, paired with the lightweight and low-friction properties of ceramics. Additionally, surface coatings like DLC (Diamond-Like Carbon) are being used to further reduce friction and improve wear resistance, pushing the boundaries of bearing performance.
Manufacturing Process
Precision Engineering Techniques
The manufacturing of double direction angular contact thrust ball bearings involves precision engineering techniques to ensure each component meets exacting standards. Advanced CNC (Computer Numerical Control) machines are used to achieve the necessary tolerances and surface finishes. This precision is vital for ensuring the bearing’s smooth operation and longevity, as even the smallest imperfection can lead to premature failure.
Heat Treatment and Surface Finishing
Heat treatment is a critical step in the manufacturing process, used to enhance the hardness and strength of the bearing components. Through processes like quenching and tempering, the steel is transformed into a more resilient state, capable of withstanding high loads and stress. Surface finishing, including polishing and grinding, is then applied to reduce friction and improve the bearing’s overall performance.
Quality Control and Testing
Quality control in bearing manufacturing is rigorous, involving multiple stages of testing to ensure each bearing meets strict performance criteria. Non-destructive testing methods such as ultrasonic testing and magnetic particle inspection are used to detect any internal flaws. Additionally, bearings are subjected to load testing and endurance testing to validate their capability to perform under real-world conditions.
Types and Variants
Standard Variants
Standard variants of double direction angular contact thrust ball bearings are designed to meet the needs of most common industrial applications. These bearings come in various sizes and configurations, each optimized for different load capacities and operational speeds. The standard variants are versatile, providing reliable performance across a wide range of machinery.
Customized and Special Variants
For applications with unique requirements, customized and special variants of these bearings are available. These bearings can be tailored in terms of size, material, and design to meet specific operational needs. For instance, bearings with ceramic balls or special coatings can be developed for high-temperature environments or where corrosion is a concern.
Differences Between Single and Double Direction Bearings
The primary difference between single and double direction bearings lies in their ability to handle axial loads. Single direction thrust bearings can only manage axial loads in one direction, making them less versatile. In contrast, double direction bearings are designed to handle axial loads in both directions, making them ideal for applications where the load direction can reverse, such as in automotive transmissions.
Load Bearing Capabilities
Axial Load Capacity
Axial load capacity is one of the defining characteristics of double direction angular contact thrust ball bearings. These bearings are designed to support substantial axial loads from both directions, making them indispensable in heavy-duty machinery. The capacity is determined by factors such as the size of the bearing, the material used, and the contact angle between the bearing components.
Radial Load Implications
While these bearings are primarily designed for axial loads, they can also handle a certain degree of radial loads. However, the radial load capacity is generally lower than the axial load capacity. The interplay between axial and radial loads is a critical consideration in bearing design, as excessive radial loads can reduce the bearing’s overall lifespan and efficiency.
Impact of Combined Loads
In many applications, bearings are subjected to combined loads, which include both axial and radial forces. Double direction angular contact thrust ball bearings are particularly well-suited for these scenarios, as their design allows them to effectively manage the complex interplay of forces. Properly balancing these loads is crucial to ensuring the bearing’s longevity and optimal performance.
Applications Across Industries
Automotive Industry
In the automotive industry, double direction angular contact thrust ball bearings play a vital role in various components, including transmissions, clutches, and differentials. These bearings help manage the high axial loads generated during gear shifting and acceleration, ensuring smooth operation and long-term reliability. Their ability to handle bidirectional loads makes them essential in modern vehicle designs, where space and efficiency are paramount.
Aerospace and Defense
Aerospace and defense applications demand bearings that can withstand extreme conditions, including high speeds, heavy loads, and temperature fluctuations. Double direction angular contact thrust ball bearings are ideal for these environments, providing the necessary precision and durability. From jet engines to missile guidance systems, these bearings ensure that critical components operate reliably under the most challenging conditions.
Industrial Machinery and Equipment
In industrial machinery and equipment, these bearings are often found in heavy-duty applications such as pumps, compressors, and machine tools. Their ability to handle both axial and radial loads makes them versatile and highly reliable. In industries where downtime is costly, the durability and performance of these bearings contribute to the overall efficiency and productivity of the machinery.
Installation Guidelines
Preparation and Tools Required
Proper installation of double direction angular contact thrust ball bearings begins with thorough preparation and the right tools. It’s essential to have clean, dust-free working conditions and to use precision tools such as bearing pullers, alignment tools, and torque wrenches. Ensuring that all components are free of contamination before installation will help prevent premature wear and failure.
Step-by-Step Installation Process
The installation process typically involves several critical steps, starting with the correct orientation of the bearing within the assembly. Each step must be performed with precision to avoid damaging the bearing or the surrounding components. Proper alignment is crucial, as even a slight misalignment can lead to increased friction and reduced bearing life.
Common Installation Mistakes
Common mistakes during installation can significantly impact the performance and longevity of the bearing. Over-tightening or under-tightening the bearing can lead to uneven load distribution and premature failure. Additionally, failing to properly lubricate the bearing during installation can result in increased friction, overheating, and eventual seizure of the bearing.
Maintenance and Lubrication
Importance of Regular Maintenance
Regular maintenance is key to extending the life of double direction angular contact thrust ball bearings and ensuring consistent performance. This includes routine inspections for signs of wear, proper lubrication, and checking for alignment issues. Neglecting maintenance can lead to catastrophic failure, resulting in costly repairs and downtime.
Types of Lubricants and Their Applications
Choosing the right lubricant for these bearings is crucial to minimizing friction and preventing wear. Greases and oils specifically formulated for high-load and high-speed applications are typically recommended. The choice of lubricant depends on factors such as operating temperature, load conditions, and environmental factors like moisture and dust.
Troubleshooting and Wear Indicators
Identifying early signs of wear and potential issues can help prevent unexpected failures. Common indicators include unusual noises, increased vibration, and excessive heat generation. Regular monitoring and troubleshooting can help identify the root cause of these issues, allowing for timely corrective actions before the bearing fails completely.
Performance Optimization
Balancing Load Distribution
Optimizing the performance of double direction angular contact thrust ball bearings often involves balancing the load distribution across the bearing surfaces. Uneven load distribution can lead to increased wear and reduced bearing life. Engineers must carefully design the bearing assembly to ensure that loads are evenly distributed, maximizing the bearing’s efficiency and longevity.
Minimizing Friction and Heat Generation
Reducing friction is critical to improving the performance and lifespan of these bearings. This can be achieved through proper lubrication, precise alignment, and the use of advanced materials with low friction coefficients. Minimizing friction not only extends the life of the bearing but also reduces heat generation, which can lead to thermal degradation if not properly managed.
Enhancing Longevity and Reliability
Longevity and reliability are the ultimate goals when it comes to bearing performance. This can be achieved through a combination of proper material selection, precision manufacturing, regular maintenance, and performance optimization techniques. By focusing on these areas, engineers can significantly extend the operational life of double direction angular contact thrust ball bearings, ensuring reliable performance over time.
Failure Modes and Analysis
Common Causes of Bearing Failure
Bearing failure can be caused by a variety of factors, including improper installation, insufficient lubrication, and excessive loads. Other causes include contamination from dirt or moisture, misalignment, and material defects. Understanding these common causes is crucial for preventing failures and ensuring the longevity of the bearing.
Diagnostic Techniques
Effective diagnostic techniques are essential for identifying the root causes of bearing failures. These techniques include vibration analysis, thermal imaging, and oil analysis. By using these methods, engineers can detect early signs of wear and other issues, allowing for timely maintenance and repairs before the bearing fails completely.
Preventive Measures
Implementing preventive measures can help avoid bearing failures and extend the life of the bearing. These measures include proper installation practices, regular maintenance, and the use of high-quality lubricants. Additionally, engineers should ensure that the bearing is operated within its specified load and speed limits to prevent overloading and excessive wear.
Comparison with Other Bearing Types
Single Direction Thrust Ball Bearings
Single direction thrust ball bearings are designed to handle axial loads in one direction only. While they are simpler in design and often less expensive, they are limited in their ability to handle bidirectional loads. This makes them less versatile than double direction angular contact thrust ball bearings, which can manage axial loads in both directions.
Radial Ball Bearings
Radial ball bearings are designed to handle radial loads, with some ability to manage axial loads. However, they are not optimized for high axial load applications like double direction angular contact thrust ball bearings. Radial bearings are commonly used in applications where the primary load is radial, such as in electric motors and conveyor systems.
Cylindrical Roller Bearings
Cylindrical roller bearings are designed to handle heavy radial loads and moderate axial loads. They are often used in high-load applications where durability and strength are critical. However, cylindrical roller bearings lack the precision and bidirectional load-handling capabilities of double direction angular contact thrust ball bearings, making them less suitable for certain high-precision applications.
Market Trends and Innovations
Emerging Technologies in Bearing Design
The bearing industry is constantly evolving, with new technologies and designs emerging to meet the demands of modern machinery. Innovations such as hybrid bearings, which combine steel and ceramic components, offer enhanced performance and durability. Additionally, advancements in manufacturing techniques, such as additive manufacturing and precision machining, are enabling the production of more complex and efficient bearing designs.
Impact of Digitalization and IoT
The rise of digitalization and the Internet of Things (IoT) is transforming the bearing industry. Smart bearings equipped with sensors can monitor their own performance in real-time, providing valuable data on temperature, vibration, and load conditions. This data can be used to optimize maintenance schedules, improve efficiency, and prevent unexpected failures.
Future Outlook for Double Direction Bearings
The future of double direction angular contact thrust ball bearings looks promising, with continued advancements in materials, design, and manufacturing techniques. As industries demand higher performance and greater reliability from their machinery, these bearings will continue to play a critical role in ensuring smooth and efficient operation. The ongoing development of smart bearing technology and advanced materials will further enhance their capabilities, making them even more indispensable in the years to come.
Standards and Certifications
ISO Standards for Bearing Manufacturing
ISO standards play a crucial role in ensuring the quality and consistency of bearing manufacturing processes. These standards cover various aspects of bearing production, including material selection, manufacturing techniques, and quality control. Compliance with ISO standards is essential for manufacturers to produce bearings that meet the rigorous demands of modern machinery.
Industry-Specific Certifications
In addition to ISO standards, many industries require specific certifications for the bearings used in their machinery. For example, the aerospace industry often requires AS9100 certification, which ensures that bearings meet the stringent quality and safety requirements of aircraft and defense applications. These industry-specific certifications provide additional assurance that the bearings will perform reliably in critical applications.
Compliance and Regulatory Considerations
Manufacturers must also comply with various regulatory requirements, which can vary depending on the region and industry. These regulations may cover aspects such as environmental impact, safety, and material sourcing. Ensuring compliance with these regulations is essential for manufacturers to operate legally and maintain their reputation in the market.
Cost Considerations
Factors Affecting Bearing Costs
Several factors can influence the cost of double direction angular contact thrust ball bearings, including material selection, manufacturing complexity, and supply chain dynamics. Bearings made from advanced materials like ceramics or with special coatings tend to be more expensive. Additionally, bearings designed for specialized applications may require more complex manufacturing processes, which can also drive up costs.
Cost-Benefit Analysis of Different Types
When selecting bearings, it’s important to consider the cost-benefit ratio of different types. While higher-end bearings may come with a higher price tag, they often offer superior performance, longevity, and reliability. In the long run, investing in higher-quality bearings can result in lower maintenance costs, reduced downtime, and a longer lifespan, making them a more cost-effective choice.
Reducing Total Cost of Ownership
Reducing the total cost of ownership for bearings involves more than just minimizing the initial purchase price. It also includes factors such as maintenance costs, energy consumption, and downtime. By selecting bearings that offer high efficiency, low maintenance requirements, and long service life, companies can significantly reduce their overall costs and improve the profitability of their operations.
Suppliers and Manufacturers
Leading Global Suppliers
Several global suppliers are recognized for their expertise in producing high-quality double direction angular contact thrust ball bearings. These suppliers often have extensive experience in the industry, a strong focus on innovation, and a commitment to quality. Working with leading suppliers ensures access to the latest bearing technologies and reliable products.
Choosing the Right Supplier
Selecting the right supplier is critical to ensuring the quality and performance of the bearings used in your machinery. Factors to consider when choosing a supplier include their reputation, experience, technical expertise, and customer support. It’s also important to assess the supplier’s ability to meet your specific requirements, such as customized designs or special materials.
Supplier Qualification and Auditing
Before partnering with a supplier, it’s essential to conduct a thorough qualification and auditing process. This includes reviewing the supplier’s manufacturing capabilities, quality control processes, and compliance with industry standards. Regular audits should also be conducted to ensure that the supplier continues to meet your requirements and maintain high standards of quality.
Case Studies and Real-World Applications
Automotive Sector Case Study
In the automotive sector, double direction angular contact thrust ball bearings are used in various critical components, such as transmissions and differentials. A case study of a leading automotive manufacturer reveals how these bearings contributed to improved performance, reduced maintenance costs, and enhanced vehicle reliability. The bearings’ ability to handle bidirectional axial loads in high-speed conditions was a key factor in their success.
Aerospace Application Success Story
In the aerospace industry, precision and reliability are paramount. A case study of an aerospace manufacturer highlights the successful implementation of double direction angular contact thrust ball bearings in jet engines. These bearings provided the necessary durability and precision, enabling the engines to operate at high speeds and under extreme conditions with minimal maintenance.
Industrial Machinery Deployment
Industrial machinery often operates under heavy loads and challenging conditions. A case study of a manufacturing plant demonstrates how double direction angular contact thrust ball bearings were deployed in heavy-duty machinery, resulting in increased uptime, reduced maintenance costs, and improved productivity. The bearings’ ability to handle combined axial and radial loads was a critical factor in their performance.
Customization Options
Tailoring Bearings to Specific Applications
Customization is often necessary to meet the unique requirements of specific applications. This can include modifying the bearing’s dimensions, materials, and load capacities to match the operating conditions. Custom bearings can provide enhanced performance and reliability, ensuring that the machinery operates efficiently under its specific conditions.
Design Flexibility and Modifications
The design flexibility of double direction angular contact thrust ball bearings allows for various modifications to meet specific needs. This can include changes to the contact angle, preload, and lubrication methods. By working closely with bearing manufacturers, engineers can design bearings that are optimized for their particular applications, resulting in better performance and longer service life.
Working with OEMs for Custom Solutions
Collaborating with Original Equipment Manufacturers (OEMs) is often the best approach to developing custom bearing solutions. OEMs have the technical expertise and resources to design and manufacture bearings that meet the exact specifications of their clients. This partnership ensures that the bearings are perfectly suited to the application, providing optimal performance and reliability.
Environmental and Sustainability Considerations
Eco-Friendly Material Choices
As environmental concerns continue to grow, the use of eco-friendly materials in bearing manufacturing is becoming increasingly important. Materials such as biodegradable lubricants and recycled metals are being used to reduce the environmental impact of bearings. These materials not only help protect the environment but also align with the growing demand for sustainable practices in manufacturing.
Energy Efficiency in Bearing Design
Energy efficiency is a critical factor in the design of modern bearings. Bearings that operate with minimal friction and heat generation contribute to reduced energy consumption in machinery. By optimizing the design and materials of bearings, manufacturers can create products that are not only efficient but also environmentally friendly.
Recycling and Disposal Practices
Proper recycling and disposal of bearings are essential to minimizing their environmental impact. Bearings made from recyclable materials, such as steel and certain plastics, can be processed and reused, reducing the need for raw materials. Additionally, manufacturers are developing disposal practices that ensure used bearings are handled in an environmentally responsible manner.
Conclusion and Summary
Recap of Key Points
Double direction angular contact thrust ball bearings are critical components in many types of machinery, offering the ability to handle axial loads in both directions. Their design, materials, and manufacturing processes are key factors in their performance and reliability. By understanding the complexities of these bearings, engineers can make informed decisions that enhance the efficiency and longevity of their machinery.
Importance of Double Direction Bearings in Industry
The importance of double direction angular contact thrust ball bearings cannot be overstated. Their versatility, durability, and ability to handle high loads make them indispensable in industries ranging from automotive to aerospace. As machinery becomes more advanced and demands higher performance, these bearings will continue to play a vital role in ensuring smooth and reliable operation.
Final Thoughts and Future Directions
Looking ahead, the future of double direction angular contact thrust ball bearings is bright, with ongoing advancements in materials, design, and technology. As industries continue to evolve, these bearings will be at the forefront of innovation, helping to drive progress and ensure the reliability of modern machinery. Whether through customization, smart technology, or sustainable practices, the world of double direction bearings is set to become even more dynamic and essential in the years to come.
