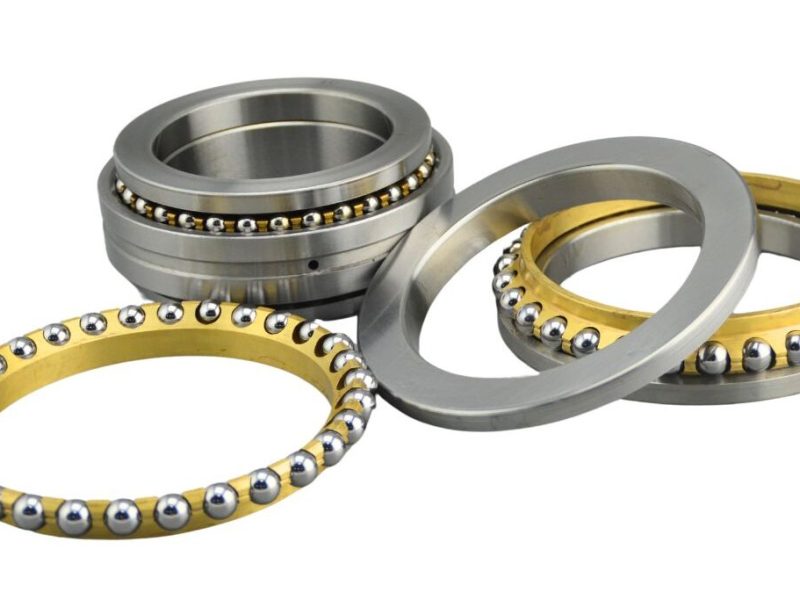

Angular contact thrust ball bearings are a bearing type designed to withstand axial loads. Its uniqueness lies in the adjustable contact angle between the balls and the inner and outer rings, which enables it to excel in high load and high speed operating environments. This bearing construction provides excellent load distribution and axial rigidity and is widely used in industrial applications to provide reliable support for a variety of mechanical equipment. Angular contact thrust ball bearings differ from other thrust ball bearings in design and function. This section explores these uniquenesses and highlights the specific benefits of angular contact thrust ball bearings in B2B applications.
| Features | Description |
|---|---|
|
Structural characteristics |
Angular contact thrust ball bearings have adjustable inner and outer ring contact angles, enabling them to adapt to different working conditions and improve overall performance and life. |
|
Superior Load Distribution |
Through a unique rolling pattern, the bearings are able to achieve a more even load distribution, increasing their load carrying capacity and making them ideal for handling high load applications. |
|
Improved axial rigidity |
The angular contact design contributes to increased axial rigidity, maintaining axial stability through a special rolling pattern that reduces the risk of deformation under vibration and shock conditions. |
|
Versatility and Adaptability |
With adjustable contact angles and excellent load distribution capabilities, angular contact bearings have demonstrated excellent versatility and adaptability in a wide range of industrial applications, making them the first choice in a variety of industries. |
These unique characteristics of angular contact thrust ball bearings provide companies with superior performance and reliability, helping to improve the efficiency and maintainability of their equipment.
Managing Axial Preload In Angular Contact Thrust Ball Bearings
Angular contact thrust ball bearings play a key role in industry, and one of the keys to their performance is the precise management of axial preload. Effective management of axial preload can not only enhance the performance of the bearing, but also extend its life. In this paper, we will discuss how to manage the axial preload in angular contact thrust ball bearings scientifically and reasonably.
Importance of axial preload angular contact thrust ball bearings
Axial preload is a preload force applied to the shaft during bearing mounting. The correct axial preload ensures that the bearing remains properly tightened during operation, preventing excessive friction and loosening of the bearing balls. Therefore, accurate management of axial preload is critical to maintaining bearing performance.
Steps for managing axial preload
1. Selection of an appropriate preload value
In the mounting process of angular contact thrust ball bearings, selecting the appropriate axial preload is the first task. The amount of preload should be determined according to the specific application. Too low a preload may cause the bearing to loosen, while too high a preload will increase friction and energy consumption. Generally, the appropriate value of preload should be determined according to the recommendations provided by the manufacturer or the specifications in the manual.
2. Adjustment with specialised tools
To ensure the accuracy of the axial preload, specialised tools and equipment should be used. For example, tools such as torque spanners can be used to accurately apply the required preload force according to the specifications provided by the manufacturer and relevant engineering standards.
3. Consideration of operating temperature effects
In some specific industrial environments, changes in temperature may affect the size and shape of the bearing. Therefore, when managing the axial preload, it is important to take into account the effect of operating temperatures and correct accordingly during the adjustment process.
Regular monitoring and maintenance
In addition to the precise application of axial preload during mounting, regular monitoring and maintenance are key to ensuring the performance of angular contact thrust ball bearings. This includes monitoring bearing indicators such as vibration, temperature and noise, as well as readjusting the axial preload if necessary.
In industrial equipment, the proper functioning of angular contact thrust ball bearings is essential to ensure production continuity. However, with increased use and changing operating conditions, bearings can fail. Early recognition of signs of failure is key to maintenance and repair work to avoid unnecessary downtime and reduce maintenance costs.
- Abnormal noise and vibration
- Signs: Angular contact thrust ball bearings are usually smooth and silent during normal operation. If abnormal noise or vibration begins to occur, this may be a sign that there is a problem with the bearing.
- Recognition: Regularly monitor the noise level and vibration amplitude of the bearing during operation. Any unusual increase could be an indicator of bearing failure. The use of vibration monitoring equipment and acoustic analysis tools can help diagnose the problem more accurately.
- Increased temperature
- Indications: Angular contact thrust ball bearings should be maintained at a suitable temperature under normal operating conditions. An increase in temperature indicates that the bearing may be affected by excessive friction or insufficient lubrication.
- Recognition: Regularly measure the surface temperature of the bearing using equipment such as an infrared thermometer. Persistently elevated temperatures may require further inspection and investigation.
- Changes in bearing clearance
- Signs: Bearing clearance is the internal clearance of the bearing and excessive variations in clearance may indicate damage to the bearing.
- Recognition: Measure the bearing clearance periodically using a suitable measuring tool. Abnormal changes in clearance may require further inspection to determine if a bearing problem exists.
- Lubrication problems
- Signs: Angular contact thrust ball bearings require adequate lubrication to maintain normal operation. Insufficient or excessive lubrication can lead to bearing failure.
- Recognition: Check the lubrication system regularly to ensure that the quality and quantity of grease or lubricant meets the manufacturer’s recommendations. Note any lubrication abnormalities such as leakage or deterioration.
- Abnormal vibration and axial looseness
Signs: Looseness of axial thrust ball bearings may cause axial vibration and axial displacement. - Recognition: Use laser measurement or other precision measuring equipment to monitor axial displacement and vibration. Any unusual changes should be cause for concern and may require readjustment of the axial preload.
Conclusion
Angular contact thrust ball bearings occupy an important position in the field of thrust ball bearings due to their unique design and performance advantages. Their adjustable inner and outer ring contact angles, superior load distribution, improved axial rigidity and versatile adaptability make them stand out in a variety of industrial applications.
Managing axial preload is a critical step in ensuring proper bearing operation and improving life, requiring the selection of appropriate preload values, the use of specialised tools, and consideration of operating temperatures. At the same time, early identification of signs of angular contact bearing failure, such as abnormal noise, vibration, and elevated temperatures, can help maintain continuous equipment operation, improve productivity, and reduce maintenance costs through regular monitoring and inspection.
References
1. Some information from American Roller Bearing Company ;
2. “Angular contact thrust ball bearings” from SKF Bearings.
