Unveiling the Power of Combined Bearings: Enhancing Performance and Efficiency
Introduction
Understanding the concept of combined bearings
Combined bearings, also known as combination bearings, are specialized bearings designed to accommodate both radial and axial loads simultaneously. This unique design combines the functions of radial bearings, which support loads perpendicular to the shaft, and thrust bearings, which support axial loads parallel to the shaft. By integrating these two functions into a single bearing unit, combined bearings offer compactness, simplified assembly, and improved load-handling capabilities. This makes them ideal for applications where space is limited, such as in machine tools, automotive transmissions, and material handling equipment. Combined bearings are available in various configurations, including angular contact, needle roller, and tapered roller designs, providing versatility to suit diverse operational requirements.
Importance of combined bearings in machinery
Combined bearings play a crucial role in machinery by offering versatility and efficiency in handling complex loads. Their ability to support both radial and axial loads simultaneously reduces the need for multiple bearing arrangements, simplifying the design and assembly process of various mechanical systems. This simplification not only saves space but also enhances the overall performance and reliability of machinery. By integrating radial and thrust bearing functions into a single unit, combined bearings enable smoother operation, reduced friction, and extended service life, contributing to improved productivity and cost-effectiveness in a wide range of applications across industries such as automotive, aerospace, construction, and manufacturing.
Types of Combined Bearings
Angular Contact Ball Bearings: Angular contact ball bearings are designed to support both radial and axial loads. They have raceways in the inner and outer rings that are displaced relative to each other in the direction of the bearing axis. This design allows them to accommodate combined loads and high axial loads in one direction. Angular contact ball bearings offer high stiffness, low friction, and high-speed capabilities, making them suitable for applications such as machine tools, pumps, and gearboxes.

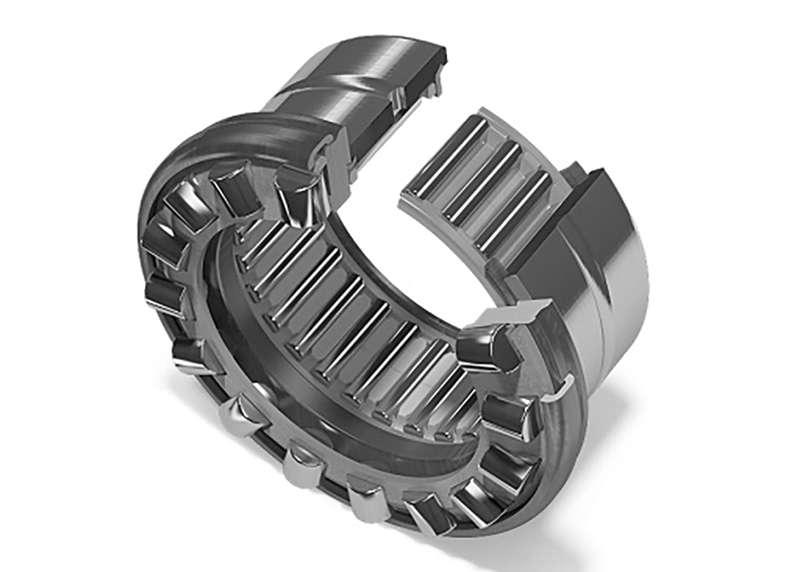

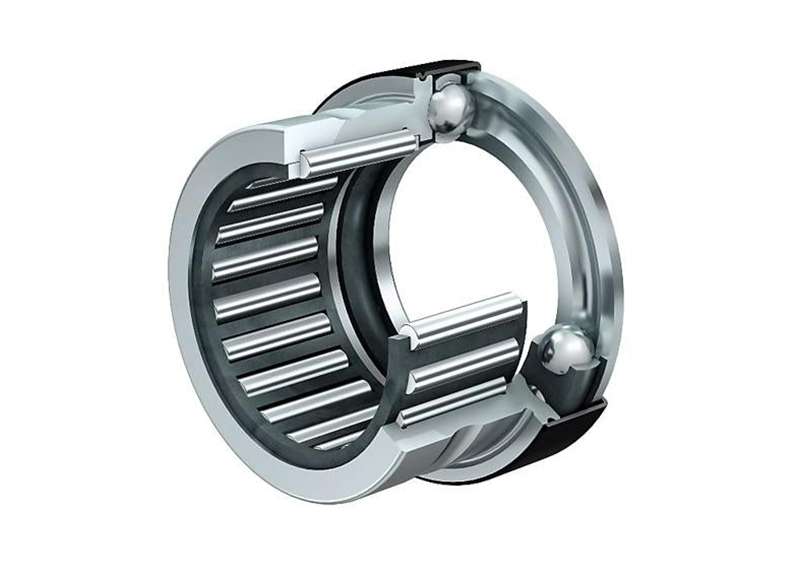

Needle Roller/Thrust Ball Bearings: Needle roller/thrust ball bearings combine the compactness of needle roller bearings with the axial load capacity of thrust ball bearings. They consist of a radial needle roller bearing and a thrust ball bearing assembly in a single unit. These bearings offer high radial load capacity and moderate axial load capacity, making them suitable for applications with limited space and heavy radial loads, such as automotive transmissions and steering systems.
Tapered Roller/Thrust Ball Bearings: Tapered roller/thrust ball bearings integrate the radial load-carrying capability of tapered roller bearings with the axial load capacity of thrust ball bearings. They feature tapered rollers and a cage assembly with thrust ball bearings arranged at the ends of the rollers. These bearings can accommodate both radial and axial loads in one direction and have high stiffness and load-carrying capacity. They are commonly used in automotive differential gears, industrial gearboxes, and construction equipment.
Combination Roller Bearings: Combination roller bearings combine the features of cylindrical roller bearings and thrust bearings. They consist of cylindrical rollers and thrust washers or thrust plates arranged in alternating rows. These bearings offer high radial load capacity and moderate axial load capacity, making them suitable for applications such as automotive wheel hubs, conveyor systems, and agricultural machinery.
Design Considerations
Factors influencing combined bearing design
Firstly, the magnitude and direction of loads play a crucial role in determining the type and configuration of the combined bearing required. Different types of combined bearings are designed to accommodate specific combinations of radial and axial loads, with variations in load-carrying capacities and load distribution capabilities. Secondly, operating conditions such as speed, temperature, and lubrication also influence bearing design. High-speed applications may require bearings with lower friction and improved heat dissipation properties, while extreme temperatures or harsh environments may necessitate special materials or coatings for enhanced durability and corrosion resistance. Additionally, factors like space constraints, mounting requirements, and maintenance considerations impact bearing design decisions. Compactness, ease of installation, and accessibility for maintenance and replacement are essential considerations in designing combined bearings for efficient integration into machinery systems. By carefully considering these factors, engineers can tailor combined bearing designs to meet the specific performance requirements and operational conditions of diverse machinery applications.
Importance of proper design for optimal performance
Firstly, a well-thought-out design ensures that components function harmoniously, minimizing wear and tear, reducing the risk of failures, and prolonging the lifespan of the equipment. Efficient design also maximizes energy efficiency, contributing to cost savings and environmental sustainability. Secondly, proper design considers safety aspects, ensuring that machinery operates reliably and meets regulatory standards to protect both operators and the surrounding environment. Moreover, optimal design enables easier maintenance and servicing, reducing downtime and enhancing overall productivity. It also facilitates scalability and adaptability, allowing machinery to evolve with changing needs and technological advancements. Additionally, proper design enhances user experience by considering factors such as ergonomics and usability, leading to improved comfort and efficiency for operators. Ultimately, investing in proper design upfront leads to long-term benefits, including enhanced performance, durability, and reliability, making it a critical aspect of successful machinery development and operation.
Materials and Manufacturing
Materials used in combined bearing production
Bearing Steel: Bearing steel, typically high-carbon chromium steel, is widely used for the inner and outer rings, as well as the rolling elements of combined bearings. This material offers excellent hardness, wear resistance, and fatigue strength, making it suitable for withstanding high loads and prolonged operational cycles.
Stainless Steel: Stainless steel is chosen for combined bearings in applications requiring corrosion resistance and high cleanliness, such as food processing equipment, medical devices, and marine environments. It offers good mechanical properties while maintaining resistance to rust and corrosion.
Ceramic: Ceramic materials, such as silicon nitride (Si3N4) or zirconia (ZrO2), are employed in combined bearings for their exceptional hardness, low density, and resistance to wear and corrosion. Ceramic bearings are often used in high-speed or high-temperature applications where traditional steel bearings may fail.
Polymer: Polymer materials, including polytetrafluoroethylene (PTFE) and polyamide (PA), are utilized for cages or seals in combined bearings due to their low friction, self-lubricating properties, and resistance to chemicals and moisture. Polymer bearings are commonly found in applications requiring clean operation, quiet performance, and minimal maintenance.
Manufacturing processes and techniques
Firstly, the production of bearing components typically begins with forging or casting raw materials such as bearing steel or stainless steel into desired shapes for the inner and outer rings, as well as the rolling elements. Subsequently, machining processes such as turning, milling, and grinding are employed to achieve tight tolerances and smooth surface finishes on the bearing components. Assembly techniques vary depending on the type of combined bearing but often involve fitting the inner and outer rings with the rolling elements and cage assembly, followed by precision alignment and lubrication. Advanced manufacturing technologies, including computer numerical control (CNC) machining, automated assembly systems, and quality control measures such as non-destructive testing, are utilized to ensure consistency and accuracy throughout the production process. Additionally, surface treatments such as heat treatment, coating, or plating may be applied to enhance the performance and durability of combined bearings in demanding operating conditions.
Advantages of Combined Bearings
Compact Design: Combined bearings integrate multiple bearing functions into a single unit, reducing the overall size and space requirements within machinery systems. This compact design is particularly beneficial in applications where space is limited or where a streamlined, simplified layout is desired.
Simplified Assembly: By combining radial and axial bearing functions into one unit, combined bearings simplify the assembly process of machinery and equipment. This not only reduces assembly time but also minimizes the risk of misalignment or errors during installation, leading to improved efficiency and lower labor costs.
Enhanced Load-Carrying Capacity: Combined bearings are engineered to accommodate both radial and axial loads simultaneously, providing superior load-carrying capabilities compared to traditional single-function bearings. This allows machinery to handle complex loads more effectively, leading to improved performance and reliability in various applications.
Improved Performance: The integration of radial and axial bearing functions in combined bearings results in smoother operation, reduced friction, and improved efficiency. This translates to enhanced performance, longer service life, and reduced maintenance requirements for machinery and equipment utilizing combined bearings.
Versatility: Combined bearings are available in various configurations, sizes, and designs to suit a wide range of application requirements. This versatility allows engineers to select the most suitable type of combined bearing for specific load conditions, operating environments, and performance criteria, ensuring optimal performance and reliability in diverse machinery applications.
Performance Factors
Factors influencing combined bearing performance
Firstly, load characteristics, including the magnitude, direction, and variability of loads, play a crucial role in determining the bearing’s ability to support and distribute loads effectively. Proper selection of combined bearing type and configuration is essential to ensure optimal performance under specific load conditions. Secondly, operating conditions such as speed, temperature, and lubrication greatly impact bearing performance. High-speed applications may require bearings with lower friction and better heat dissipation properties, while extreme temperatures or harsh environments may necessitate special materials or coatings for enhanced durability and reliability. Additionally, mounting arrangements, alignment precision, and maintenance practices significantly influence bearing performance and longevity. Proper installation, alignment, and regular maintenance ensure that combined bearings operate within their design limits and maximize their service life, contributing to overall machinery efficiency and reliability. Lastly, environmental factors such as contamination, moisture, and corrosion can degrade bearing performance over time, underscoring the importance of sealing and protective measures to safeguard against external influences and maintain optimal performance in various operating environments.
Impact of bearing stiffness on system dynamics
Firstly, bearing stiffness influences the natural frequencies and mode shapes of the system, affecting its vibrational characteristics and resonance behavior. Higher bearing stiffness helps to raise the natural frequencies, reducing the likelihood of resonance and associated vibration-induced failures. Secondly, bearing stiffness affects the system’s damping properties, influencing its ability to dissipate energy and attenuate vibrations. Bearings with higher stiffness typically exhibit lower damping, which can lead to increased transmission of vibrations within the system. Therefore, an optimal balance between stiffness and damping is essential to mitigate vibrations and ensure stable, efficient operation of machinery. Furthermore, bearing stiffness impacts the accuracy and precision of positioning systems, affecting factors such as tracking performance, settling time, and overall system stability. By understanding and controlling bearing stiffness, engineers can optimize system dynamics to meet performance requirements and enhance reliability in diverse mechanical applications.
Applications Across Industries
Automotive: Combined bearings find applications in automotive systems such as transmissions, differentials, and wheel hubs. They help support both radial and axial loads in these components, ensuring smooth and efficient operation under varying driving conditions.
Aerospace: In the aerospace industry, combined bearings are utilized in flight control systems, landing gear assemblies, and engine components. Their ability to handle complex loads and high-speed operation makes them suitable for critical aerospace applications where reliability and performance are paramount.
Industrial Machinery: Combined bearings are commonly employed in various types of industrial machinery, including machine tools, conveyors, robotics, and material handling equipment. Their compact design, versatility, and ability to accommodate both radial and axial loads make them well-suited for diverse industrial applications requiring precision and reliability.
Renewable Energy: Combined bearings play a role in renewable energy systems such as wind turbines and solar tracking systems. They support the rotating components of wind turbine generators and solar tracking mechanisms, ensuring efficient energy conversion and maximizing power output in renewable energy installations.
Conclusion
In conclusion, combined bearings represent a vital innovation in bearing technology, offering compactness, versatility, and enhanced load-handling capabilities. Their ability to simultaneously support radial and axial loads makes them indispensable in various industries, including automotive, aerospace, industrial machinery, and renewable energy. By integrating radial and thrust bearing functions into a single unit, combined bearings simplify assembly, improve performance, and contribute to overall machinery efficiency and reliability. Proper design, material selection, and manufacturing processes are crucial in ensuring optimal performance under diverse operating conditions. With their significant advantages and widespread applications, combined bearings continue to play a pivotal role in advancing machinery design and performance across industries.
