Introduction to Hybrid Ceramic Ball Bearings: Advantages and Applications
Introduction
Definition of hybrid ceramic ball bearings
Hybrid ceramic ball bearings are advanced components designed to reduce friction and improve performance in various mechanical systems. Unlike traditional steel bearings, hybrid ceramic bearings incorporate ceramic balls within steel raceways. These ceramic balls, typically made from materials like silicon nitride or zirconia, offer several advantages, including reduced friction, increased durability, and resistance to corrosion. The combination of ceramic balls and steel raceways results in bearings that exhibit superior performance characteristics, making them ideal for high-speed applications in industries such as aerospace, automotive, and medical.
Importance of bearings in various industries
Bearings play a crucial role across diverse industries by facilitating smooth and efficient motion within machinery and equipment. From aerospace to automotive and medical sectors, bearings support rotating or linear components, reducing friction and enabling precise movement. In aerospace, they ensure the reliability of critical components like aircraft engines and landing gear systems. In the automotive industry, bearings contribute to vehicle performance, supporting drivetrains and suspension systems. Similarly, in the medical field, bearings are integral to surgical instruments and medical imaging devices, where precision and reliability are paramount. Overall, bearings are indispensable components that optimize efficiency and reliability across various industrial applications.

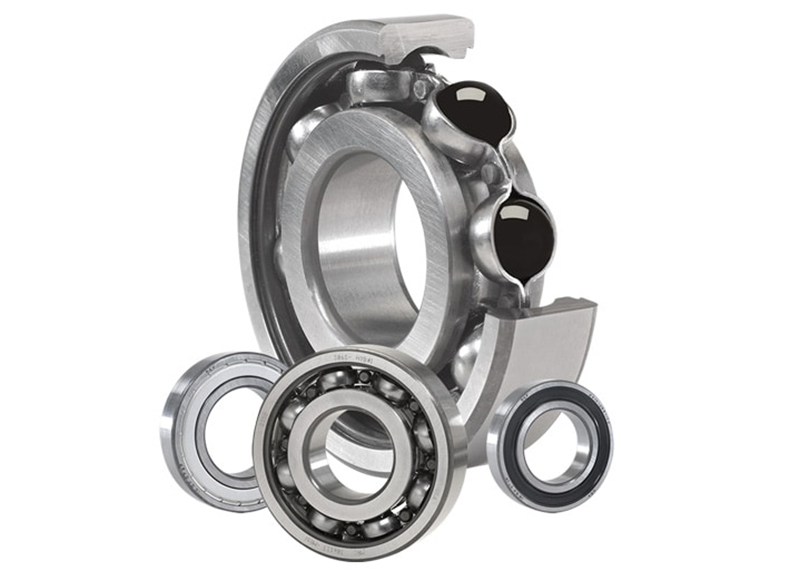

Construction of Hybrid Ceramic Ball Bearings

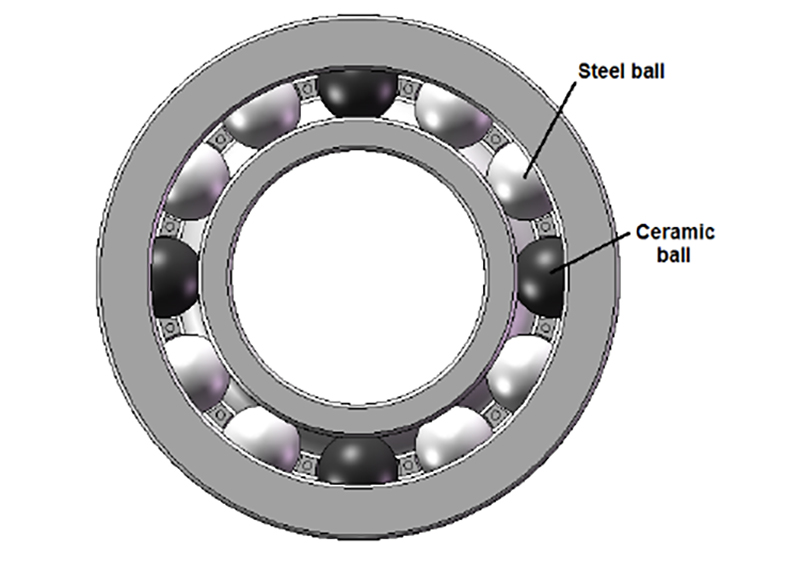

Composition of hybrid ceramic bearings
The construction of hybrid ceramic ball bearings involves a meticulous combination of ceramic materials and steel components to achieve optimal performance. In particular, the composition of hybrid ceramic bearings is characterized by the integration of ceramic balls within steel raceways. These ceramic balls are typically crafted from high-quality materials such as silicon nitride or zirconia, renowned for their exceptional hardness, corrosion resistance, and low friction properties. The use of ceramic balls enhances the bearing’s durability and lifespan while reducing friction and heat generation during operation. Additionally, steel raceways provide robust support and stability to the bearing assembly, ensuring smooth rotation and reliable performance. This intricate blend of ceramic and steel elements results in bearings capable of withstanding high-speed applications in industries like aerospace, automotive, and medical, where precision and reliability are paramount.
Manufacturing process
The manufacturing process of hybrid ceramic ball bearings involves a series of intricate steps to ensure precision and quality. It typically begins with the production of ceramic balls, which are meticulously crafted using advanced techniques such as hot isostatic pressing or precision machining. These ceramic balls are then carefully inserted into steel raceways through specialized assembly processes, ensuring proper alignment and fit. The assembly is completed with the addition of retainers and seals to secure the ceramic balls within the raceways and protect them from contaminants. Throughout the manufacturing process, strict quality control measures are implemented to verify dimensional accuracy, surface finish, and material integrity. This attention to detail ensures that hybrid ceramic bearings meet stringent performance standards and can withstand the rigorous demands of high-speed applications in industries such as aerospace, automotive, and medical.
Advantages of Hybrid Ceramic Ball Bearings
Reduced friction and heat generation
One of the key advantages of hybrid ceramic ball bearings is their ability to significantly reduce friction and heat generation during operation. This is primarily attributed to the unique properties of ceramic materials used in the construction of these bearings. Ceramic balls possess inherently low coefficients of friction, resulting in smoother contact between the balls and raceways compared to traditional steel bearings. As a result, frictional losses are minimized, leading to improved efficiency and reduced energy consumption. Furthermore, ceramic materials have superior heat dissipation properties, allowing them to withstand higher operating temperatures without significant thermal expansion. This combination of reduced friction and enhanced heat dissipation results in bearings that run cooler and exhibit lower wear rates, ultimately extending their lifespan and enhancing overall performance in demanding applications across industries such as aerospace, automotive, and medical.
Increased durability and lifespan
Another significant advantage of hybrid ceramic ball bearings is their increased durability and extended lifespan compared to traditional steel bearings. Ceramic materials, such as silicon nitride or zirconia, offer exceptional hardness and resistance to wear, corrosion, and fatigue. This inherent toughness allows hybrid ceramic bearings to withstand harsh operating conditions, including high speeds, heavy loads, and aggressive environments, without succumbing to premature failure. Additionally, ceramic balls exhibit minimal deformation under stress, maintaining consistent performance over time. As a result, hybrid ceramic bearings typically experience reduced wear and frictional losses, resulting in longer maintenance intervals and lower replacement costs. This durability and longevity make hybrid ceramic ball bearings an attractive choice for critical applications in industries such as aerospace, automotive, and medical, where reliability and performance are paramount.
Lightweight design
Hybrid ceramic ball bearings offer a distinct advantage in their lightweight design, making them ideal for applications where weight reduction is essential. Ceramic materials are inherently lighter than steel, contributing to a significant reduction in the overall weight of the bearing assembly. This lightweight construction not only enhances the efficiency of rotating components by reducing inertia but also benefits high-speed applications by minimizing centrifugal forces and improving dynamic performance. In industries such as aerospace and automotive, where weight savings directly translate to fuel efficiency and performance gains, the use of hybrid ceramic bearings can lead to significant operational benefits. Additionally, in medical devices and precision equipment where mobility and portability are crucial, the lightweight nature of hybrid ceramic bearings allows for easier handling and integration, further expanding their utility across a diverse range of applications.
Performance Characteristics
High-speed capabilities
Hybrid ceramic ball bearings are renowned for their exceptional high-speed capabilities, making them indispensable in applications requiring rapid rotation and precision performance. The unique composition of ceramic balls within steel raceways enables hybrid bearings to operate at significantly higher speeds than traditional steel bearings. Ceramic materials exhibit lower friction coefficients and reduced centrifugal forces, allowing for smoother rotation and minimized heat generation even at elevated speeds. This characteristic makes hybrid ceramic bearings particularly well-suited for demanding industries such as aerospace and automotive, where efficient power transmission and reliable operation at high velocities are critical for optimal performance and safety.
Low lubrication requirements
One notable performance characteristic of hybrid ceramic ball bearings is their low lubrication requirements, owing to the inherent properties of ceramic materials. Unlike traditional steel bearings that rely heavily on lubricants to reduce friction and prevent wear, hybrid ceramic bearings exhibit self-lubricating properties due to the low coefficient of friction of ceramic balls. This means that they require less frequent lubrication and maintenance, reducing downtime and operational costs. Additionally, the reduced dependency on lubricants eliminates the risk of contamination and improves operational reliability in critical environments such as aerospace and medical applications, where cleanliness and precision are paramount. Overall, the low lubrication requirements of hybrid ceramic bearings contribute to enhanced efficiency, reliability, and longevity in a wide range of industrial applications.
Precision and reliability
Precision and reliability are fundamental performance characteristics of hybrid ceramic ball bearings, distinguishing them as essential components in various industrial applications. The superior hardness and dimensional stability of ceramic materials ensure tight tolerances and consistent performance over time. This precision translates into smooth operation and accurate motion control, critical for applications requiring high levels of precision, such as aerospace instrumentation and medical devices. Additionally, hybrid ceramic bearings exhibit exceptional reliability, withstanding demanding operating conditions, including high speeds, heavy loads, and extreme temperatures, without compromising performance. The combination of precision engineering and robust construction makes hybrid ceramic ball bearings reliable assets in critical systems where accuracy, durability, and uninterrupted operation are paramount.
Applications in Aerospace Industry
Hybrid ceramic ball bearings play a crucial role in the aerospace industry, where precision, reliability, and durability are paramount. These bearings find application in various critical components of aircraft, including turbochargers, superchargers, gearbox systems, and aircraft landing gear. In turbochargers and superchargers, hybrid ceramic bearings enable high-speed rotation, contributing to the efficient performance of aircraft engines. Moreover, they withstand extreme temperatures and heavy loads without compromising performance, ensuring the reliability of propulsion systems.
Additionally, hybrid ceramic bearings are integral to aircraft landing gear systems, providing smooth operation during takeoff, landing, and taxiing. Their ability to withstand harsh environmental conditions, such as high temperatures, vibration, and shock, enhances the safety and reliability of aerospace systems. Furthermore, the lightweight design of hybrid ceramic bearings contributes to fuel efficiency and performance gains, aligning with the aerospace industry’s ongoing pursuit of enhanced efficiency and sustainability. Overall, hybrid ceramic ball bearings are indispensable components that advance the capabilities of modern aircraft and spacecraft, ensuring optimal performance and safety in aerospace applications.
Applications in Medical Industry
Hybrid ceramic ball bearings play a crucial role in advancing medical technology by providing precision, reliability, and longevity in critical applications within the medical industry. These bearings find widespread usage in surgical equipment and medical imaging devices, where precise motion control and durability are essential. In surgical equipment, hybrid ceramic bearings contribute to the smooth operation of precision instruments, ensuring accurate movements with minimal friction. Their resistance to wear and corrosion makes them ideal for applications requiring repeated sterilization, maintaining functionality over extended periods.
Moreover, hybrid ceramic bearings are integral components in medical imaging devices such as CT and MRI machines, where they facilitate smooth rotation and precise positioning of components. Their ability to withstand high speeds and maintain consistent performance ensures reliable operation, crucial for obtaining accurate diagnostic images. Additionally, the compatibility of ceramic materials with sterilization processes ensures the hygiene and safety of medical equipment, meeting stringent regulatory standards. Overall, hybrid ceramic ball bearings play a vital role in advancing medical technology, enhancing the efficiency, reliability, and safety of surgical procedures and diagnostic imaging in the medical industry.
Challenges and Considerations
Challenges and considerations arise in the adoption of hybrid ceramic ball bearings despite their numerous advantages. One significant consideration is the cost, as hybrid ceramic bearings tend to have a higher initial investment compared to traditional steel bearings. However, it’s crucial to conduct a thorough cost-benefit analysis to evaluate long-term savings, considering factors such as reduced maintenance, extended lifespan, and improved performance. Additionally, compatibility with existing systems presents a challenge, especially in industries where retrofitting may be complex or costly. Integration with traditional steel components requires careful planning and engineering to ensure seamless operation and compatibility. Furthermore, while hybrid ceramic bearings offer superior performance characteristics, such as reduced friction and increased durability, their application may not be suitable for every scenario. Understanding the specific requirements and environmental conditions of each application is essential to maximize the benefits of hybrid ceramic bearings while mitigating potential challenges and ensuring successful implementation across industries.
Conclusion
In conclusion, hybrid ceramic ball bearings represent a significant advancement in mechanical engineering, offering superior performance characteristics compared to traditional steel bearings. With their reduced friction, increased durability, and lightweight design, hybrid ceramic bearings are poised to revolutionize industries such as aerospace, automotive, and medical. Their high-speed capabilities and low lubrication requirements make them ideal for demanding applications where precision and reliability are paramount. While challenges such as cost and compatibility exist, the long-term benefits justify their adoption, paving the way for enhanced efficiency, reliability, and safety across diverse industrial sectors. Overall, hybrid ceramic ball bearings emerge as indispensable components driving innovation and optimization in modern machinery and equipment.
References
- 1.”Ceramic Ball Bearing Advantages” from GMN Bearing;
- 2. “Hybrid Bearings with Ceramic Balls” from NSK Europe;
- 3. “Hybrid ceramic ball bearings” from SKF Bearings.
