The Ultimate Guide To Understanding Steering Knuckle Bearing
Introduction
The steering knuckle is a seemingly simple but crucial component in the car’s steering system. It plays a vital role in ensuring safe and precise control. At the heart of this critical component are knuckle bearings, which promote smooth and responsive steering. This guide will take an in-depth look at knuckle bearings.
What Is A Knuckle Bearing?

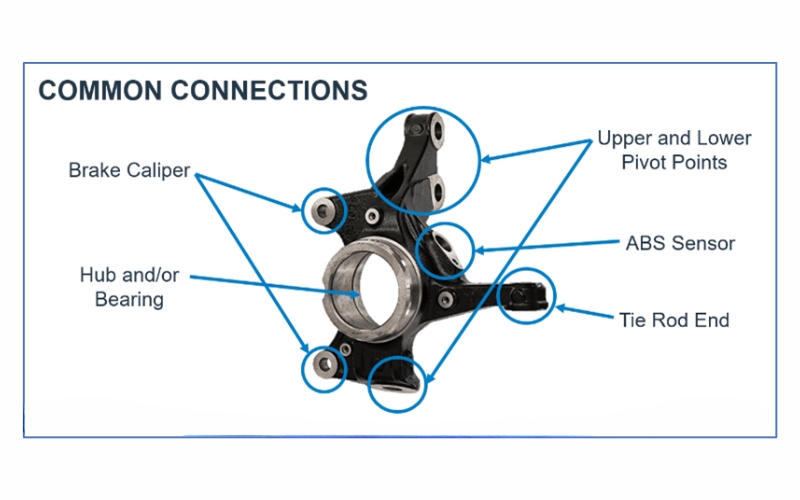

Also known as steering knuckle, the knuckle bearing. The knuckle bearing is the pivot point of the steering system, which is located between the steering knuckle and the steering tie rod, it plays the role of connecting and supporting the steering tie rod, and at the same time allows the steering tie rod to rotate freely in all directions. The knuckle bearing takes the force from the tie rod and transmits it to the steering knuckle, thus controlling the steering angle of the wheels.
The knuckle bearing is usually made of steel and is specially treated to increase strength and wear resistance. It is subjected to a great deal of pressure and friction and therefore requires regular inspection and maintenance to ensure that it works properly.
Types Of Knuckle Bearings
Knuckle bearings are classified into different types based on their design, materials, and applications. Here are some of the most common types:
- Ball Bearings: Radial Ball Bearings and Angular Contact Ball Bearings
- Roller Bearings: Tapered Roller Bearings and Cylindrical Roller Bearings
- Needle Roller Bearings
- Spherical Plain Bearings
- Bushing Bearings
- Application-Specific Knuckle Bearings: Automotive Knuckle Bearings, Industrial Knuckle Bearings and Aerospace Knuckle Bearings
Advantages Of Knuckle Bearings
- High Load Capacity: knuckle bearings are designed to withstand high loads, such as forces from the steering tie rod and when the vehicle is cornering.
- Low Friction: Knuckle bearings use balls or rollers to reduce friction and ensure smooth operation.
- Durability: Knuckle bearings are made of strong and durable materials, such as steel or ceramic, to withstand harsh conditions and extended use.
- Corrosion Resistance: Some knuckle bearings are made of stainless steel or other corrosion-resistant materials, making them suitable for use in wet or corrosive environments.
- Self-aligning: Some knuckle bearings are self-aligning and can accommodate slight misalignment between the shaft and housing without affecting performance.
- Compact size: Compact design, suitable for limited space.
- Low Maintenance: Knuckle bearings generally require very little maintenance.
- High Efficiency: The low friction characteristics of the knuckle bearing help improve the vehicle’s fuel efficiency.
- Safety: Steering knuckle bearings can ensure the safety and reliability of the vehicle’s steering system.
How Knuckle Bearing Work

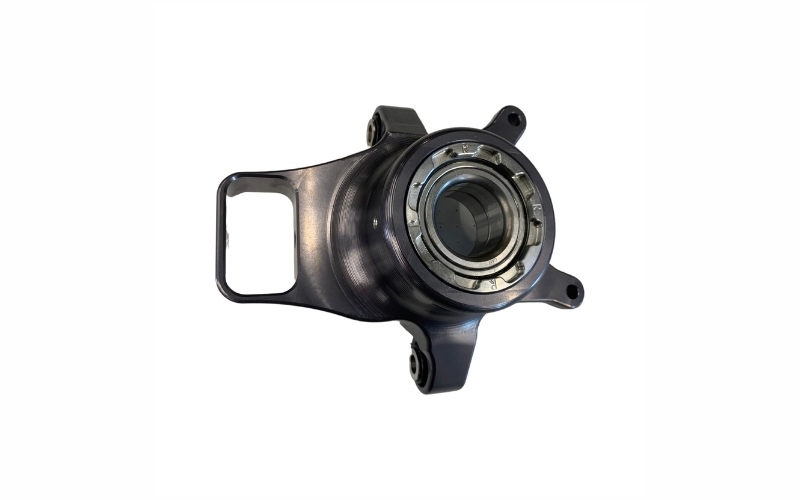

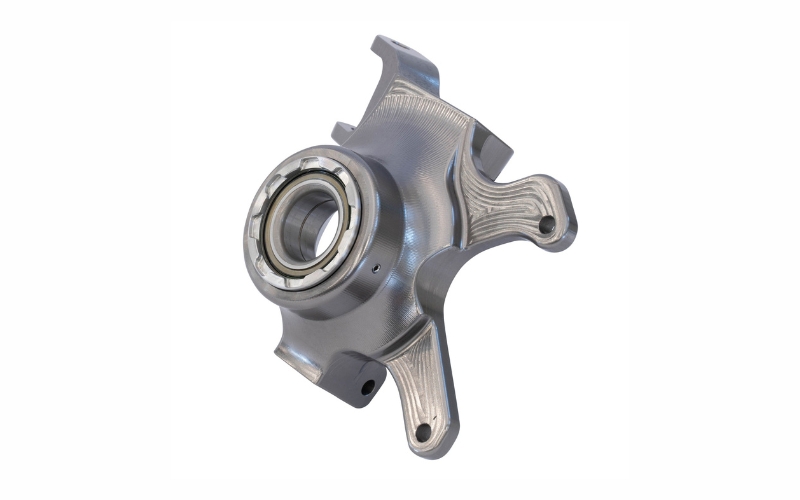

Knuckle bearing works by reducing friction and providing support to allow smooth rotation of the wheelset. Located in the steering knuckle, it serves as the interface between the wheel hub and the steering knuckle, carrying the weight of the vehicle and converting directional input into rotational motion of the wheel. Through precision design and manufacturing, steering knuckle bearings ensure wheel stability and precise steering response, thereby improving vehicle handling and safety.
How To Tell If Your Knuckle Bearing Is Worn
knuckle bearings is an important part of your car’s steering system, and their wear and tear can have an impact on handling and safety, so here are some tips for determining if your knuckle bearing is worn:
- A clicking sound when turning, or a shaking steering wheel, indicates that the knuckle bearings are worn, due to worn balls inside the bearings, and increased internal clearance.
- Grease leakage around the knuckle bearing or visible scratches, pits, or cracks on the surface indicate that the knuckle bearing is worn; grease leakage is caused by damage to the seals inside the bearing.
- knuckle bearing wear can be checked by a professional using specialized tools and equipment, borrowing vernier calipers, micrometers, and other tools.
- Other signs such as: running off the road while driving, or uneven tire wear are caused by increased clearance inside the bearing.
Common Knuckle Bearing Failures
As a key component in an automotive steering system, knuckle bearings can experience a variety of failures due to factors such as wear, improper installation, or lack of maintenance. Here are some common faults and preventive measures:
1. Bearing wear:
Increased looseness in the wheelset, unusual noise when steering and uneven tire wear.
2. Bearing seal failure:
Lubricant leakage around the bearing assembly, contaminant ingress and accelerated bearing wear due to inadequate lubrication.
3. Inadequate lubrication:
Overheating of the bearing assembly, increased noise, and accelerated wear of the bearing surfaces.
4. Misalignment:
Uneven tire wear, erratic steering, and increased steering effort due to bearing misalignment.
5. corrosion and contamination:
Rust or corrosion of bearing surfaces, rough or noisy operation, and accelerated wear due to lubricant contamination.
6. Overload:
Increased looseness in the wheelset, overheating of the bearing assembly, and accelerated wear of bearing parts.
Preventive Measures:
- Regularly inspect and maintain the knuckle bearings to ensure that the inside of the bearings are well-greased and clean.
- Avoid prolonged use of knuckle bearings under high loads and minimize shocks and vibrations.
- Select knuckle bearing of reliable quality and install them according to the correct specifications and methods.
- If the knuckle bearing is found to be faulty, it should be inspected and replaced in time to ensure the steering safety and maneuverability of the vehicle.
Factors Influencing Knuckle Bearing Performance
knuckle bearing performance is affected by several factors, including:
Different knuckle bearing sizes and types have different performance characteristics and load carrying capacity, and their friction varies;
The hardness, wear resistance and corrosion resistance of the bearing material also have an impact on performance and life;
Proper lubrication maintains the performance of knuckle bearing and prevents premature wear. Select the proper type of lubricant based on factors such as load, speed, and operating environment. And establish a regular lubrication program to ensure adequate lubrication to prevent friction and wear. Apply lubricant through methods such as oil baths, grease packages, or centralized lubrication systems when lubricant is used.
Whether the bearing is correctly mounted – for example, an improperly mounted bearing may result in too much or too little clearance within the bearing, both of which can affect performance and life.
The working environment of the bearings e.g., bearings that work in high humidity or highly corrosive environments may have their performance and life affected.
The load and speed to which the bearing is subjected will affect its performance and life. For example, high loads and high speeds can accelerate bearing wear.
Knuckle Bearing Installation Procedures
Preparation:
- Prepare the required tools and materials including new knuckle bearing, socket wrenches, torque wrenches, hammers, grease guns, cleaners, etc.
- Remove the tires and wheel hubs to gain access to the knuckle bearing.
Remove the old bearings:
- Use a socket wrench to remove the lock nut on the knuckle bearing. Remove the knuckle bearing from the knuckle by gently tapping on the inner race.
- Clean the steering knuckle and knuckle bearing housing to remove any grease, dirt, or debris.
Install the new bearing:
- Apply a thin film of grease to the knuckle bearing housing.
- Install the new knuckle bearing into the knuckle bearing housing, making sure it is properly aligned.
- Use a hammer to gently tap the outer race of the knuckle bearing to press it into place.
- Install the lock nut on the knuckle bearing and tighten it to the specified torque value using a torque wrench.
- Install the nuts and bolts securing the knuckle bearing and tighten them to the specified torque value using a torque wrench.
Applications of Knuckle Bearing
knuckle bearings are widely used in a variety of automotive and industrial machinery, and their main application areas include:
Automobile:
- Steering system: knuckle bearing is an important part of the steering system of automobiles, which connects the steering tie rods and the steering knuckles, allowing the steering tie rods to rotate freely, thus controlling the steering angle of the wheels.
- Suspension system: knuckle bearing is also used in the suspension system of automobiles, allowing the suspension components to rotate freely, thus improving the handling and comfort of the vehicle.
- Knuckle bearings are also used in other automotive components such as wheel bearings and differentials.
Industrial machinery:
- Engineering machinery: Knuckle bearings are used in various engineering machinery, such as excavators, loaders, and bulldozers.
- Agricultural machinery: Knuckle bearings are also used in various agricultural machinery, such as tractors and harvesters.
- Knuckle bearings are also used in various industrial machinery, such as conveyors, cranes, and forklifts.
Other Applications:
- Motorcycles and Bicycles: knuckle bearings are also used in the steering systems of some motorcycles and bicycles.
Conclusion
knuckle bearing – an important guarantee for automobile steering system
In short, the knuckle bearing is an important guarantee for the automobile steering system, and its performance directly affects the vehicle’s handling and safety. By understanding all aspects of the knuckle bearing, we can better maintain and maintain the bearing and extend its service life, thereby ensuring the steering safety and controllability of the vehicle.
