Smooth Moves: Mastering Rotary Bearings In Machinery
Introduction
Rotary bearings are an integral part of mechanical design, and they play a key role in reducing friction, carrying loads, and improving equipment operating efficiency. From automobiles to industrial robots, rotary bearings are used in a wide range of applications, and their performance directly affects the stability and efficiency of the entire mechanical system. This article aims to take a comprehensive look at the versatile world of rotary bearings.
Understanding Rotary Bearings

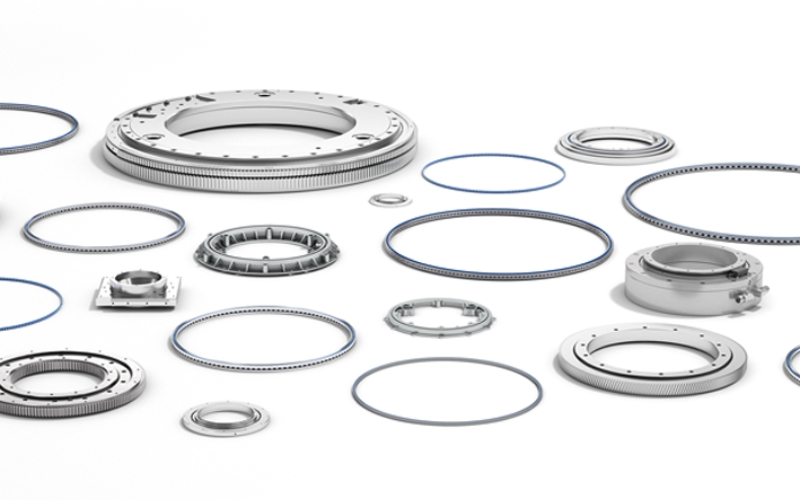

What Are Rotary Bearings?
Rotary bearings are mechanical components that support rotating parts and reduce friction during movement. Rotary bearings are located between stationary and moving parts, such as shafts and wheels, and act to allow free rotation while carrying loads. The design of rotary bearings allows mechanical systems to operate with greater precision and efficiency while reducing energy consumption and wear.
The basic uses of rotary bearings in mechanical design include:
- Support for rotating parts
- Reducing friction
- Supporting loads
- Ensuring precise motion
- Extending mechanical life
Classification Of Bearings
Rotary bearings are categorized in a variety of ways, each type being differentiated by its design, use, and load-carrying capacity. Below are some common types of rotary bearings:
- Thrust Bearings:
Thrust bearings are specifically designed to carry loads in the axial direction, also known as axial loads. They are typically used in applications that require a large amount of axial force, such as large motors and turbines.
- Fixed Roller Bearings (Caged Roller Bearings):
Fixed roller bearings use cages to keep the rollers evenly spaced, preventing the rollers from contacting each other and thus reducing friction and wear. These bearings are suitable for applications with high radial loads, such as heavy-duty machinery and transportation equipment.

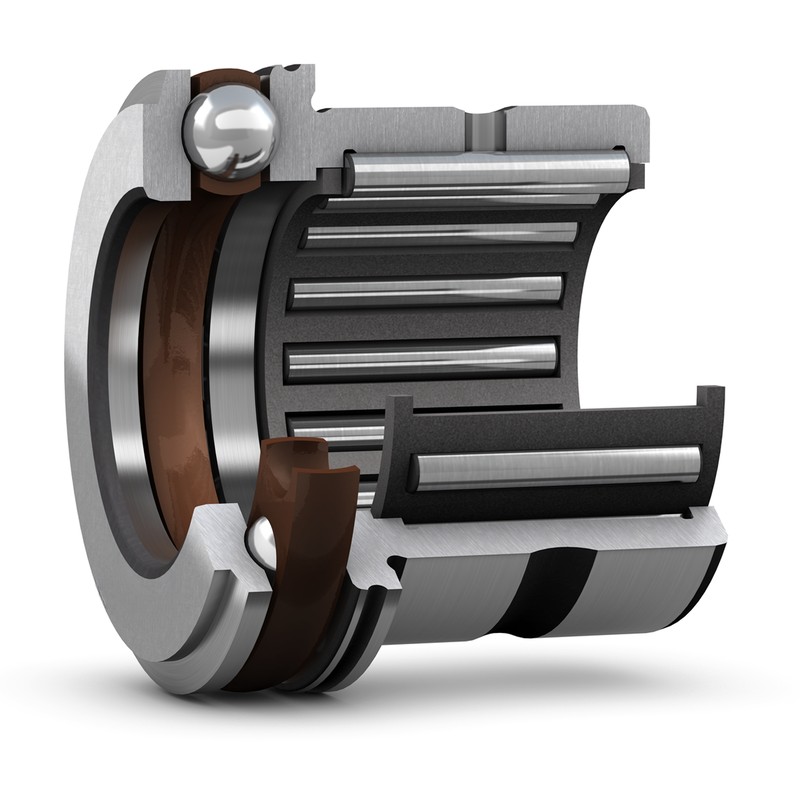

- Combined Needle Roller Bearings:
Combined needle roller bearings combine the functions of needle roller and thrust bearings to withstand both high radial and axial loads. This design makes the bearings particularly valuable in space-constrained applications such as automotive transmissions.

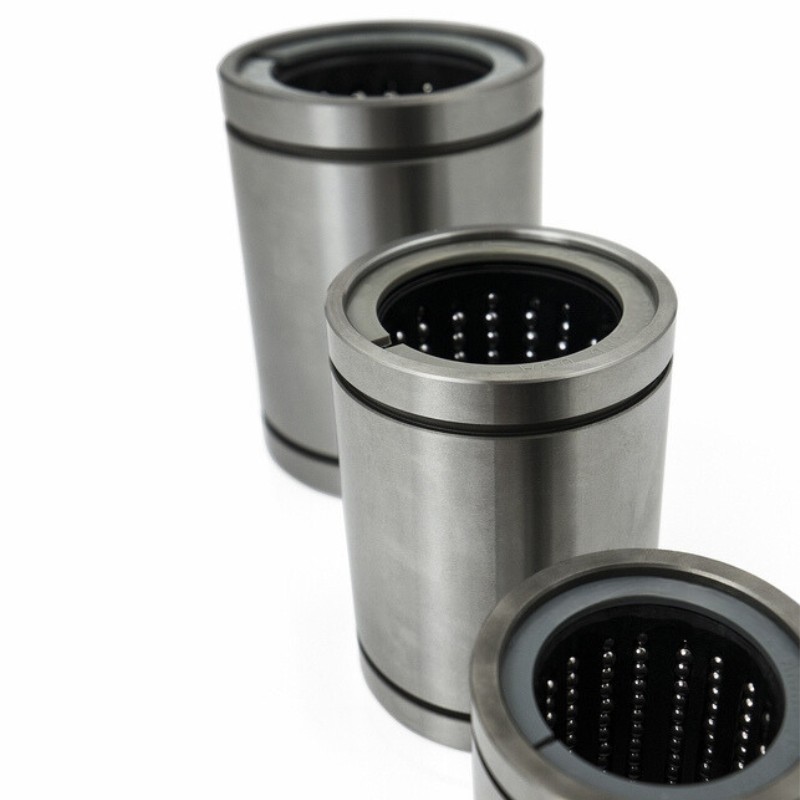

- Linear Rotary Bearings:
Linear rotary bearings are a special type that allows a combination of linear and rotary motion. These bearings are commonly used in mechanical systems that require precision positioning and linear motion, such as CNC machine tools.

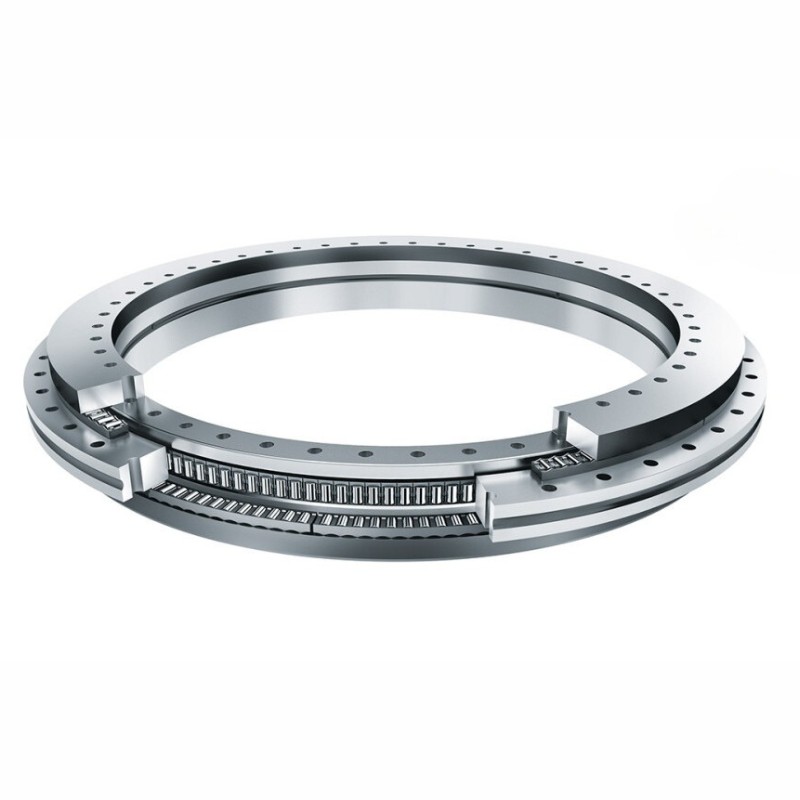

- Rotary Table Bearings:
Rotary table bearings are designed for high-precision and heavy-duty applications such as rotary tables and medical scanning equipment. They typically have large diameters and are able to withstand heavy loads while maintaining high accuracy.
Features Of Rotary Bearings
Rotary bearings have a wide range of features in the mechanical field, including:
- Load carrying capacity: Rotary bearings are designed to carry loads in various directions, including radial, axial and composite loads.
- High rotational speed performance: Good quality rotary bearings are able to maintain stability under high rotational speed conditions, ensuring the efficient operation of mechanical equipment.
- Low friction and high efficiency: Good rotary bearing design can reduce friction loss, improve transmission efficiency and reduce energy waste.
- Precise positioning: some rotary bearings have high-precision positioning ability, which can ensure the accurate position of mechanical components in the operation process.
- High-temperature and corrosion resistance: some rotary bearings are made of special materials and coatings with high-temperature and corrosion-resistant properties, which are suitable for harsh working environments.
- Low noise and smooth operation: High quality rotary bearings are designed to reduce noise and vibration during mechanical operation, enhancing the comfort and safety of the working environment.
- Modular design: Modern rotary bearings usually adopt modular design, which is easy to install, maintain and replace, improving the flexibility and reliability of mechanical equipment.
Selection Criteria For Rotary Bearings
Key factors that require special attention when selecting rotary bearings:
- Load
The type of load the bearing needs to withstand including axial load, radial load or composite load will directly affect the bearing selection.
In addition, the magnitude of the load is also an important factor. High loads usually require the use of roller bearings rather than ball bearings, as roller bearings provide a larger contact area and therefore better distribution of the load.
- Speed
The speed at which a bearing operates (revolutions per minute) is an important basis for selecting the type of bearing. High-speed applications may require specially designed bearings, such as the use of precision manufacturing and special materials to minimize friction and heat build-up.
In addition the dynamic conditions (start/stop frequency) and static conditions of the bearing will also influence bearing selection.
- Environmental conditions
Operating temperatures can greatly affect bearing performance. High temperature environments may require the use of bearings that can withstand thermal expansion and special lubrication conditions.
Bearings operating in corrosive environments may require the use of stainless steel or coated protective materials to improve corrosion resistance.
Bearings operating in environments where dust, dirt or moisture are present may require special seals and protection.
- Space limitations
The amount of available mounting space directly affects the size and type of bearing. In space-constrained applications, it may be necessary to select a compact design or a specific shape of bearing to accommodate the mechanical design.
At the same time, the shape and size of the bearing should match the buttress design of the mechanical components to ensure proper mounting and operation.
- Life and reliability requirements
The expected life of a bearing is an important consideration in selection. In high load or high speed applications, selecting bearing materials and lubrication with good wear resistance can reduce maintenance requirements and replacement frequency.
- Precision and accuracy specifications
Depending on the operational requirements of the machinery and equipment, select bearings that meet the standards of accuracy ratings to ensure the operational stability and accuracy of the equipment.
For mechanical equipment that requires precise positioning, select rotary bearings with high positioning accuracy to ensure the precise position and operational stability of mechanical components.
How To Pick The Right Lubricant For Rotary Bearings?
Proper lubrication is very important. Proper lubrication reduces friction and wear, lowers energy loss, and improves the operating efficiency and reliability of rotary bearings. In addition, good lubrication prevents the bearing from overheating due to friction.
For different application requirements, you can choose the appropriate type of lubricant:
- Lubricant: suitable for high speed, high temperature, and low load conditions of the rotary bearing, can quickly achieve lubrication effect and provide good lubrication performance.
- Grease: suitable for low and medium speed, high load, and harsh working environment of the rotary bearing, with good vibration resistance and sealing performance, can provide a long time lubrication protection.
- Solid lubricant: It is suitable for rotary bearings under high temperature, high pressure, and vacuum environment, and can provide a stable lubrication effect under extreme conditions, and has good corrosion resistance.
To ensure that rotary bearings are effectively lubricated, the a need to develop a lubrication practice plan:
- Regular lubrication: According to the frequency of use and working conditions of rotary bearings, formulate a suitable lubrication plan and carry out regular lubrication maintenance to keep the bearings in good condition.
- Correct lubrication amount: According to the size, type, and working conditions of rotary bearings, determine the appropriate amount of lubrication to avoid too much or too little lubrication resulting in bearing damage or lubricant waste.
- Lubrication method: According to the structure and working environment of the bearing, choose the appropriate lubrication method.
- Lubrication monitoring: monitor the lubrication status of the bearings through the temperature, pressure, and viscosity of the lubricant or grease and other parameters to detect lubrication problems and make adjustments in time.
Applications For Rotary Bearings
Rotary bearings are widely used in almost all applications where rotary motion and force transmission are required. Their design and function can be useful in a variety of industries. Below are some examples of rotary bearing applications in major industries:
1. Automotive industry
Wheel bearings: Automotive wheel bearings are used to support the weight of the wheels and ensure smooth rotation.
Transmission bearings: Bearings in transmissions help ensure smooth rotation of gears, providing efficient and smooth power transmission.
2. Aerospace
Turbine bearings: In aircraft engines, turbine bearings must withstand extremely high speeds and temperatures, and are key components in ensuring engine performance and reliability.
Flight control system bearings: Bearings used in flight control systems to ensure accurate and responsive control surfaces.
3. Manufacturing
Machine tool bearings: In a variety of machine tools, such as lathes and milling machines, bearings are used to ensure precise movement of tools.
Conveyor system bearings: Used in conveyor belts and other material handling equipment, bearings keep systems running smoothly and reduce maintenance requirements.
4. Electronic and Precision Equipment
Hard disk drive bearings: In hard disk drives, bearings are used to support the high-speed rotation of the disk.
Camera lens bearings: Precision bearings are used in the focusing and zooming mechanisms of camera lenses.
5. Renewable Energy
Wind Turbine Bearings: Bearings in wind turbines support the rotating blades and generator components.
6. medical equipment
Medical scanning equipment bearings: In MRI and CT scanners, for example, bearings help to move scanning parts precisely.
7. Heavy industry
Mining and construction machinery bearings: In mining equipment and construction machinery, bearings carry heavy loads and resist extreme environments.
Conclusion
Rotary bearings in modern industrial and technical equipment not only ensure that mechanical components can run efficiently and smoothly, but also greatly reduce energy consumption and wear and tear, and improve the reliability and life of the overall equipment. A proper understanding of the function and application of bearings is essential to the design, operation and maintenance of equipment. Timely maintenance and accurate fault diagnosis can effectively extend the service life of bearings and related mechanical equipment, and avoid economic losses and safety risks caused by unexpected failures.
Therefore, it is of great significance to strengthen the understanding of the performance of rotary bearings and improve maintenance skills to safeguard the productivity and technological progress of various industries. While continuously pursuing technological innovation and optimization, more attention should be paid to the balance between practicality and sustainability to ensure a win-win situation for technological development and environmental protection.
